Product Details
＋
General Information
Brand
Greenlee
Part Number
CM-1360-C
Product Type
Clamp Meter
What's Included
(2) 1.5V AA batteries, TSG-3 test leads, TC-30 carrying case
Packaging
Retail
Country of Origin
Taiwan
UPC
783310022213
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.05 kg
0.12 lb
Details
Features

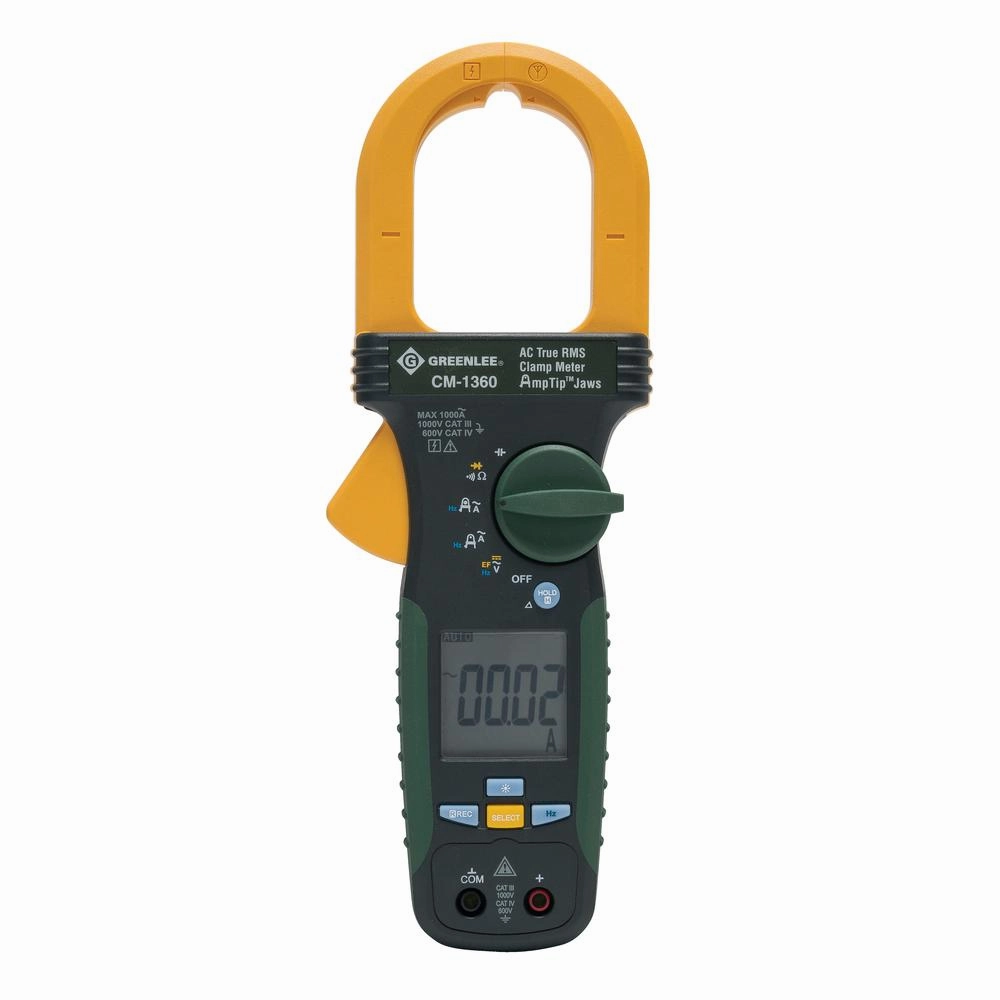

CM-1360 Clamp meter with Certificate of Calibration
Measures AC current
AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance and frequency
Tests continuity and diodes
Flashlight inside clamp jaw for easier work in dark locations
Backlight & relative mode for added versatility
AmpTip increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Data hold
Recording of Maximum, Minimum, and Average readings
Amperage Measurement: 60, 600, 1000 Amps AC
Measurement Category: CAT III 1000V, CAT IV 600V
Standard: CAT IV, C/US UL Listed, CE
True Power: AC True RMS
Measures AC current
AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance and frequency
Tests continuity and diodes
Flashlight inside clamp jaw for easier work in dark locations
Backlight & relative mode for added versatility
AmpTip increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Data hold
Recording of Maximum, Minimum, and Average readings
Amperage Measurement: 60, 600, 1000 Amps AC
Measurement Category: CAT III 1000V, CAT IV 600V
Standard: CAT IV, C/US UL Listed, CE
True Power: AC True RMS
Jaw Size
2.0'' (51 mm)
Voltage
600, 1000 Volts AC/DC
Resistance (Ohms)
600, 6k, 60k Ohms
Frequency
Voltage: 50/60 Hz. Current: 40 to 400 Hz
Batteries
(2) 1.5V AA batteries
Display Type
LCD, 6000 Count
