Product Details
＋
General Information
Brand
Greenlee
Part Number

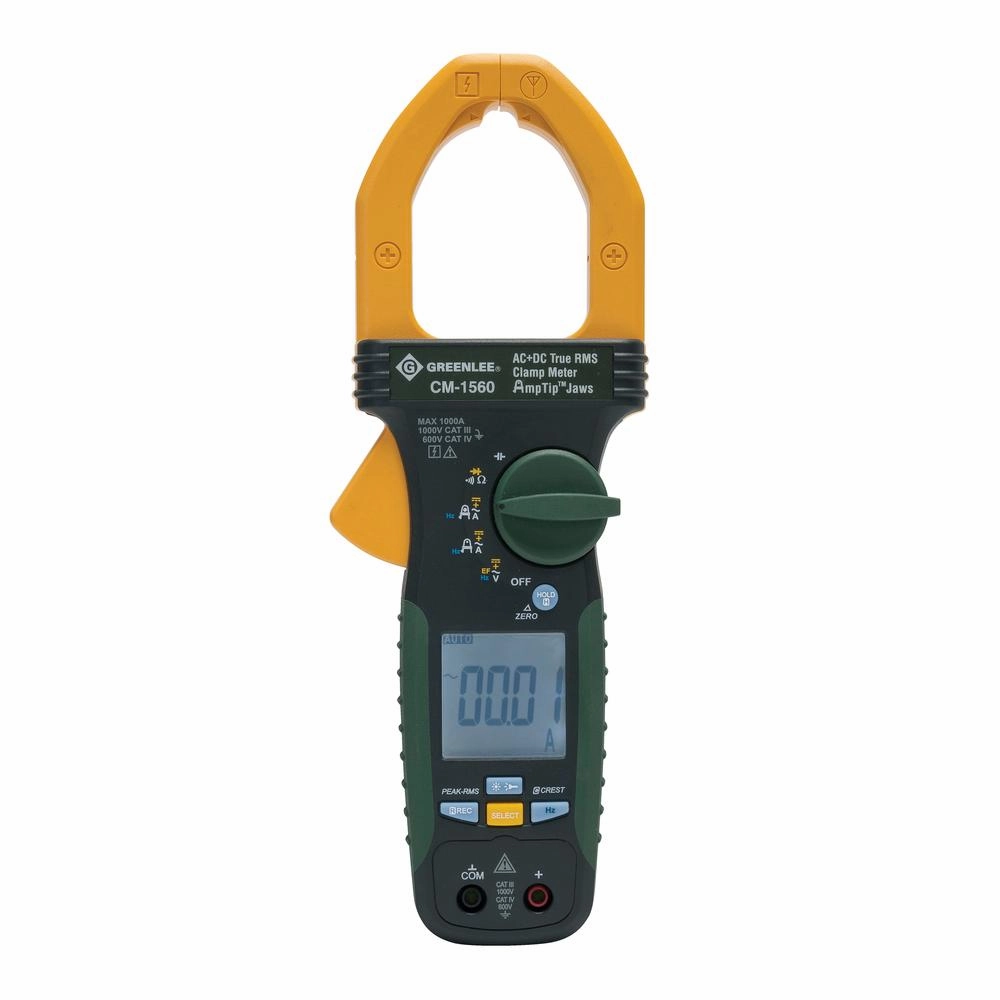

CM-1560
Product Type
Clamp Meter
What's Included
(2) 1.5V AA batteries, TSG-3 test leads, TC-30 carrying case
Packaging
Retail
Country of Origin
Taiwan
UPC
783310021889
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.84 kg
1.85 lb
Details
Features
Measures AC DC current
AC and AC DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance and frequency
Tests continuity and diodes
Flashlight inside clamp jaw for easier work in dark locations
Backlight & relative mode for added versatility
Peak-RMS measures motor inrush current
AmpTip increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Data hold
Recording of Maximum, Minimum, and Average readings
Crest (peak hold) feature captures current or voltage peaks as short as 5 milliseconds
Amperage Measurement: 60, 600, 1000 Amps AC DC
Measurement Category: CAT III 1000V, CAT IV 600V
Standard: CAT IV, C/US UL Listed, CE
True Power: AC DC True RMS
AC and AC DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance and frequency
Tests continuity and diodes
Flashlight inside clamp jaw for easier work in dark locations
Backlight & relative mode for added versatility
Peak-RMS measures motor inrush current
AmpTip increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Data hold
Recording of Maximum, Minimum, and Average readings
Crest (peak hold) feature captures current or voltage peaks as short as 5 milliseconds
Amperage Measurement: 60, 600, 1000 Amps AC DC
Measurement Category: CAT III 1000V, CAT IV 600V
Standard: CAT IV, C/US UL Listed, CE
True Power: AC DC True RMS
Jaw Size
2.0'' (51 mm)
Voltage
600, 1000 Volts AC/DC
Resistance (Ohms)
600, 6k, 60k Ohms
Frequency
Voltage: 50/60 Hz. Current: 40 to 400 Hz
Batteries
(2) 1.5V AA batteries
Display Type
LCD, 6000 Count
