Product Details
＋
General Information
Brand
Greenlee
Part Number

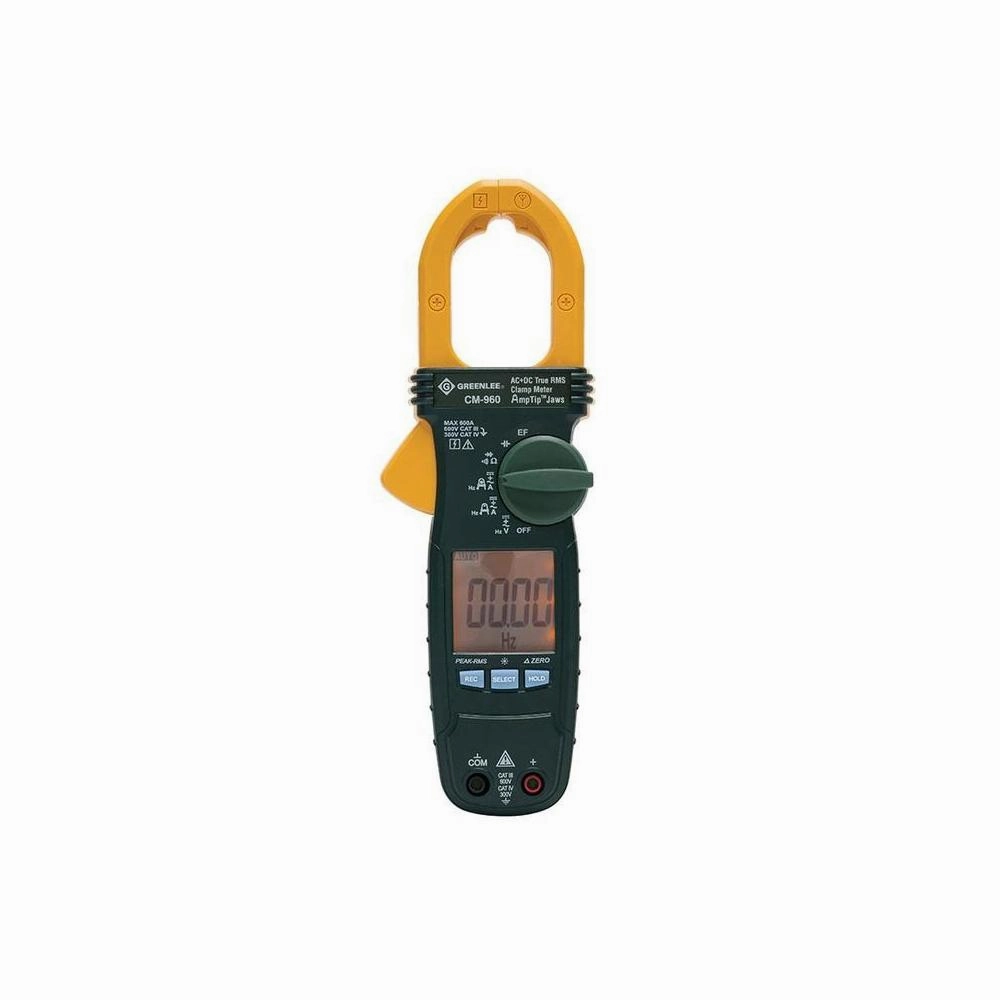

CM-960-C
Product Type
Clamp Meter
What's Included
(2) 1.5V AAA batteries, TSG-3 test leads, TC-10 carrying case
Packaging
Retail
Country of Origin
Taiwan
UPC
783310022305
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.54 kg
1.20 lb
Details
Measurement Standard
CAT III, C/US UL Listed, CE
Features
CM-960 Clamp meter with Certificate of Calibration
Measures AC DC current
AC and AC DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance and frequency
Tests continuity and diodes
Peak-RMS measures motor inrush current
Backlight & relative mode for added versatility
AmpTip increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Data hold
Recording of Maximum, Minimum, and Average readings
Amperage Measurement: 60, 600 Amps AC DC
Measurement Category: CAT III 600V, CAT IV 300V
True Power: AC DC True RMS
Measures AC DC current
AC and AC DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance and frequency
Tests continuity and diodes
Peak-RMS measures motor inrush current
Backlight & relative mode for added versatility
AmpTip increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Data hold
Recording of Maximum, Minimum, and Average readings
Amperage Measurement: 60, 600 Amps AC DC
Measurement Category: CAT III 600V, CAT IV 300V
True Power: AC DC True RMS
Jaw Size
1.18'' (30 mm)
Voltage
600 Volts AC DC
Resistance (Ohms)
600, 6k, 60k Ohms
Frequency
Voltage and AmpTip current: 50/60 Hz. High current: 50 to400 Hz
Batteries
(2) 1.5V AAA batteries
Display Type
LCD, 6000 Count
