Product Details
＋
General Information
Brand
Greenlee
Part Number
CMGRT-100A
Product Type
Ground Resistance Tester

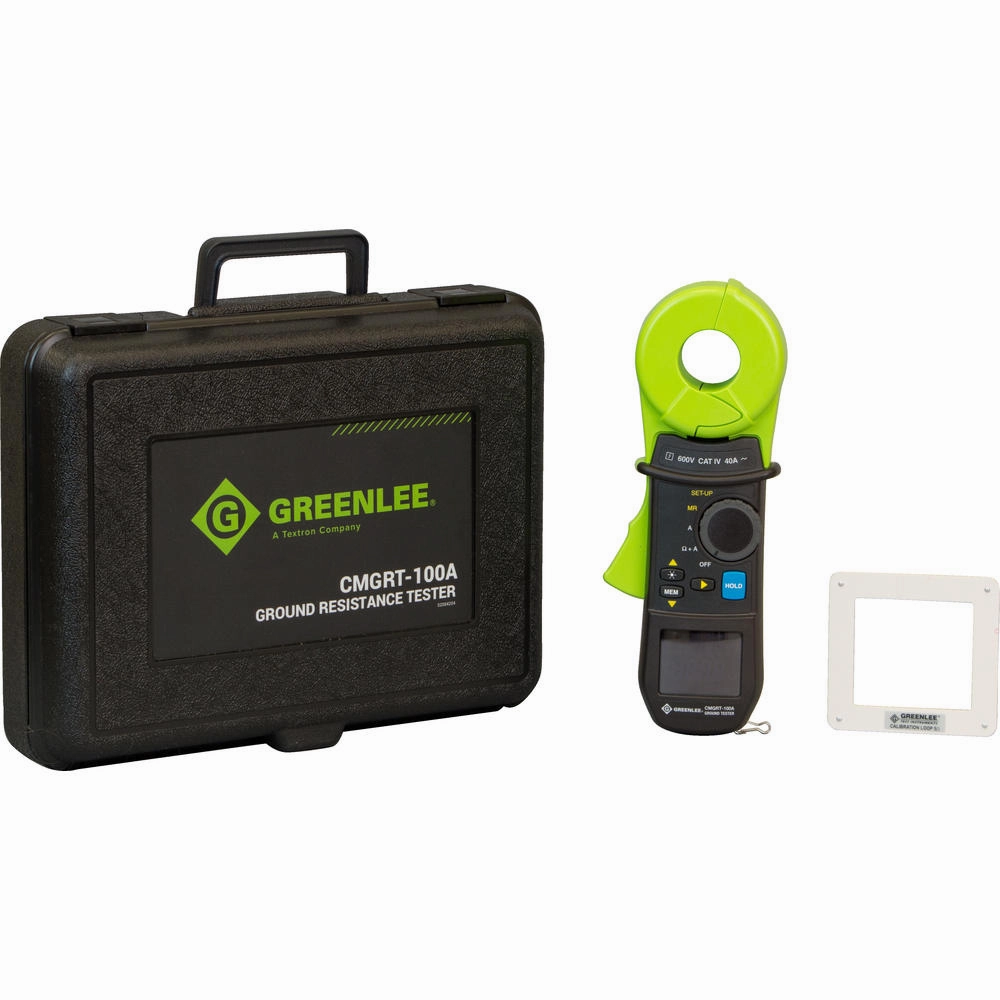

What's Included

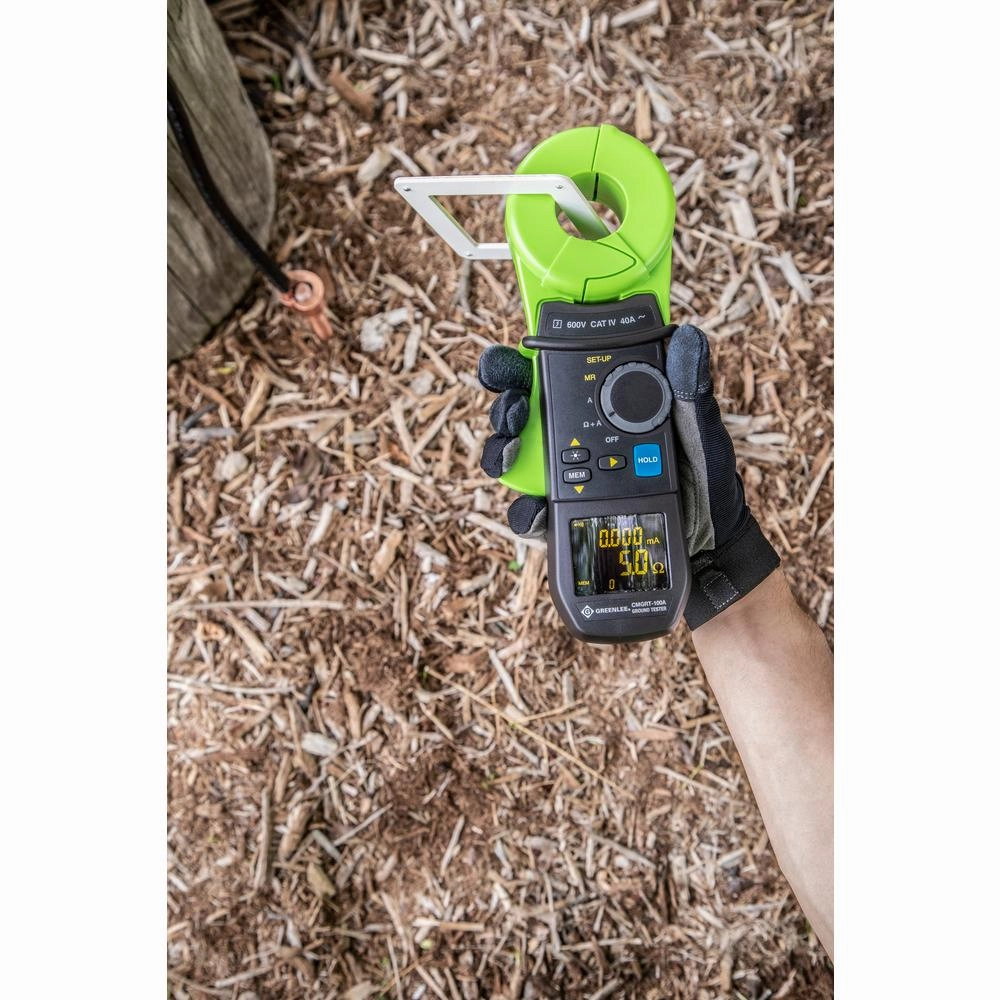

Calibration loop
Packaging
Retail
Country of Origin
France
UPC
783310082217
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Weight
2.27 kg
5.00 lb
Details
Measurement Standard
CE, ETL
Features

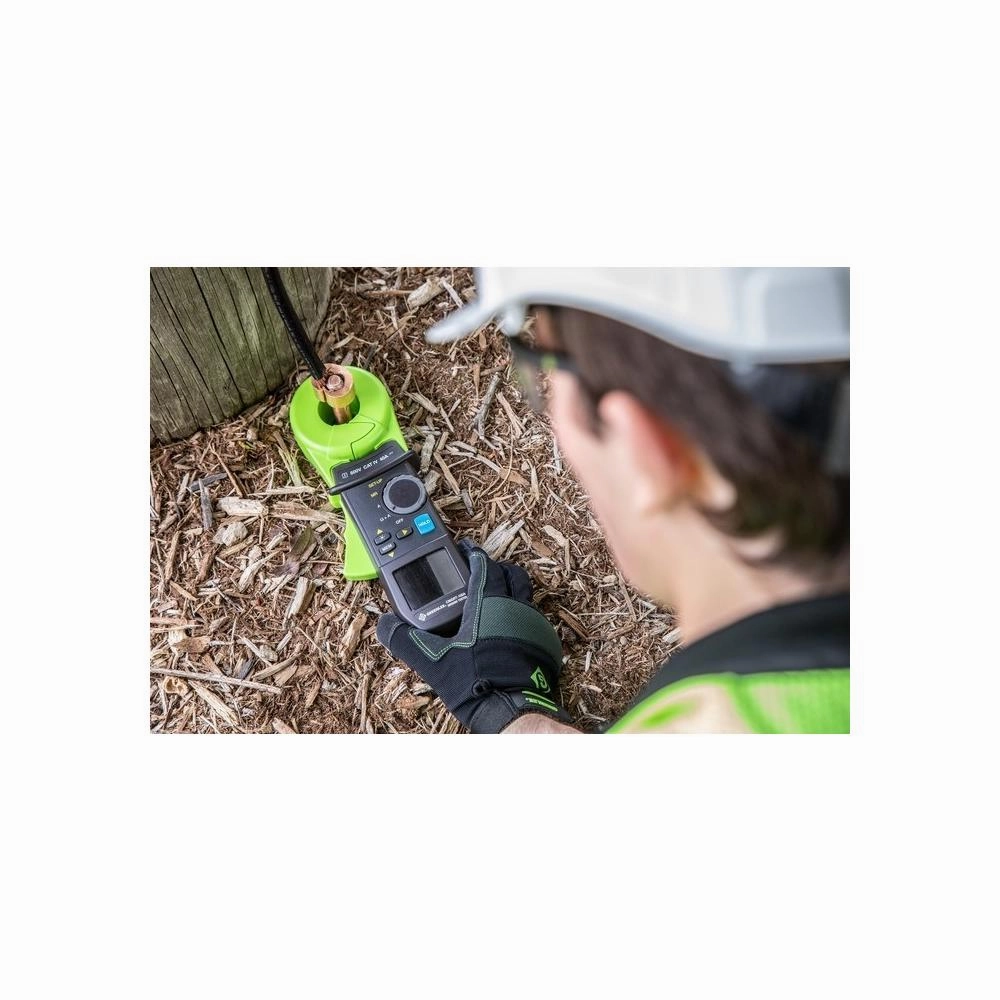

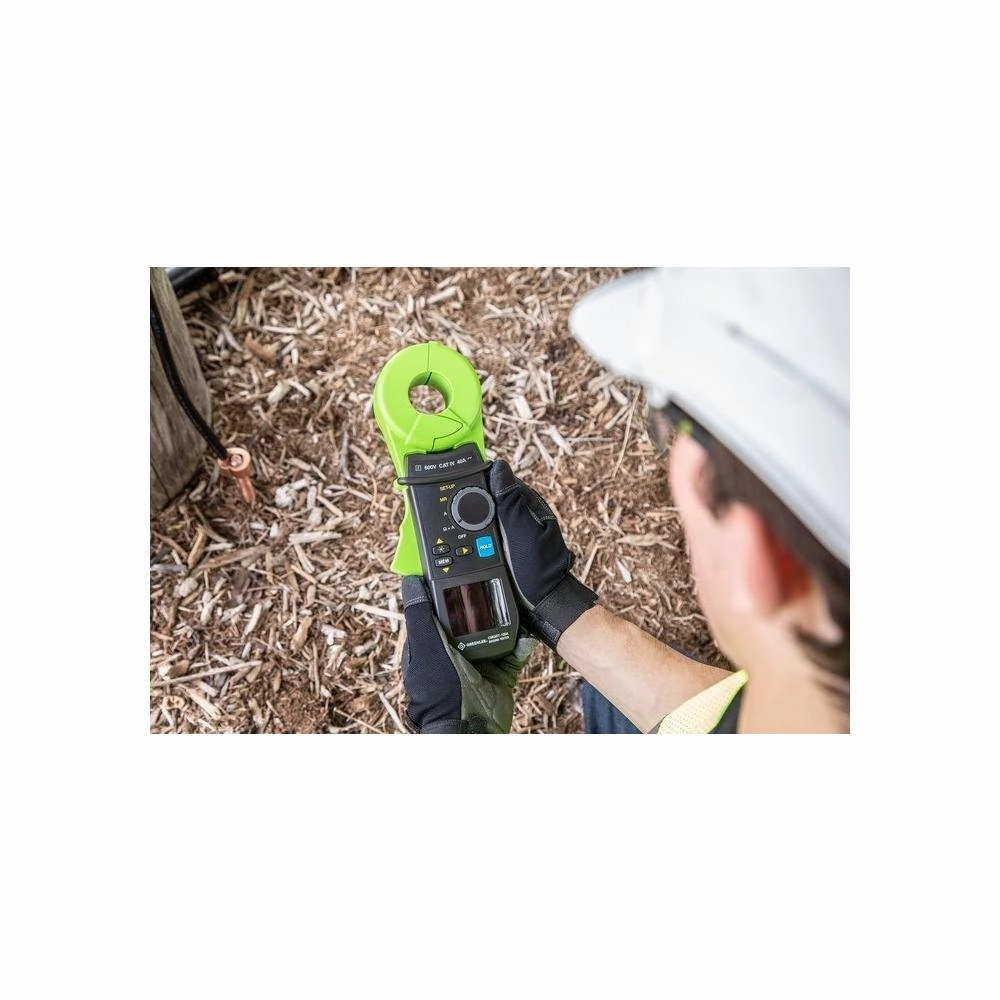

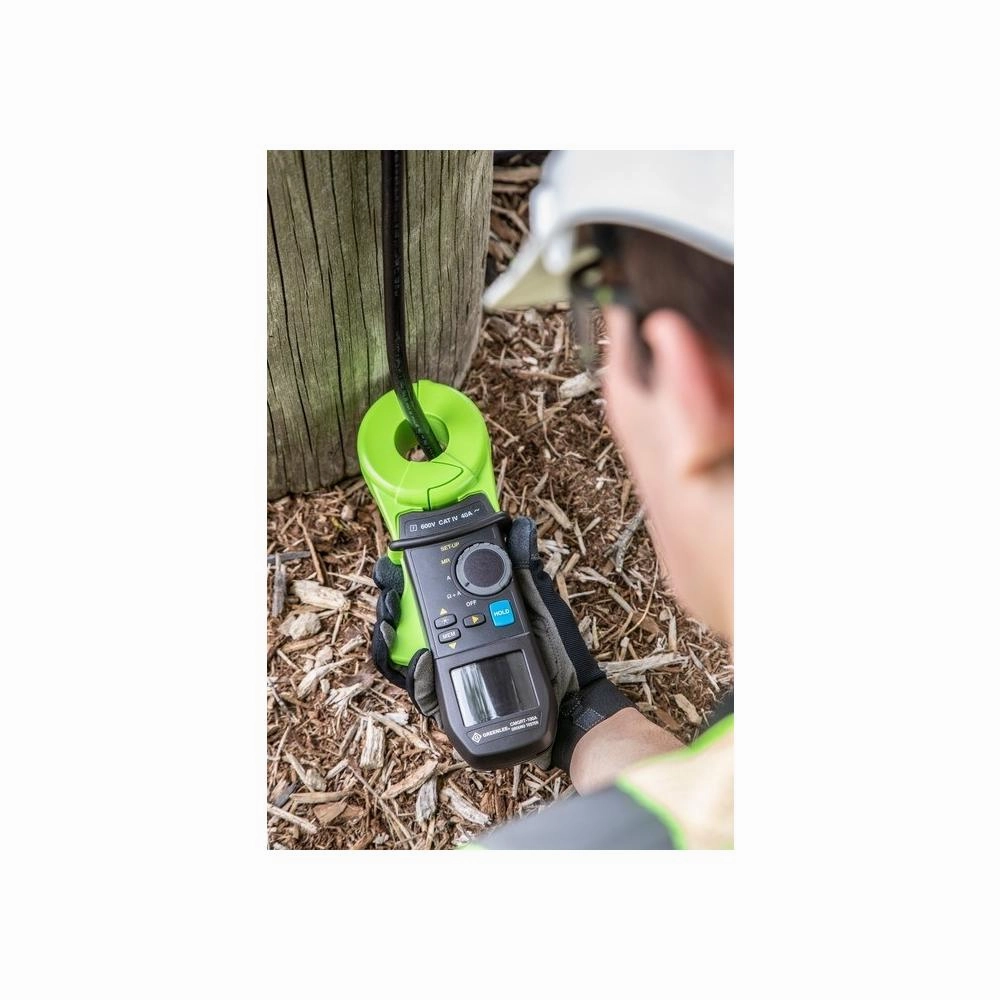

Measure Grounding Circuit Performance Without Disrupting Service
Reads ground resistance down to 0.10
Fully auto-ranging with data hold to capture readings
Accessories included: Molded carrying case, 9V Alkaline Battery and calibration verification loop
Impedance function capable of testing 4 separate frequencies (50Hz, 60Hz, 128Hz, & 2083Hz)
Widest operating temperature range ( - 4 to 131F) in the industry
Ground Resistance Measurement: .01 to 1500 ohms
Measurement Category: Cat IV: 600V
Operation Type: Hand Held
Reads ground resistance down to 0.10
Fully auto-ranging with data hold to capture readings
Accessories included: Molded carrying case, 9V Alkaline Battery and calibration verification loop
Impedance function capable of testing 4 separate frequencies (50Hz, 60Hz, 128Hz, & 2083Hz)
Widest operating temperature range ( - 4 to 131F) in the industry
Ground Resistance Measurement: .01 to 1500 ohms
Measurement Category: Cat IV: 600V
Operation Type: Hand Held
Jaw Size
1.4"
Resistance (Ohms)
.1 to 1500 ohms
Frequency
(4); 50, 60, 128, 2033Hz
Display Type
1.) OLED; Large, Bright 2.) 3-3/4--dgit, 4000 counts
