Product Details
＋
General Information
Brand
Greenlee
Part Number

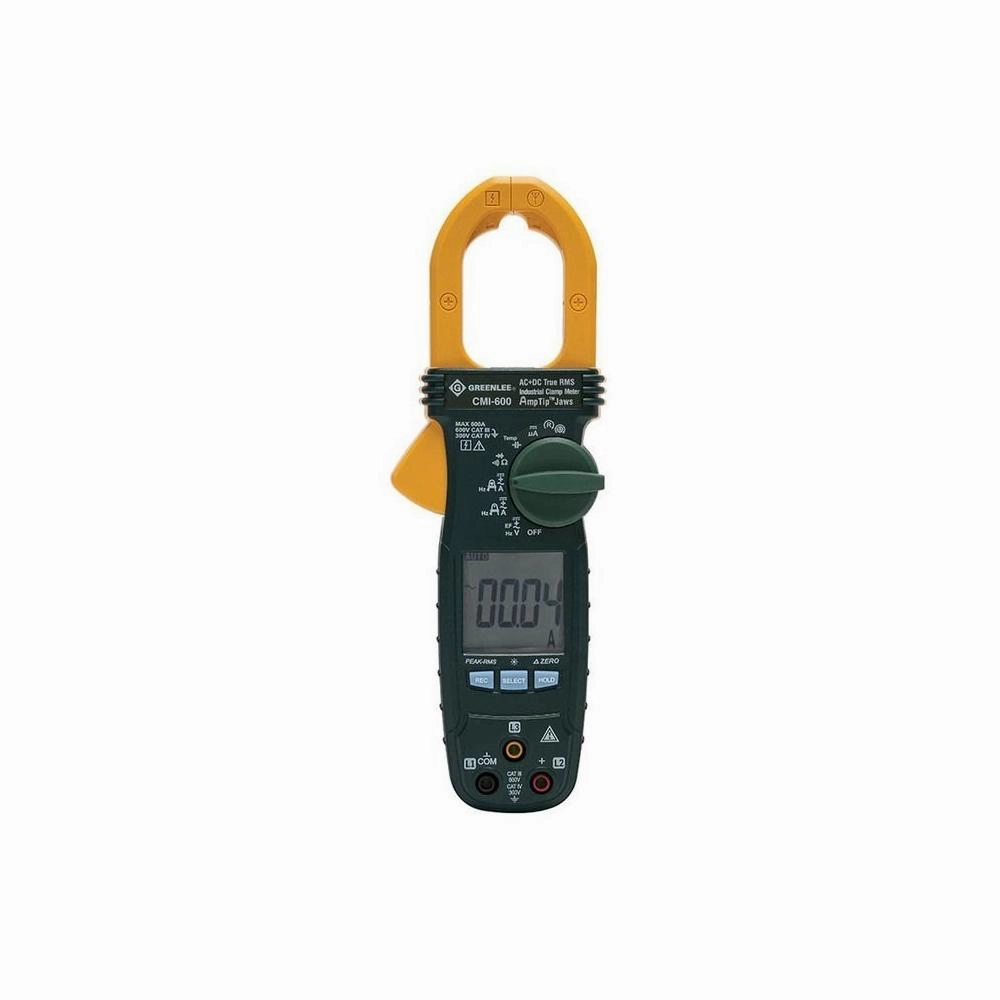

CMI-600-C
Product Type
Clamp Meter
What's Included
(2) 1.5V AAA batteries, 02714 test leads and clips, TC-10 carrying case
Packaging
Retail
Country of Origin
Taiwan
UPC
783310022299
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.05 kg
0.12 lb
Details
Measurement Standard
CAT III, C/US UL Listed, CE
Features
CMI-600 with Certificate of Calibration
Measures AC DC current and DC microamps
AC and AC DC voltage measurements with digital filter low pass for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance, temperature and frequency
Tests continuity and diodes
Phase Sequence & Motor Rotation tests
Peak-RMS measures motor in rush current
Backlight & relative mode for added versatility
AmpTip increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Data hold
Recording of Maximum, Minimum, and Average readings
Amperage Measurement: 60, 600 Amps AC DC
Measurement Category: CAT III 600V, CAT IV 300V
True Power: AC DC True RMS
Measures AC DC current and DC microamps
AC and AC DC voltage measurements with digital filter low pass for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance, temperature and frequency
Tests continuity and diodes
Phase Sequence & Motor Rotation tests
Peak-RMS measures motor in rush current
Backlight & relative mode for added versatility
AmpTip increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Data hold
Recording of Maximum, Minimum, and Average readings
Amperage Measurement: 60, 600 Amps AC DC
Measurement Category: CAT III 600V, CAT IV 300V
True Power: AC DC True RMS
Jaw Size
1.18'' (30 mm)
Resistance (Ohms)
600, 6k, 60k Ohms
Frequency
Voltage and AmpTip current: 50/60 Hz. High current: 50 to 400 Hz
Batteries
(2) 1.5V AAA batteries
Display Type
LCD, 6000 Count
