Product Details
＋
General Information
Brand
Greenlee
Part Number
CT-300
Product Type
Transformer Tester
What's Included

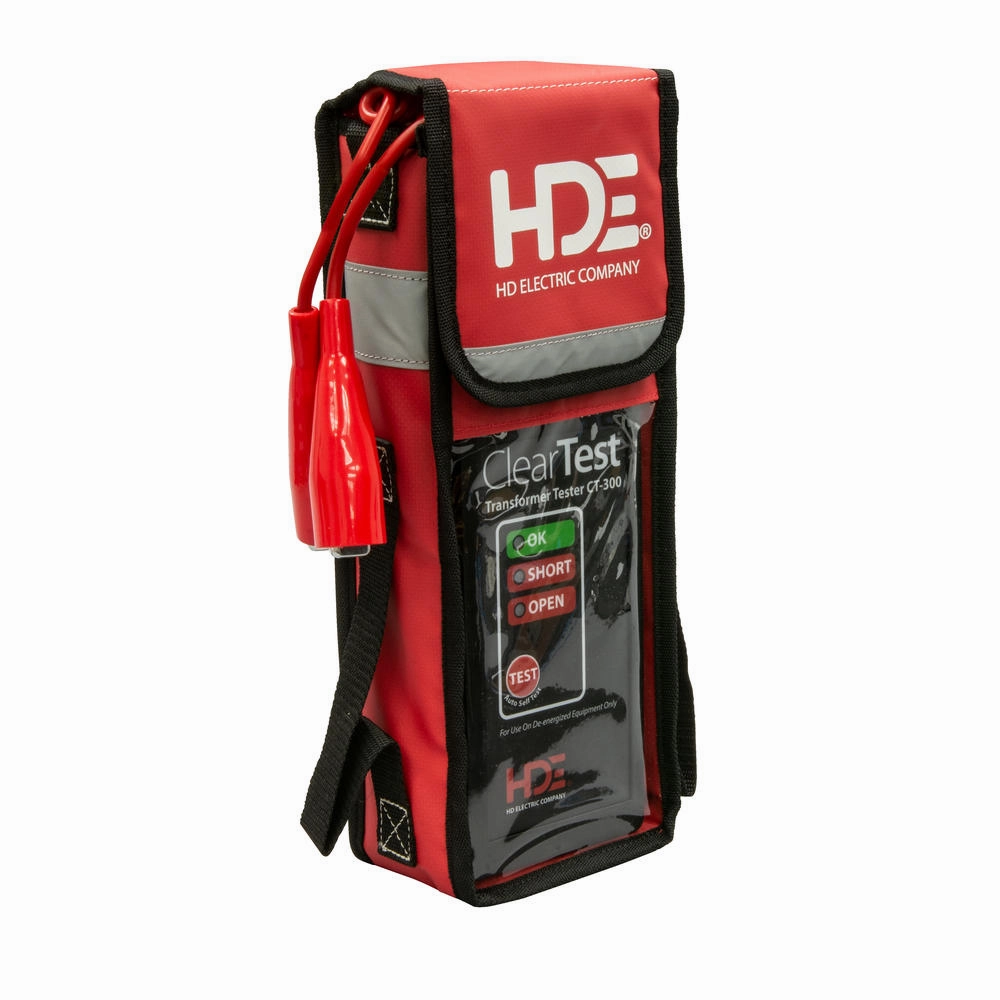

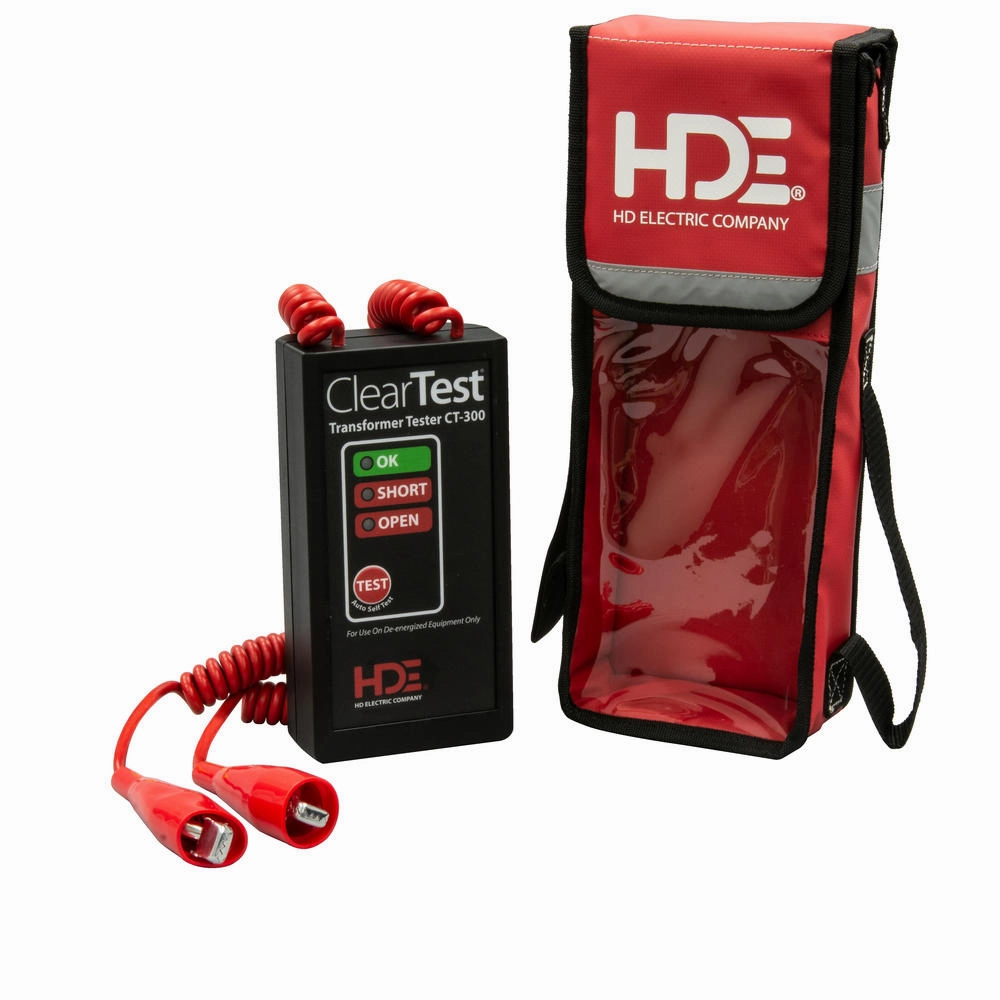

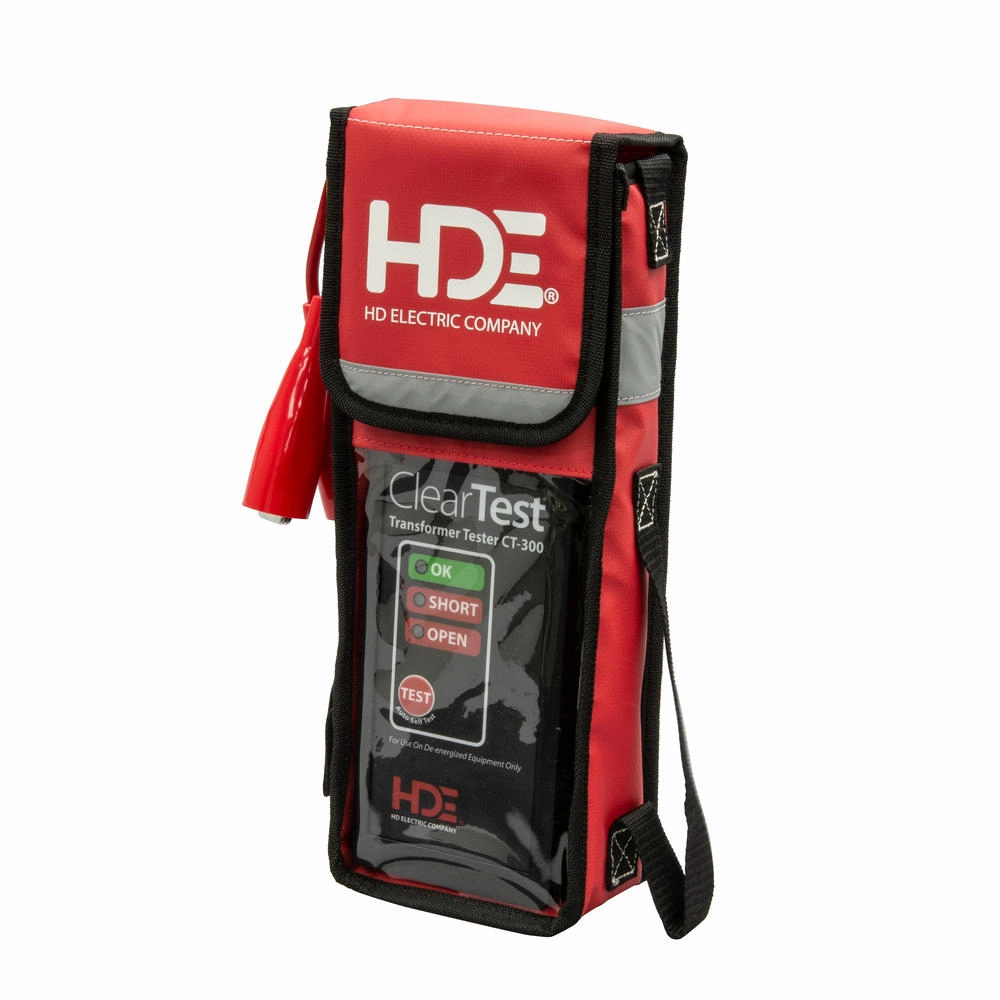

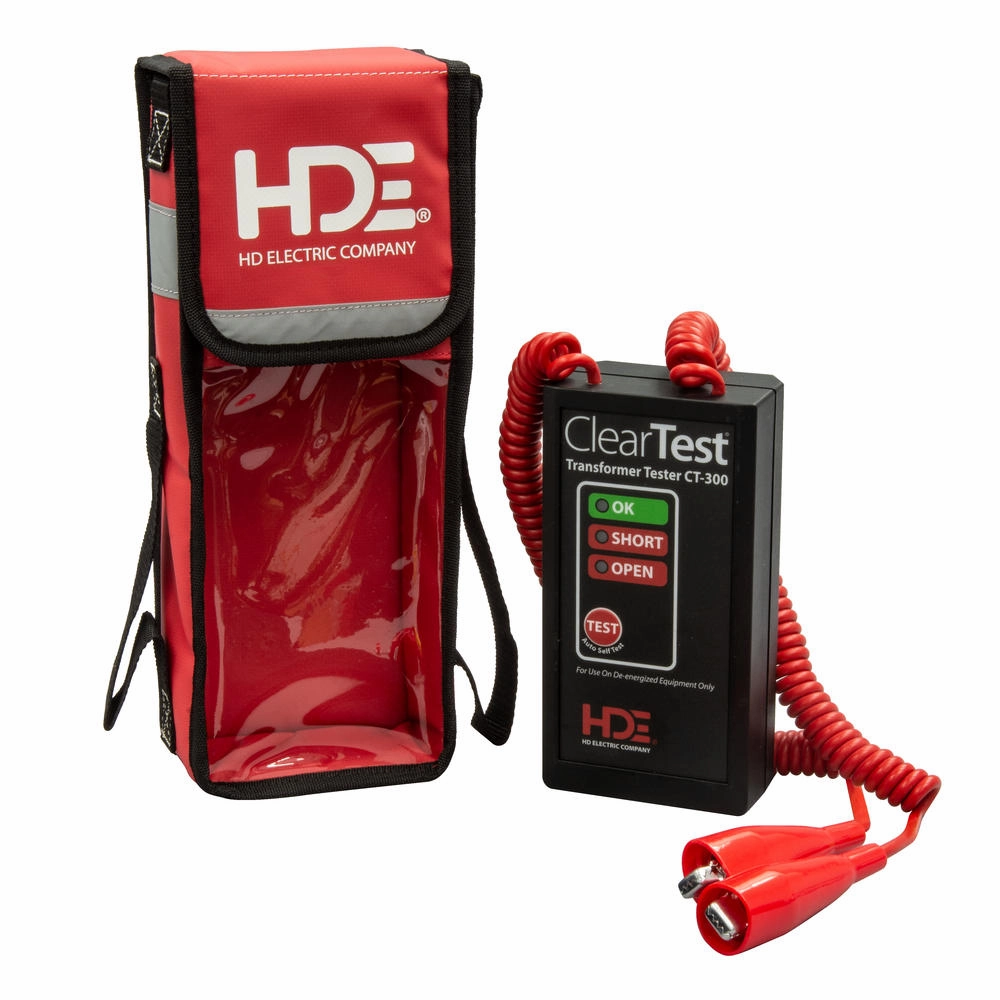

CT-300 Tester, B-9 Carrying Bag
Packaging
Retail
Country of Origin
United States
UPC
783310556961
California Residents
Proposition 65 Warning
Physical Characteristics
Length
7.8" (19.5 cm)
Width
4" (10.1 cm)
Height
2.3" (5.9 cm)
Weight
0.05 kg
0.12 lb
Details
Features
Quickly tests deenergized power distribution transformers
Briefly energizes the transformer and takes a snapshot of the condition by measuring the voltage, current and power factor of the test signal
Tests overhead, pad-mount and distribution transformers
Audible alarm confirms successful test
Improve SAIDI statistics by quickly testing and getting the transformer back in service
Auto self-test performed with every test
Compact, lightweight and easy-to-use
Output: 500VDC or 5,000VDC nominal
Enclosure: ABS UL 94-HB
Mounting: Magnet
Briefly energizes the transformer and takes a snapshot of the condition by measuring the voltage, current and power factor of the test signal
Tests overhead, pad-mount and distribution transformers
Audible alarm confirms successful test
Improve SAIDI statistics by quickly testing and getting the transformer back in service
Auto self-test performed with every test
Compact, lightweight and easy-to-use
Output: 500VDC or 5,000VDC nominal
Enclosure: ABS UL 94-HB
Mounting: Magnet
Current
1,000A on 500VDC range; 100A on 5,000VDC range; 2,000A max
Temperature Range
-20F to 140F (-29C to 60C)
