Product Details
＋
General Information
Brand
Greenlee
Part Number
DDPM-40/K03
Product Type
Voltmeter & Phasing set
What's Included

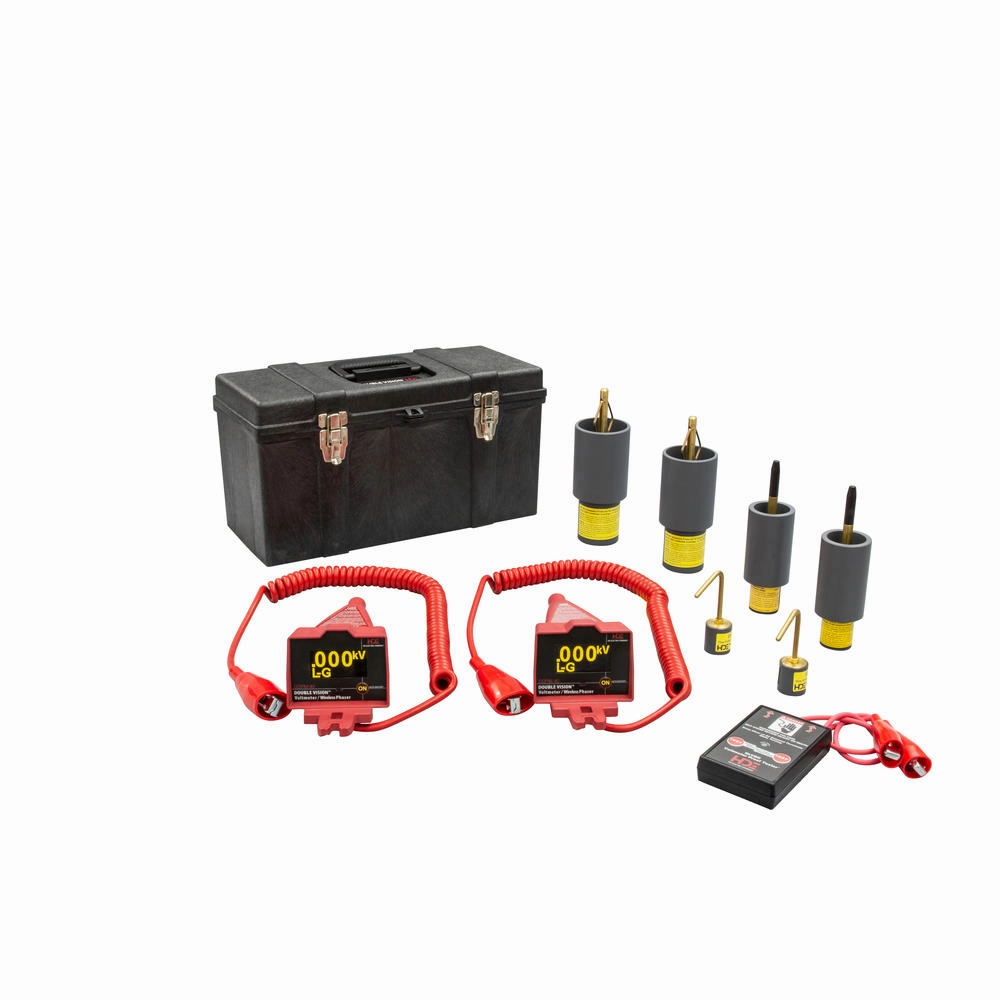

DDPM-40, (2) 025-OLPS-5 Overhead Brass Hook Probes (2), ASP-15/25 15kV/25kV UG Bushing Probe (2), ASP-35U 35kV UG Bushing Probe (2), PT-5000B Proof Tester, CS-DDVM Case
Packaging
Retail
Country of Origin
United States
UPC
783310042907
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Length
14" (36 cm)
Width
4.6" (12 cm)
Height
4.1" (10 cm)
Weight
0.05 kg
0.12 lb
Details
Features
Measures voltage from 5V to 43kV line-to-line

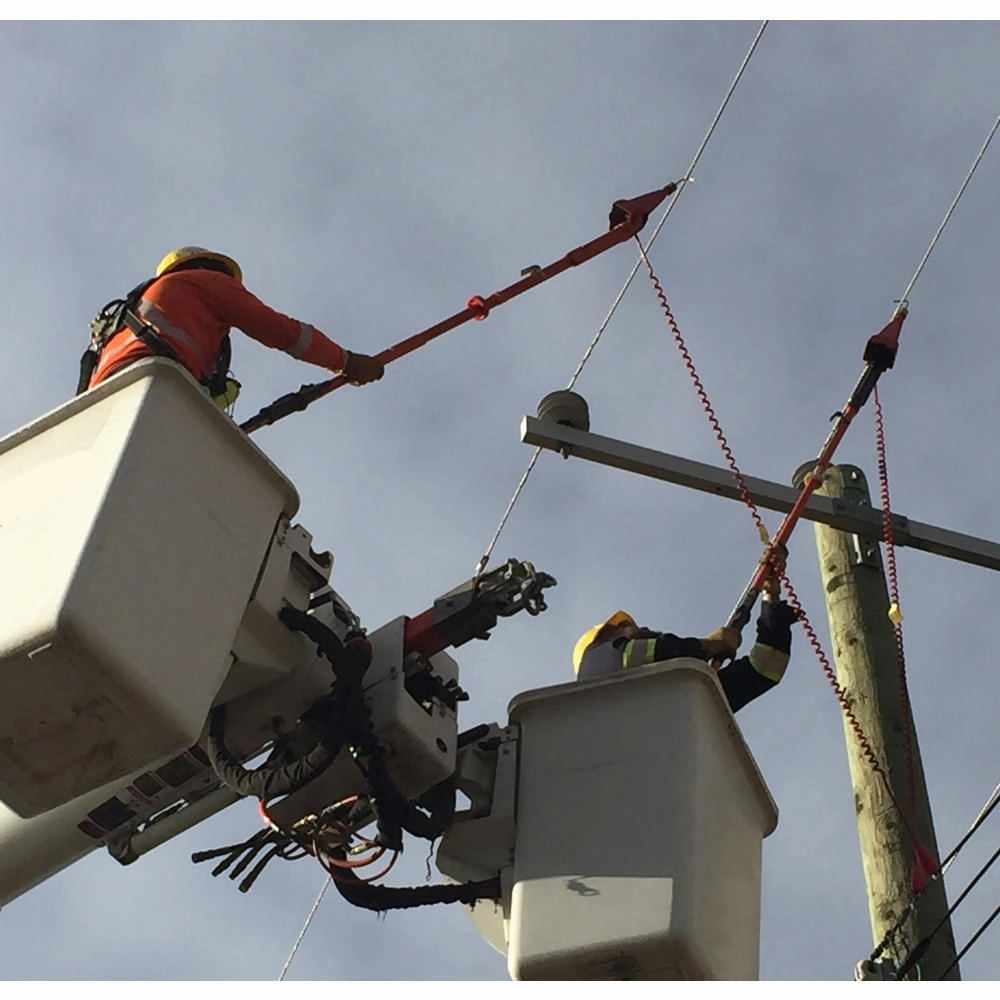

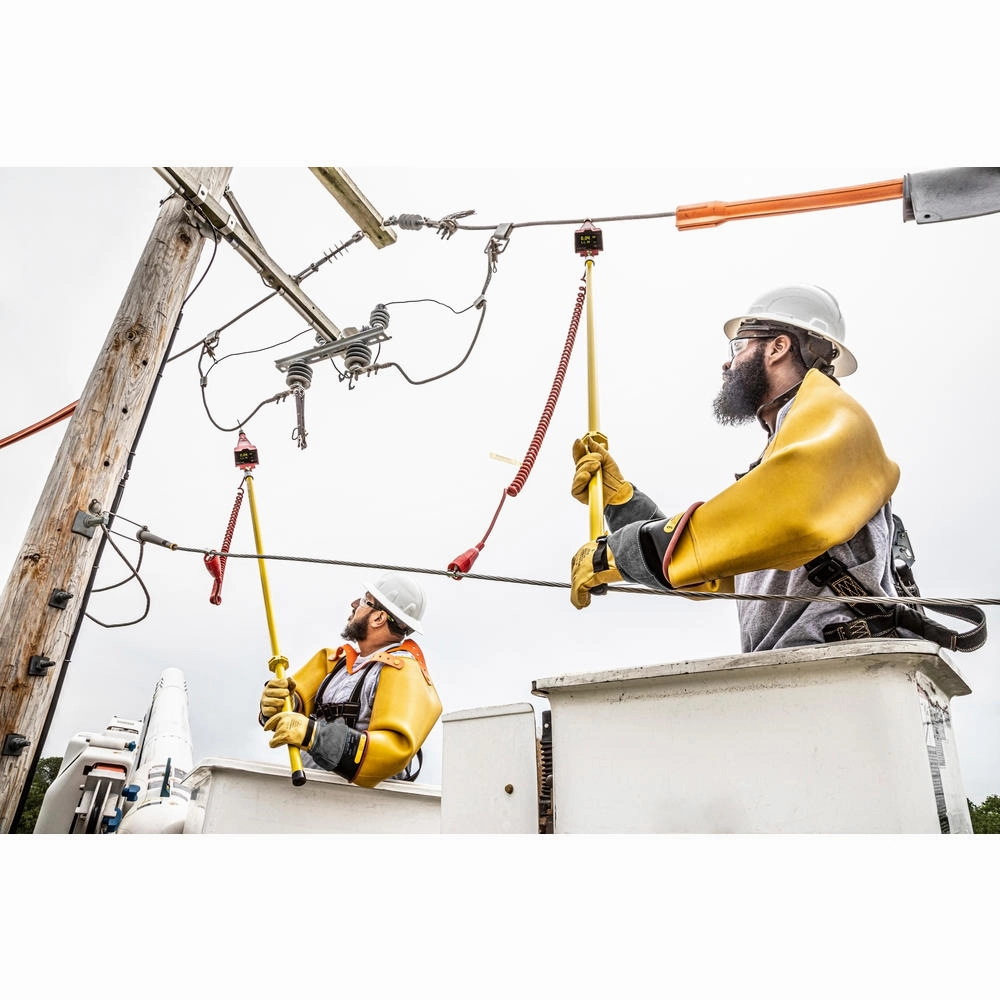

Can be used individually as voltmeters or together for phasing operations up to 100 ft. (30m) apart
Clear indication of phase angle
Two LED displays are automatically synchronized during phasing operations
Versatile for overhead and underground applications
Capacitive Test Point and Peak Hold modes
Accuracy: Within 1% of reading /- 3 counts (line-to-ground & line-to-line measurements)
Phase Indication: Phase Angle
Can be used individually as voltmeters or together for phasing operations up to 100 ft. (30m) apart
Clear indication of phase angle
Two LED displays are automatically synchronized during phasing operations
Versatile for overhead and underground applications
Capacitive Test Point and Peak Hold modes
Accuracy: Within 1% of reading /- 3 counts (line-to-ground & line-to-line measurements)
Phase Indication: Phase Angle
Voltage
5V - 43kV line-to-line, 5V - 25kV line-to-ground
Frequency
25 - 1000Hz AC/DC
Display Type
Two LED displays with 0.7" numeral height. Displays 3 digits
Temperature Range
-20F to 120F (-29C to 49C)
