Product Details
＋
General Information
Brand
Greenlee
Part Number
DDVIP-138/K01
Product Type
Voltage Indicator & Phasing set
What's Included

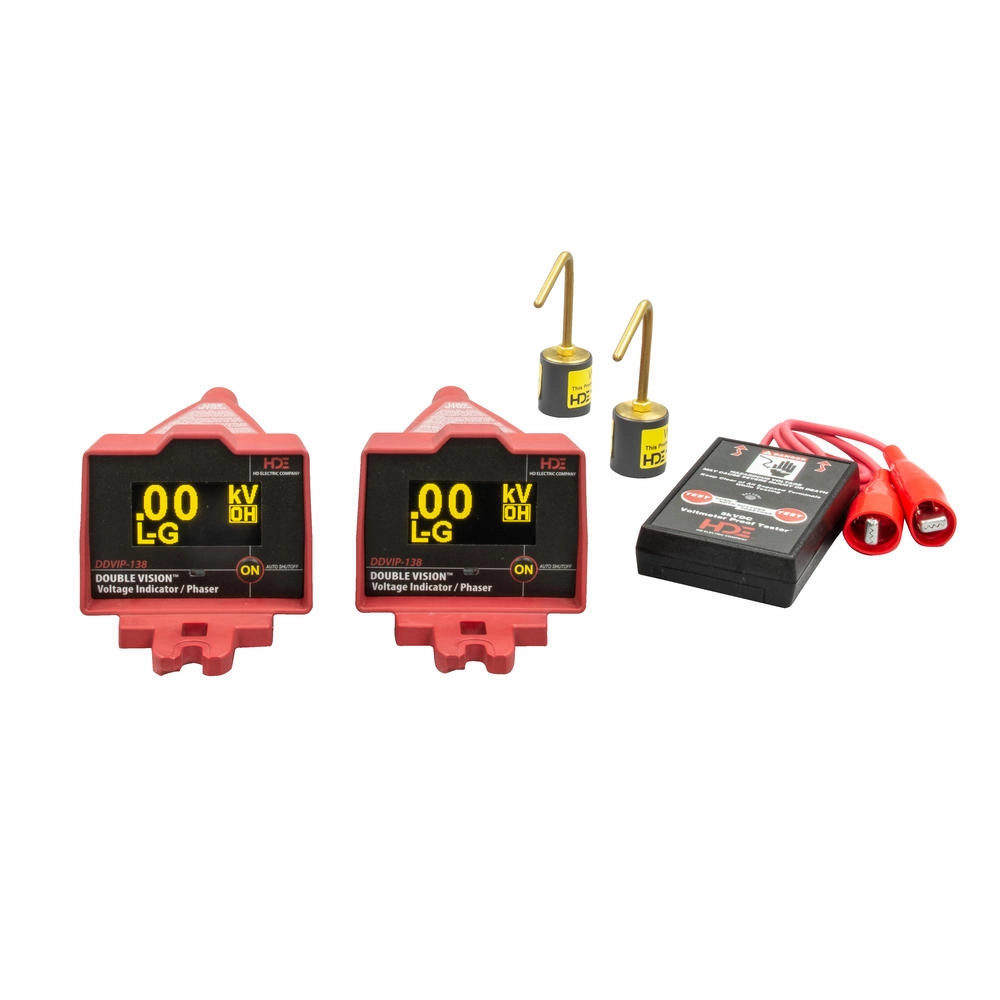

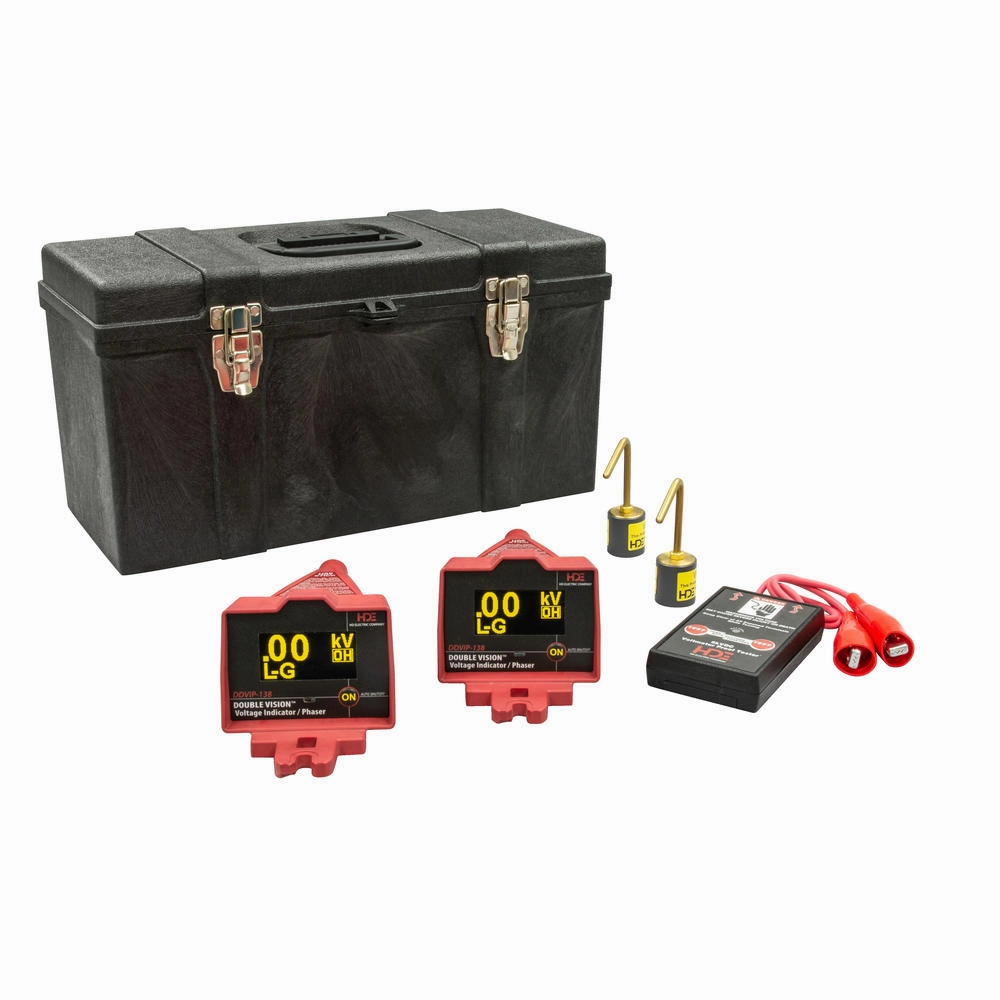

DDVIP-138, (2) 025-OLPS-5 Overhead Brass Hook Probes (2), PT-DDVIP Proof Tester, CS-DDVM Case
Packaging
Retail
Country of Origin
United States
UPC
783310042983
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Length
14" (36 cm)
Width
4.6" (12 cm)
Height
4.1" (10 cm)
Weight
0.05 kg
0.12 lb
Details
Features
Measures voltage from 100V to 138kV linetoline.
Can be used individually as voltage indicators or together for phasing operations up to 100 ft (30 m) apart.
Two LED displays are automatically synchronized during phasing operations.
Clear in-phase and out-of-phase indication.
Versatile for overhead and underground applications.
Capacitive Test Point and Peak Hold modes
Accuracy: Within 15%, dependent on geometry
Phase Indication: In-Phase/Out-of-Phase
Can be used individually as voltage indicators or together for phasing operations up to 100 ft (30 m) apart.
Two LED displays are automatically synchronized during phasing operations.
Clear in-phase and out-of-phase indication.
Versatile for overhead and underground applications.
Capacitive Test Point and Peak Hold modes
Accuracy: Within 15%, dependent on geometry
Phase Indication: In-Phase/Out-of-Phase
Voltage
100V - 138kV line-to-line, 100V - 80kV line-to-ground
Frequency
AC 50/60Hz
Display Type
Two LED displays with 0.7" numeral height. Displays 3 digits
Temperature Range
-20F to 120F (-29C to 49C)
