Product Details
＋
General Information
Brand
Greenlee
Part Number
DDVM-40/K03
Product Type
Voltmeter
What's Included

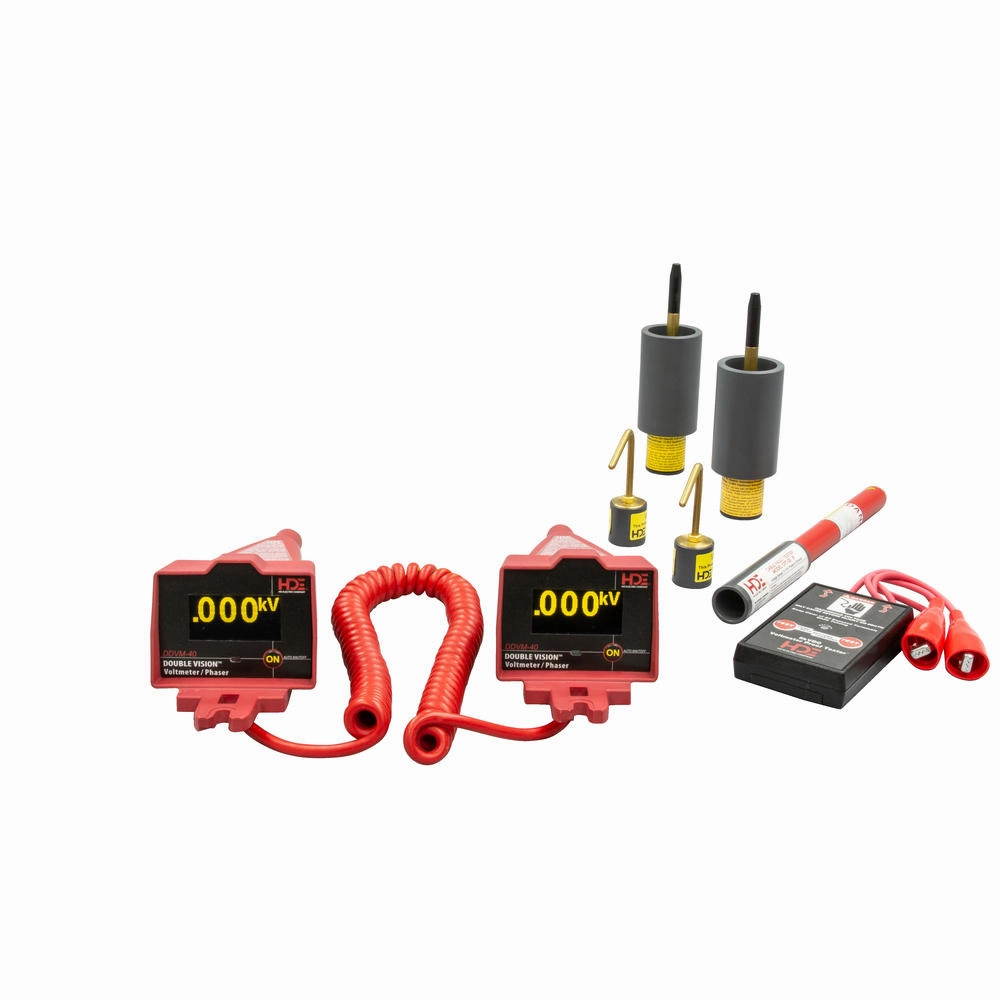

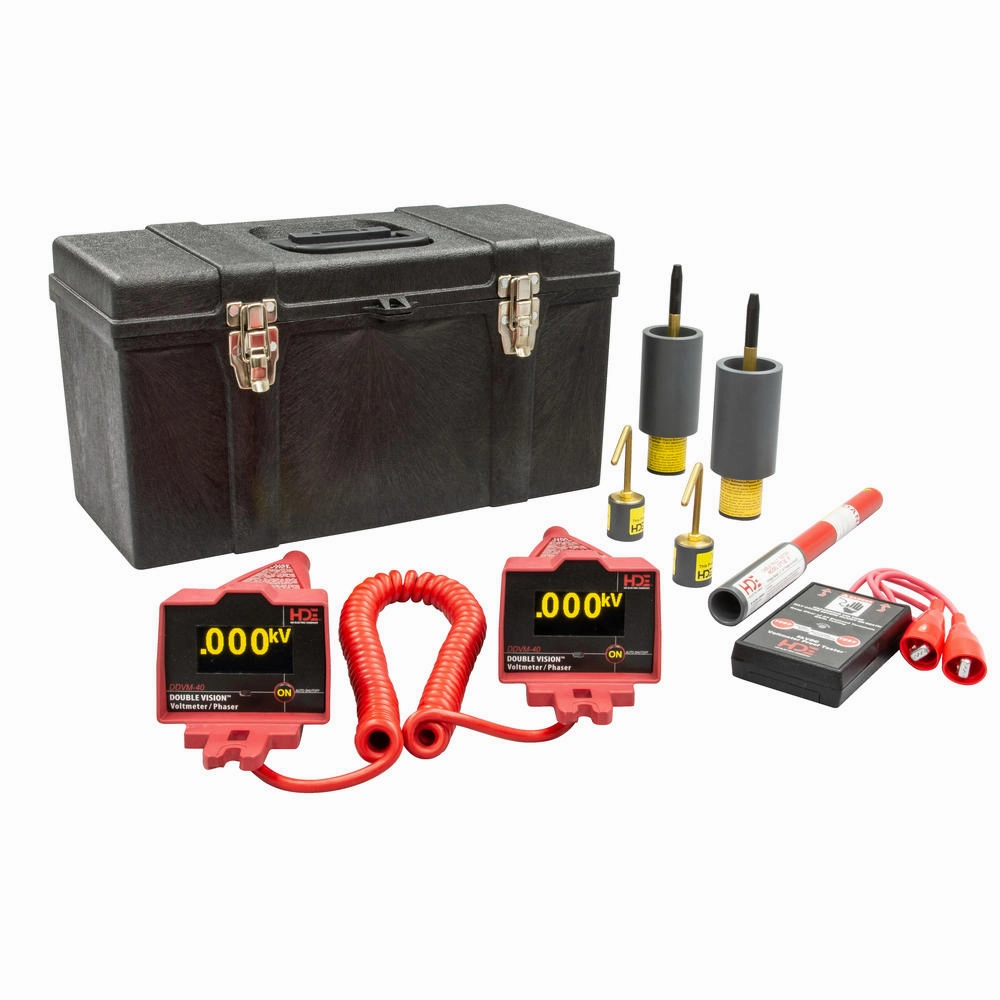

DDVM-40, (2) 025-OLPS-5 Overhead Brass Hook Probes, (1) PT-5000B Proof Tester Proof Tester Voltmeter Tester, (2) ASP-15/25 15kV/25kV UG Bushing Probes, (1) CFT-35 Cable Fault Tester and CS-DDVM Case Case
Packaging
Retail
Country of Origin
United States
UPC
783310081142
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Length
14" (36 cm)
Width
4 5/8" (11 cm)
Height
4" (10 cm)
Weight
7.53 kg
16.61 lb
Details
Features
Measures voltage and performs phasing operations from 5V to 40kV
Two large displays are synchronized with the same voltage reading shown

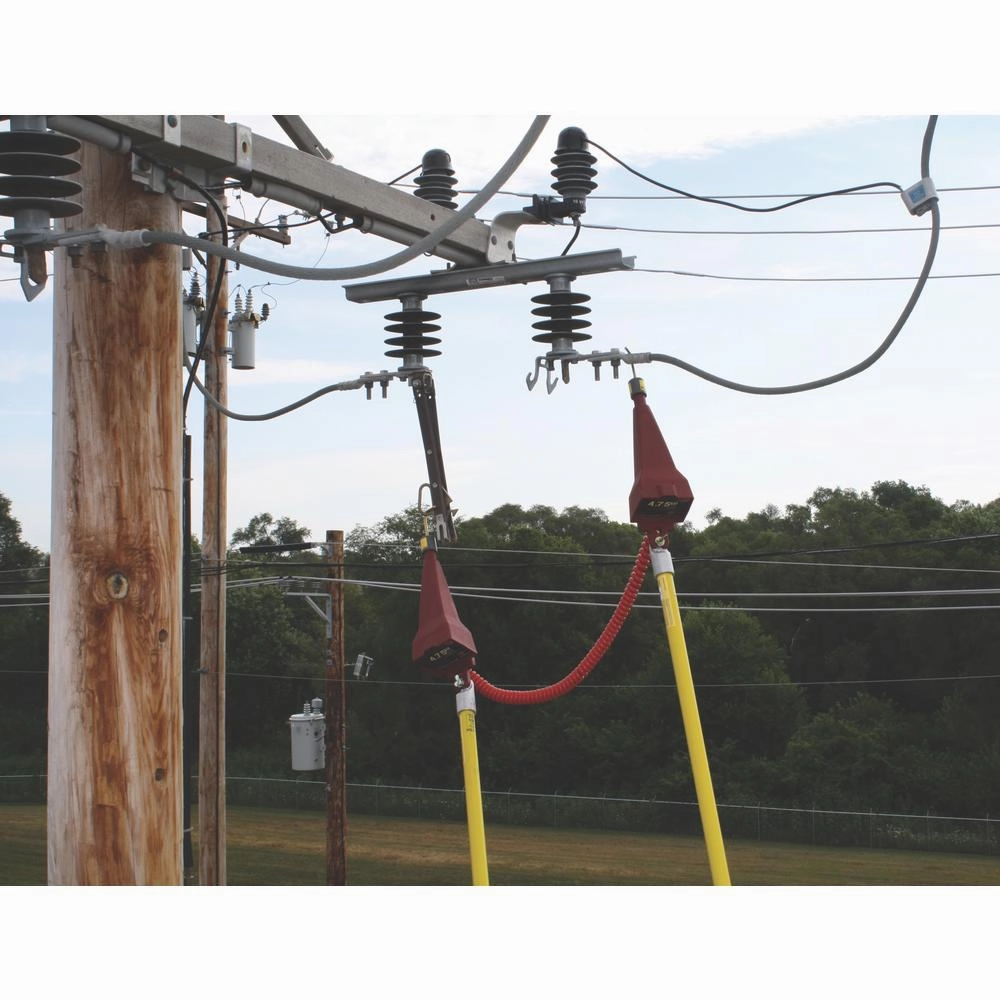

Versatile for overhead and underground applications
Capacitive Test Point and Peak Hold modes
Tests for leakage current in cable fault test mode with available accessory
Accuracy: Within 1% of reading /- 3 counts
Two large displays are synchronized with the same voltage reading shown
Versatile for overhead and underground applications
Capacitive Test Point and Peak Hold modes
Tests for leakage current in cable fault test mode with available accessory
Accuracy: Within 1% of reading /- 3 counts
Voltage
5V - 40kV line-to-ground
Frequency
25 - 1000Hz AC/DC
Display Type
Two LED displays with 0.7" numeral height. Displays 3 digits
Temperature Range
-20F to 120F (-29C to 49C)
