Product Details
＋
General Information
Brand
Greenlee
Part Number
DVI-500/K02
Product Type
Digital Voltage Indicator
What's Included

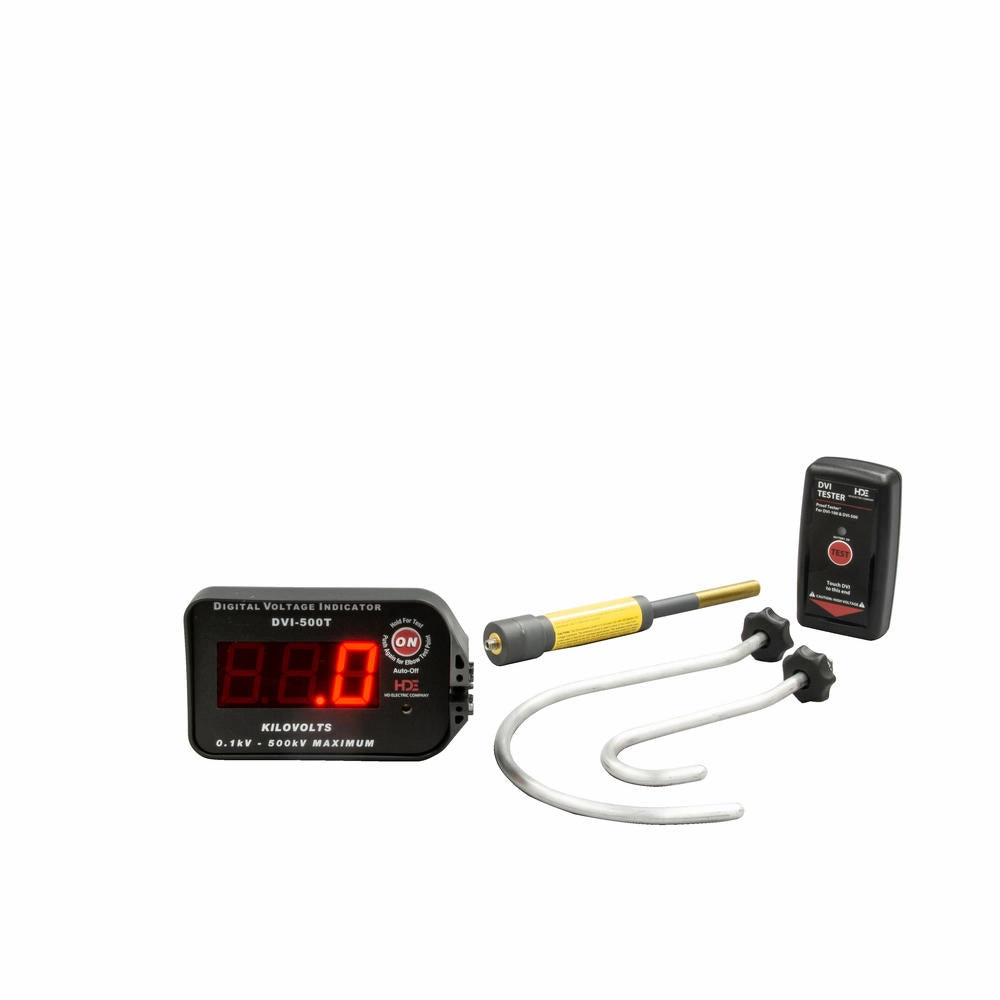

DVI-500, HP-DVI-2 2" Overhead Hook Probe, HP-DVI-6 6" Overhead Hook Probe, IEP-DVI-5 underground bushing probe, PT-DVI Proof Tester proof tester, CS-DVI plastic case
Packaging
Retail
Country of Origin
United States
UPC
783310054887
California Residents
Proposition 65 Warning
Physical Characteristics
Length
4.5" (11 cm)
Width
7" (18 cm)
Height
4.25" (11 cm)
Weight
3.64 kg
8.02 lb
Details
Features
Measures voltage up to 500kv line-to-ground
Voltage readout distinguishes between nominal and induced voltages
Audible indication when voltage is detected
Auto-shutoff and low battery indication features

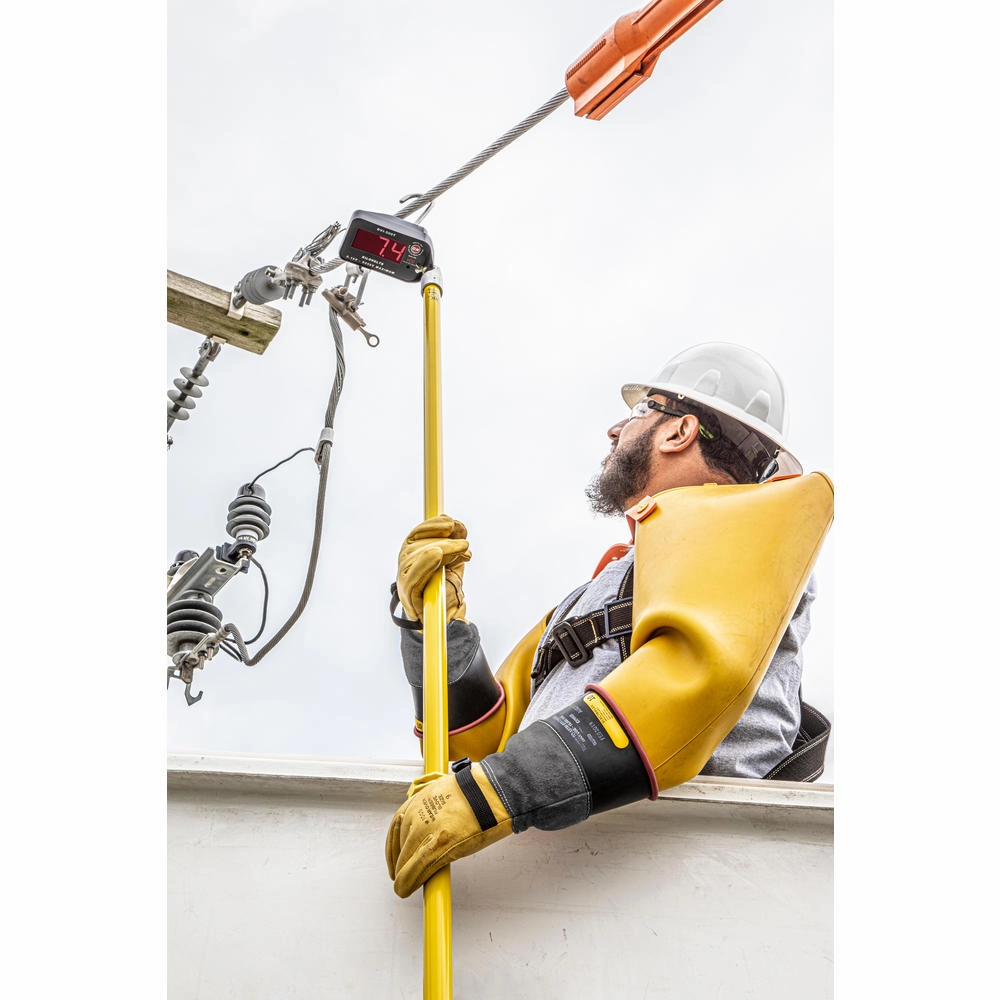

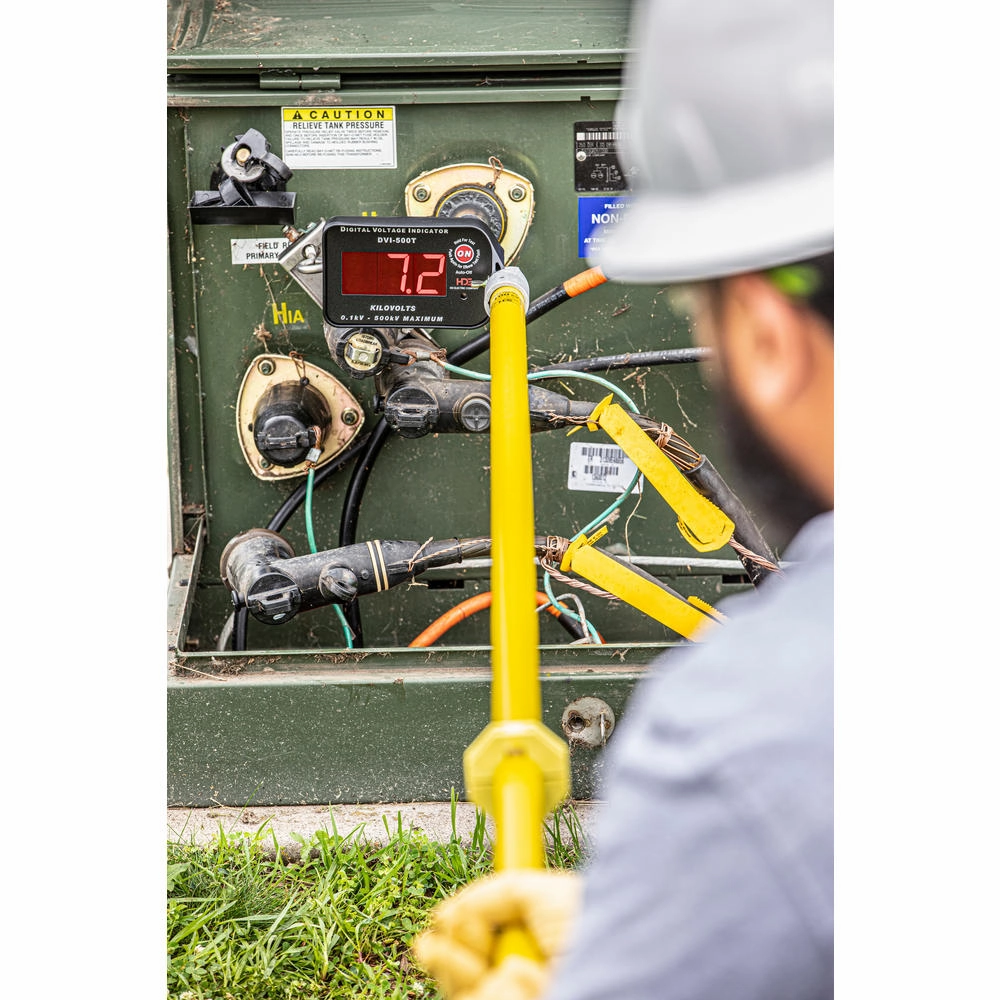

Versatile for overhead and underground applications
Accuracy: Laboratory calibrated to /-3%. Typical overhead line in compact overhead three phase /-10%. Other applications up to /-25%
Voltage readout distinguishes between nominal and induced voltages
Audible indication when voltage is detected
Auto-shutoff and low battery indication features
Versatile for overhead and underground applications
Accuracy: Laboratory calibrated to /-3%. Typical overhead line in compact overhead three phase /-10%. Other applications up to /-25%
Voltage
100V - 500kV line-to-ground
Frequency
AC 60Hz (50Hz model available)
Display Type
LED display
Temperature Range
-20F to 140F (-29C to 60C)
