Product Details
＋
General Information
Brand
Greenlee
Part Number
DVM-80UVM
Product Type
Voltmeter
What's Included

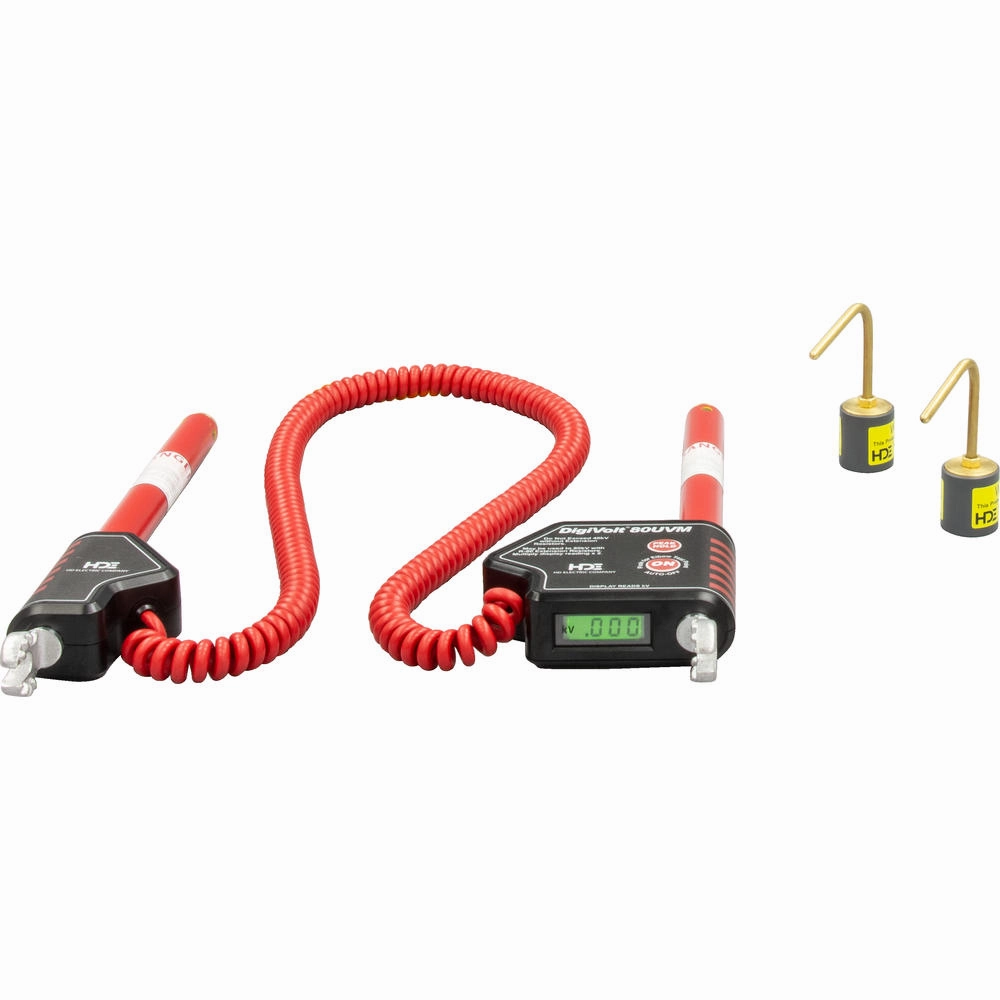

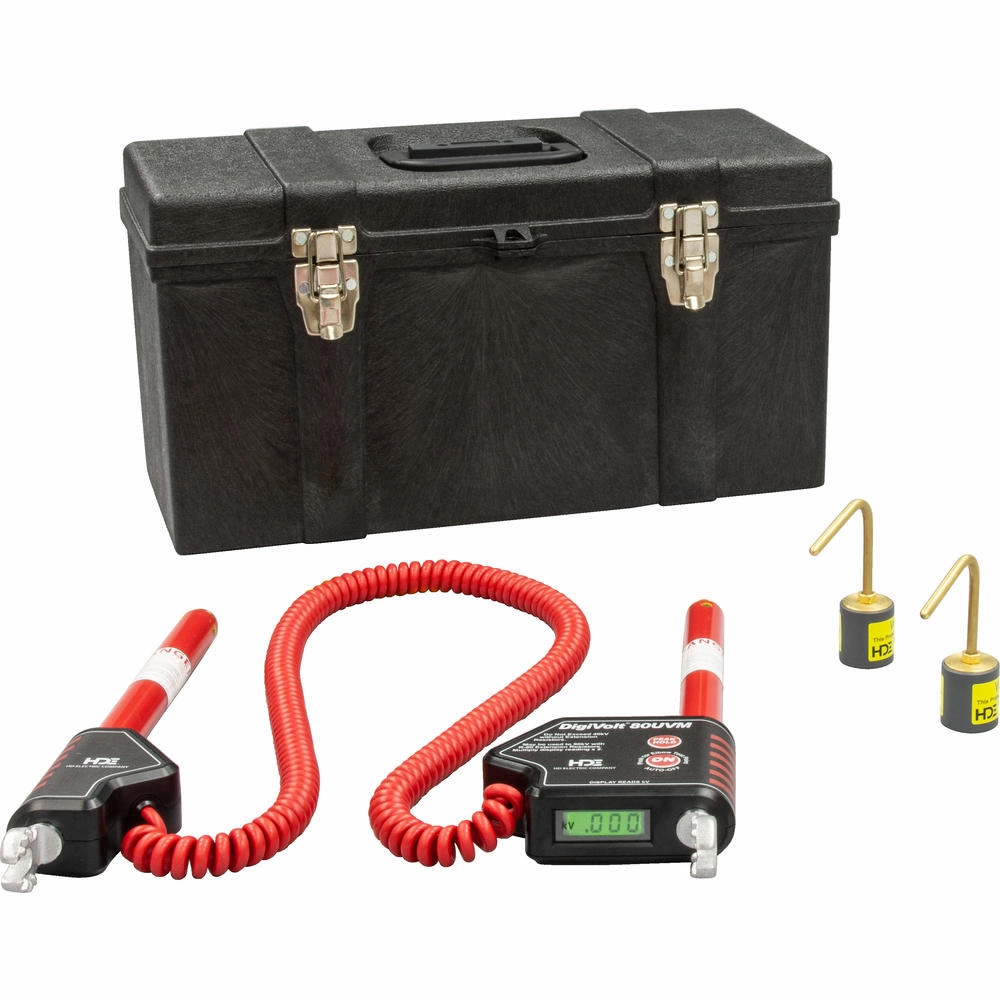

DVM-80UVM Voltmeter, 025-OLPS-5 Overhead Brass Hook Probes (2), CS-DVM Case
Packaging
Retail
Country of Origin
United States
UPC
783310628293
California Residents
Proposition 65 Warning
Physical Characteristics
Length
4.25" (11 cm)
Width
5" (13 cm)
Height
1.38" (3.5 cm)
Weight
5.23 kg
11.53 lb
Details
Features
Measures voltage and performs phasing operations from 50V to 40kV and up to 80kV with add-on resistors
Provides consistent high accuracy voltage measurements within 1% of reading
Auto-ranging no settings required
Capacitive Test Point and Peak Hold modes
Auto-shutoff and low battery indicator features

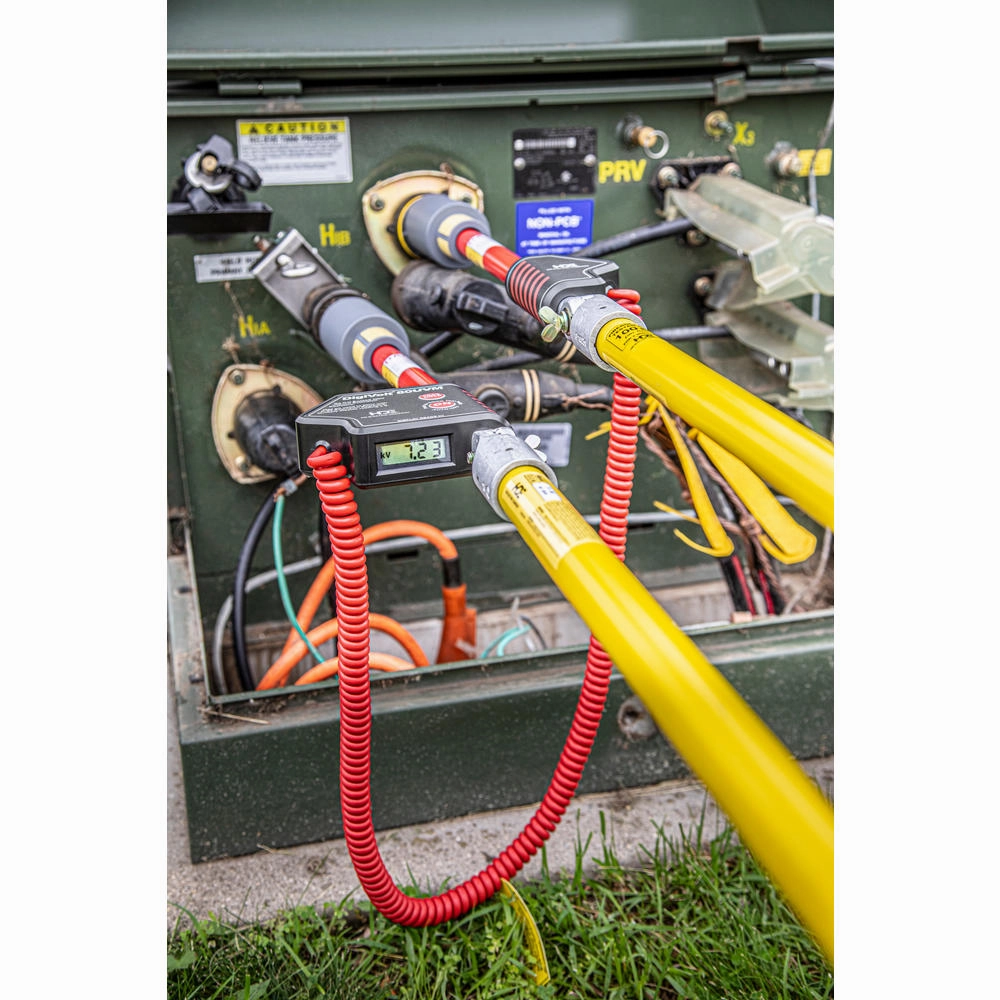

Versatile for overhead and underground applications
Accuracy: Within 1% of reading /- 3 counts (line-to-ground and line-to-line measurements); Within 2% of reading /- 3 counts (line-to-ground & line-to-line measurements) with add-on resistors
Provides consistent high accuracy voltage measurements within 1% of reading
Auto-ranging no settings required
Capacitive Test Point and Peak Hold modes
Auto-shutoff and low battery indicator features
Versatile for overhead and underground applications
Accuracy: Within 1% of reading /- 3 counts (line-to-ground and line-to-line measurements); Within 2% of reading /- 3 counts (line-to-ground & line-to-line measurements) with add-on resistors
Voltage
5V - 40kV up to 80kV with add-on resistors
Frequency
25 - 1000Hz AC/DC
Display Type
LCD indicates 3.5 digits
Temperature Range
-20F to 140F (29C to 60C)
