Product Details
＋
General Information
Brand
Greenlee
Part Number
FC-118
Product Type

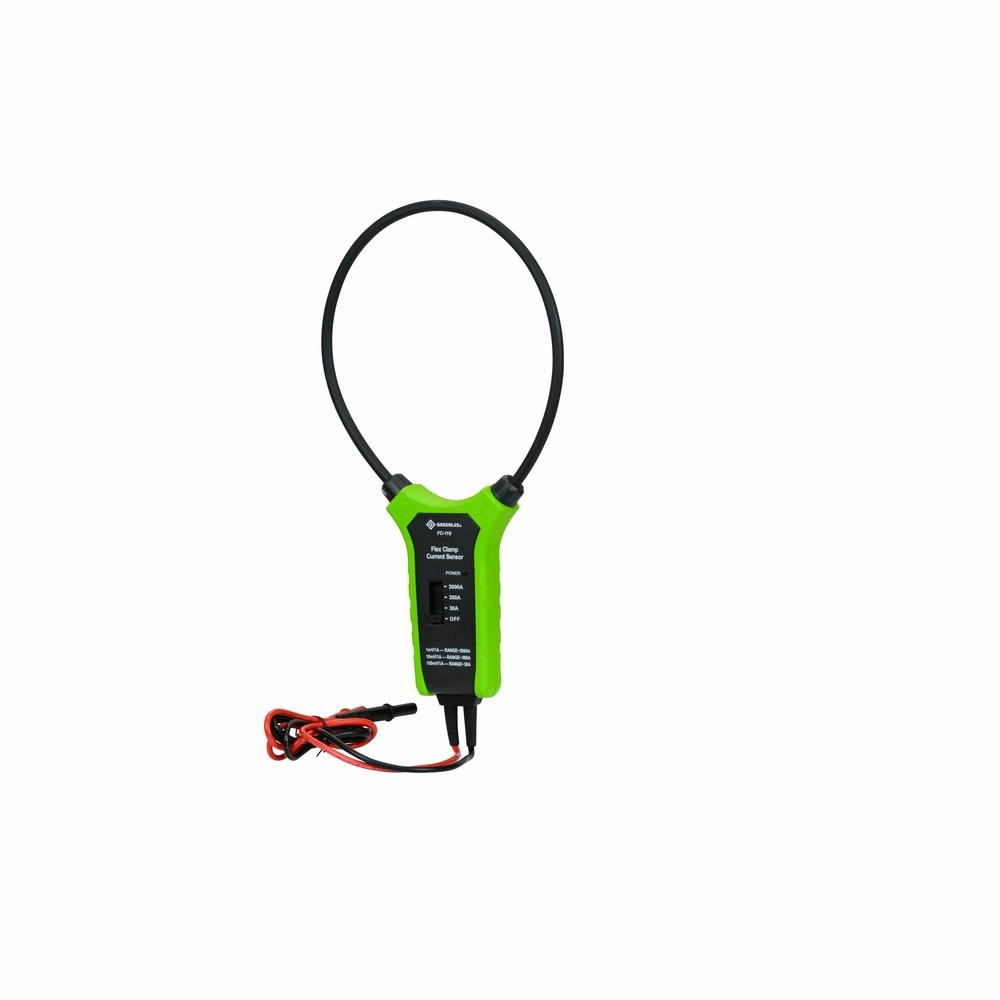

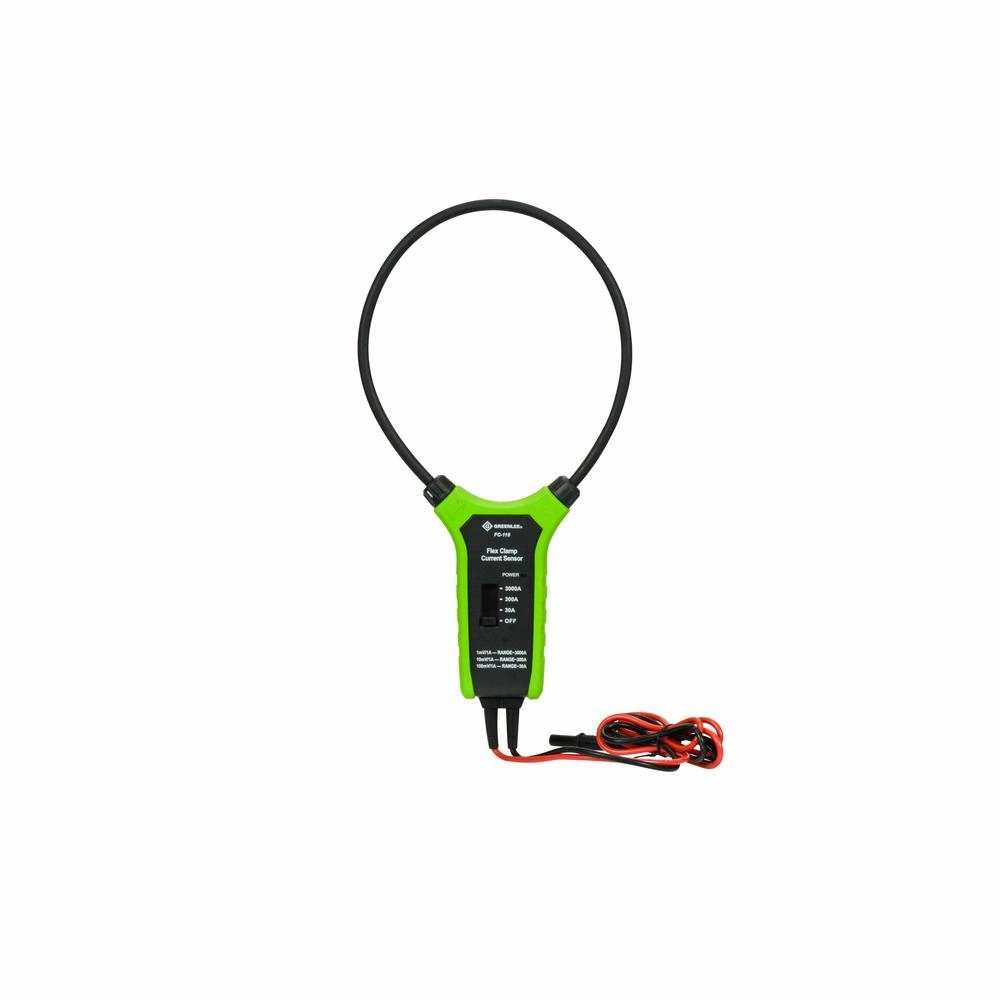

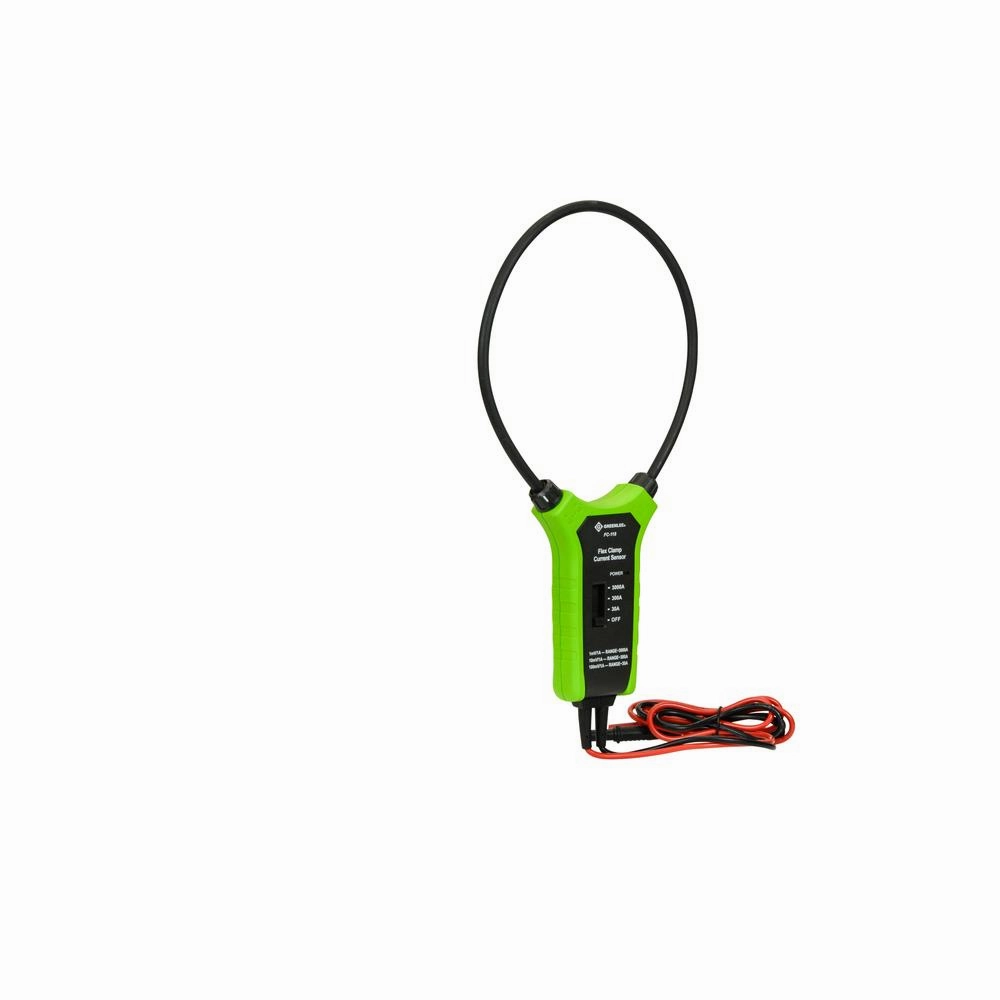

18" Flex Clamp Current Probe
What's Included

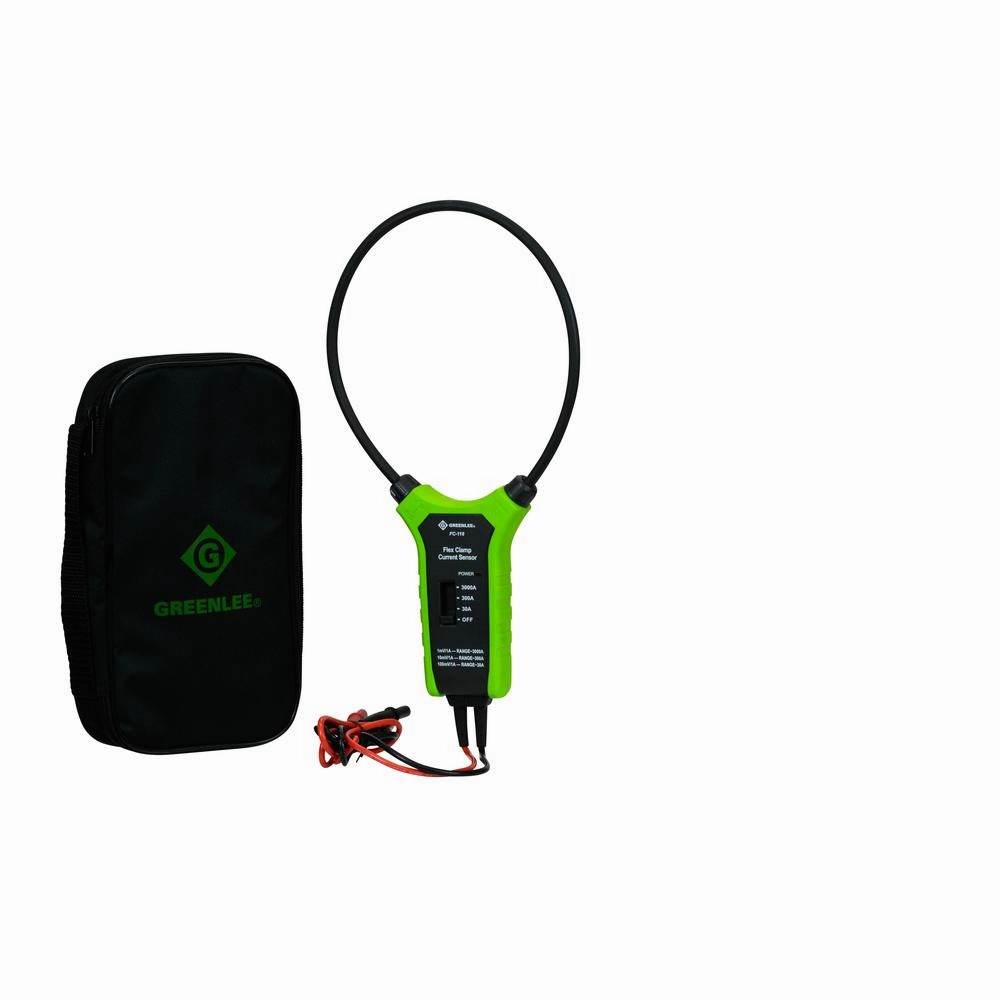

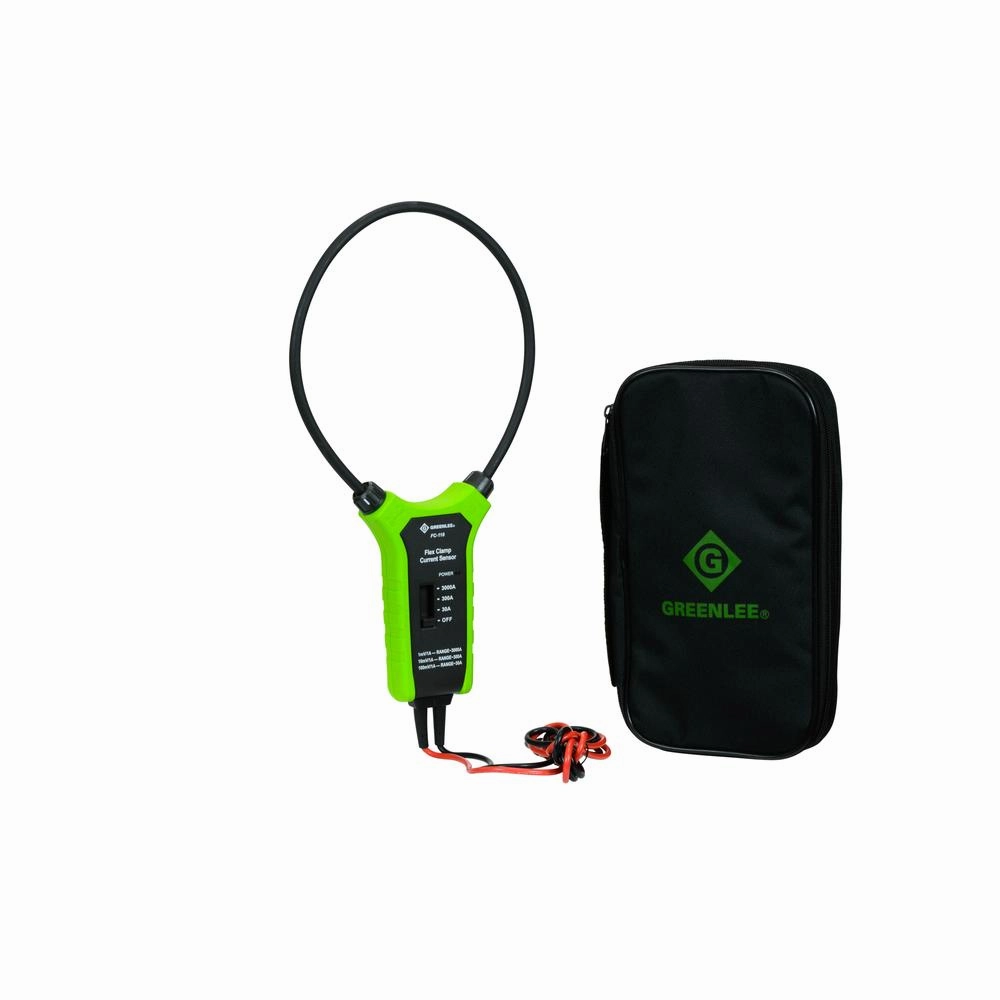

Attached Leads, Soft Carrying Case and 3 AAA batteries
Packaging
Retail
Country of Origin
China
UPC
783310088561
California Residents
Proposition 65 Warning
Physical Characteristics
Material
Tip: Rogowski Coil
Weight
0.54 kg
1.20 lb
Details
Measurement Standard
Compliance: CE, CETLUS
Features
Flex Clamp Current Probes expand existing meters AC measurement up to 3000A
Compatible with most meters using universal banana leads
Flexible Coil adds accessibility - easily maneuvering around cables that are in hard to reach areas and large enough to thread around larger conductors
Amperage Rating: 30A/300A/3000A
Measuring Range: 30A/300A/3000A
Accuracy: 3% 5
Resolution: 0.01A/0.1A/1A
Coil Diameter: 18 in. (45.7 cm)
Safety Category Rating: CAT IV 600V
Compatible with most meters using universal banana leads
Flexible Coil adds accessibility - easily maneuvering around cables that are in hard to reach areas and large enough to thread around larger conductors
Amperage Rating: 30A/300A/3000A
Measuring Range: 30A/300A/3000A
Accuracy: 3% 5
Resolution: 0.01A/0.1A/1A
Coil Diameter: 18 in. (45.7 cm)
Safety Category Rating: CAT IV 600V
