Product Details
＋
General Information
Brand
Greenlee
Part Number
HVA-2000H
Product Type
Ammeter
What's Included

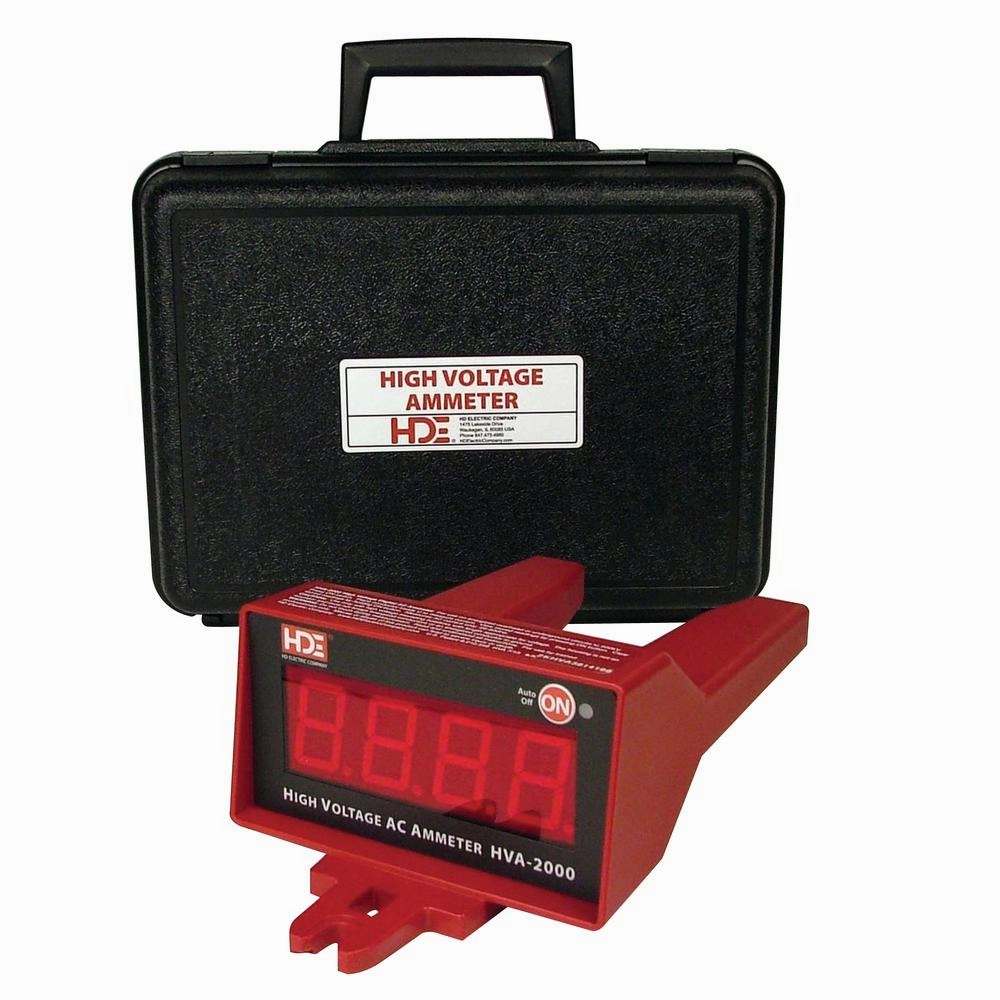

HVA-2000 Ammeter, CS-HVA Carrying Case
Packaging
Retail
Country of Origin
United States
UPC
783310557043
California Residents
Proposition 65 Warning
Physical Characteristics
Length
11.5"
Width
6.6"
Height
4"
Weight
2.19 kg
4.83 lb
Details
Features
Measures AC current from 1 to 2000 Amps on system voltages up to 500kV line-to-ground
Stores the last 4 readings
Dual measurement modes, peak hold and real time
Takes spot-load checks with ease
Verifies phases are balanced
Versatile for overhead and underground applications
Compact, lightweight design
Amperage Rating: 1 -2000A
Accuracy: 50-60Hz - 110A 1% /-2 counts, 11100A 1% /-3 counts, 101500A 1% /-6 counts, 5012000A 1% /-8. 252-49Hz and 61-500Hz - 110A 2% /-3 counts, 11100A 2% /-4 counts, 101500A 2% /-6 counts, 5012000A 2% /-8 counts
Stores the last 4 readings
Dual measurement modes, peak hold and real time
Takes spot-load checks with ease
Verifies phases are balanced
Versatile for overhead and underground applications
Compact, lightweight design
Amperage Rating: 1 -2000A
Accuracy: 50-60Hz - 110A 1% /-2 counts, 11100A 1% /-3 counts, 101500A 1% /-6 counts, 5012000A 1% /-8. 252-49Hz and 61-500Hz - 110A 2% /-3 counts, 11100A 2% /-4 counts, 101500A 2% /-6 counts, 5012000A 2% /-8 counts
Voltage
0 - 500kV line-to-ground
Frequency
25 - 500Hz
Display Type
LED display
Temperature Range
-20F to 140F (-29C to 60C)
