Product Details
＋
General Information
Brand
Greenlee
Part Number
PRX-500/K01/220
Product Type
Proximity Voltage Detector
Application
Voltage Detection
Number of Pieces
2
What's Included

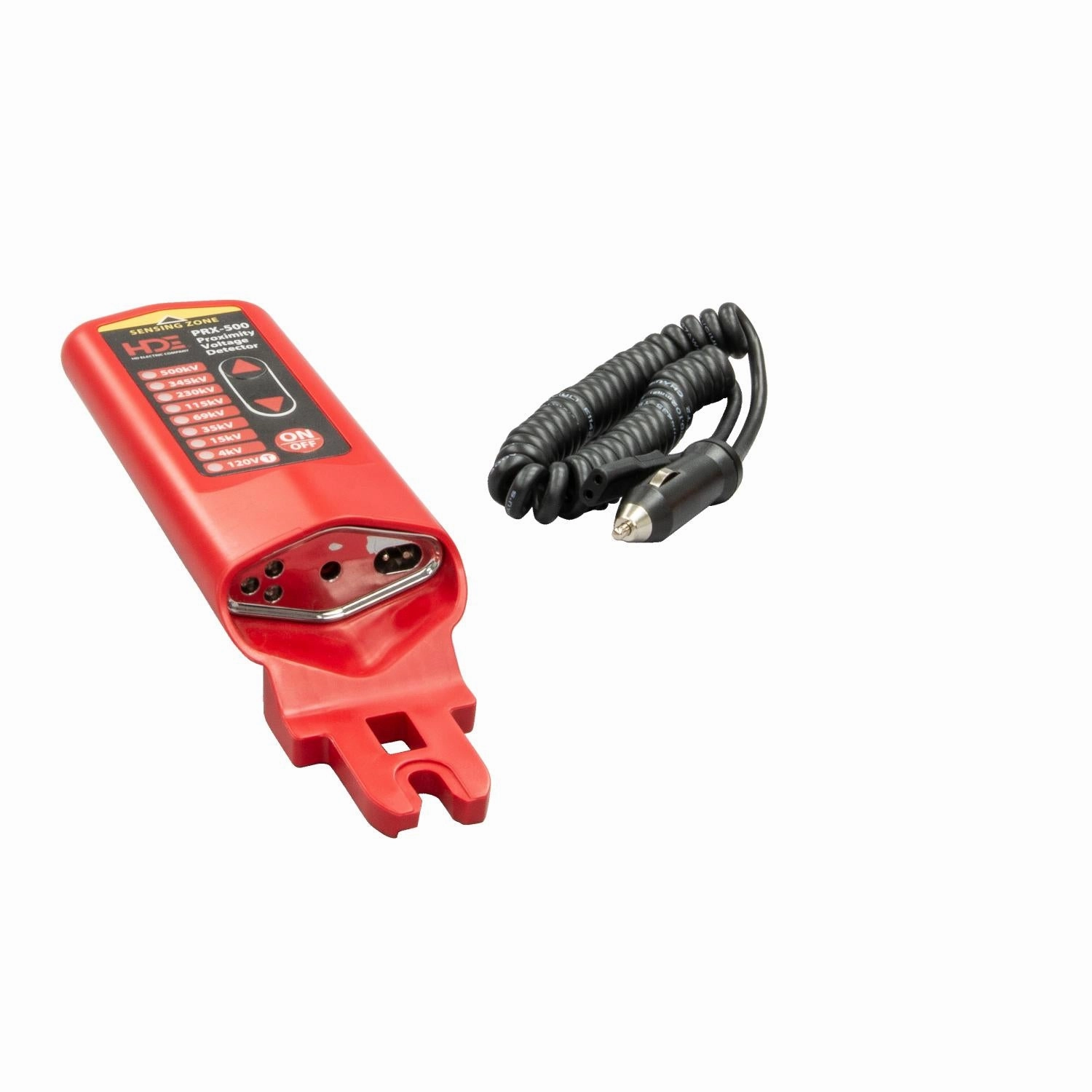

PRX-500 Detector, PRX-CORD Charging Cord
Packaging
Retail
Country of Origin
United States
UPC
783310556251
California Residents
Physical Characteristics
Length
11"
Weight
2.54 kg
5.60 lb
Color
Red / Black
Material
ABS
Details
Size
Frequency Rating: 25Hz-400Hz
Voltage Rating: Nine standard voltage ranges from 120VAC to 500kVAC
Indication Type: Audible and visual alert
Operating Temperature Range: -20F to 140F (-29C to 60C)
Battery: Lithium-Ion
Charger: 220V
Voltage Rating: Nine standard voltage ranges from 120VAC to 500kVAC
Indication Type: Audible and visual alert
Operating Temperature Range: -20F to 140F (-29C to 60C)
Battery: Lithium-Ion
Charger: 220V
Features
The ideal solution for line crews that perform voltage testing on both distribution and transmission lines, with nine preset standard distribution ranges from 120VAC to 500kVAC
Verifies presence of voltage without contacting conductor
Capacitive test point mode included in the 120V setting
Bright flashing LED lights and loud audible alarm indicate when voltage is present
Rechargeable Li-ion battery provides full day of typical use with 15 minute charge
Rugged, ultra-light, waterproof housing ideal for harsh working environments
Dual hotstick connection for universal spline and shotgun stick (hotstick sold separately)
Verifies presence of voltage without contacting conductor
Capacitive test point mode included in the 120V setting
Bright flashing LED lights and loud audible alarm indicate when voltage is present
Rechargeable Li-ion battery provides full day of typical use with 15 minute charge
Rugged, ultra-light, waterproof housing ideal for harsh working environments
Dual hotstick connection for universal spline and shotgun stick (hotstick sold separately)
