Product Details
＋
General Information
Brand
Greenlee
Part Number
T200X-0412
Product Type
Contact Voltage Detector
Number of Pieces
5
What's Included

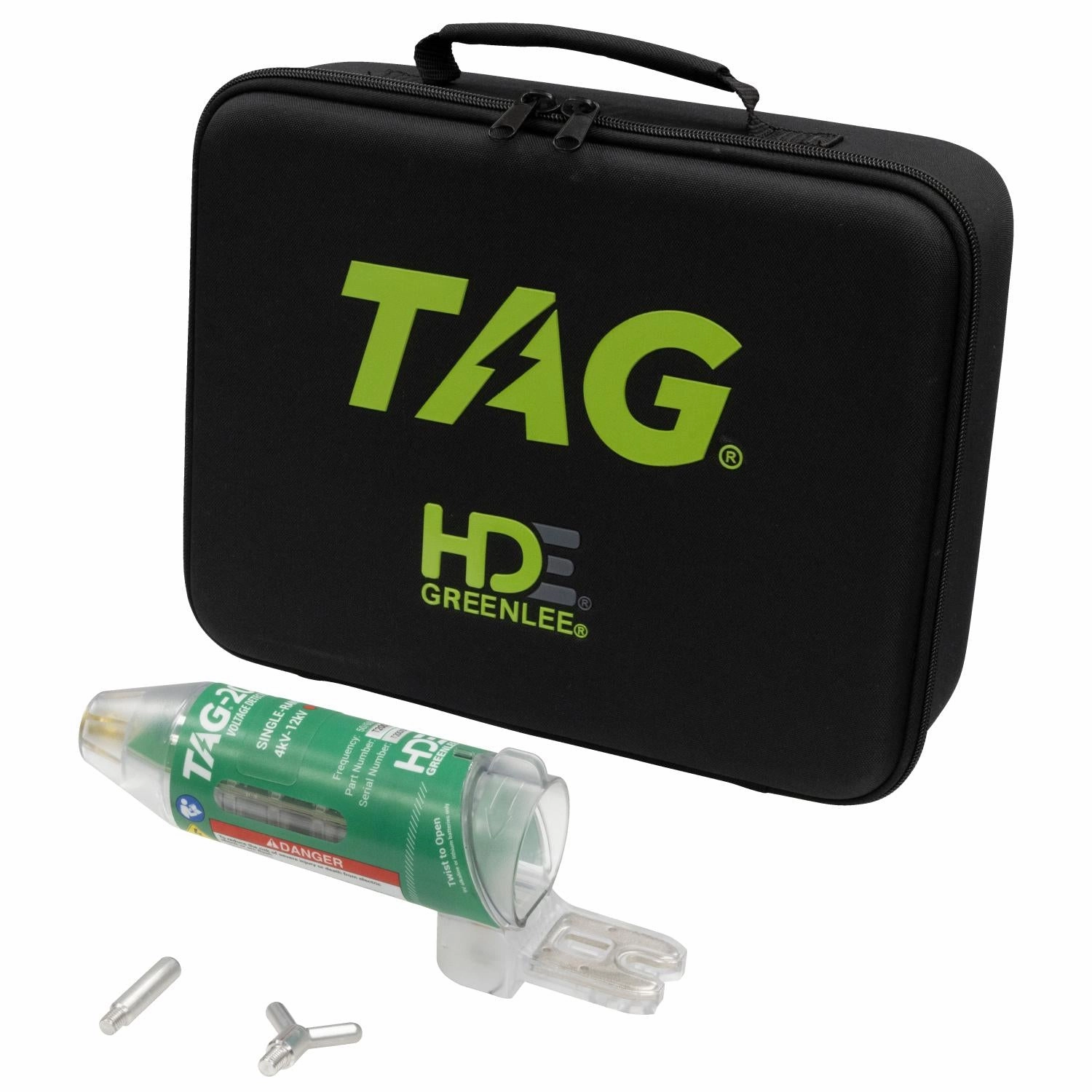

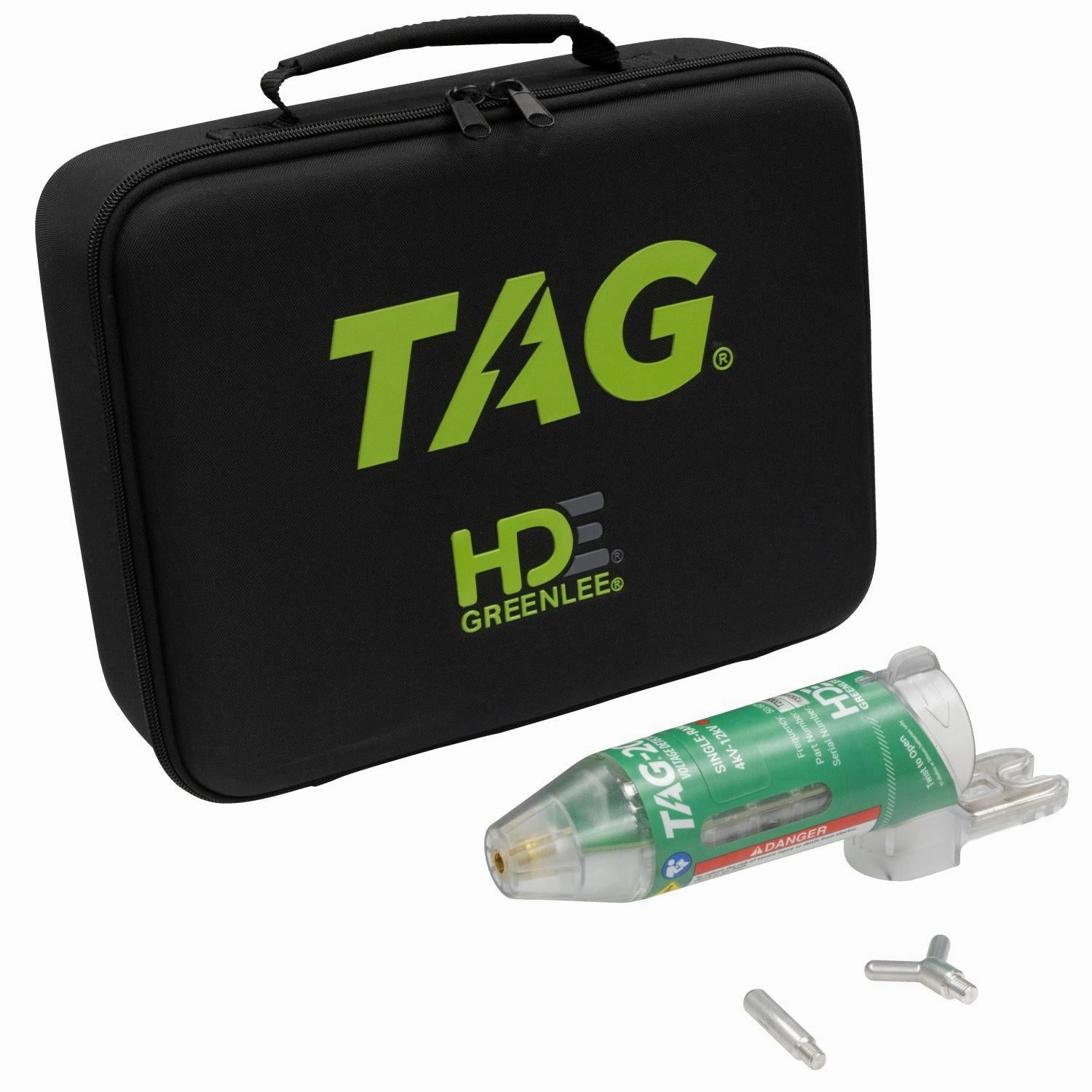

TAG-200X Detector, TAG-42029X Overhead "Y" Probe, TAG-41811X Overhead Straight Probe Small, CS-TAG200X Carrying Case, Instruction Manual
Packaging
Retail
Country of Origin
United States
UPC
783310066620
California Residents
Physical Characteristics
Length
10"
Weight
1.81 kg
4.00 lb
Color
Black / Green
Material
ABS
Details
Size
Operating Voltage Range: 4-12KV Line-to-Line
Indication Type: Audible and visual alert
Operating Frequency: 50Hz and 60Hz
Battery: Field replaceable 9V alkaline battery
Battery Life: Approximately 1 year of typical use
Operating Temperature Range: -15F to 110F (-25C to 40C)
Indication Type: Audible and visual alert
Operating Frequency: 50Hz and 60Hz
Battery: Field replaceable 9V alkaline battery
Battery Life: Approximately 1 year of typical use
Operating Temperature Range: -15F to 110F (-25C to 40C)
Features
OH 4-12KV
Direct contact solution to quickly test for presence of voltage
No on/off or range selector switches - Always on
Clear indication of voltage detection with both audible and visual indications
ALL-CHECK self test system verifies proper operation
Versatile for overhead and underground applications
Built-in universal spline and shotgun stick attachments
Direct contact solution to quickly test for presence of voltage
No on/off or range selector switches - Always on
Clear indication of voltage detection with both audible and visual indications
ALL-CHECK self test system verifies proper operation
Versatile for overhead and underground applications
Built-in universal spline and shotgun stick attachments
