Product Details
＋
General Information
Brand
Greenlee
Part Number
VWP-20HFR-K
Product Type
Voltage Detector
Packaging
Retail
Country of Origin
United States
UPC
783310055730
California Residents
Physical Characteristics
Length
3.5"
Width
2.88"
Height
1.25"
Weight
0.56 kg
1.24 lb
Color
Yellow / Orange / Black / Red
Material
ABS
Durability
IEC-529
Details
Size
Sensitivity: Factory Set at 50/60 Hertz sensing threshold (first beep). The V-Watch will only detect AC voltage. Do not use below 2400 Volts line-to-ground.
Typical Warning Distance: About 7 feet (2.13 m.) from a 4kV (2.4kV line-to-ground) AC conductor.
Operating Temperature: -20 to 120F (-29 to 49C)
Operating Frequency: 50Hz/60Hz
Battery: 9V alkaline 1604A, IEC 6LR61. Life is 2 years in storage, 1 year typical usage.
Beeper Sound Pressure Level: 100 decibels
Water Withstand: Protected from falling rain per IEC-529, Level 2
Voltage Range: 2400VAC line-to-ground and above
Typical Warning Distance: About 7 feet (2.13 m.) from a 4kV (2.4kV line-to-ground) AC conductor.
Operating Temperature: -20 to 120F (-29 to 49C)
Operating Frequency: 50Hz/60Hz
Battery: 9V alkaline 1604A, IEC 6LR61. Life is 2 years in storage, 1 year typical usage.
Beeper Sound Pressure Level: 100 decibels
Water Withstand: Protected from falling rain per IEC-529, Level 2
Voltage Range: 2400VAC line-to-ground and above
Features
Increases safety for line crews, storm restoration workers and first responders
Alerts user to proximity of high voltage or energized electrical equipment
Produces loud alarm and illuminates bright LED lights when electrical fields are detected
Equipped with Mute button to temporarily silence beeper during prolonged work around high voltage conductors
Frequency of alarm increases as user gets closer to the electrical hazard
Detects voltage above 4kVAC line-to-line
Typical initial warning distance is about 7 ft. (2.13 m) from conductor
Warning distance increases with higher voltages
Lightweight, rugged protective housing ideal for field use

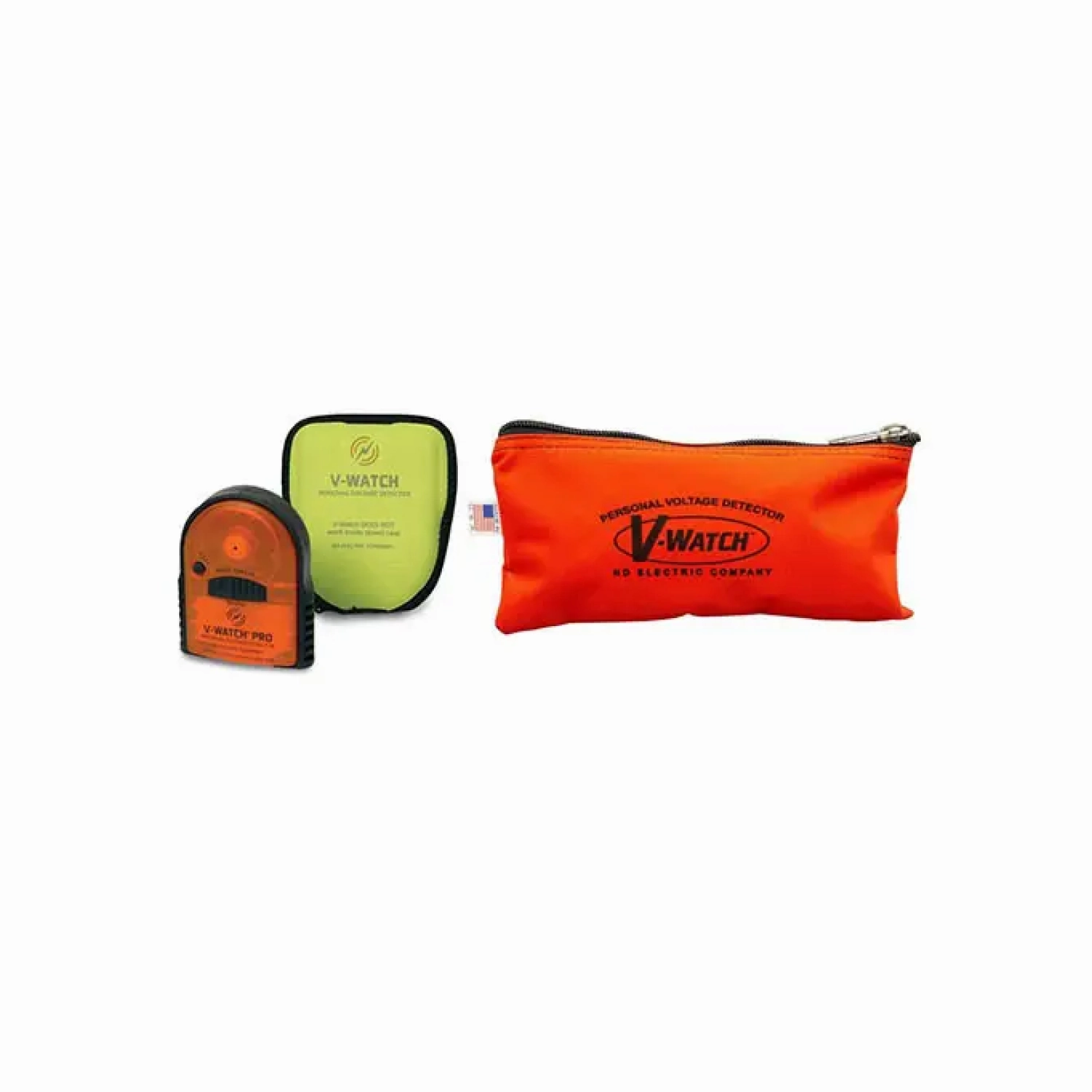

Supplied with zippered bag and flame-resistant carrying case with built-in lanyard
Alerts user to proximity of high voltage or energized electrical equipment
Produces loud alarm and illuminates bright LED lights when electrical fields are detected
Equipped with Mute button to temporarily silence beeper during prolonged work around high voltage conductors
Frequency of alarm increases as user gets closer to the electrical hazard
Detects voltage above 4kVAC line-to-line
Typical initial warning distance is about 7 ft. (2.13 m) from conductor
Warning distance increases with higher voltages
Lightweight, rugged protective housing ideal for field use
Supplied with zippered bag and flame-resistant carrying case with built-in lanyard
