Product Details
＋
General Information
Brand
Hazet
Part Number
4656-1
Product Type
Crimping pliers
Application

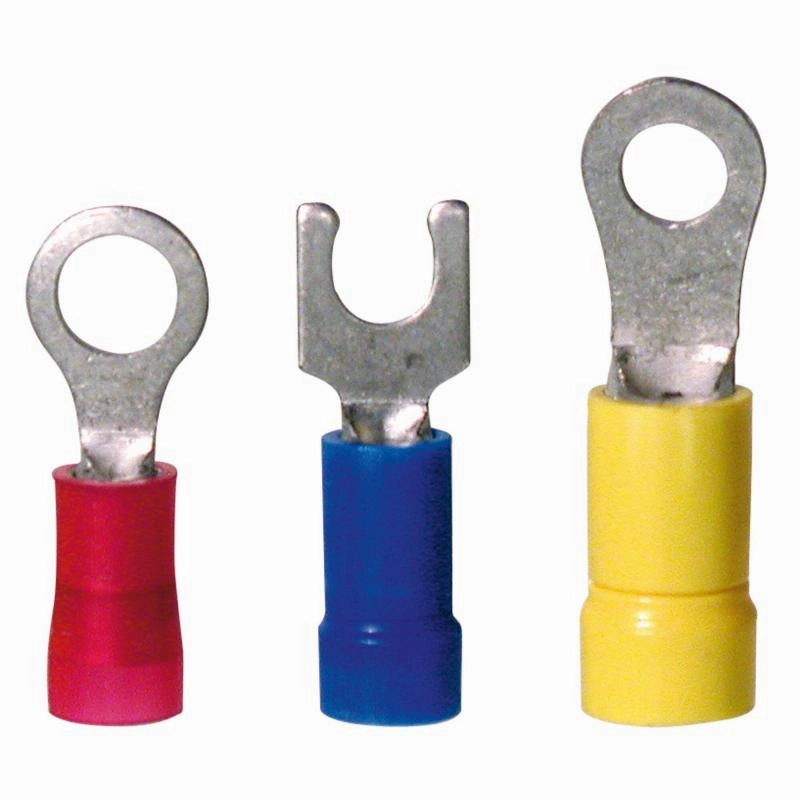

DIN cable lugs, pin-type cable sockets, flat pin terminals, flat pin bushings, circular connectors, snap-in receptacles, butt connectors and parallel connectors
Packaging
Retail
Country of Origin
Germany
UPC
4000896127351
California Residents
Proposition 65 Warning
Physical Characteristics
Length
220 mm
Weight
0.64 kg
1.41 lb
Color
Blue / Black
Finish
Burnished, oiled
Details
Size
Profiles / cross-sectional areas:
red: 0.51.0 mm2 / AWG 2016
blue: 1.52.5 mm2 / AWG 1614
yellow: 4.06.0 mm2 / AWG 1210
red: 0.51.0 mm2 / AWG 2016
blue: 1.52.5 mm2 / AWG 1614
yellow: 4.06.0 mm2 / AWG 1210
Grip Type
Ergonomic soft grip handles with anti-slip covers
Pliers Type
Crimping
Features
Crimping of conductor crimp and insulation crimp in one working step
Intensive insulation crimp with special profile geometry
Integrated lock with releasing mechanism provides complete crimp
All stressed parts are specially tempered
Easy handling
Profile coding
Intensive insulation crimp with special profile geometry
Integrated lock with releasing mechanism provides complete crimp
All stressed parts are specially tempered
Easy handling
Profile coding
