Product Details
＋
General Information
Brand
Hazet
Part Number
4658-10
Product Type

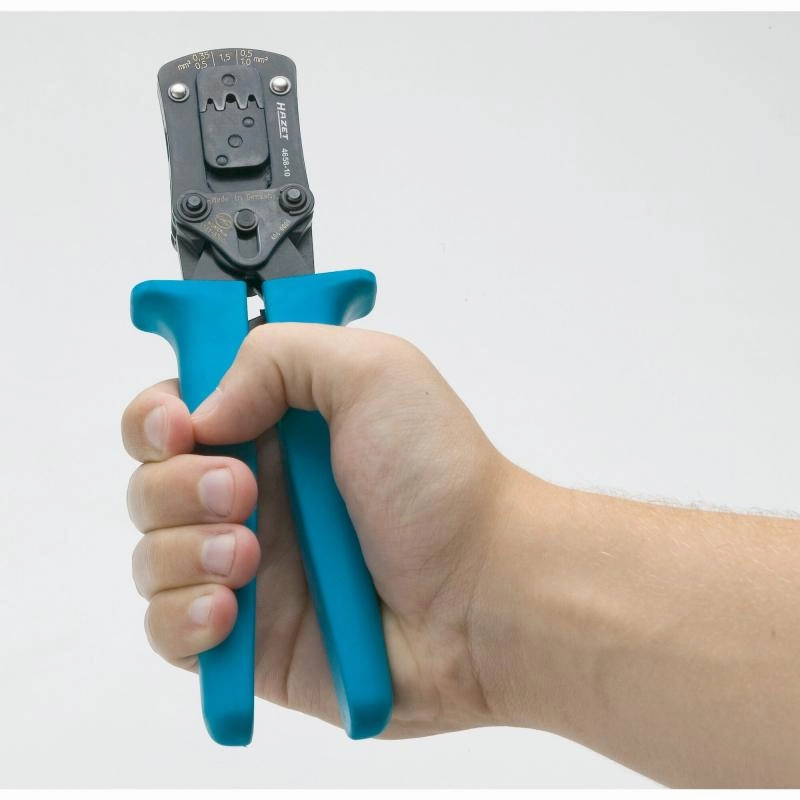

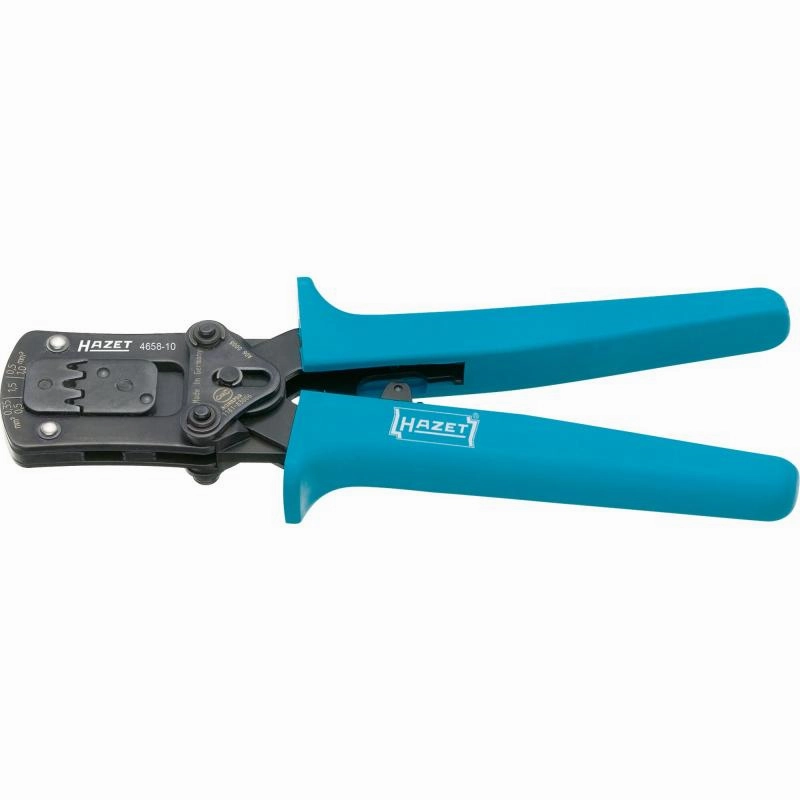

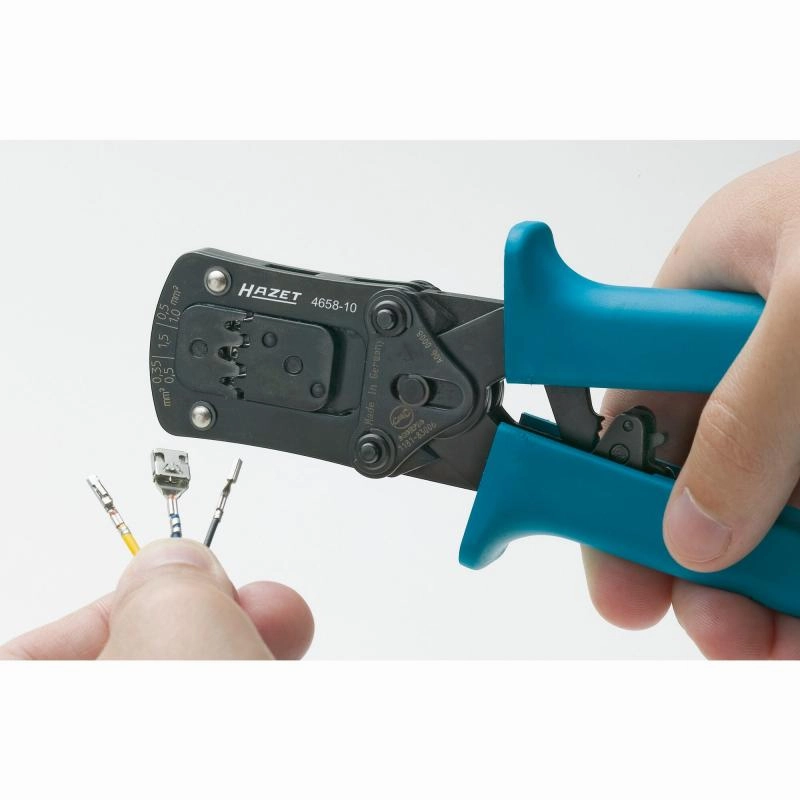

Crimping pliers
Packaging
Retail
Country of Origin
Germany
UPC
4000896129515
California Residents
Proposition 65 Warning
Physical Characteristics
Length
150 mm
Weight
0.34 kg
0.75 lb
Details
Size
1st profile: 0.350.5 mm2
2nd profile: 1.5 mm2
3rd profile: 0.5 1.0 mm2
conductor crimp = B-crimp / insulation crimp = O-crimp
2nd profile: 1.5 mm2
3rd profile: 0.5 1.0 mm2
conductor crimp = B-crimp / insulation crimp = O-crimp
Features
For a multitude of non-insulated cable and plug-type connectors
Integrated lock with release mechanism ensures complete crimping process
Less expenditure of force due to an optimal force transmission ratio
Linear crimping providing consistent rolling of conductor and insulator crimp
The insulation stop allows the positioning of the contact in the crimping profile independent of the type of contact used
Change head for cross sections 0.351.5 mm2 complete, including basic tool
Integrated lock with release mechanism ensures complete crimping process
Less expenditure of force due to an optimal force transmission ratio
Linear crimping providing consistent rolling of conductor and insulator crimp
The insulation stop allows the positioning of the contact in the crimping profile independent of the type of contact used
Change head for cross sections 0.351.5 mm2 complete, including basic tool
