Product Details
＋
General Information
Brand
Hazet
Part Number
5107-3CT
Product Type
Torque wrench
Packaging
Retail
Country of Origin
Germany
UPC
4000896218875
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Black / Blue
Length
234 mm
Width
Head Width b: 24 mm
Weight
0.42 kg
0.93 lb
Details
Wrench Type
Torque
Type
Square, solid
Size
6.3 mm (1/4 inch)
Features
DIN 3120, ISO 1174-1, DIN EN ISO 6789-2:2017
Tolerance: 4 %
Scale Graduation (Nm): 0.1 Nm
Effective torque wrench length min.-max. I1 mm: 176.20166.20 Nm
Actuating force min.-max. kg: 0.65.5 kg
Number of teeth: 20 (Opening angle 18)

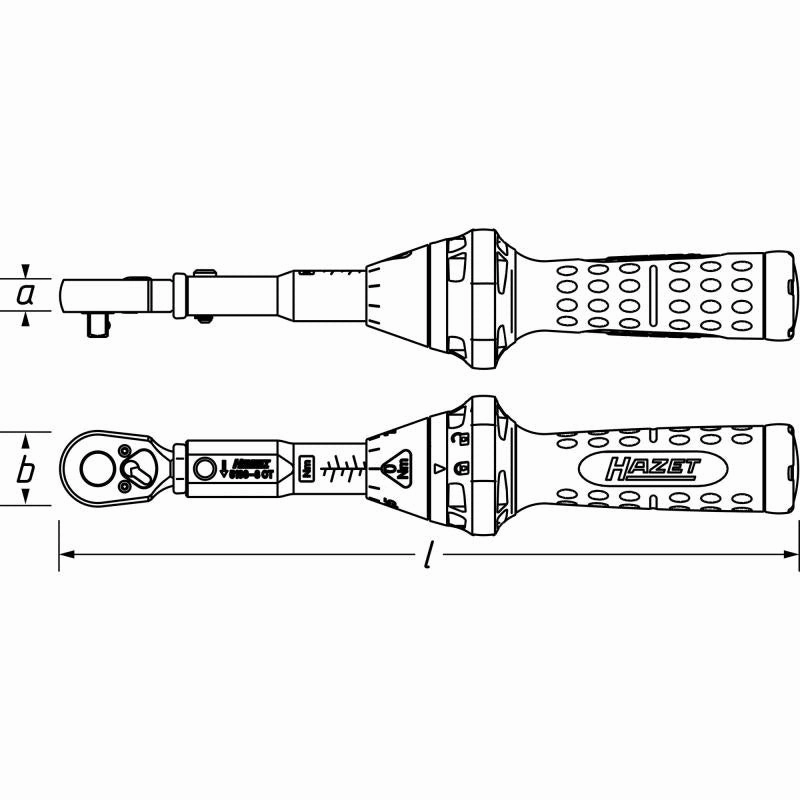

Head Thickness a: 10.2 mm
Head Width b: 24 mm
Tolerance: 4 %
Scale Graduation (Nm): 0.1 Nm
Effective torque wrench length min.-max. I1 mm: 176.20166.20 Nm
Actuating force min.-max. kg: 0.65.5 kg
Number of teeth: 20 (Opening angle 18)
Head Thickness a: 10.2 mm
Head Width b: 24 mm
Torque Range Nm
19 Nm
Torque Accuracy
Accuracy 3% of scale value (in direction of actuation) (5107-3 CT 4% accuracy of scale value)
Torque Display Scale
Permanent readability due to laser marking on the scale bush
