Product Details
＋
General Information
Brand
Hazet
Part Number
5122-2CLT
Product Type
Torque Wrench
Packaging
Retail
Country of Origin
Germany
UPC
4000896104192
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Metallic
Finish
Chrome-Plated
Material
Tool Steel
Length
545 mm
Weight
2.98
Details
Wrench Type
Torque
Size
Output: Square, solid 12.5 mm (1/2 inch)
Type
Square
Drive Connector Size
1/2"
Grip Type
Cushioned
Features
Actuating force min.-max. kg : 9.047.4
Effective torque wrench length max. I1 mm : 429.68 mm
Effective torque wrench length min. I1 mm : 452.24 mm

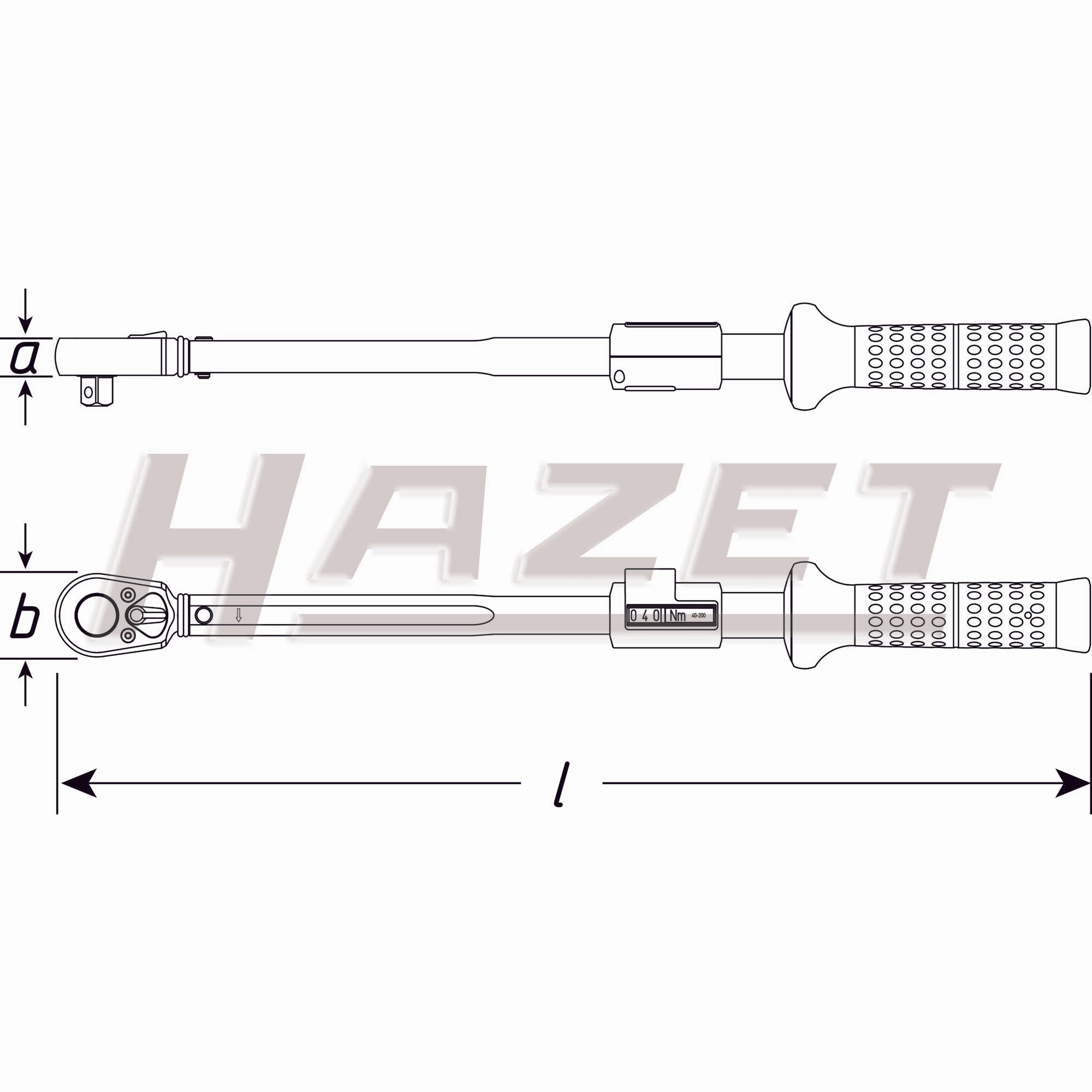

Head thickness a : 19.6 mm
Head width b : 44 mm
Length : 545
Net weight : 1.352 kg
Nm min-max : 40200
Number of teeth : 32 Zhne
Opening angle : 11.25
Output : Square 12.5 = 1/2

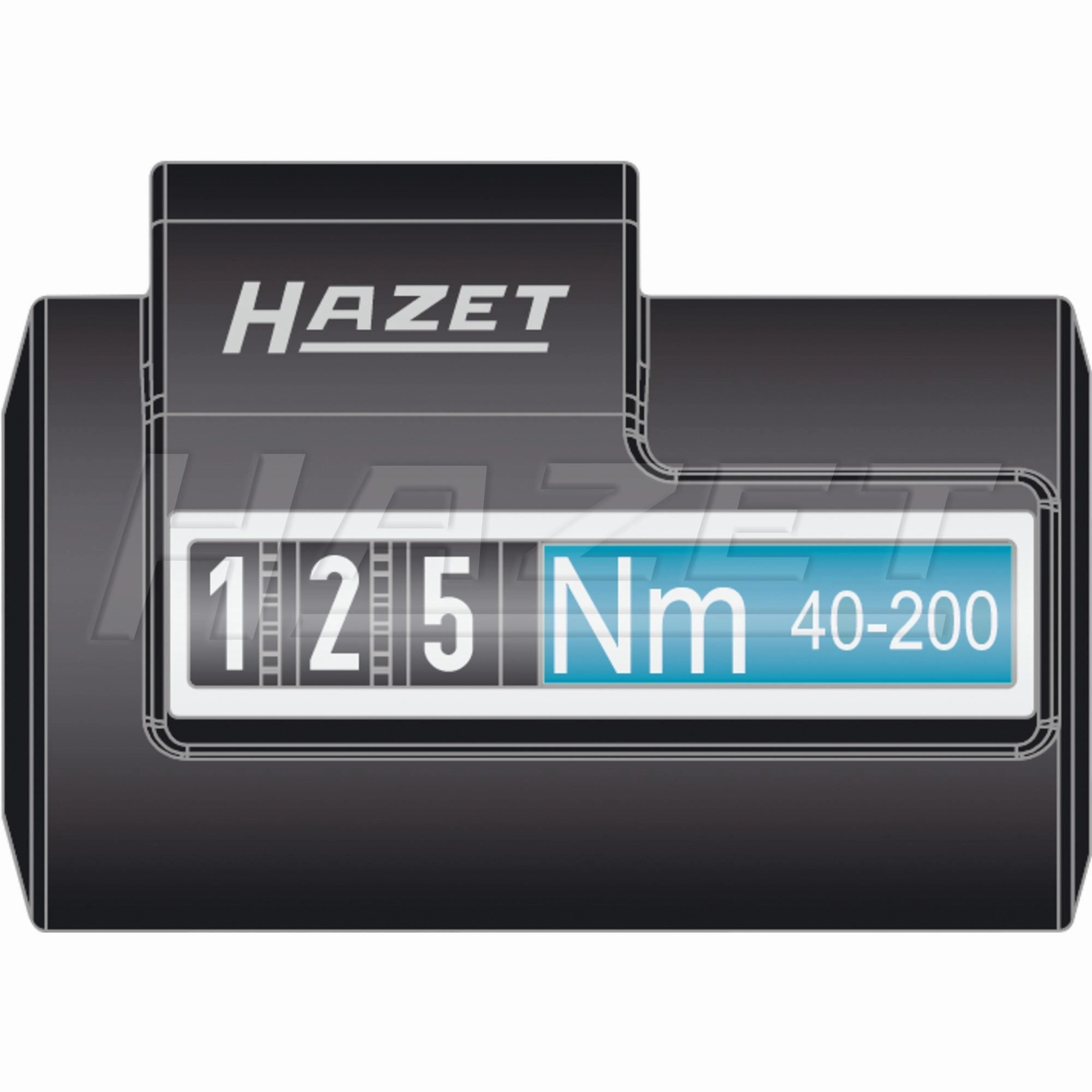

Scale graduation (Nm) : 1
Standard : DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1
Surface : hard chrome plated
Tightening torque max. : 200
Tolerance : 4 %
Torque min Nm : 40
Total length : 545 mm
Effective torque wrench length max. I1 mm : 429.68 mm
Effective torque wrench length min. I1 mm : 452.24 mm
Head thickness a : 19.6 mm
Head width b : 44 mm
Length : 545
Net weight : 1.352 kg
Nm min-max : 40200
Number of teeth : 32 Zhne
Opening angle : 11.25
Output : Square 12.5 = 1/2
Scale graduation (Nm) : 1
Standard : DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1
Surface : hard chrome plated
Tightening torque max. : 200
Tolerance : 4 %
Torque min Nm : 40
Total length : 545 mm
Torque Range Nm
40 - 200 Nm
Torque Accuracy
4%
