Product Details
＋
General Information
Brand
Hazet
Part Number
7290-2STAC
Product Type

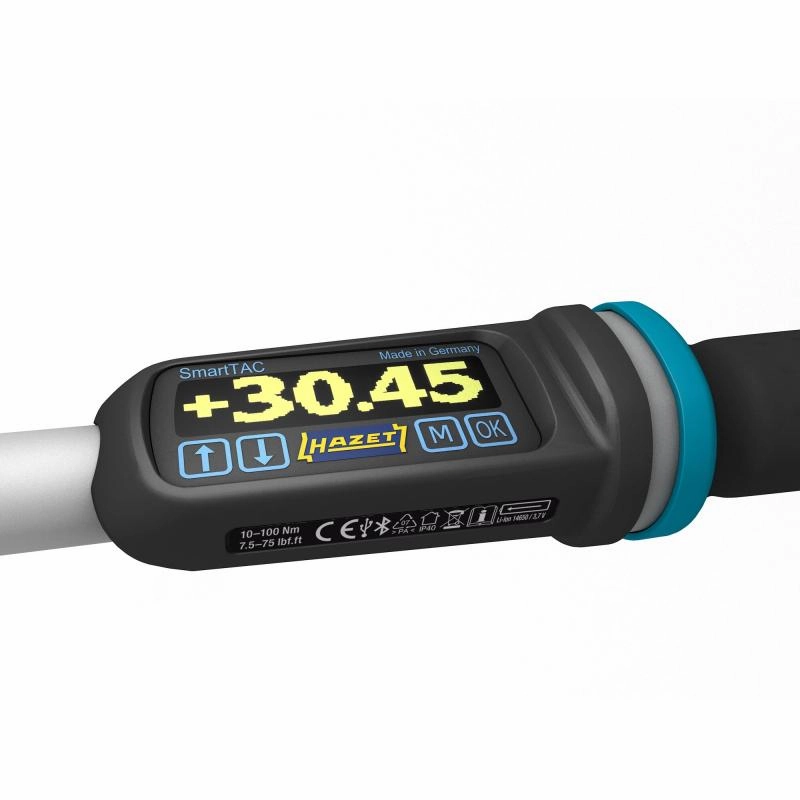

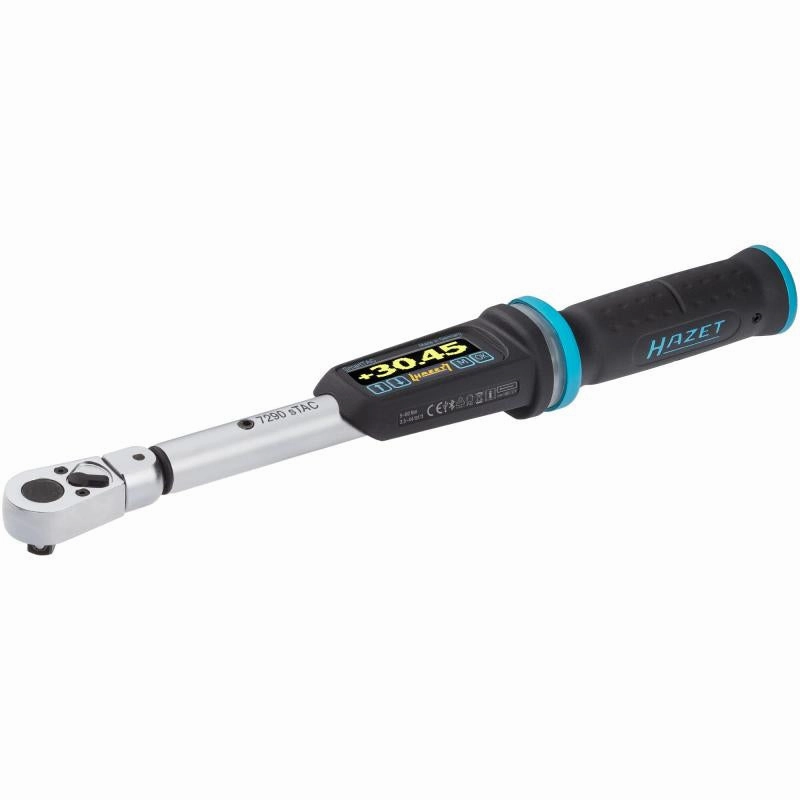

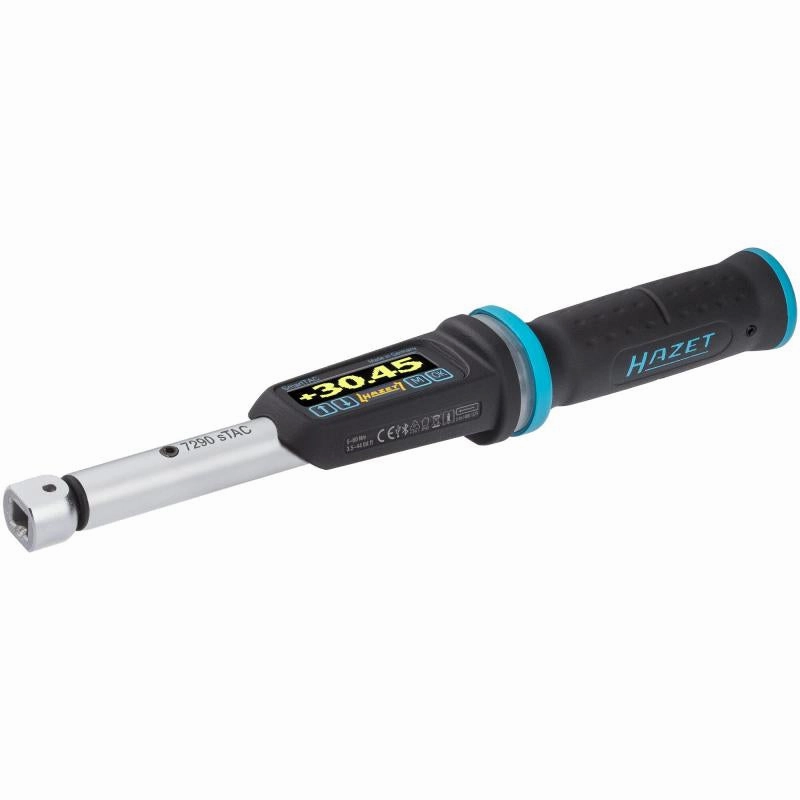

Electronic torque wrench
Application
For high-precision screw connections with torque/rotation angle calling for high accuracy or mandatory documentation, e.g. engine components especially cylinder head bolts, machine construction with increased requirements (including robot technology etc.)
What's Included

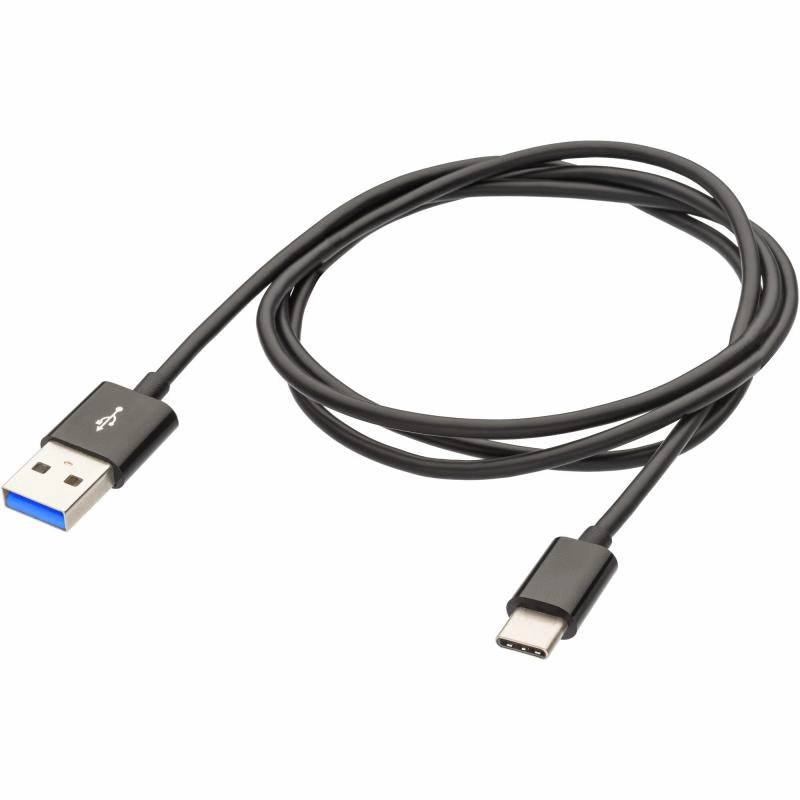

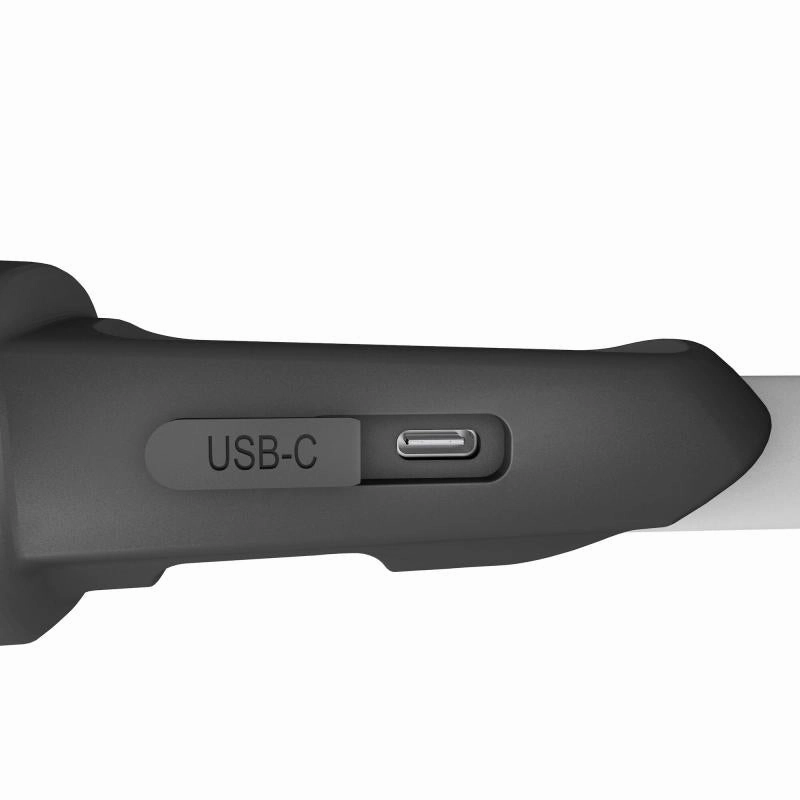

Including standard replaceable Li ion rechargeable battery, type 14650 / 3.7 Volt, can be charged directly on the tool via USB-C connector. Including 1 meter USB 3.1 / A-C cable.
Packaging
Retail
Country of Origin
Germany
UPC
4000896215324
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Length
302 mm
Weight
0.64 kg
1.41 lb
Details
Wrench Type
Torque
Size
Insert square 9 x 12 mm
Square, solid 10 mm (3/8 inch)
Square, solid 10 mm (3/8 inch)
Features
With Bluetooth function
Tested in accordance with DIN EN ISO 6789-2:2017
Tolerance: 1 %
Effective torque wrench length min.-max. I1 mm: 248.00 Nm
Actuating force min.-max. kg: 1.822.2 kg
Number of teeth: 30 (Opening angle 12)
Tested in accordance with DIN EN ISO 6789-2:2017
Tolerance: 1 %
Effective torque wrench length min.-max. I1 mm: 248.00 Nm
Actuating force min.-max. kg: 1.822.2 kg
Number of teeth: 30 (Opening angle 12)
Torque Range ft lbs
3.544 lbf.ft
Torque Range Nm
560 Nm
