Product Details
＋
General Information
Brand
IDEAL
Part Number
61-637
Product Type

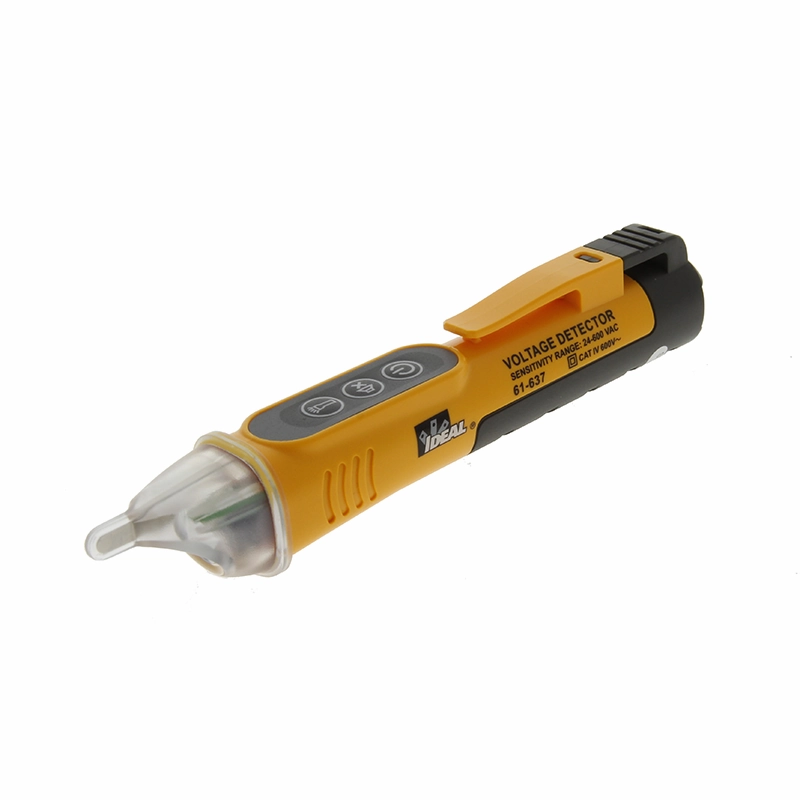

Voltage Tester
Packaging
Retail
UPC
783250810987
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Black / Yellow
Length
1.68"
Width
8.42"
Height
2.96"
Weight
0.12 kg
0.26 lb
Details
Measurement Standard
CAT IV
Features
UL Certified CAT IV 600V AC, 24 to 600 V AC
An LED Flashlight in the tip operates independently of the tester functions and can be used to illuminate the work area.
Press the Flashlight Button to turn it On/Off. The tester is set to Flashlight Off. The Flashlight will Auto Power Off after 5 minutes.
Audible Notification Disable - The tester can be operated with a visual only indication of voltage when working in noise sensitive/noise restricted area with the simple press of a speaker button.
Auto Power Off - After 10 minutes of inactivity (no button pressed and no signals detected), the tester will emit one long beep (~0.5s) and then shut off. Note: if the flashlight is on, it will be also shut off.
Low Battery Indication - If battery voltage is less than around 2.4V, the green led in the tip will flash 3 times and the buzzer will send out one long beep, then turn off the device.
An LED Flashlight in the tip operates independently of the tester functions and can be used to illuminate the work area.
Press the Flashlight Button to turn it On/Off. The tester is set to Flashlight Off. The Flashlight will Auto Power Off after 5 minutes.
Audible Notification Disable - The tester can be operated with a visual only indication of voltage when working in noise sensitive/noise restricted area with the simple press of a speaker button.
Auto Power Off - After 10 minutes of inactivity (no button pressed and no signals detected), the tester will emit one long beep (~0.5s) and then shut off. Note: if the flashlight is on, it will be also shut off.
Low Battery Indication - If battery voltage is less than around 2.4V, the green led in the tip will flash 3 times and the buzzer will send out one long beep, then turn off the device.
AC Voltage
24 - 600V
Batteries
2 x 1.5V AAA Batteries
Display Type
LED
