Product Details
＋
General Information
Brand
Johnson
Part Number
40-6222
Product Type

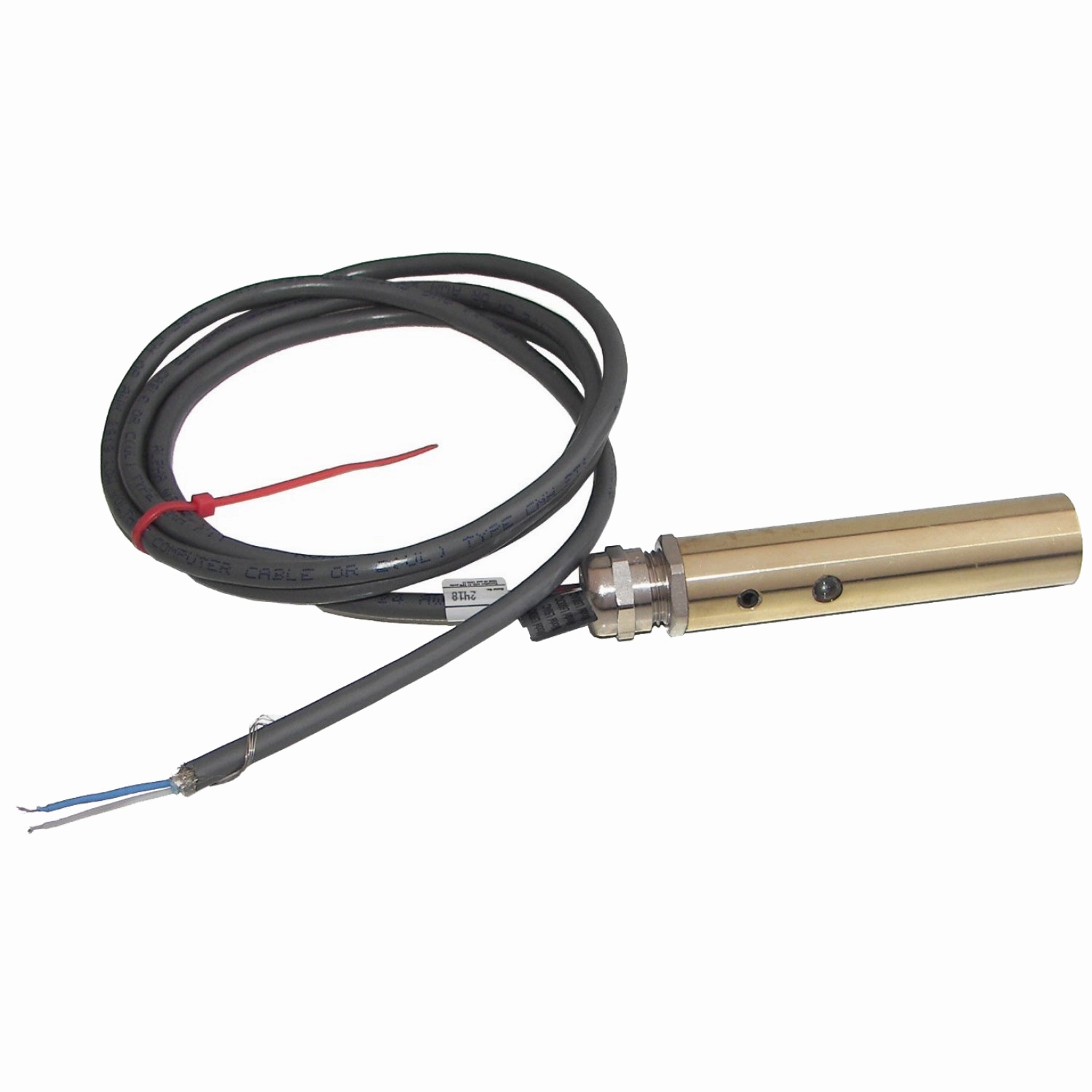

Industrial Alignment Dot laser
UPC
049448062225
California Residents
Physical Characteristics
Weight
0.29 kg
0.65 lb
Material
Brass
Details
Features

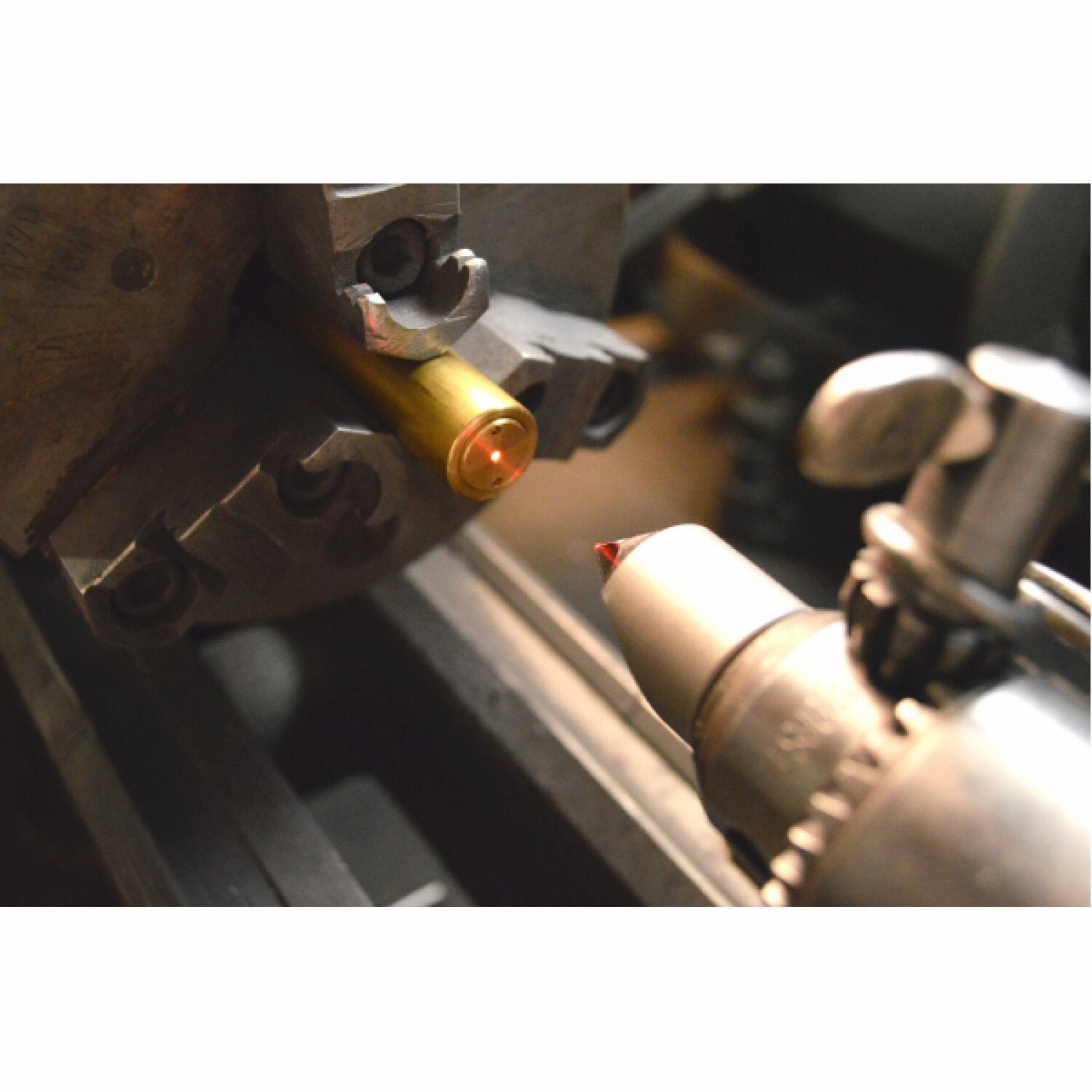

Laser beam is aligned to be concentric with the outside diameter of the brass housing. This allows the installer to use the outside of the case for centering and positioning the beam.
Solid brass industrial grade housing protects laser diode - won't rust or spark
Solid glass optics are designed for harsh work environments
Wedge internal prisms steer beam and maintain beam alignment for impact resistance
"O"ring seal - water and oil proof to IP67 standards
Beam-on indicator verifies unit is working from a distance
Accessory parts available include Mounting Bracket (40-6229), Aperture Pack (40-6226) and 70 Degree Fan Angle Line Generator Lens (40-6228)
Solid brass industrial grade housing protects laser diode - won't rust or spark
Solid glass optics are designed for harsh work environments
Wedge internal prisms steer beam and maintain beam alignment for impact resistance
"O"ring seal - water and oil proof to IP67 standards
Beam-on indicator verifies unit is working from a distance
Accessory parts available include Mounting Bracket (40-6229), Aperture Pack (40-6226) and 70 Degree Fan Angle Line Generator Lens (40-6228)
Voltage
2-24 V
Accuracy
/-1/8"/100'
