Product Details
＋
General Information
Brand
Klein Tools
Part Number
CL220VP
Product Type
Electrical Test Kit
Application
Testing and Measuring AC/DC Voltage, Resistance, Continuity, Temperature, Non-contact Voltage Detection, and Determining Wiring Conditions in Outlets
UPC
092644694332
What's Included

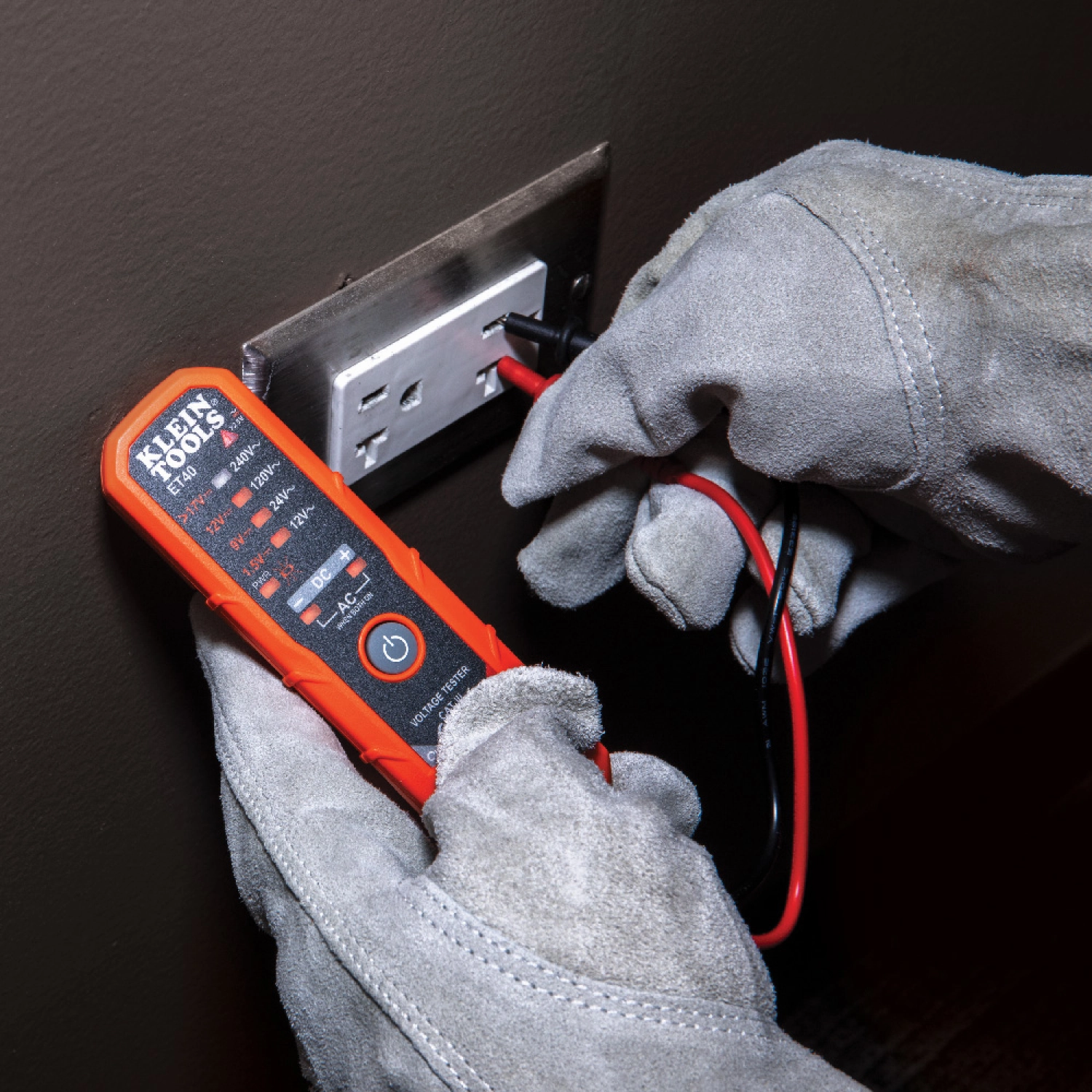

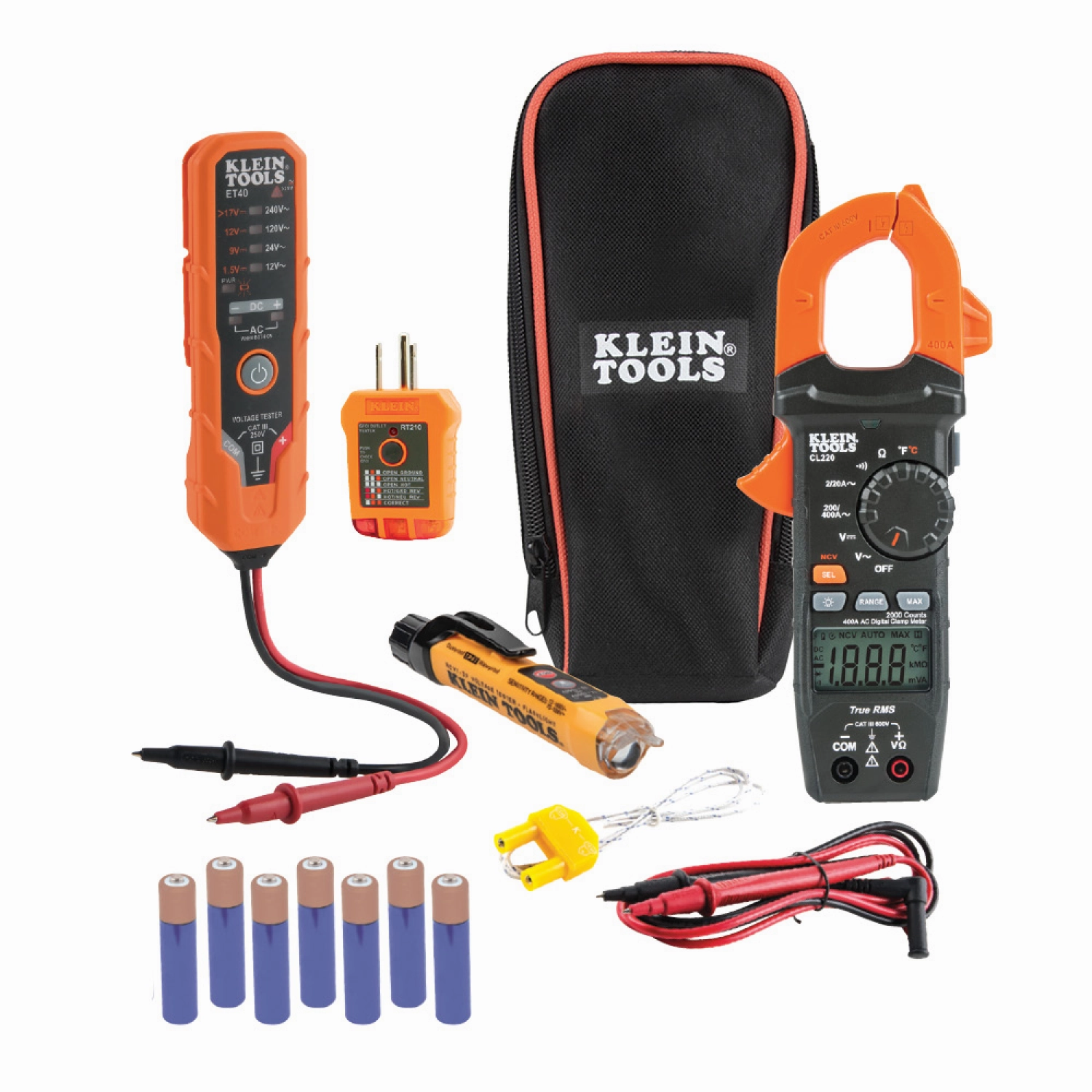

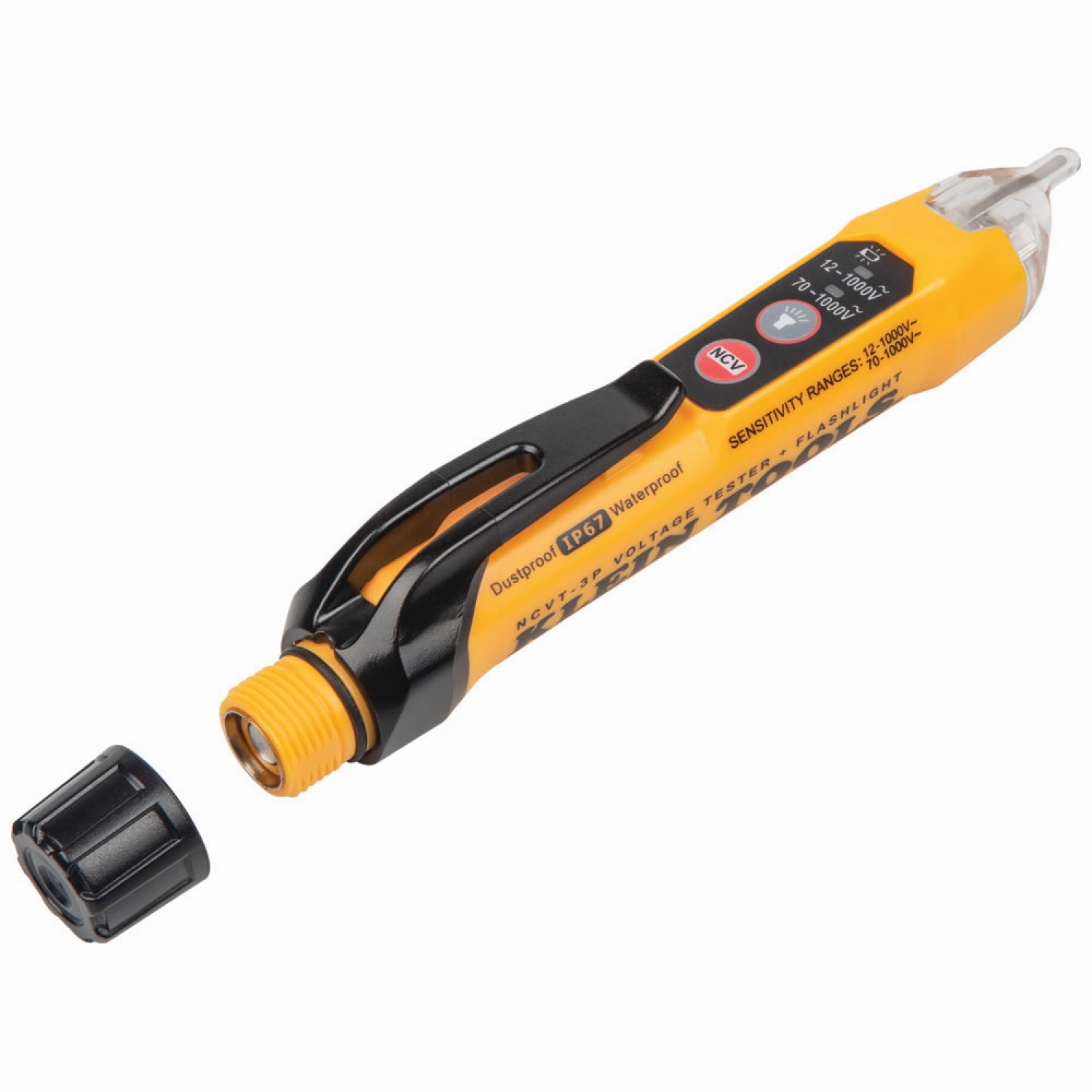

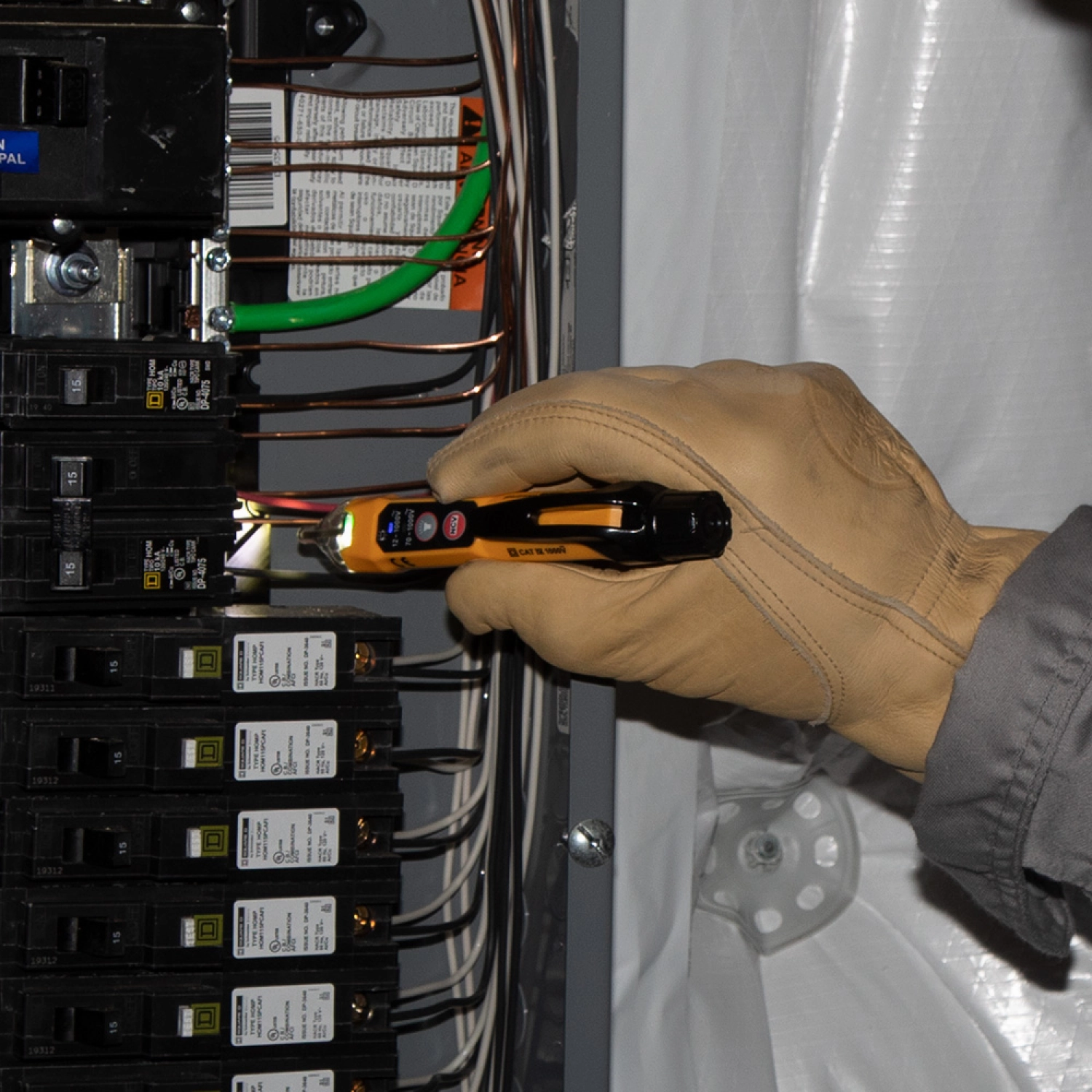

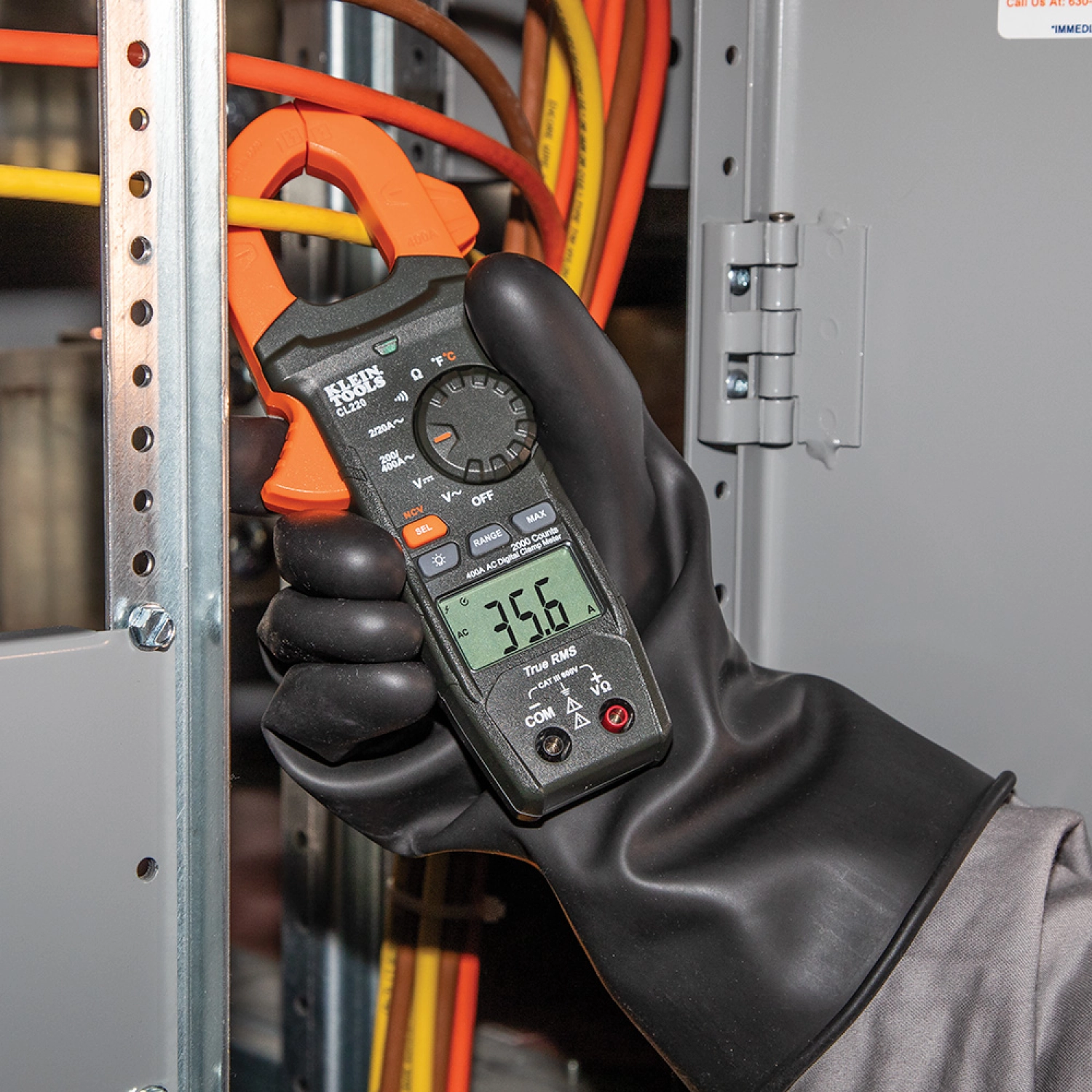

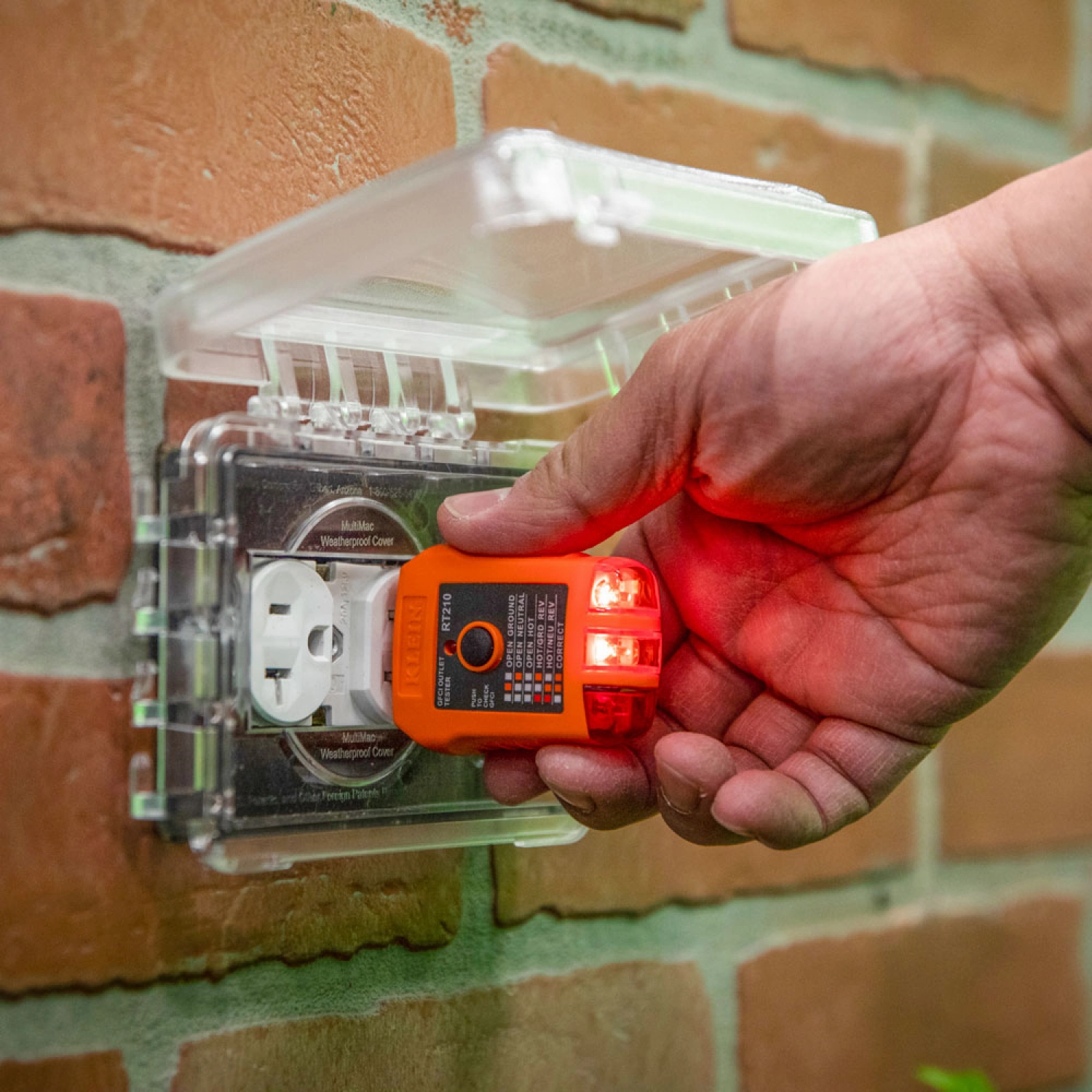

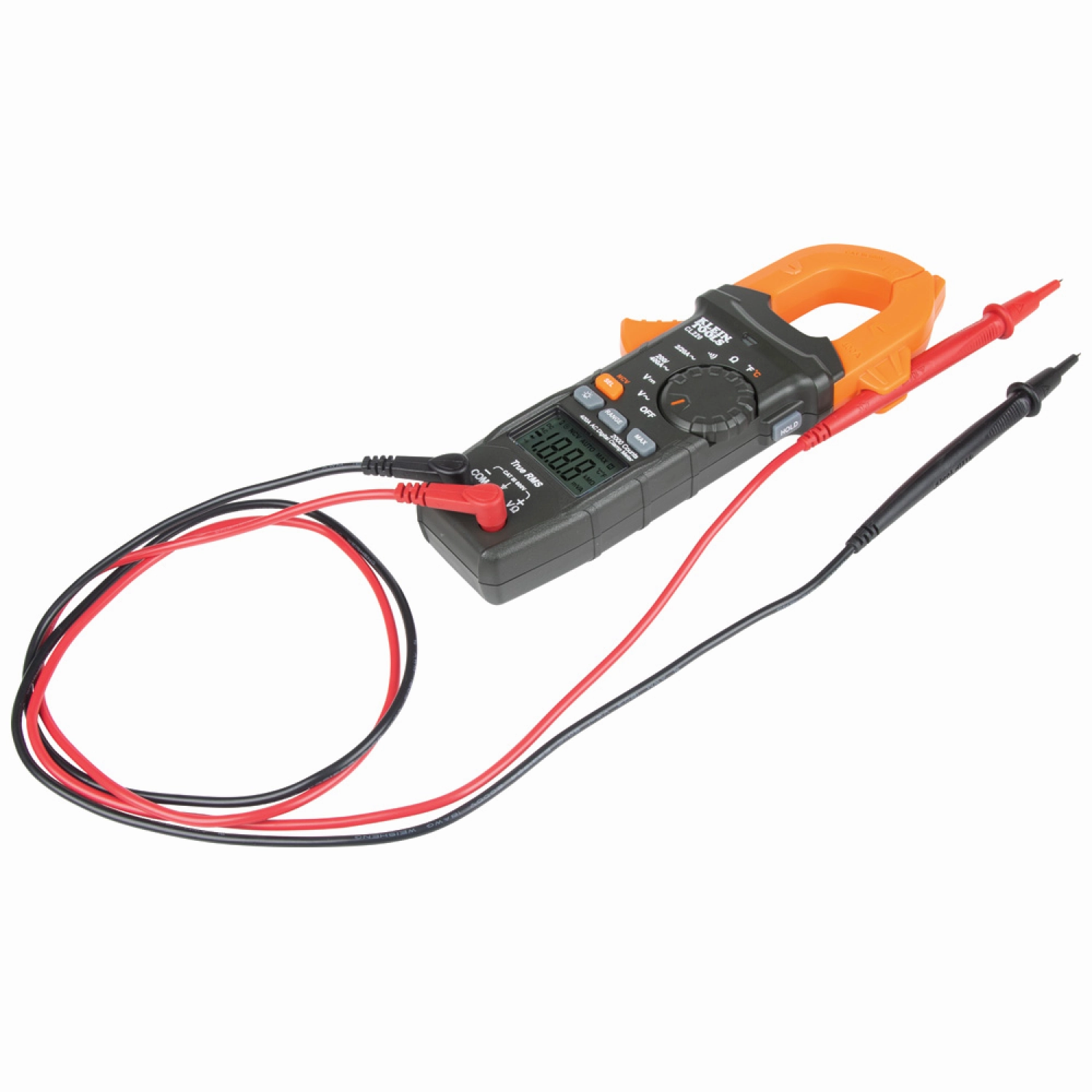

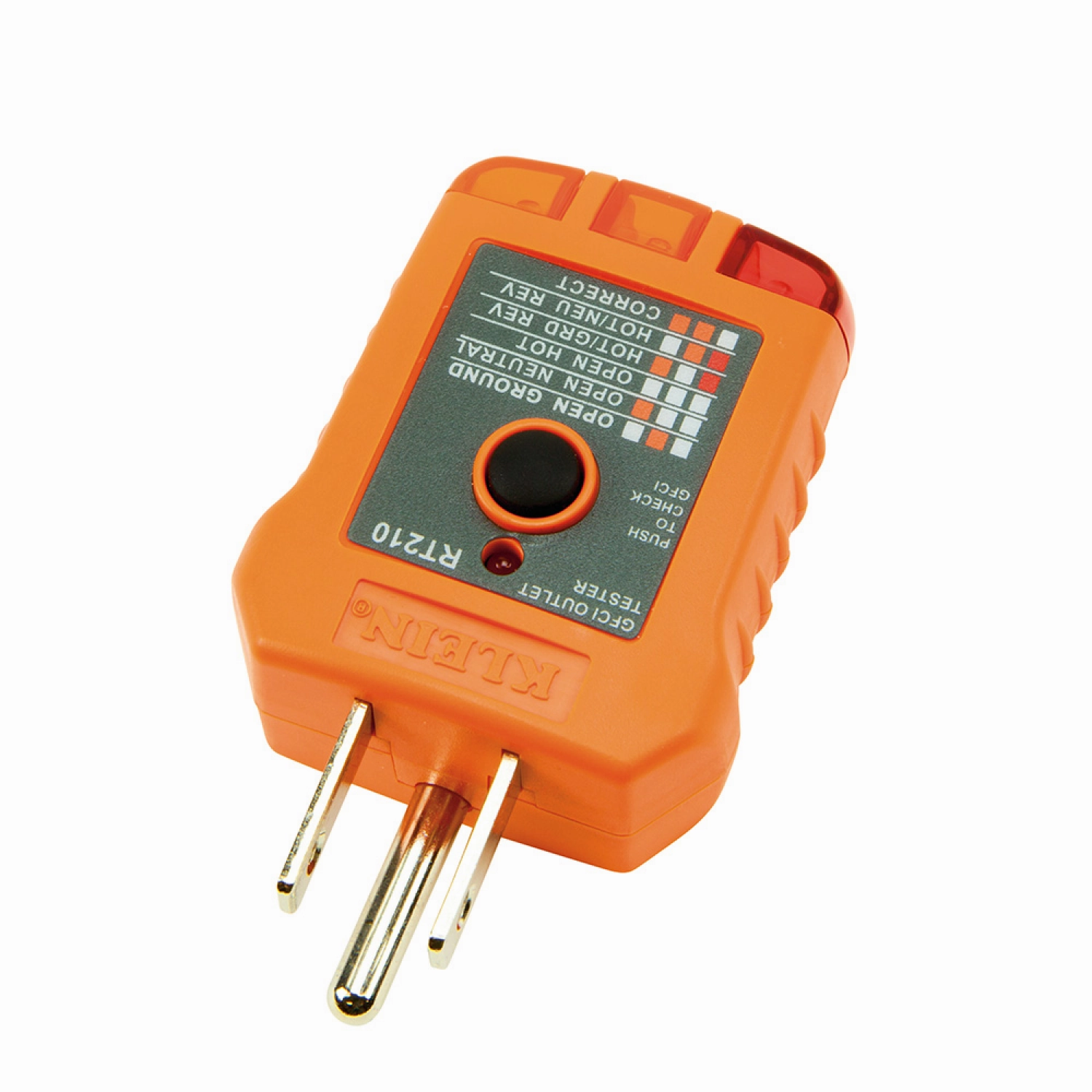

CL220 Digital Clamp Meter with Test Leads; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; ET40 Electronic AC/DC Voltage Tester; RT210 GFCI Receptacle Tester; Carrying Case; Instructions; and All Required Batteries
Packaging
Retail
California Residents
Physical Characteristics
Color
Orange / Yellow / Black
Material
ABS/Electronics
Length
8.45'' (21.5 cm)
Width
3.5'' (8.9 cm)
Height
1.5'' (3.8 cm)
Weight
0.32 kg
0.70 lb
Details
Measurement Standard
CL220: CATIII 600V, Class 2, Double Insulation Safety Rating, CE and UKCA Certified
Functions
Clamp Meter: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature
Features
CL220: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
Jaw Size
CL220: 1.6'' (4.1 cm)
Voltage
CL220: 600 V AC/DC; NCVT3P: Range 1: 12 -1000V AC; Range 2: 70 - 1000V AC; ET40: AC Level Indicators: 12V, 24V, 120V, 240V and DC Indicators: 1.5V, 9V, 12V, >17-24V; RT310: 120V AC in 3-Wire Grounded Electrical Outlet
Batteries
CL220: 3 x AAA; NCVT3P: 2 x AAA; ET40: 2 x AAA
Display Type
CL220: 2000 Count Backlit LCD
