Klein Tools

CL320KIT

HVAC Kit

HVAC Electrical and Temperature Testing

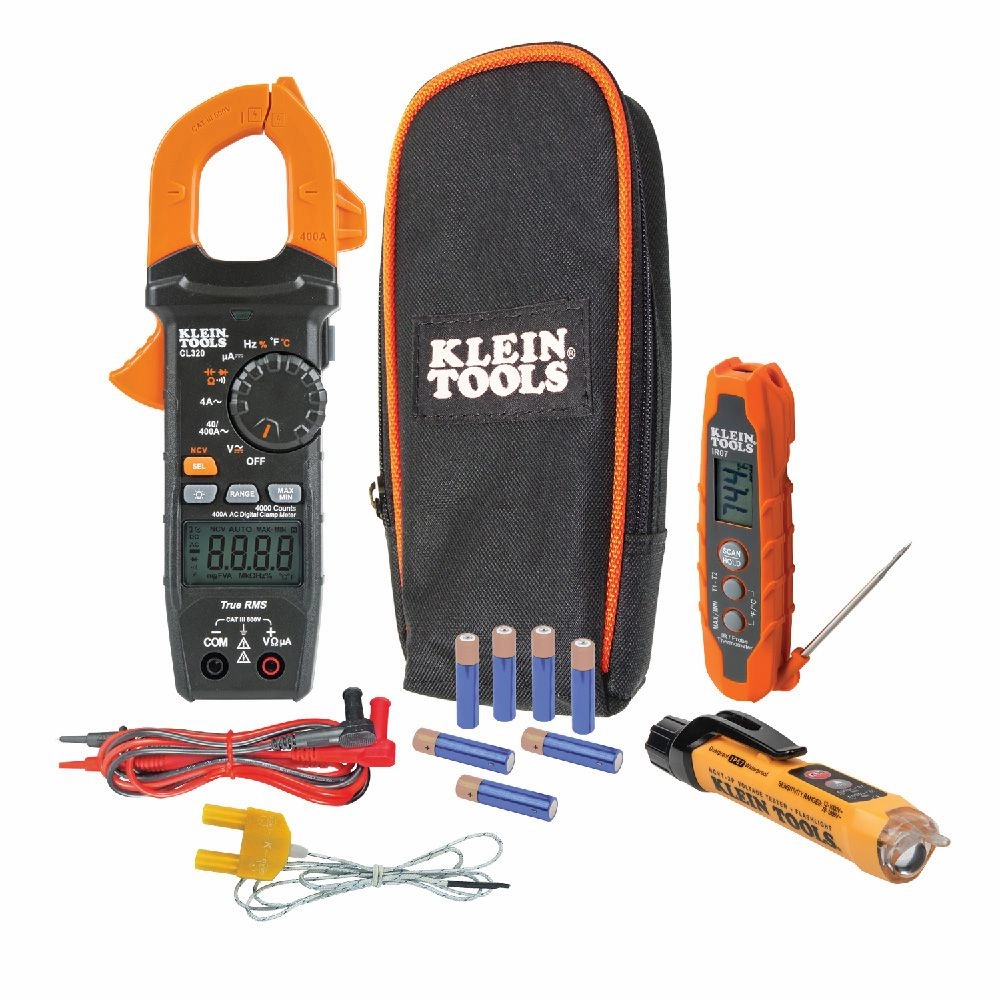

Cat. Nos. CL320, IR07, and NCVT3P, Test Leads with CAT III/CAT IV Safety Caps, Thermocouple, 7 x AAA Batteries, Storage Pouch

Retail

092644693496

Proposition 65 Warning

ABS/Electronics

8.45'' (21.5 cm)

3.5'' (8.9 cm)

1.5'' (3.8 cm)

Cat. No CL320: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified; Cat. No. NCVT3P: CAT IV 1000

TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature

HVAC Kit with testers for the HVAC Professional; Cat. No. CL320 HVAC Digital Clamp Meter with AC Auto-Ranging, Cat. No. IR07 Dual IR/Probe Thermometer, and Cat. No. NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight

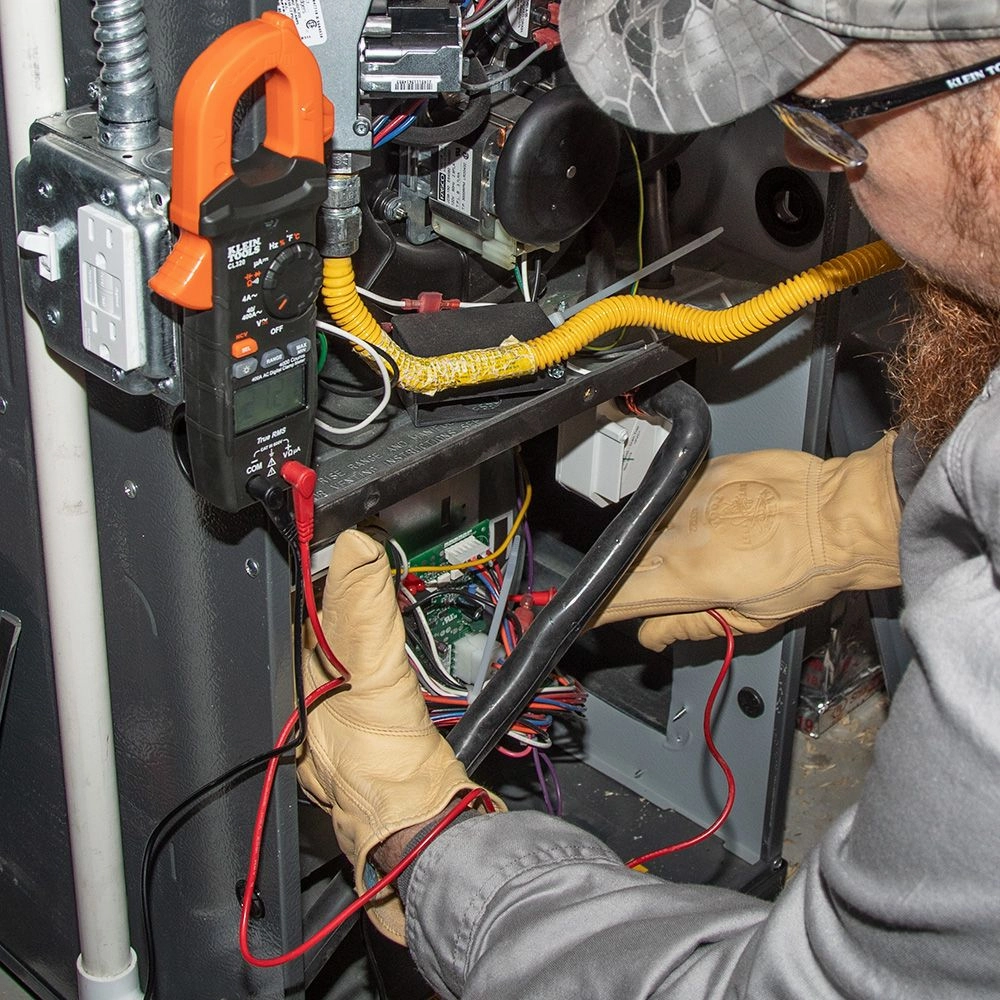

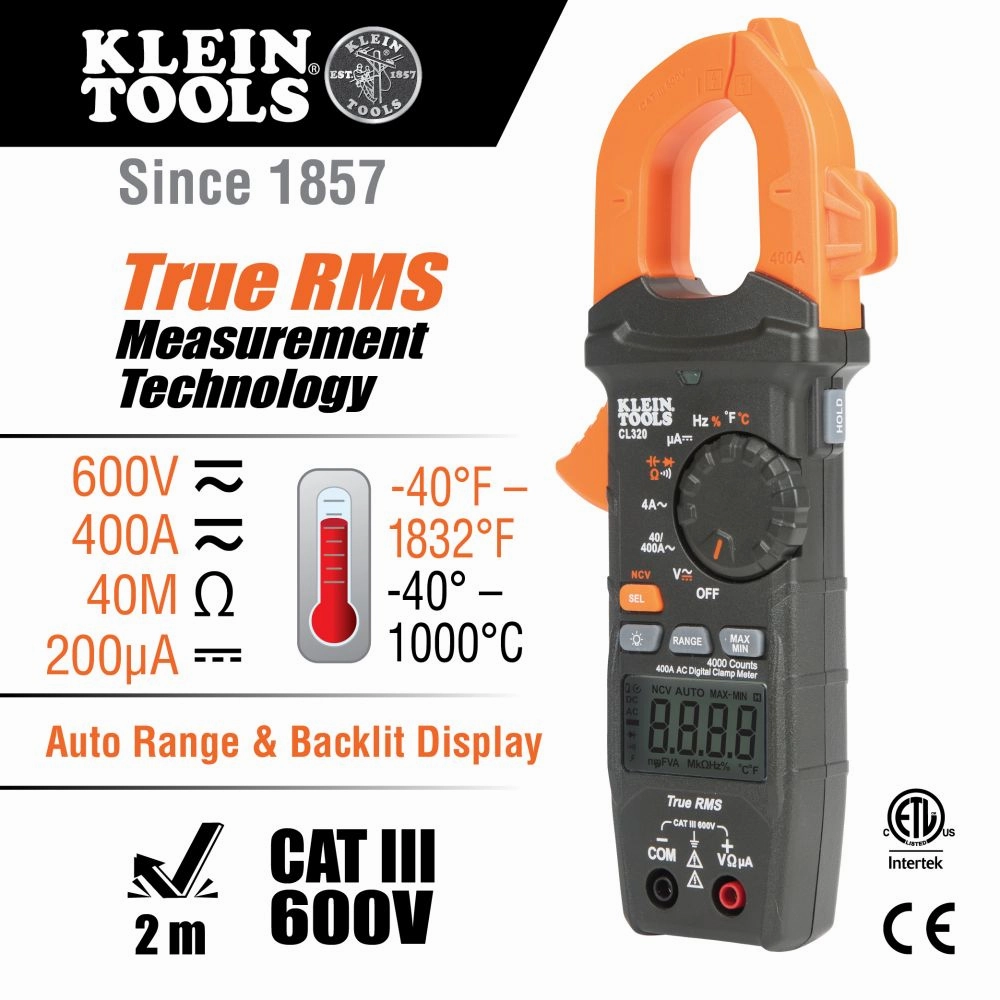

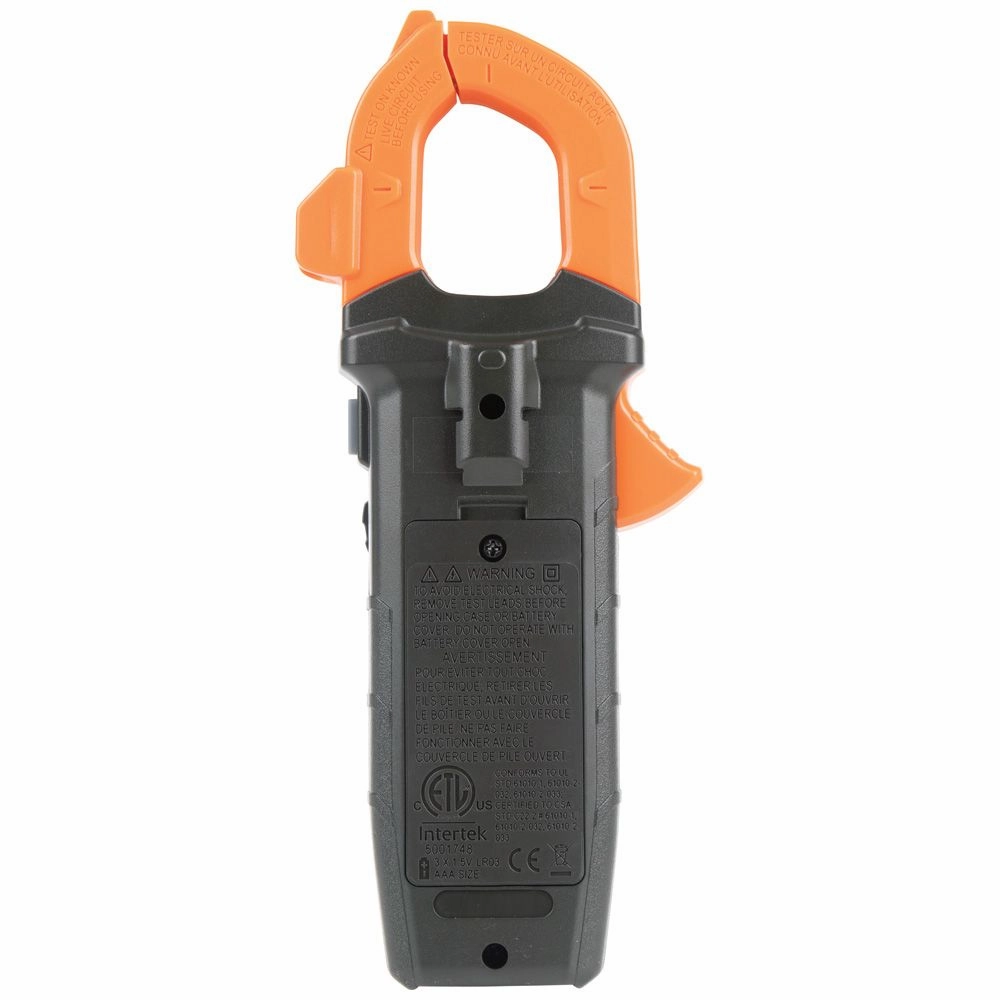

HVAC Clamp Meter Cat. No. CL320 with TRMS measurement technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature

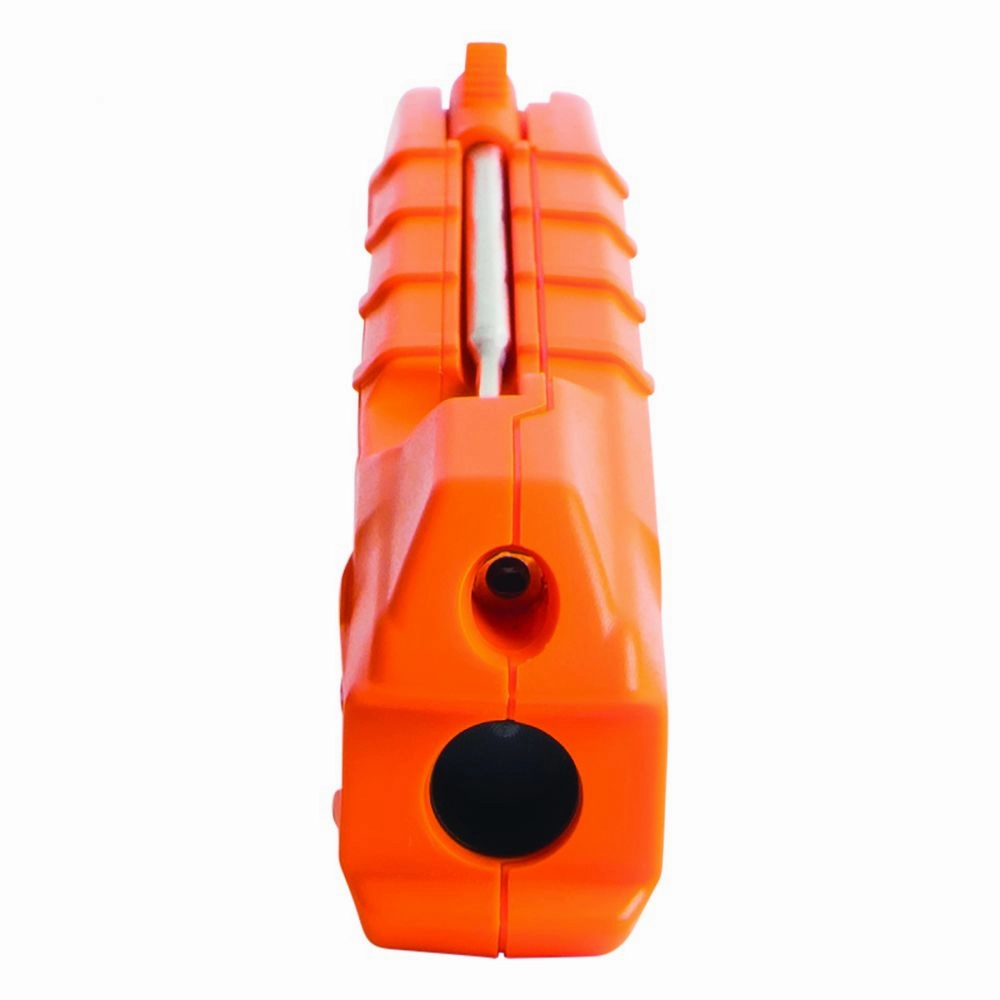

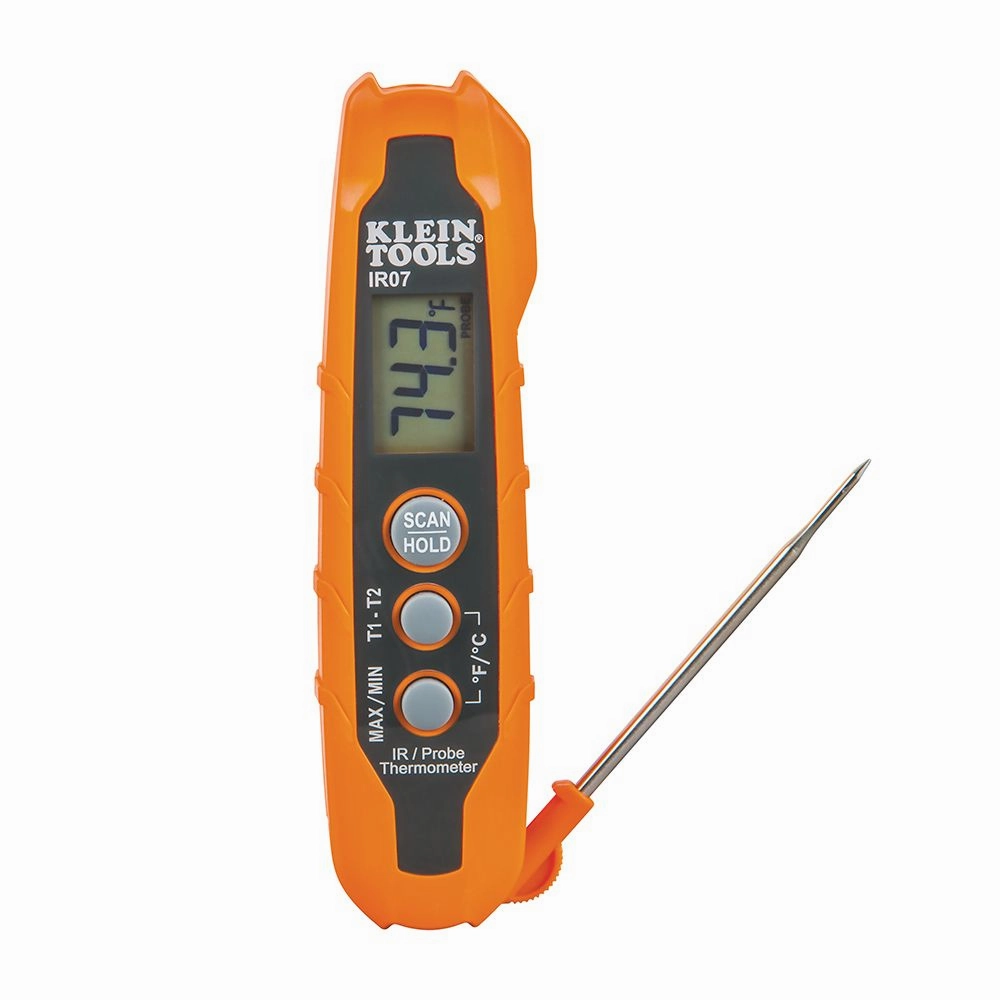

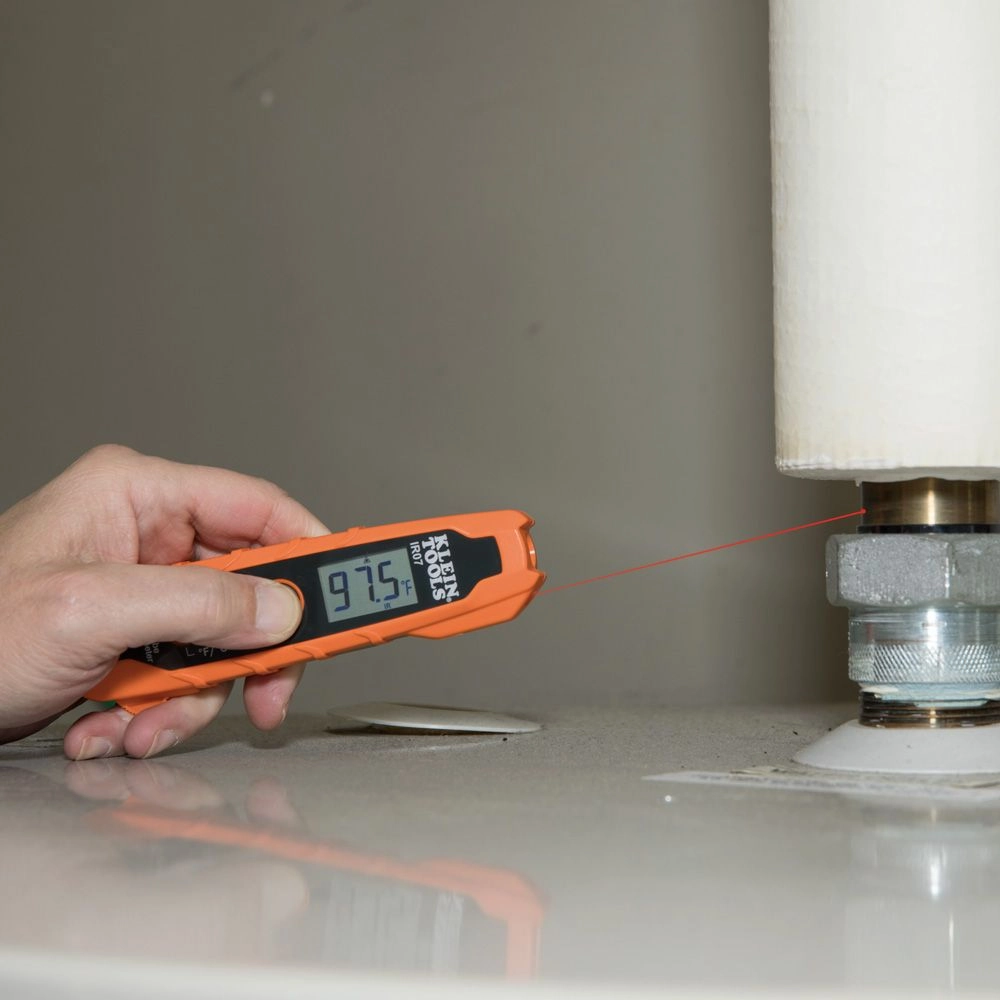

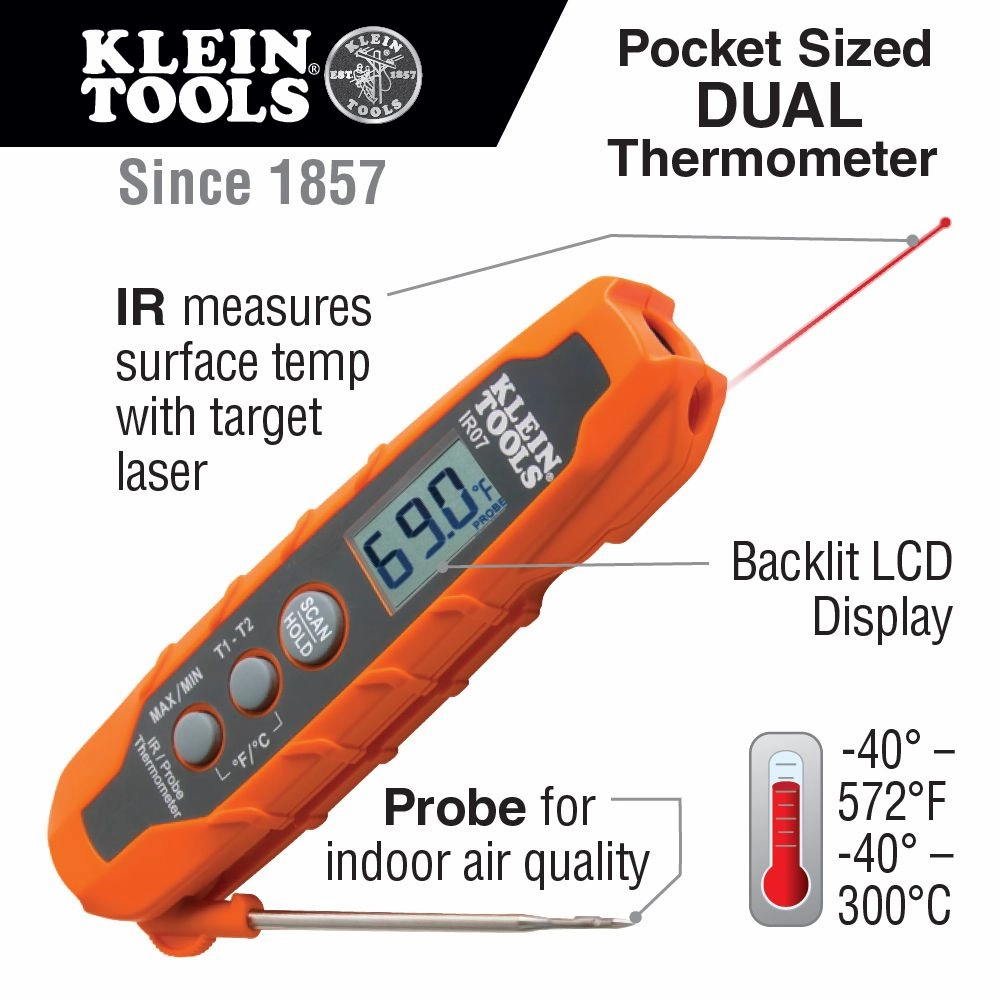

Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); accurately measure surface temperature with Infrared Thermometer (DS ratio 8:1)

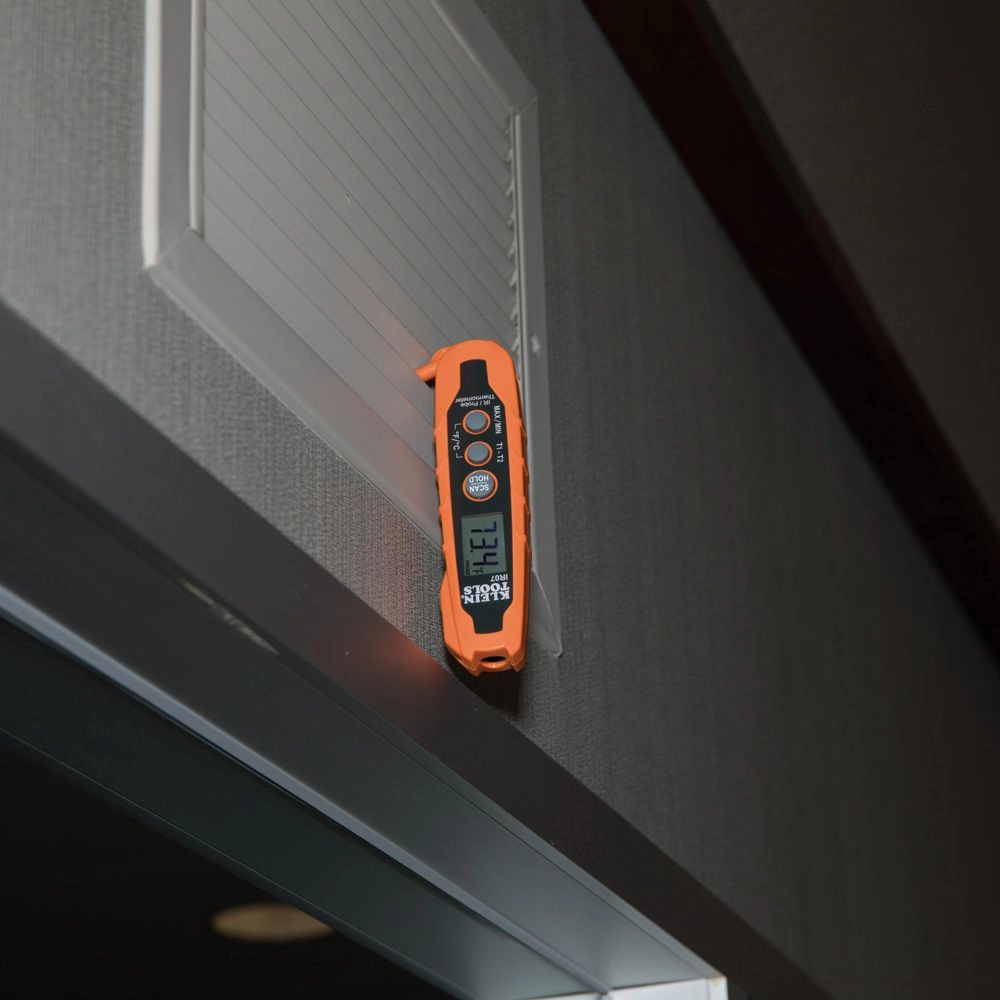

Measure air vents and duct temperature using temperature probe with hands-free hanging hook; calculate differential temperature (T1-T2) for both IR and probe temperatures; IR07 is not a medical device and is NOT intended for use on people or animals

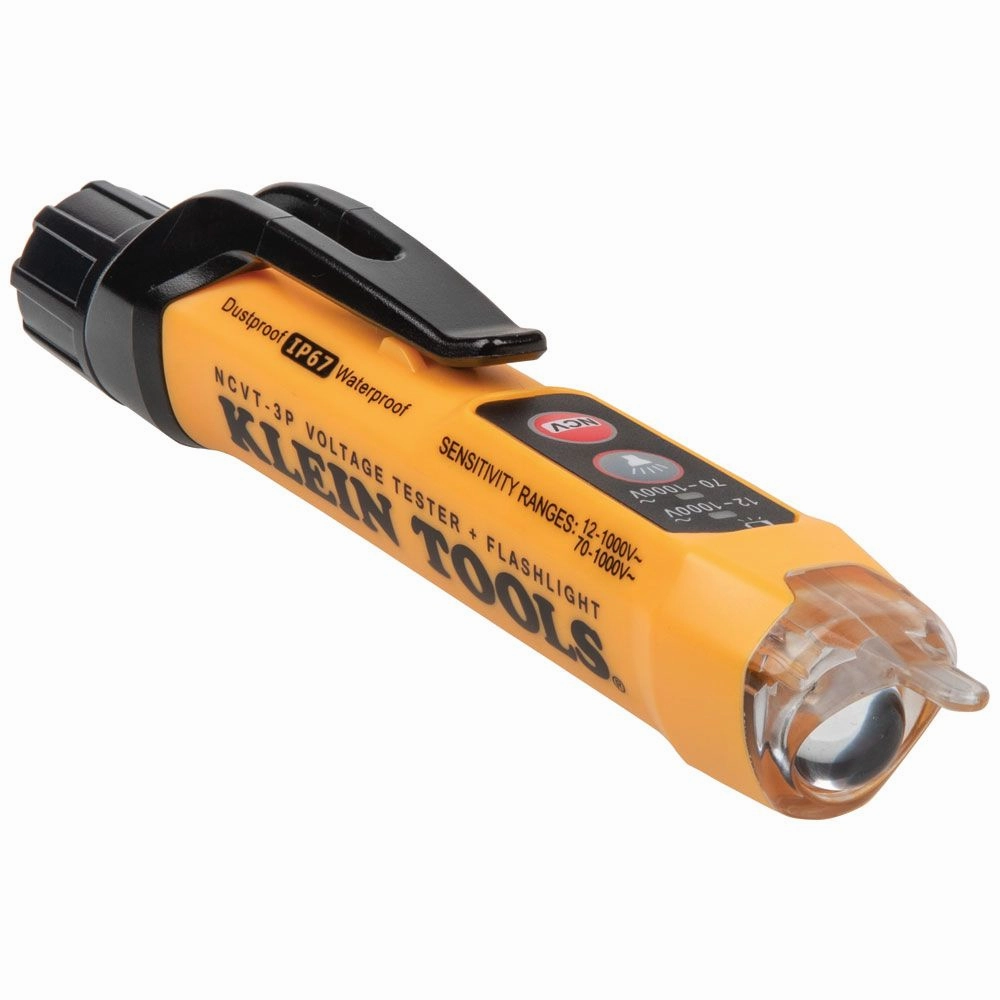

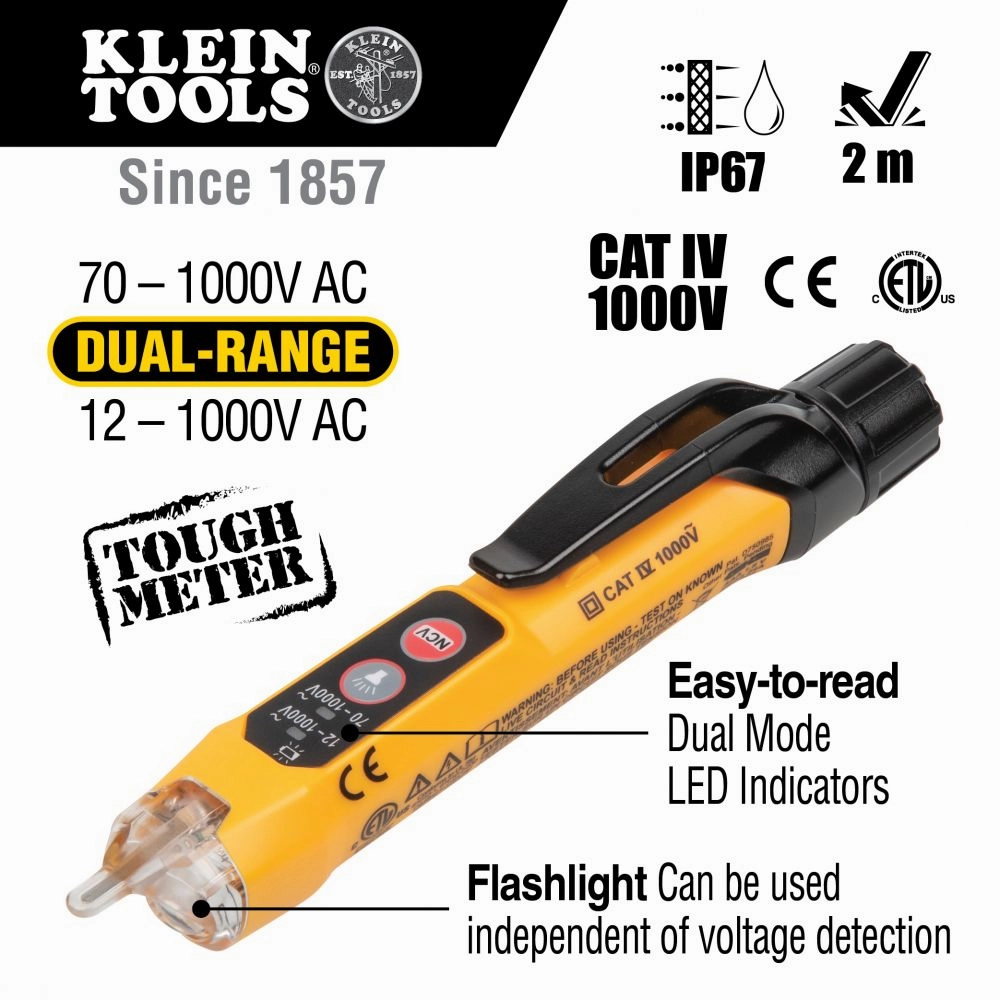

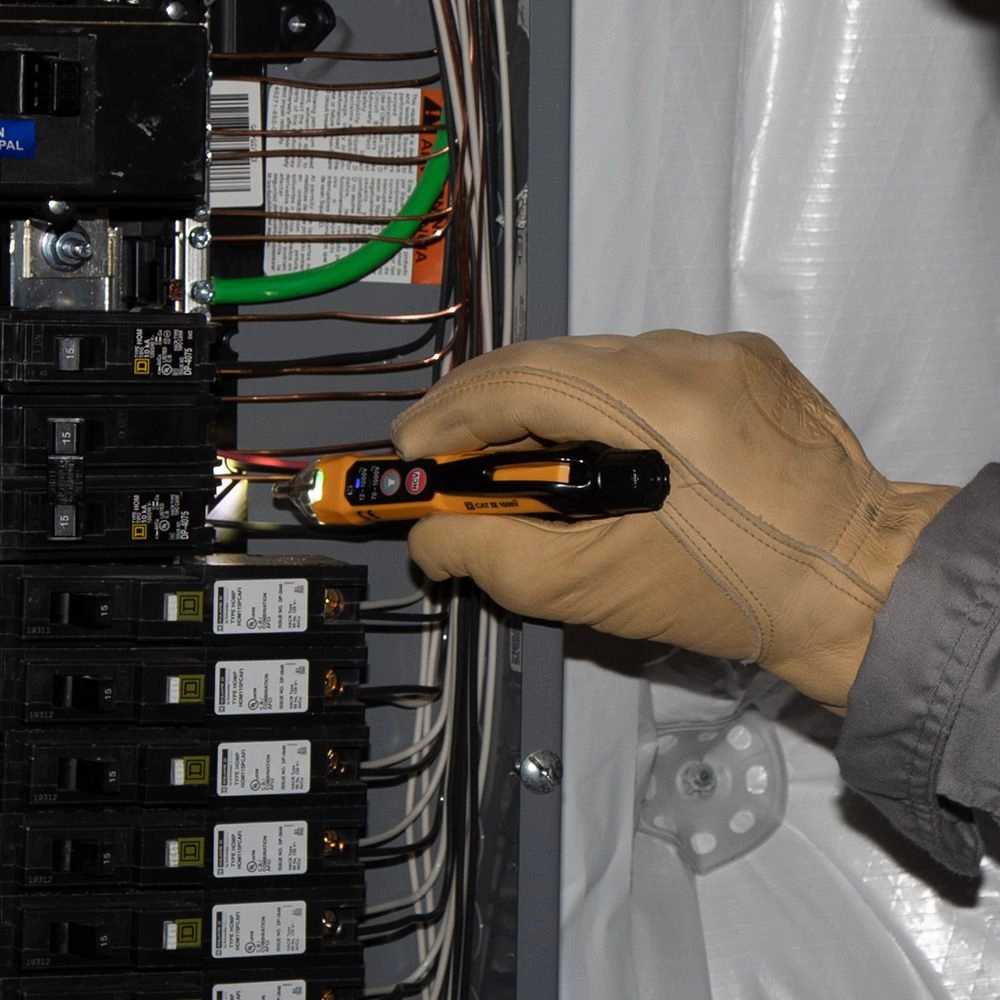

Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications; detects voltage with simultaneous visual and audible voltage indicators

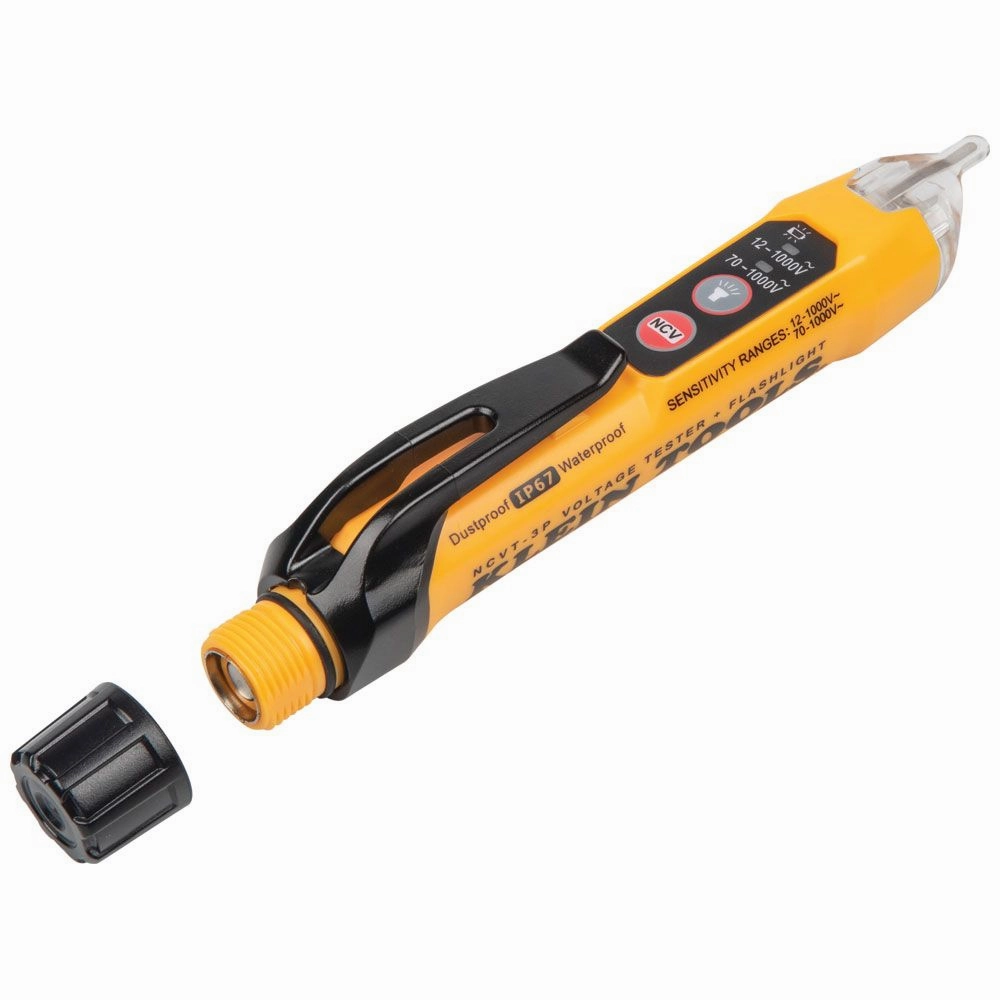

Bright flashlight illuminates work area and may be used independent of voltage detection function; CAT IV 1000V rating provides expanded operation and protection

600V

600V

400 A AC

Cat. No. CL320: 600V AC/DC; Cat. No. NCVT3P: 1000V AC

4000 F

40MO

10 Hz to1 MHz

7 x AAA

-40 to 1832F (-40 to 1000C)
