Product Details
＋
General Information
Brand
Klein Tools
Part Number

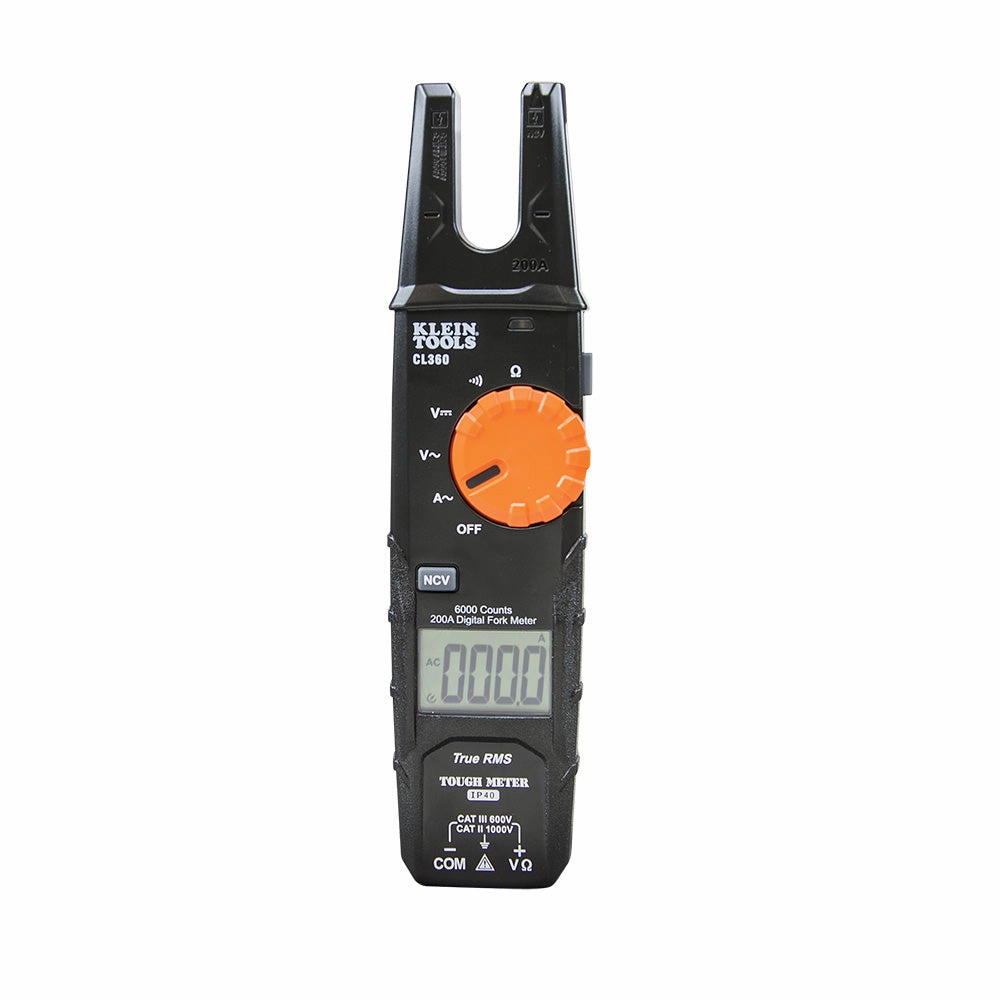

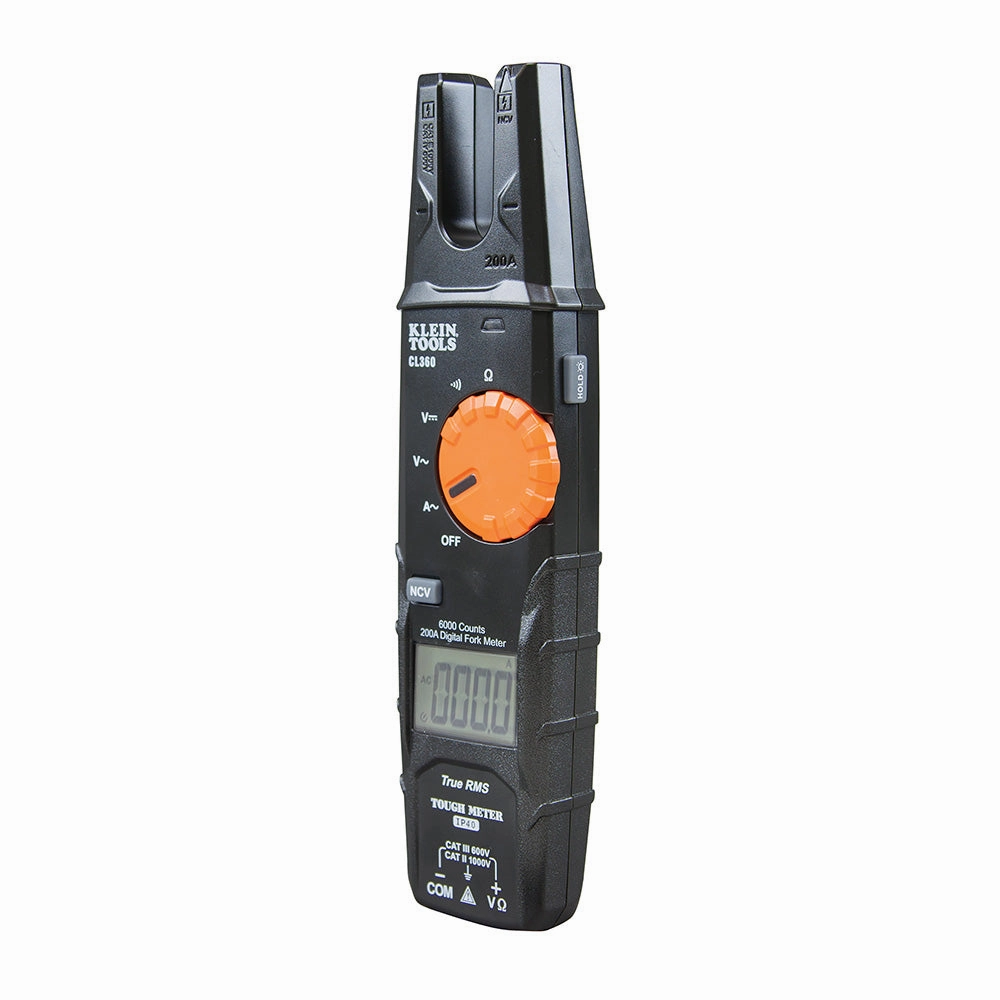

CL360
Product Type
Current Meter
Application
Measures AC Current, AC/DC Voltage, Continuity, Resistance
What's Included

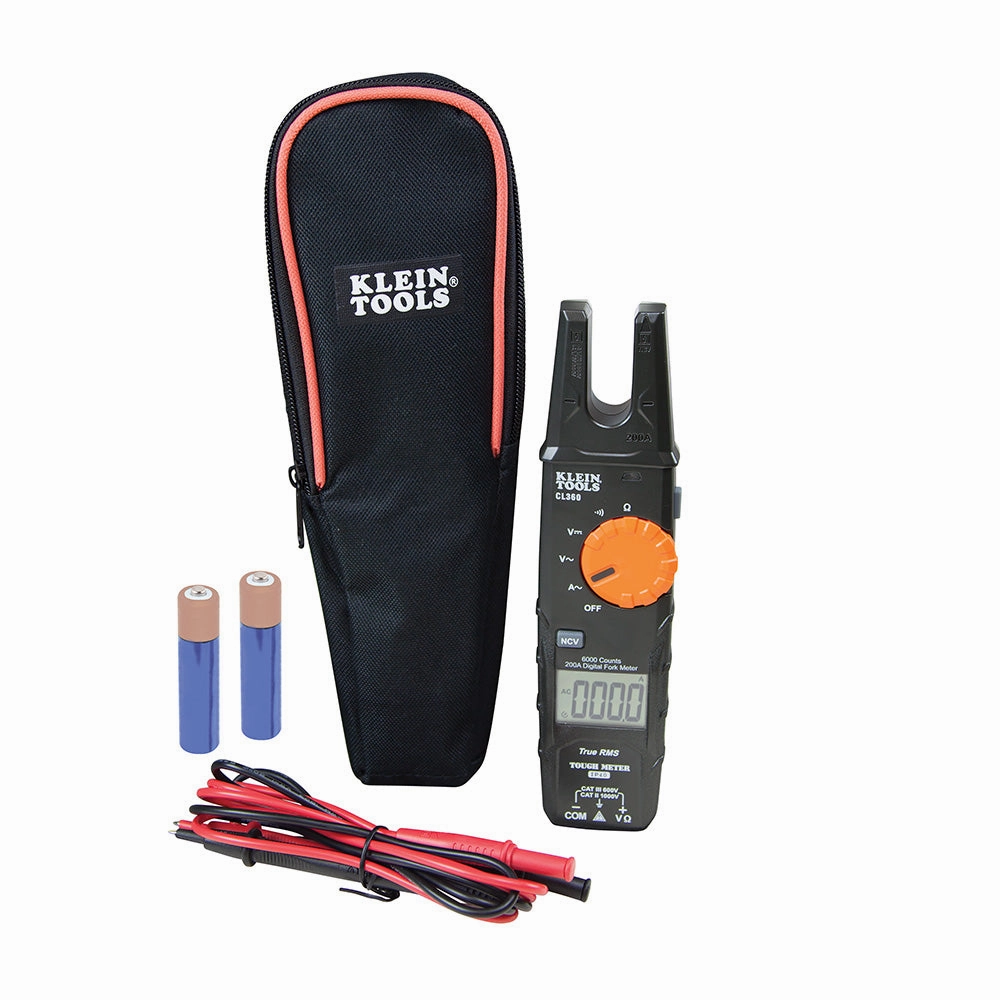

Carrying Case, Instruction Manual, Straight Input Test Leads, and 2 x 1.5V AAA Batteries
Packaging
Retail
UPC
092644691140
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Orange / Black
Material
Plastic/Electronics
Length
8.39'' (21.3 cm)
Width
2.12'' (5.4 cm)
Height
1.38'' (3.5 cm)
Weight
0.18 kg
0.40 lb
Details
Functions
AC Current, AC/DC Voltage, Continuity, Resistance
Features

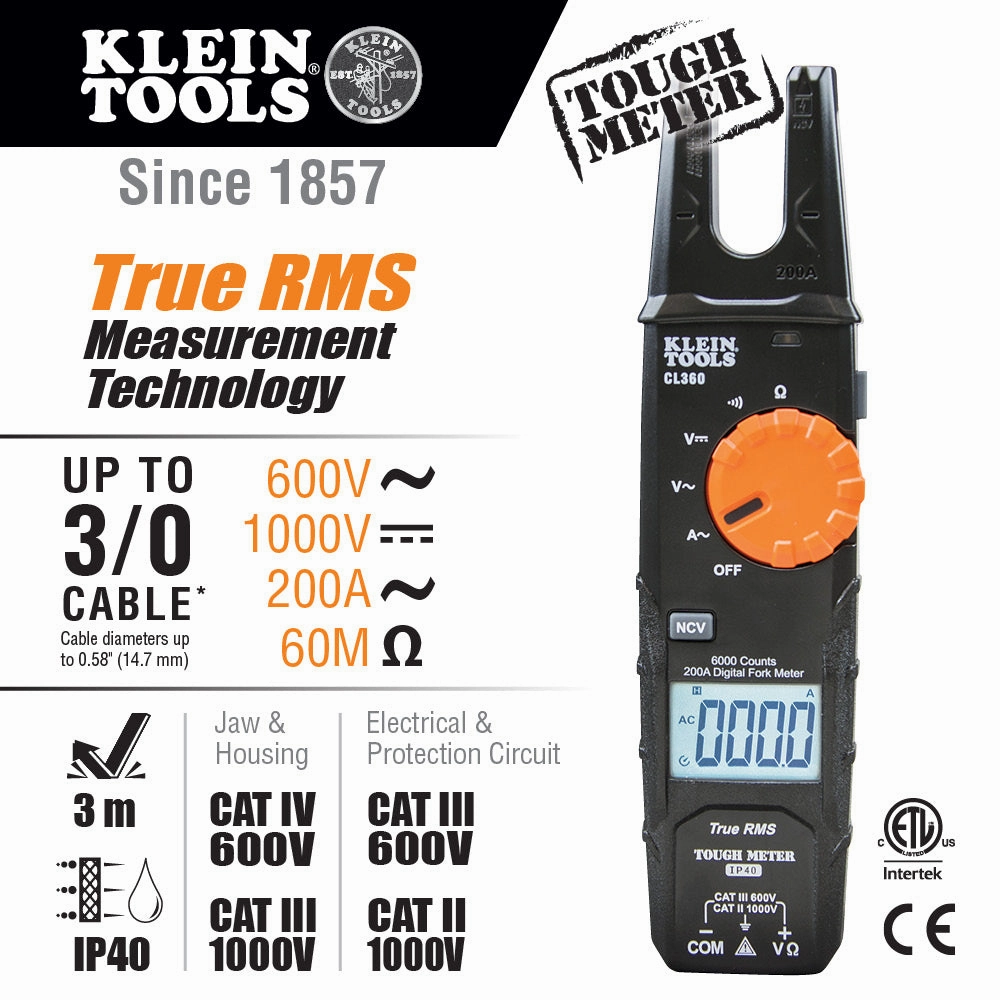

Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy

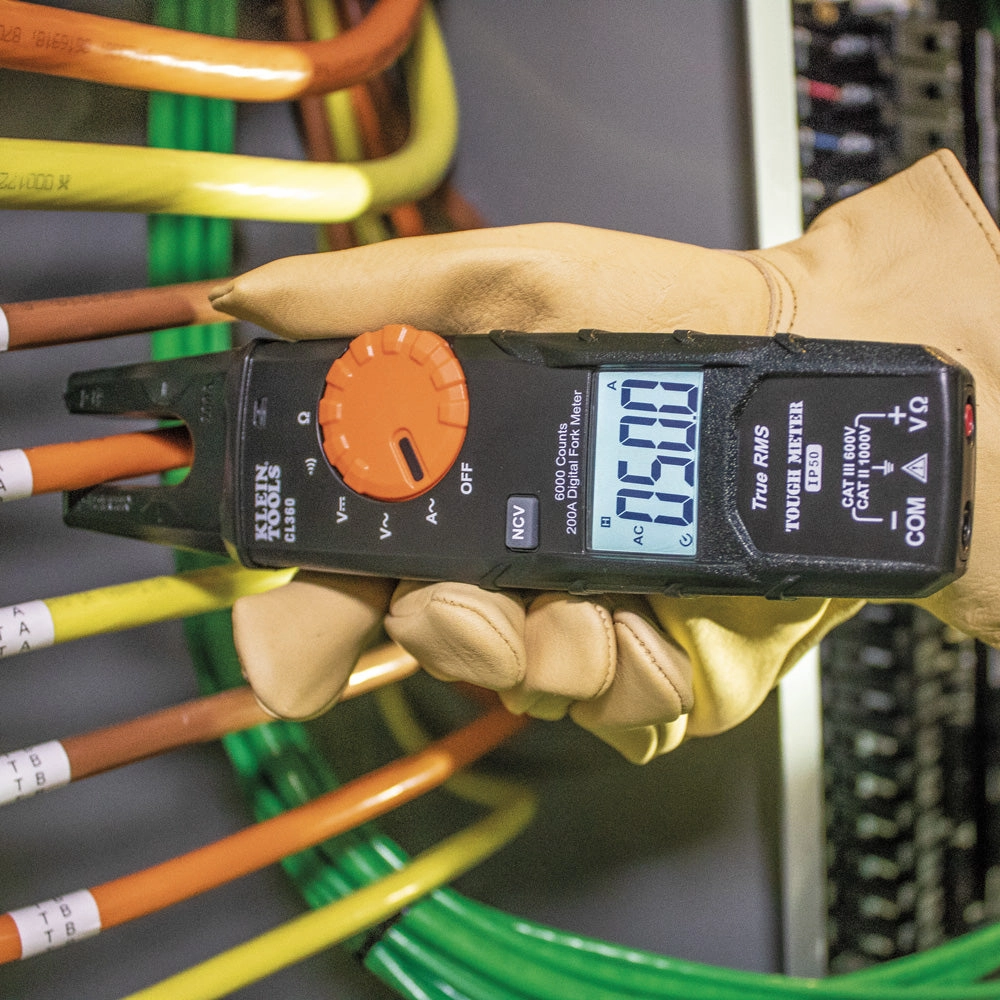

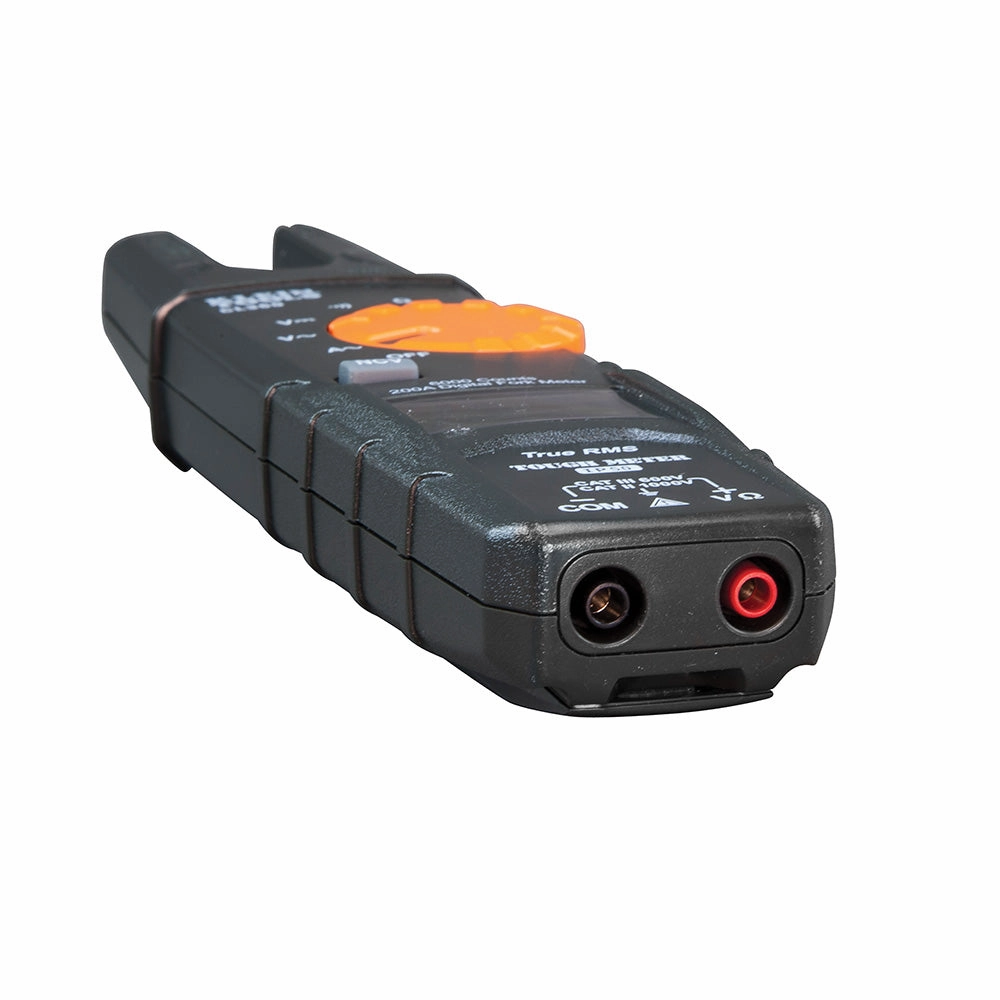

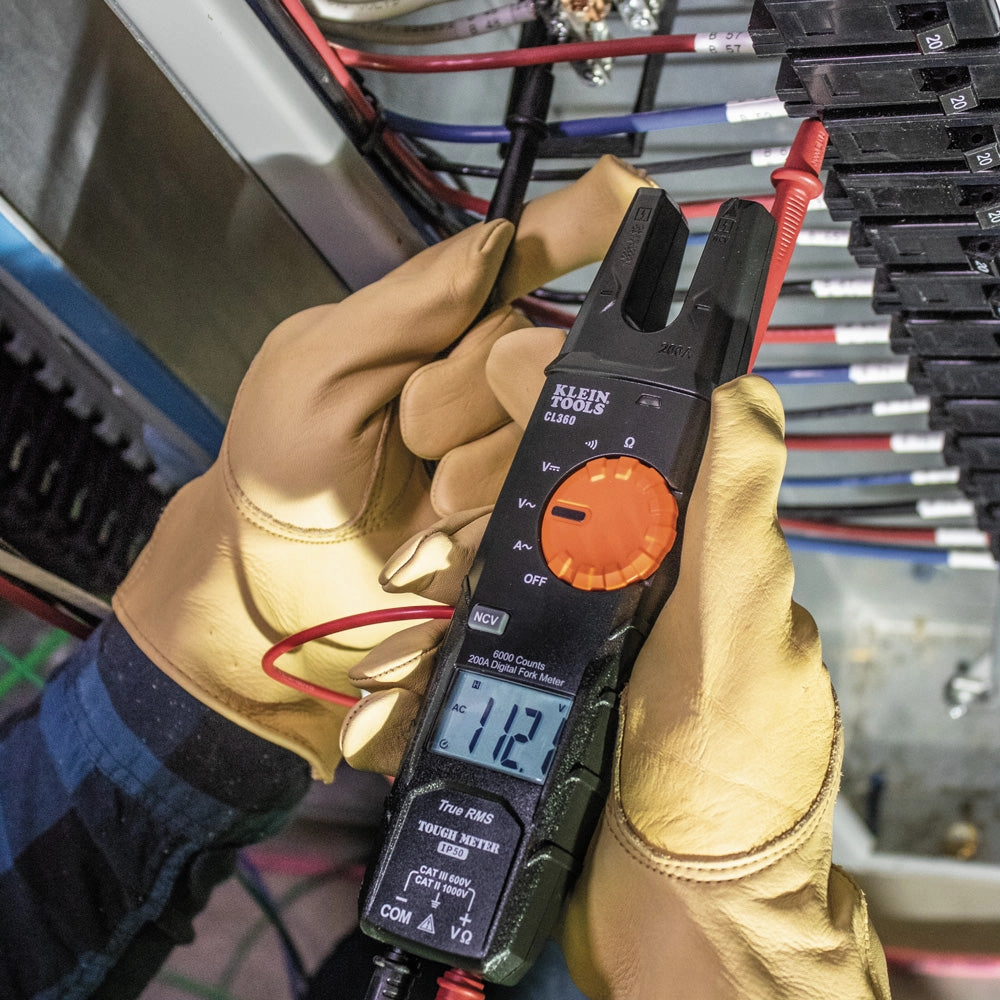

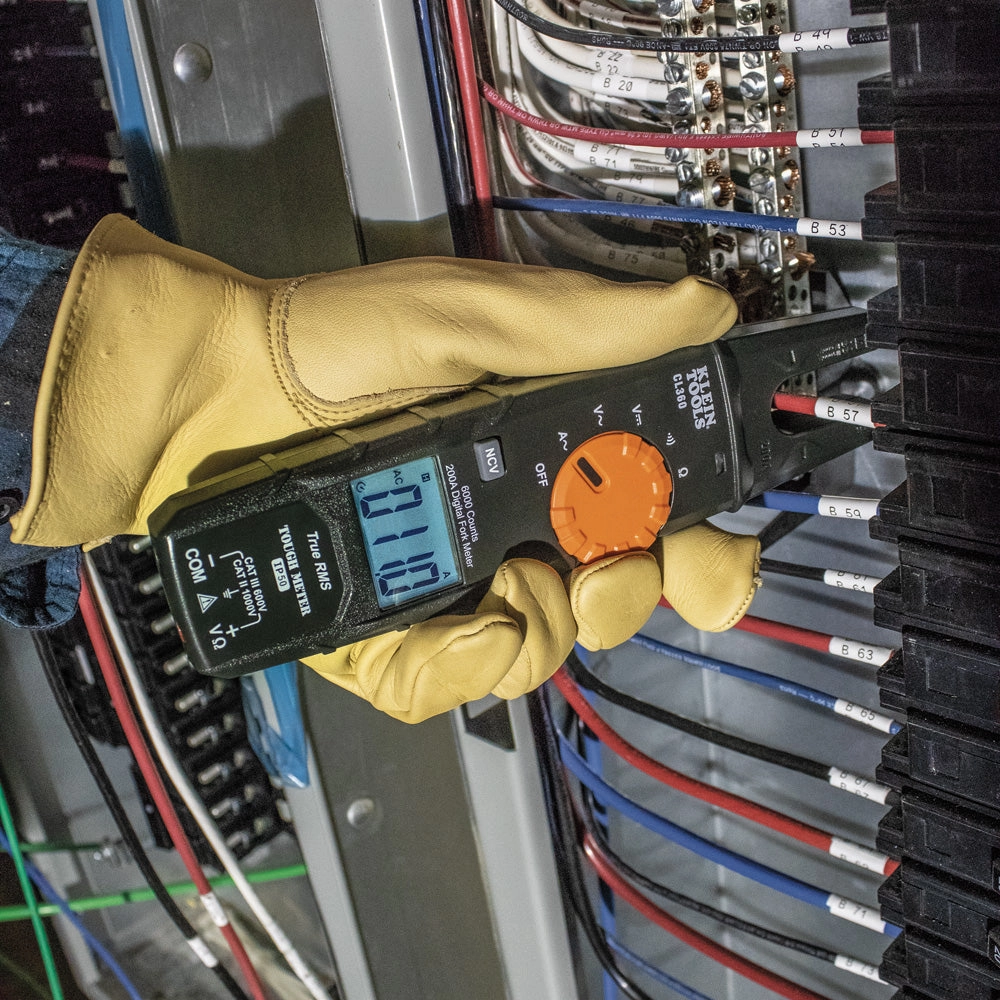

Measures AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads

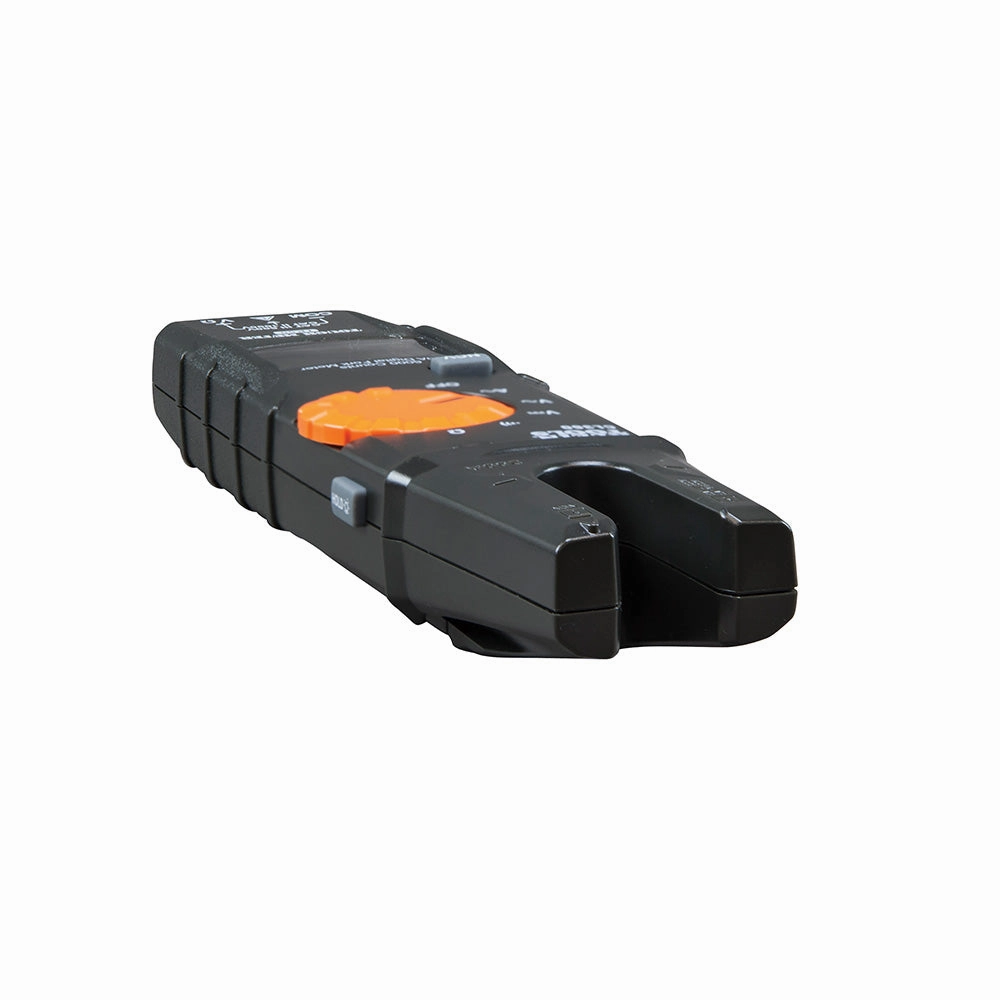

Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (14.7mm)

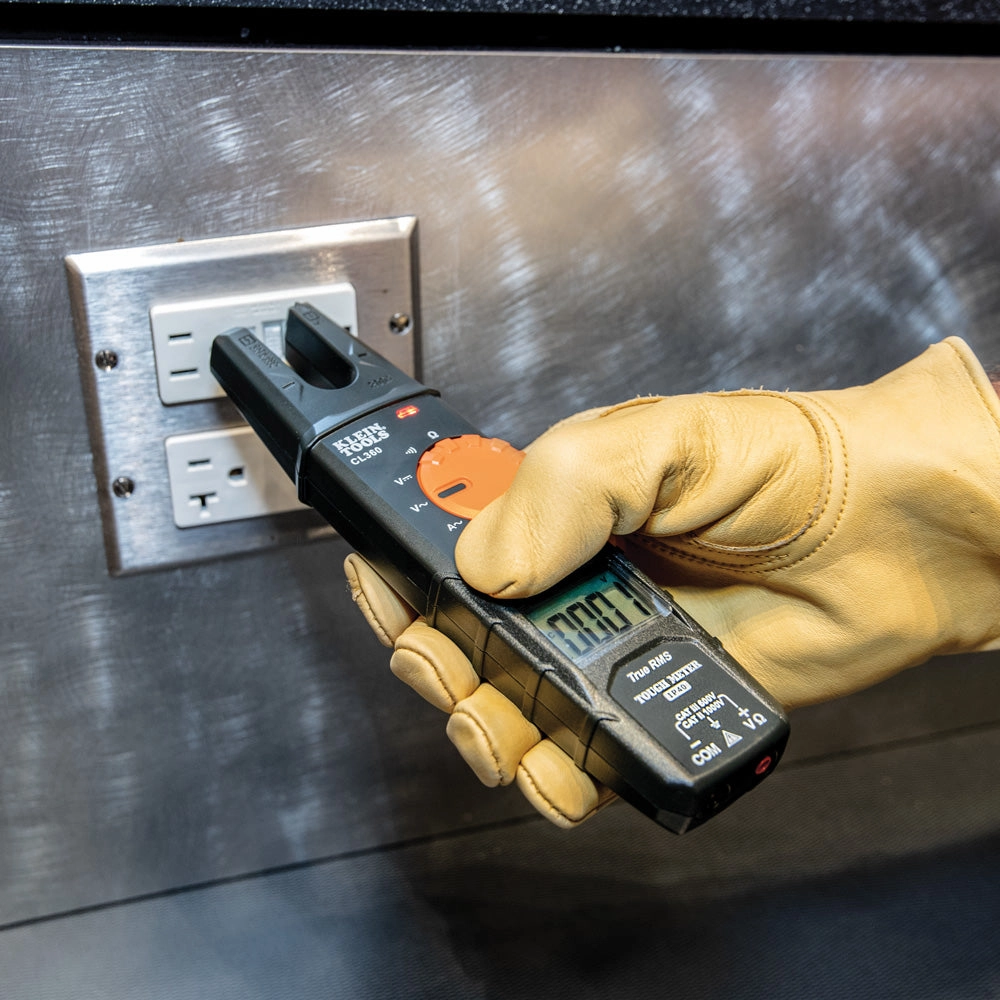

Non-contact voltage tester integrated into the jaw
Includes a carrying case, test leads and 2 x AAA batteries
Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insulation
Backlit display for clear readings
Powers off automatically after 15 minutes of non-use to conserve battery life
Rugged Klein ''TOUGH METER'' is built to withstand a 9.9-Foot (3m) drop
Low battery indicator and easily accessible battery compartment
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Measures AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads
Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (14.7mm)
Non-contact voltage tester integrated into the jaw
Includes a carrying case, test leads and 2 x AAA batteries
Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insulation
Backlit display for clear readings
Powers off automatically after 15 minutes of non-use to conserve battery life
Rugged Klein ''TOUGH METER'' is built to withstand a 9.9-Foot (3m) drop
Low battery indicator and easily accessible battery compartment
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Jaw Size
0.58'' (1.5 cm) Opening
AC Voltage
600V
DC Voltage
1000V
Current
200A AC
Voltage
600V AC, 1000V DC
Resistance (Ohms)
60M
Batteries
2 x AAA
Display Type
6000 Count LCD
