Product Details
＋
Physical Characteristics
Color
Black & Orange
Material
ABS/Electronics
Length
3.54'' (9 cm)
Width
1.5'' (3.8 cm)
Height
8.46'' (21.5 cm)
Weight
0.34 kg
0.76 lb
Details
Measurement Standard
CATIII 600V, Class 2, Double Insulation Safety Rating IEC EN 61010-1, 61010-2-032. IEC EN 61326-1, 61326-2-2.Conforms to UL STD.61010-1, 61010-2-032;Certified to CSA STD.C22.2 NO. 61010-1, 61010-2-032
Batteries
2 x AA
Display Type

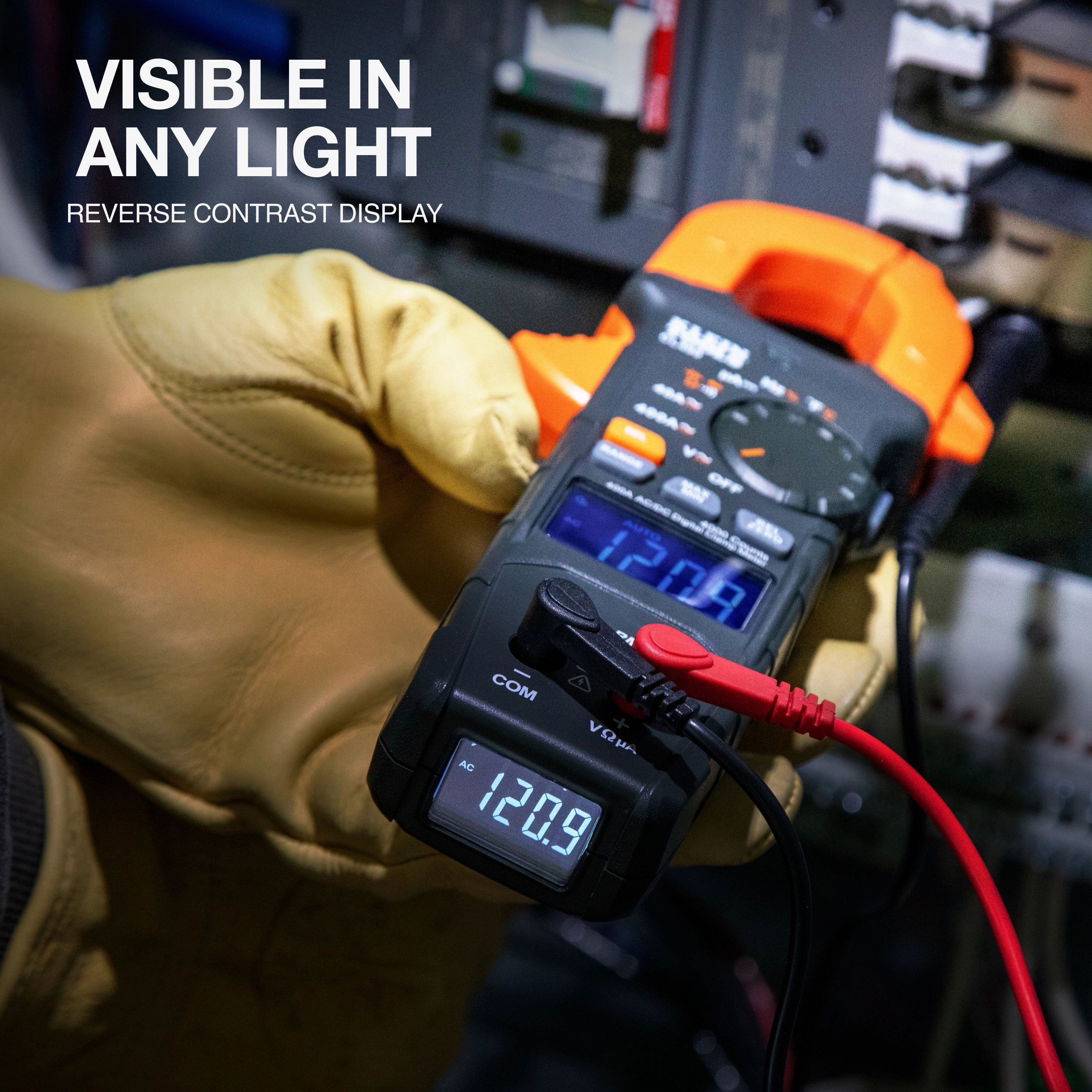

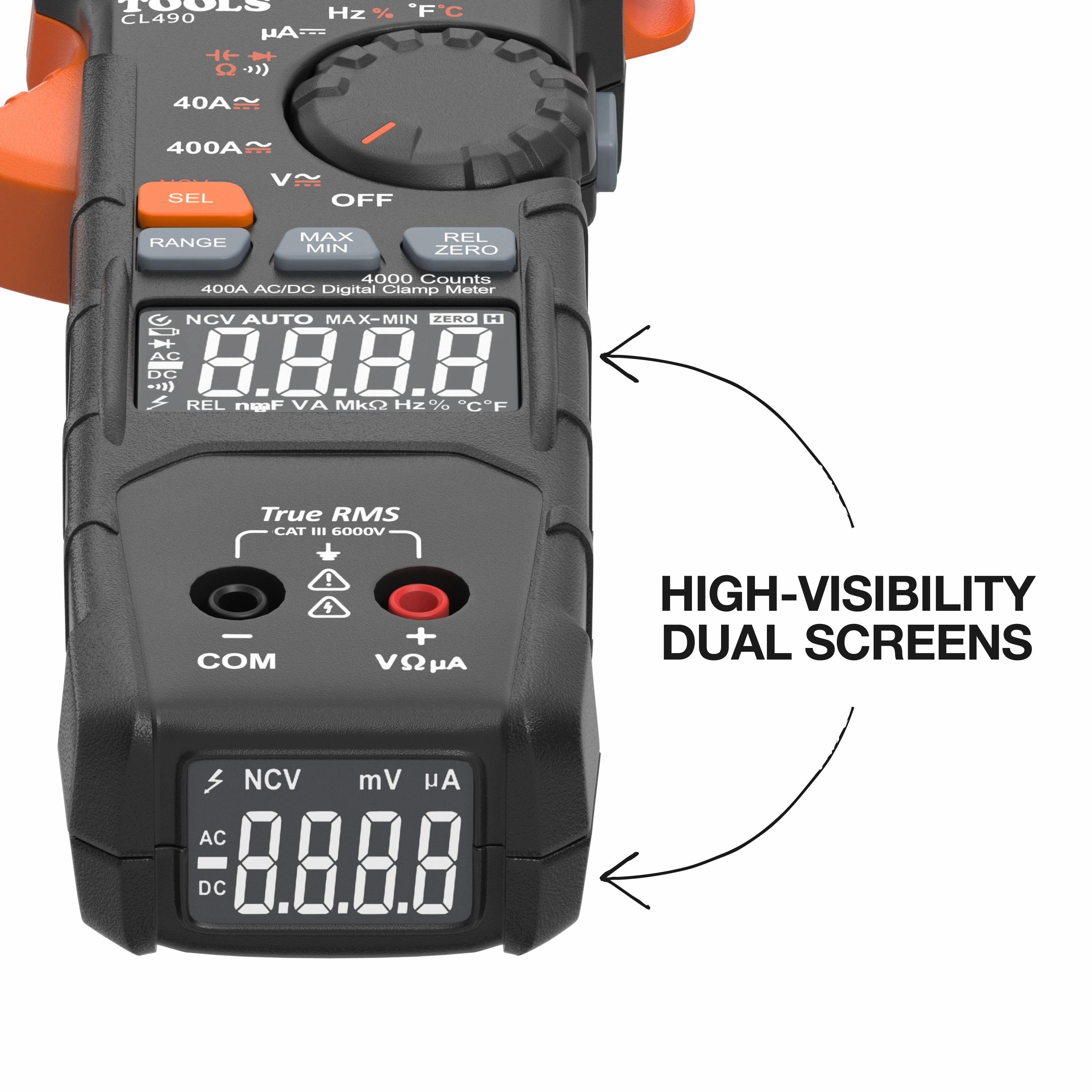

4000 Count Backlit, Hi-Viz; Main Display: 1.54'' x 0.86'' (3.9 cm x 2.2 cm) Secondary: 1.04'' x 0.72'' (2.6 cm x 1.8 cm)
Temperature Range

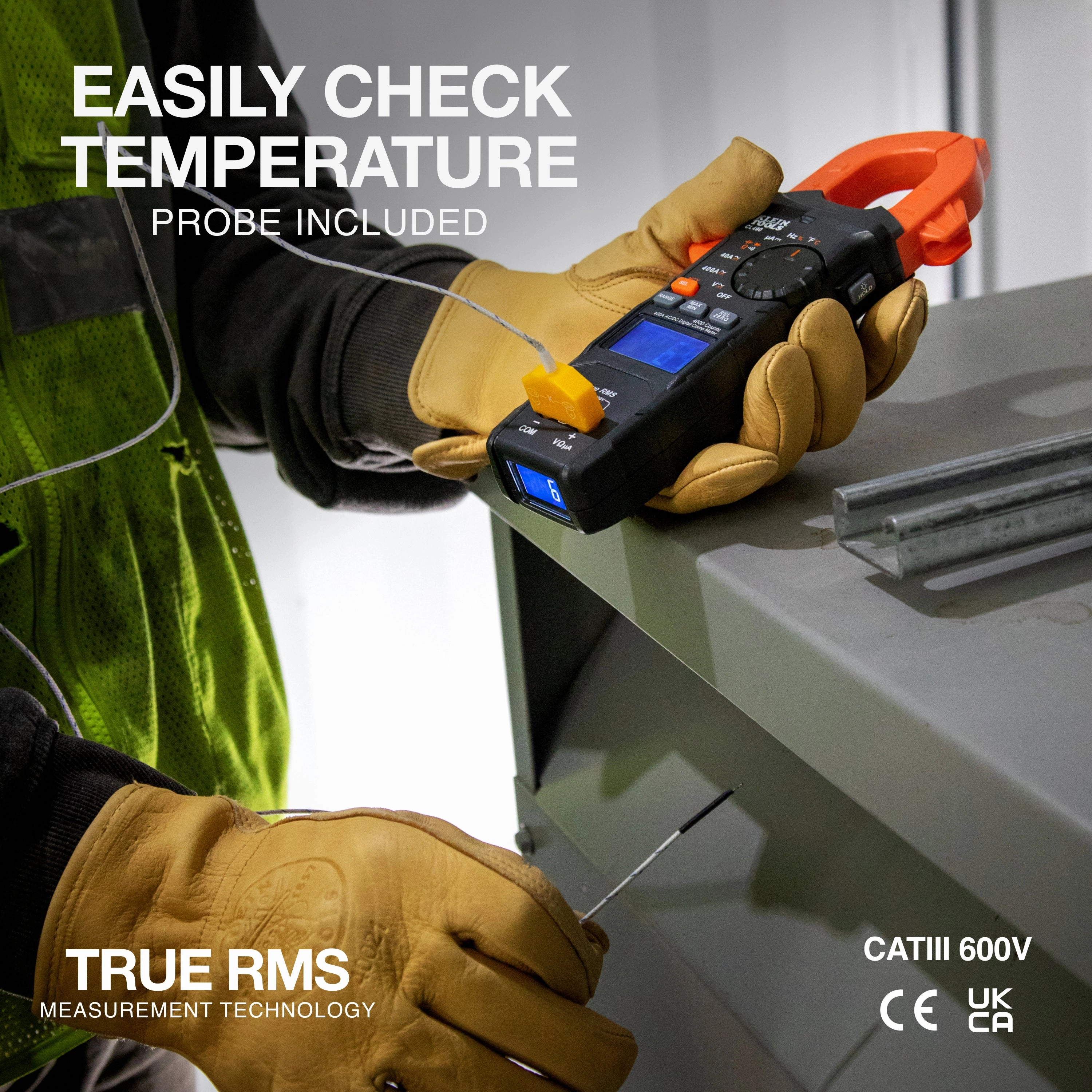

-40 to 1832F (-40 to 1000C)
Functions

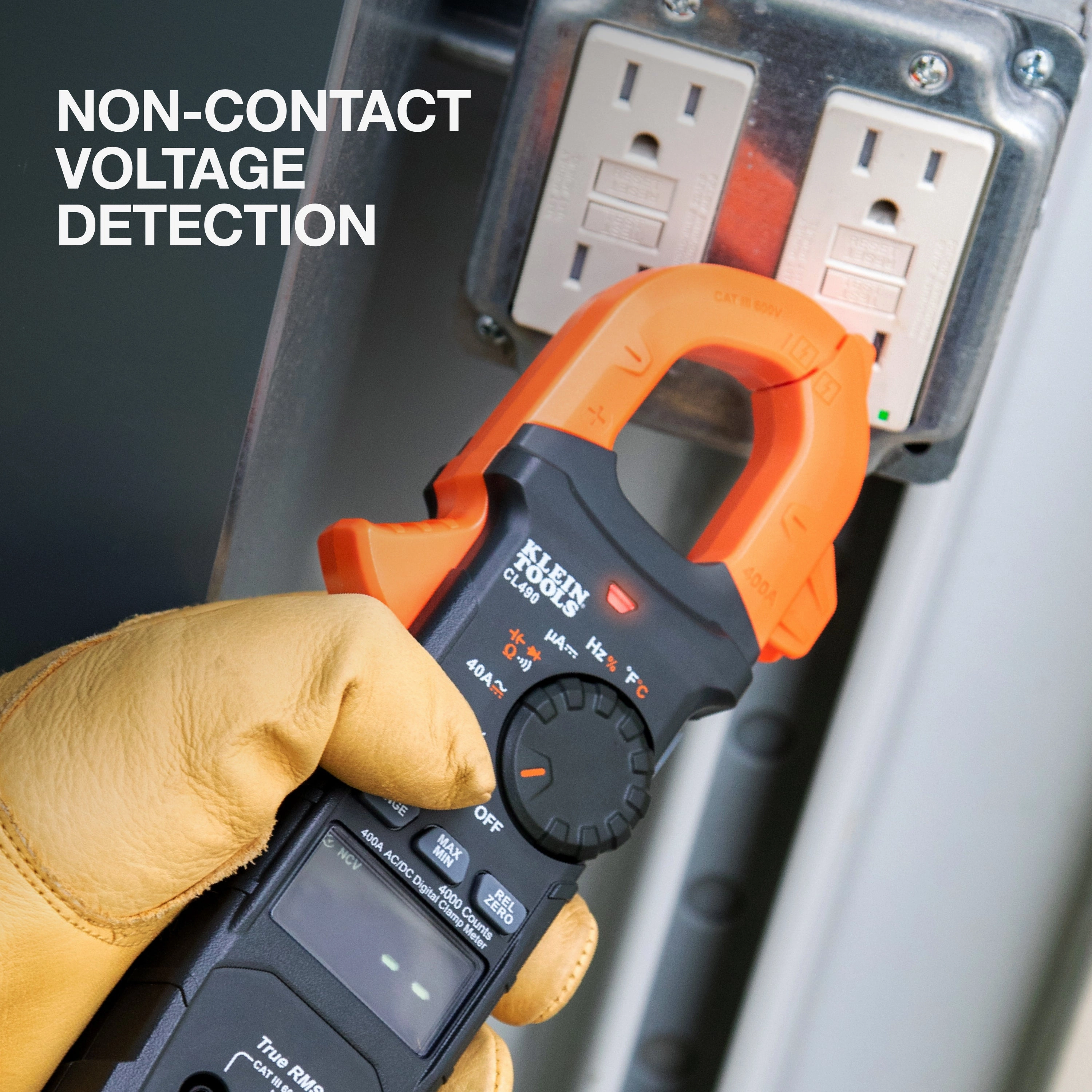

TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature
Features
Auto-Power Off: Yes, Unless Disabled on Startup
Auto Ranging: Yes
TRMS: Yes
DC Polarity Indicator: Yes
DC Micro-Amp: 200A
Accuracy: (% of Reading # of Least Significant Digits) Refer to Manual for Accuracy Depending on Active Function Selection Values Stated at 65 to 83F (18 to 28C)
Auto Ranging: Yes
TRMS: Yes
DC Polarity Indicator: Yes
DC Micro-Amp: 200A
Accuracy: (% of Reading # of Least Significant Digits) Refer to Manual for Accuracy Depending on Active Function Selection Values Stated at 65 to 83F (18 to 28C)
Jaw Size
1.6'' (4.1 cm)
AC Voltage
600V
DC Voltage
600V
Current
400A AC/DC
Voltage
600V AC/DC
Capacitance
4000F
Resistance (Ohms)
40M
General Information
Brand
Klein Tools
What's Included

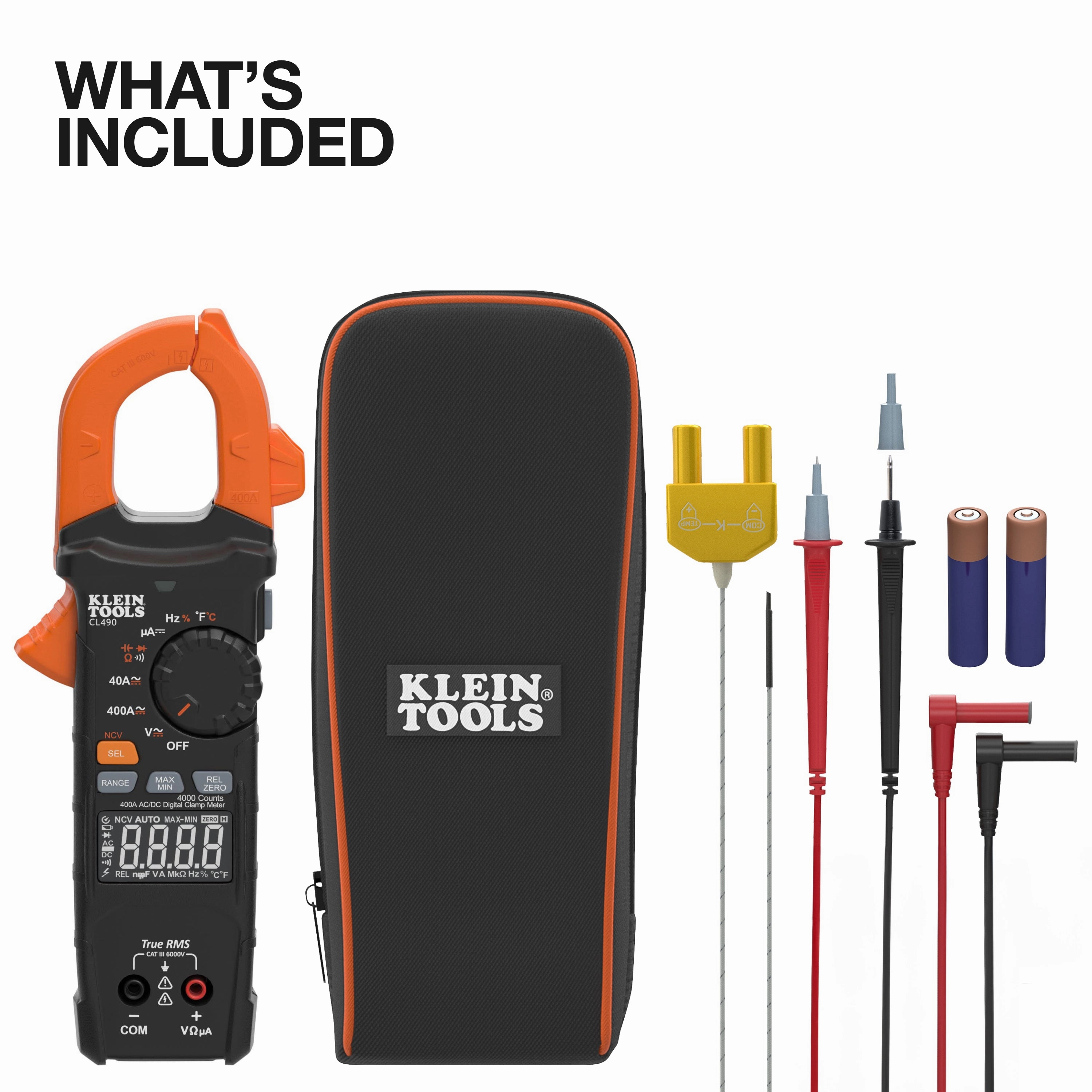

Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; 2 x AA Batteries
Packaging
Retail
California Residents
Part Number
CL490
Product Type

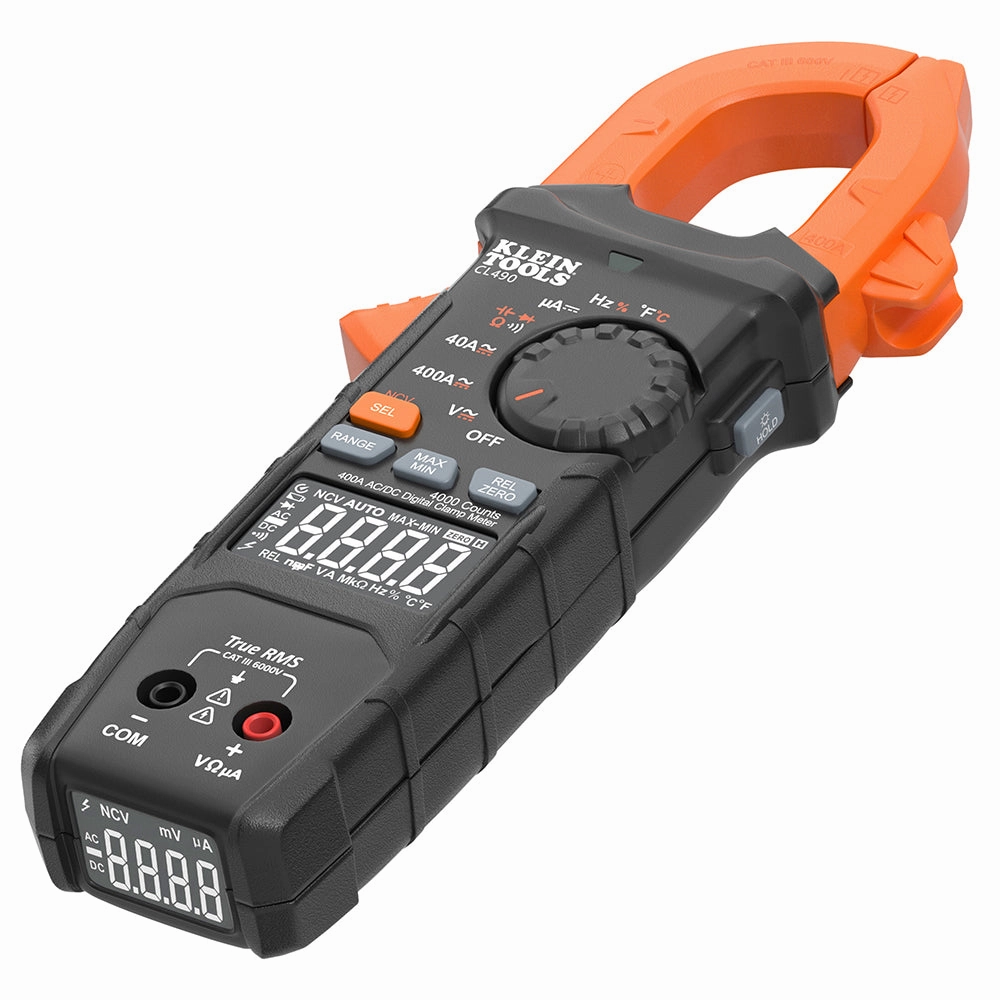

Dual Screen AC/DC Current TRMS Clamp
Application
Measures AC/DC Current and NCVT via the Clamp and AC/DC voltage, DC Microamp Current, Resistance, Continuity, Frequency, Duty-Cycle, Capacitance and Tests Diodes via the Test Leads, and Temperature with Thermocouple
UPC
092644694271
