Product Details
＋
General Information
Brand
Klein Tools
Part Number
CL700
Product Type
Digital Clamp Meter
Application
Measures AC Current
What's Included
Carrying Case, Test Leads, Thermocouple with Adapter, and Batteries
Packaging
Retail
UPC
092644690150
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Black / Orange
Material
ABS
Length
9.09'' (23.1 cm)
Width
3.81'' (9.7 cm)
Height
1.55'' (3.9 cm)
Weight
0.33 kg
0.74 lb
Details
Functions
Clamp measures AC current and thermocouple probe measures temperature. Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Features

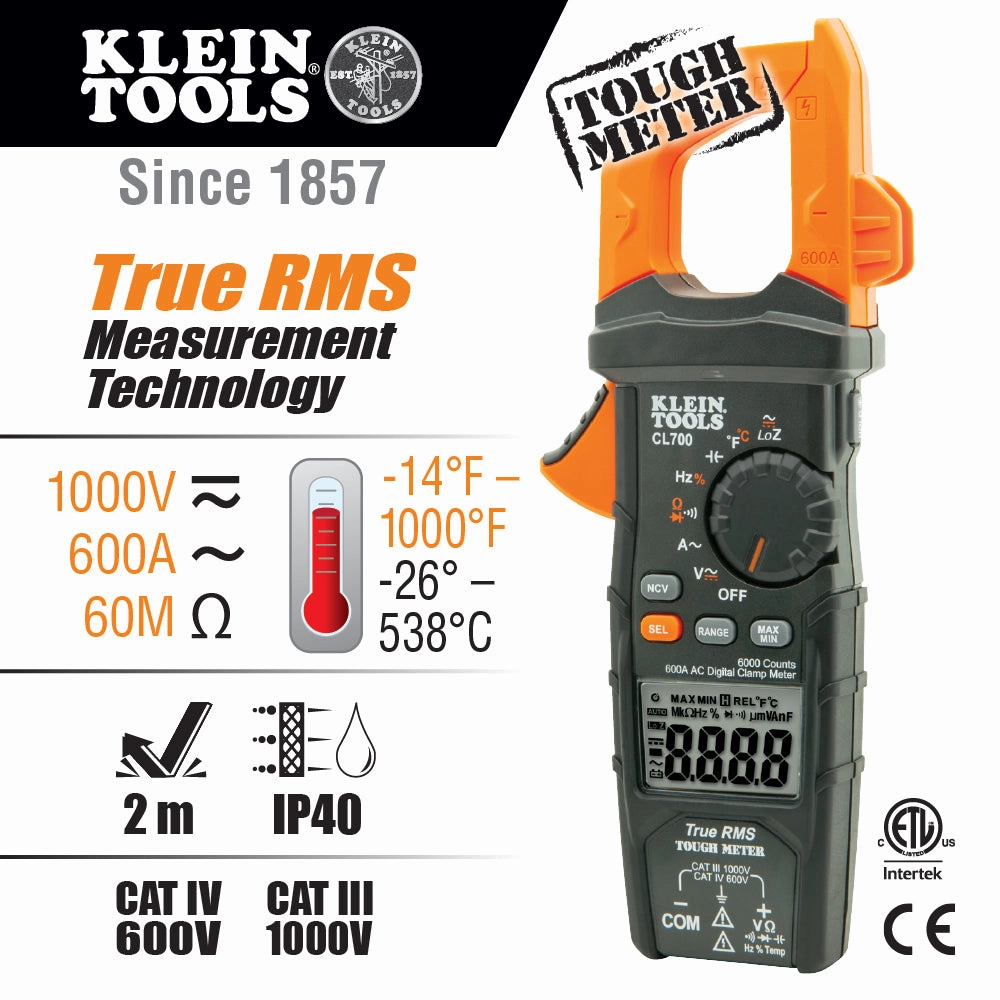

Automatically ranging true mean squared (TRMS) technology for increased accuracy

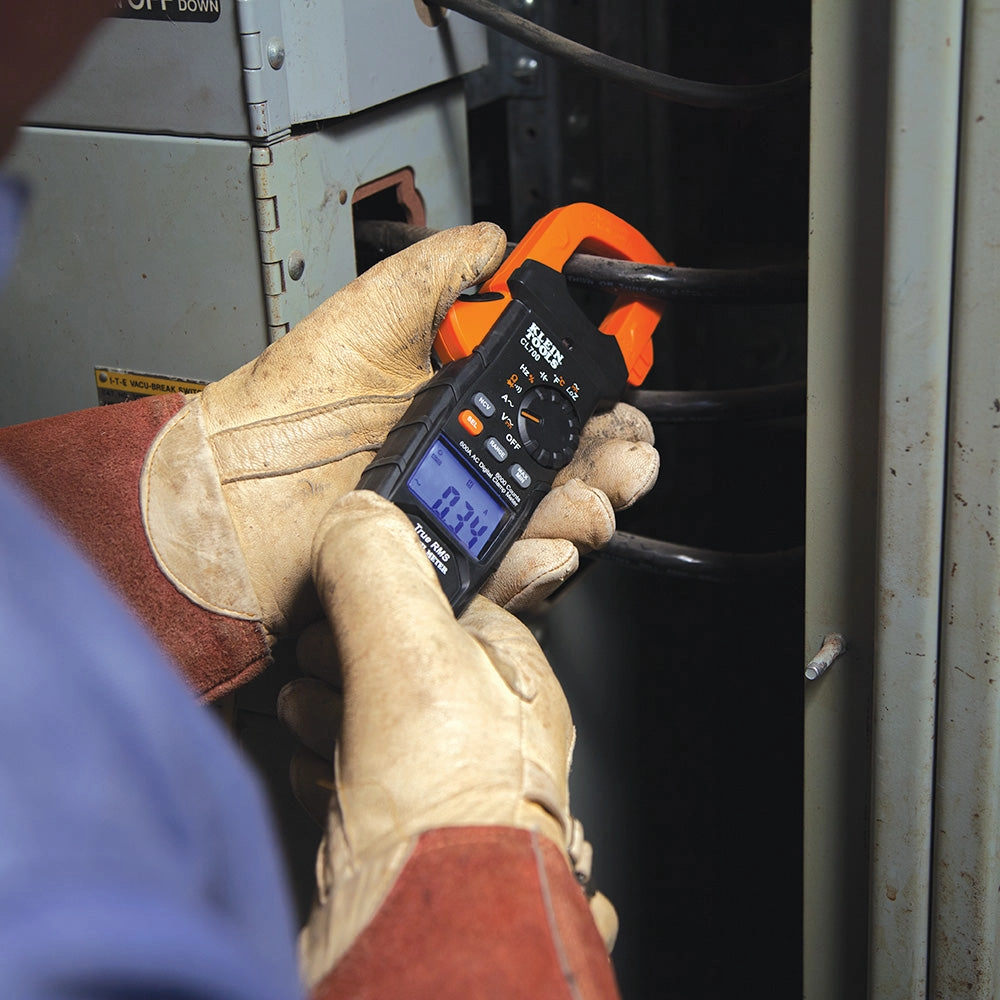

Clamp measures AC current and thermocouple probe measures temperature
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Built to withstand a 6.6-Foot (2 m) drop
Low battery indicator and easily accessible battery compartment

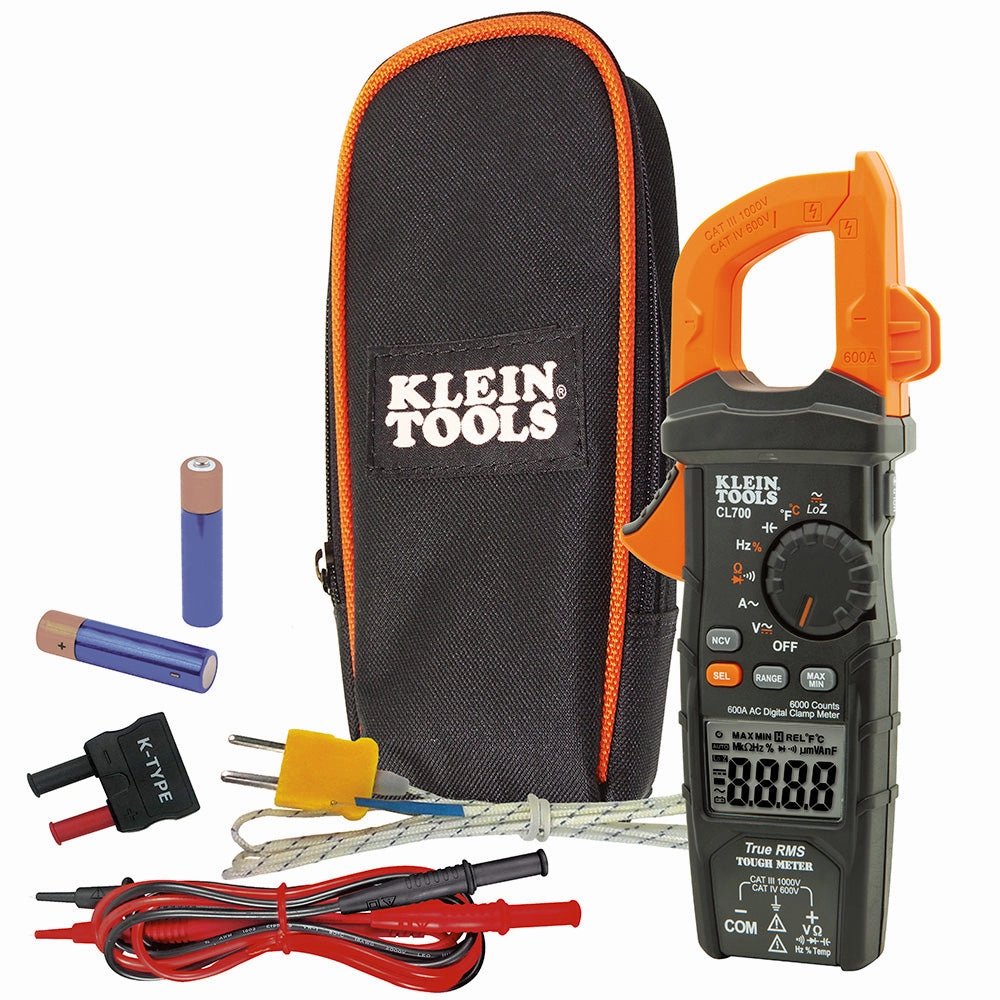

Includes a carrying pouch, test leads, thermocouple with adapter and batteries
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Operating Temperature: 32-degrees F to 104-degrees F (0-degrees C to 40-degrees C)
Operating altitude to 6562-Foot (2000 m)
Clamp measures AC current and thermocouple probe measures temperature
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Built to withstand a 6.6-Foot (2 m) drop
Low battery indicator and easily accessible battery compartment
Includes a carrying pouch, test leads, thermocouple with adapter and batteries
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Operating Temperature: 32-degrees F to 104-degrees F (0-degrees C to 40-degrees C)
Operating altitude to 6562-Foot (2000 m)
Jaw Size
1.38'' (3.5 cm)
Current
600A
Voltage
1000V AC; 1000V DC
Capacitance
6000F
Resistance (Ohms)
60MO
Frequency
1Hz - 500 KHz
Batteries
2 x AAA
Display Type
6000 Count LCD
Temperature Range
-14 - 1000F (-26 - 538C)
