Product Details
＋
General Information
Brand
Klein Tools
Part Number
CL900
Product Type
Digital Clamp Meter
Application
Measures Current to 2000A AC/DC
What's Included

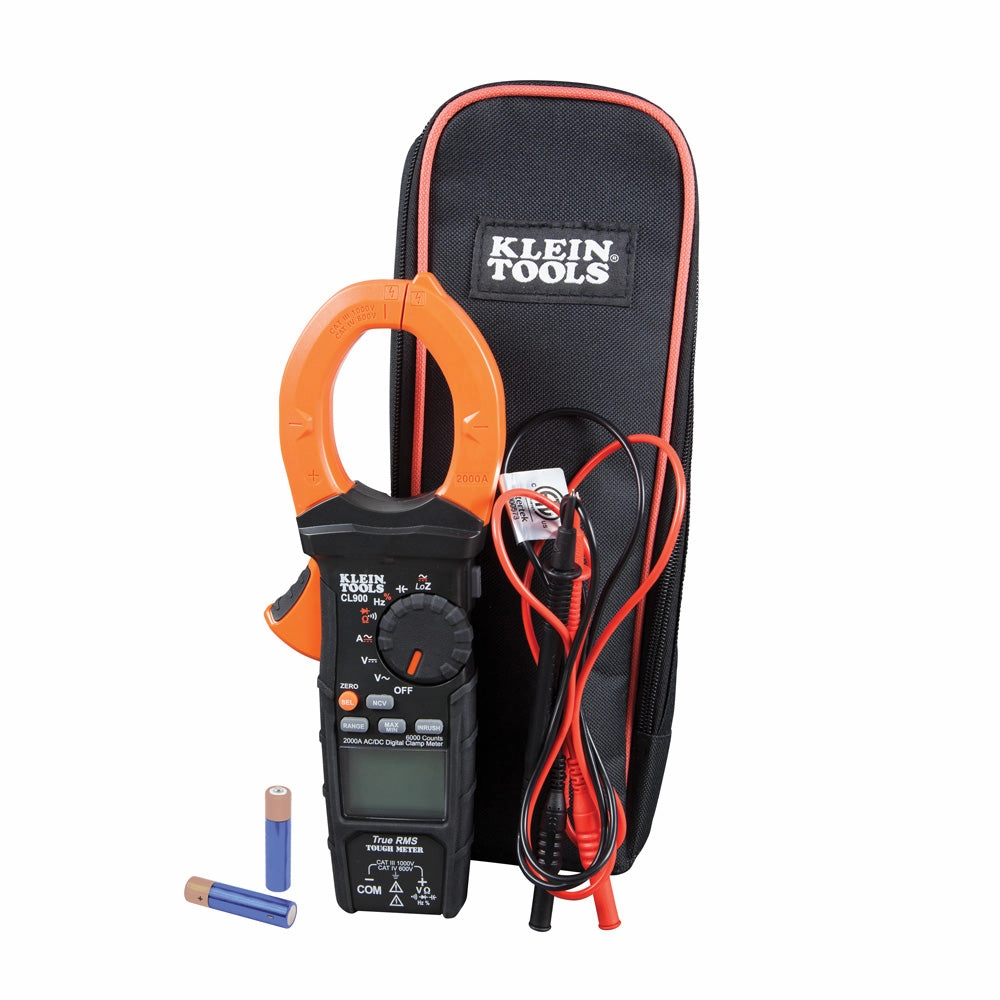

Carrying Case, Instruction Manual, Straight Input Test Leads, Batteries
Packaging
Retail
UPC
092644692352
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Orange / Black
Material
Plastic/Electronics
Length
10.39'' (26.4 cm)
Width
3.90'' (9.9 cm)
Height
1.70'' (4.3 cm)
Weight
0.50 kg
1.10 lb
Details
Functions
Audible Continuity, Capacitance, Diode Test, Frequency & Duty Cycle, Min/Max feature, Data Hold capability, Inrush Current, Low Impedance
Features

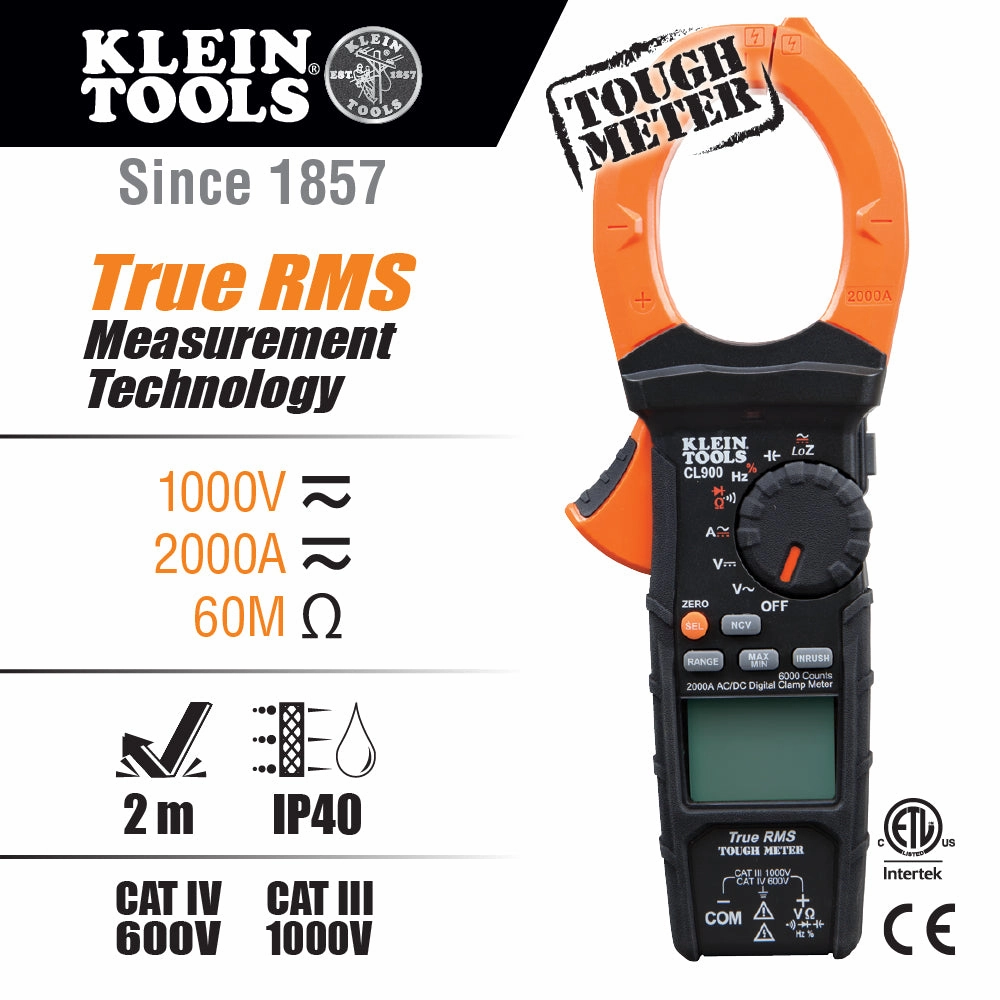

Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60 Milliohm
Rugged Klein ''TOUGH METER'' industrial design stands up to jobsite demands; built to withstand a 6.6-foot (2m) drop
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
Backlit display for clear visibility in environments with low ambient lighting
Dedicated mode for capturing Inrush Current
Non-contact voltage tester integrated into the clamp
Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability

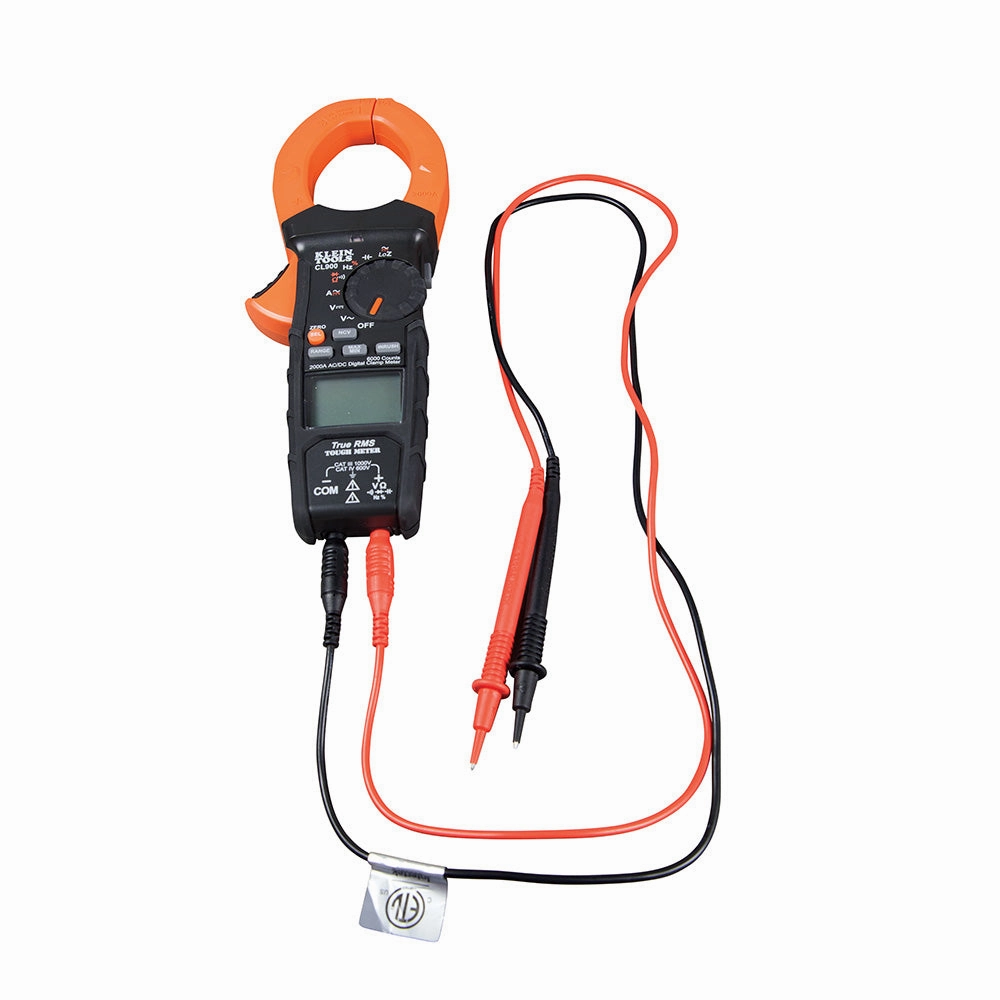

Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes
Clamp measures AC and DC current
Powers off automatically after 30 minutes of non-use to conserve battery life
Low battery indicator and easily accessible battery compartment
Includes carrying case (instruction manual), straight input test leads, and 2 x AAA batteries
Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)
Rugged Klein ''TOUGH METER'' industrial design stands up to jobsite demands; built to withstand a 6.6-foot (2m) drop
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
Backlit display for clear visibility in environments with low ambient lighting
Dedicated mode for capturing Inrush Current
Non-contact voltage tester integrated into the clamp
Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability
Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes
Clamp measures AC and DC current
Powers off automatically after 30 minutes of non-use to conserve battery life
Low battery indicator and easily accessible battery compartment
Includes carrying case (instruction manual), straight input test leads, and 2 x AAA batteries
Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)
Jaw Size
2'' (5 cm)
AC Voltage
1000
DC Voltage
1000
Current
2000A AC/DC
Voltage
1000V AC/DC
Capacitance
6000F
Resistance (Ohms)
60M
Frequency
500kHz
Batteries
2 x AAA
Display Type
6000 Count LCD
