Product Details
＋
General Information
Brand
Klein Tools
Part Number
ET45
Product Type
Voltage Tester
Application
Measures AC/DC Voltage
Packaging
Retail
UPC
092644691843
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Orange / Black
Material
Plastic Housing, PCB with Electronic Components
Length
4.45'' (113.0 mm)
Width
1.05'' (27.0 mm)
Height
1.19'' (30.0 mm)
Weight
0.05 kg
0.11 lb
Details
Features
Tests AC voltages from 24V to 240V AC at four useful levels
Tests DC voltages from 32V to 330V at four levels

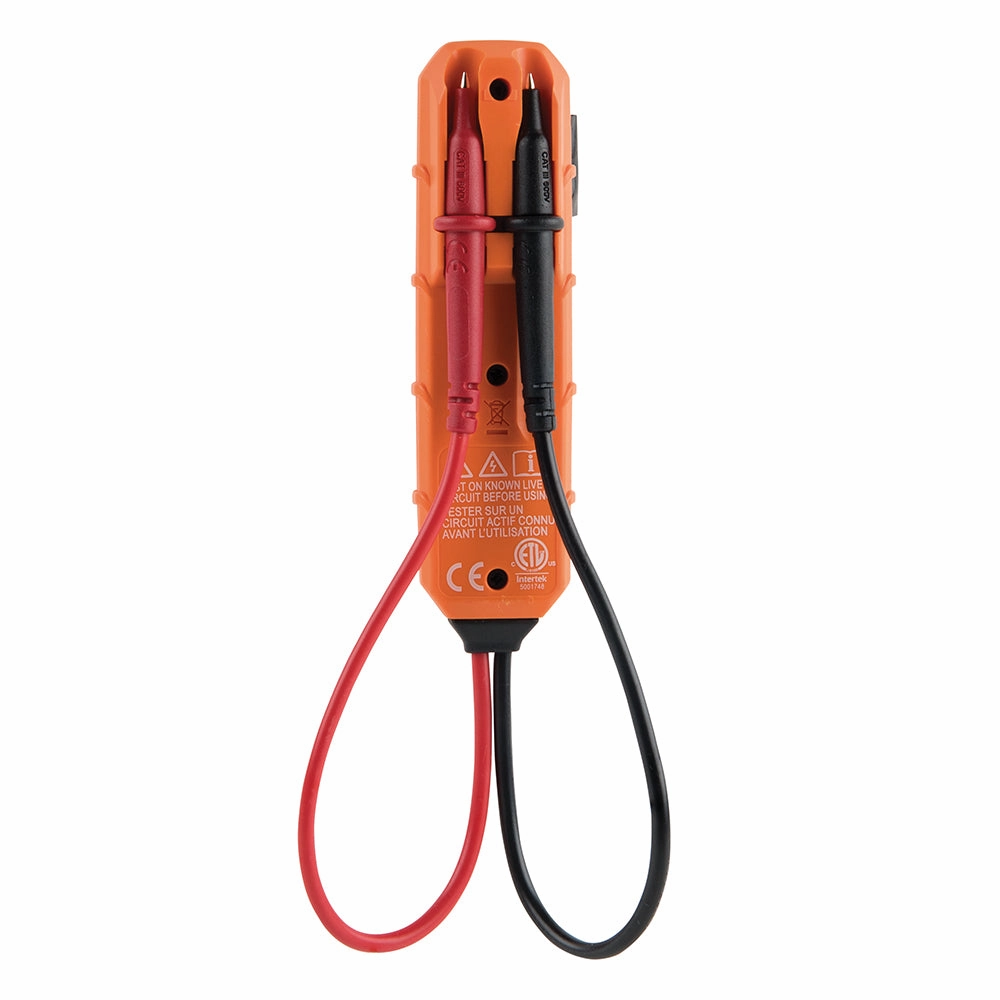

Built-in test lead holder on back of tester holds the leads in one of two positions: one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads
Test leads can be docked in the holder for convenient storage
Batteries not required; tester is powered by the applied voltage
Built to withstand a 9.9-Foot (3 m) drop
Safety Rating: CATIII 350V, Class 2, Double insulation
Ingress protection IP44 dust and water resistant
Pocket clip secures tester to pocket for reliable everyday carrying
Tests DC voltages from 32V to 330V at four levels
Built-in test lead holder on back of tester holds the leads in one of two positions: one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads
Test leads can be docked in the holder for convenient storage
Batteries not required; tester is powered by the applied voltage
Built to withstand a 9.9-Foot (3 m) drop
Safety Rating: CATIII 350V, Class 2, Double insulation
Ingress protection IP44 dust and water resistant
Pocket clip secures tester to pocket for reliable everyday carrying
AC Voltage
24V, 48V, 120V, 240V
DC Voltage
32V, 64V, 160V, 330V
Voltage
AC Level Indicators: 24V, 48V, 120V, 240V; DC Level Indicators: 32V, 64V, 160V, 330V
Frequency
50/60 Hz
Display Type
Analog LED
