Product Details
＋
General Information
Brand
Klein Tools
Part Number
ET450
Product Type
Advanced Circuit Tracer Kit
Application
Trace Energized and Non-Energized Breakers, Fuses, and Wires
What's Included
Transmitter, Receiver, Blade and Ground Prongs, Alligator Clips, 3' and 20' Lead Adapters, AC Plug Leads, Instructions, All Required Batteries, and Hard Carrying Case
Packaging
Retail
Country of Origin
China
UPC
092644693380
California Residents
Proposition 65 Warning
Physical Characteristics
Material
ABS and Electronic Components
Length
Receiver: 7.05'' (17.9 cm); Transmitter: 8.72'' (22.2 cm)
Width
Receiver: 3.90'' (9.9 cm); Transmitter: 2.07'' (5.3 cm)
Height
Receiver: 1.84'' (4.5 cm); Transmitter: 1.51'' (3.9 cm)
Weight
2.92 kg
6.43 lb
Details
Features

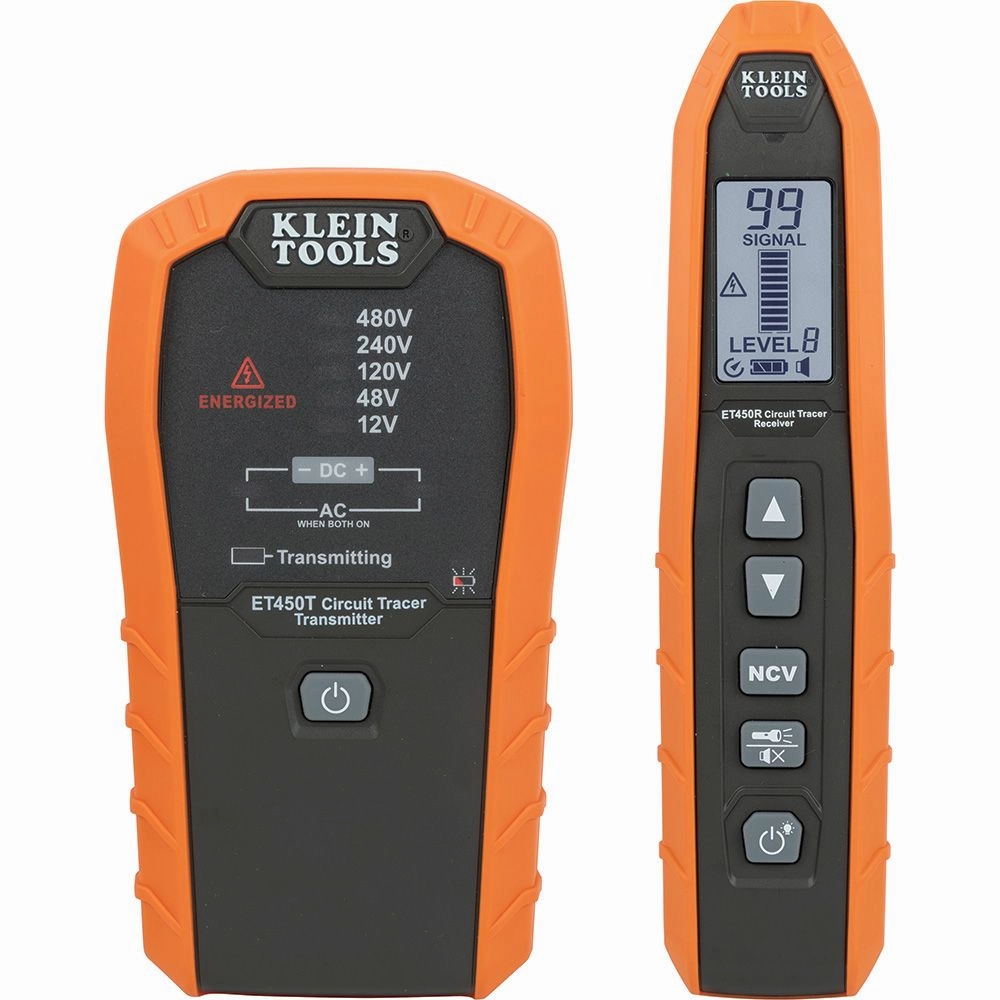

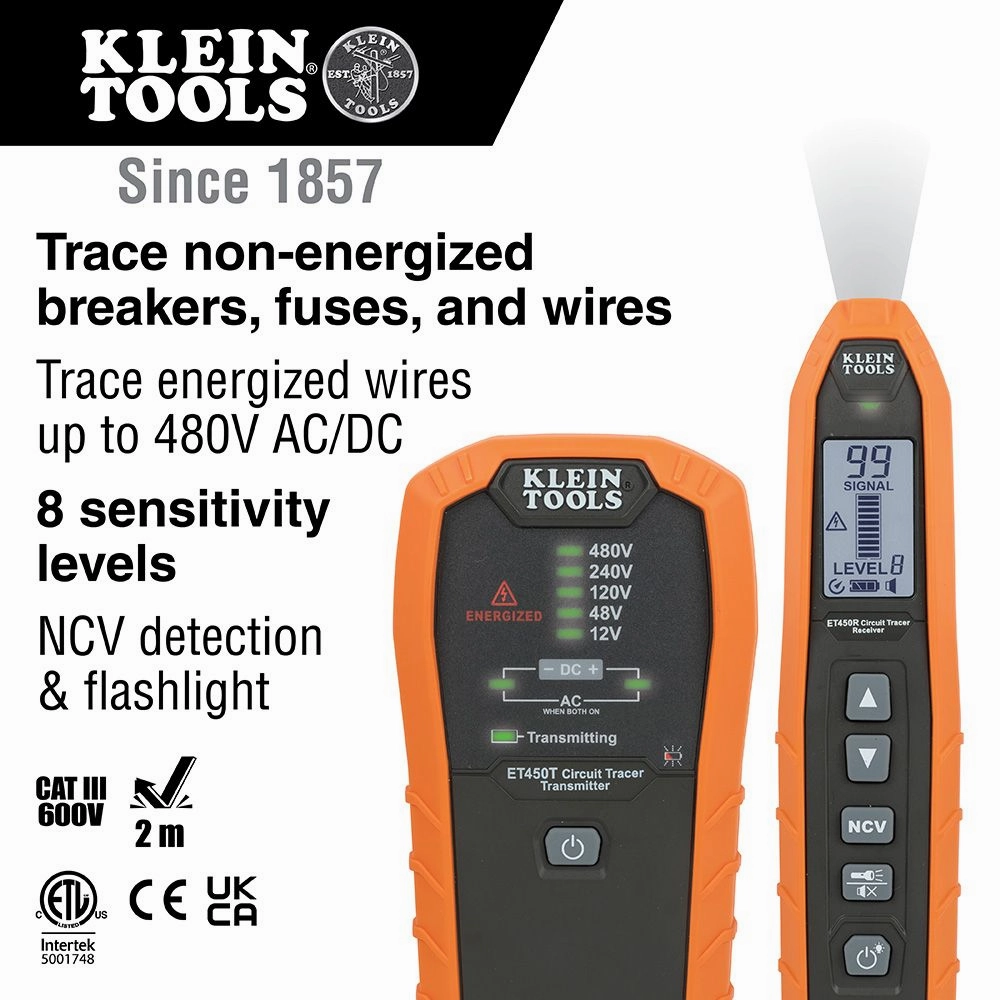

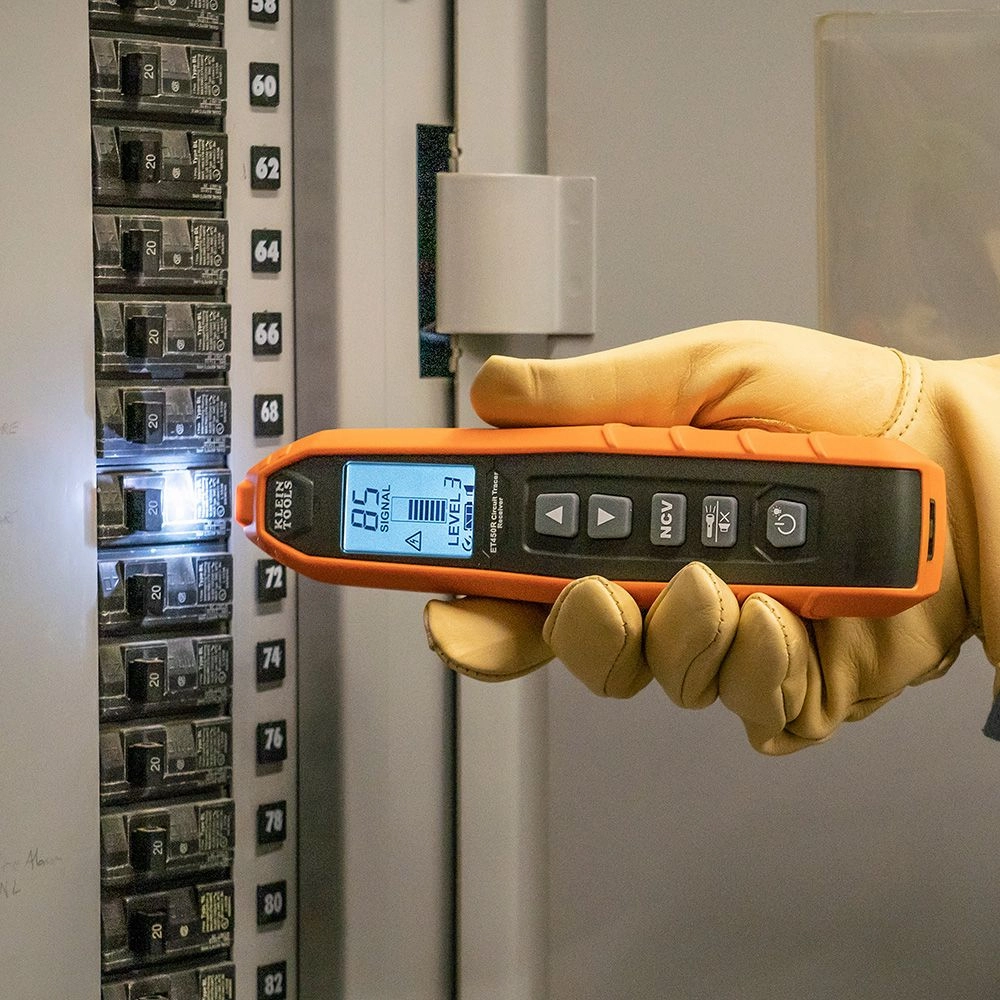

The Advanced Circuit Tracer Kit provides reliable tracing of energized or non-energized breakers, fuses, and wires

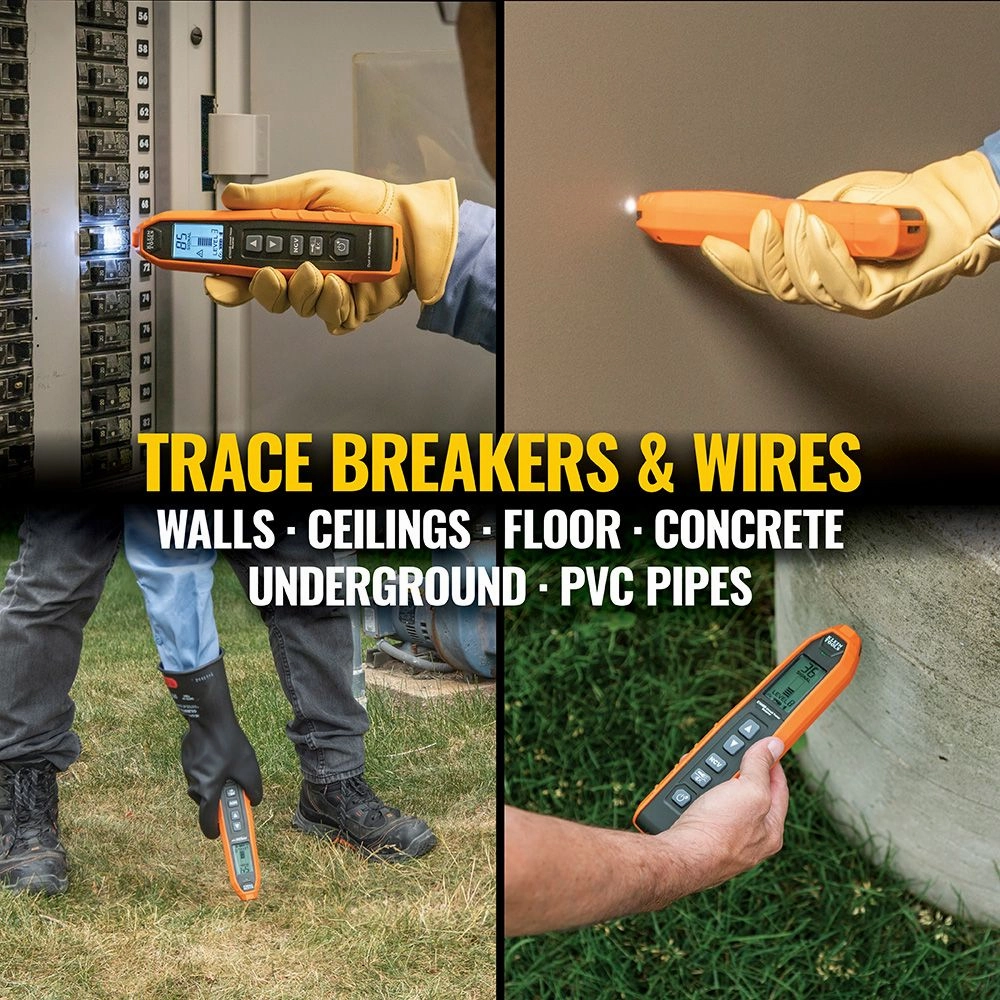

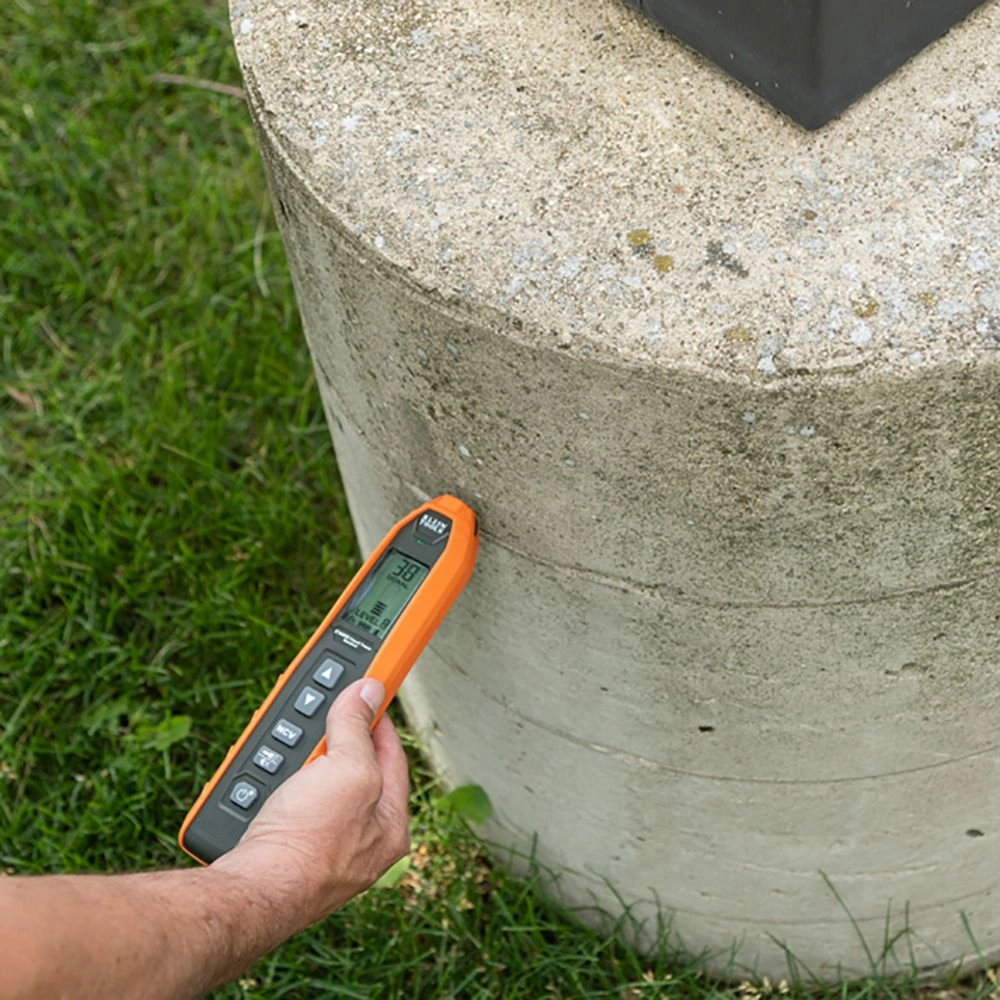

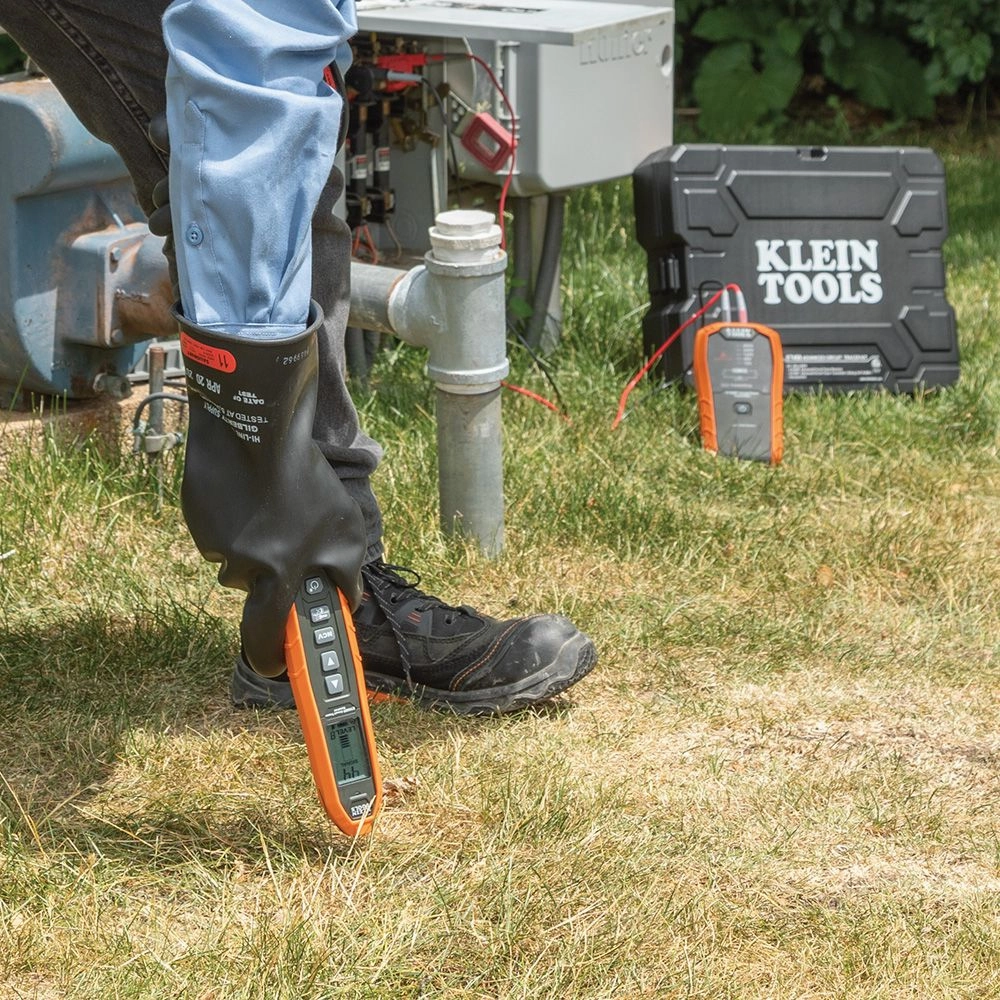

Easily adjust receiver sensitivity level to detect the transmitted signal through drywall, cement block, and underground
Versatile applications include tracing wires, conduit or pipes, or a single wire in a bundle
Audible beep and visual indicators on receiver denotes signal strength
Receiver features a flashlight for illumination in low-light areas and NCV function to test if wires are energized
Transmitter has AC/DC external voltage indicators 12V, 48V, 120V, 240V, and 480V

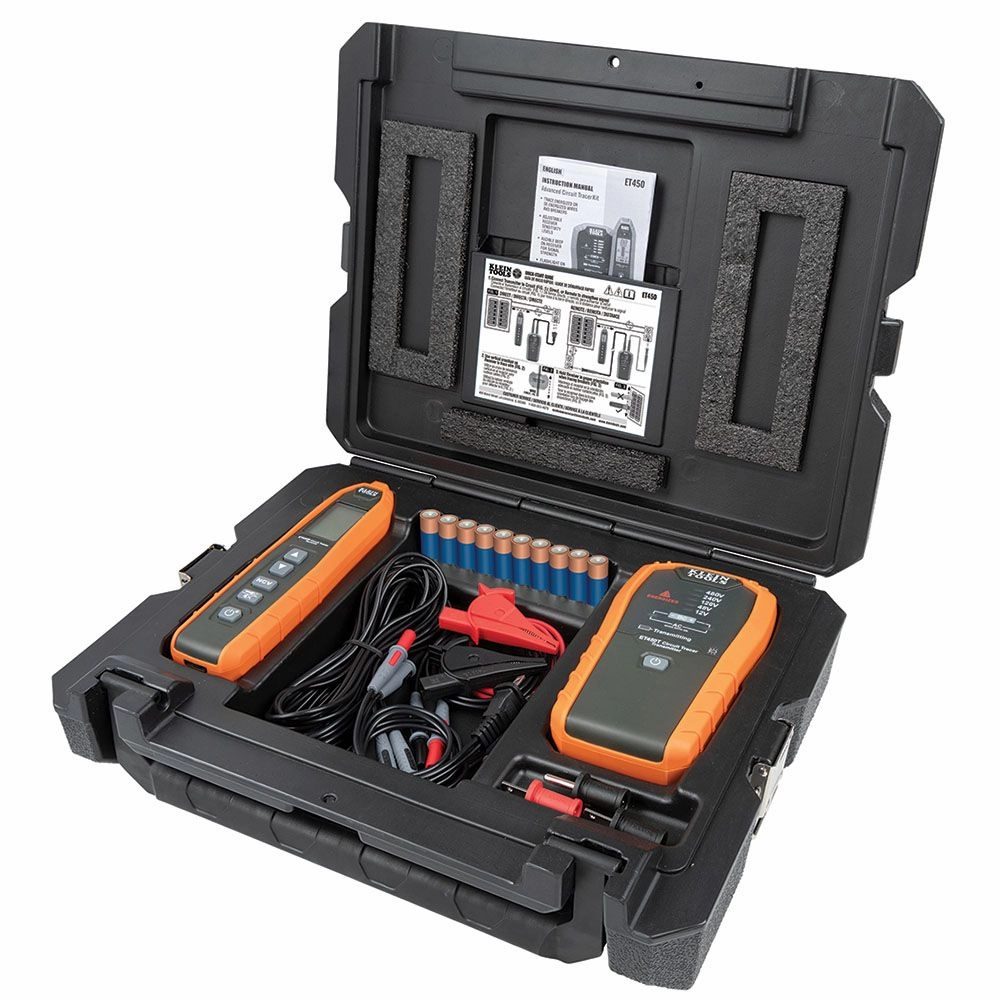

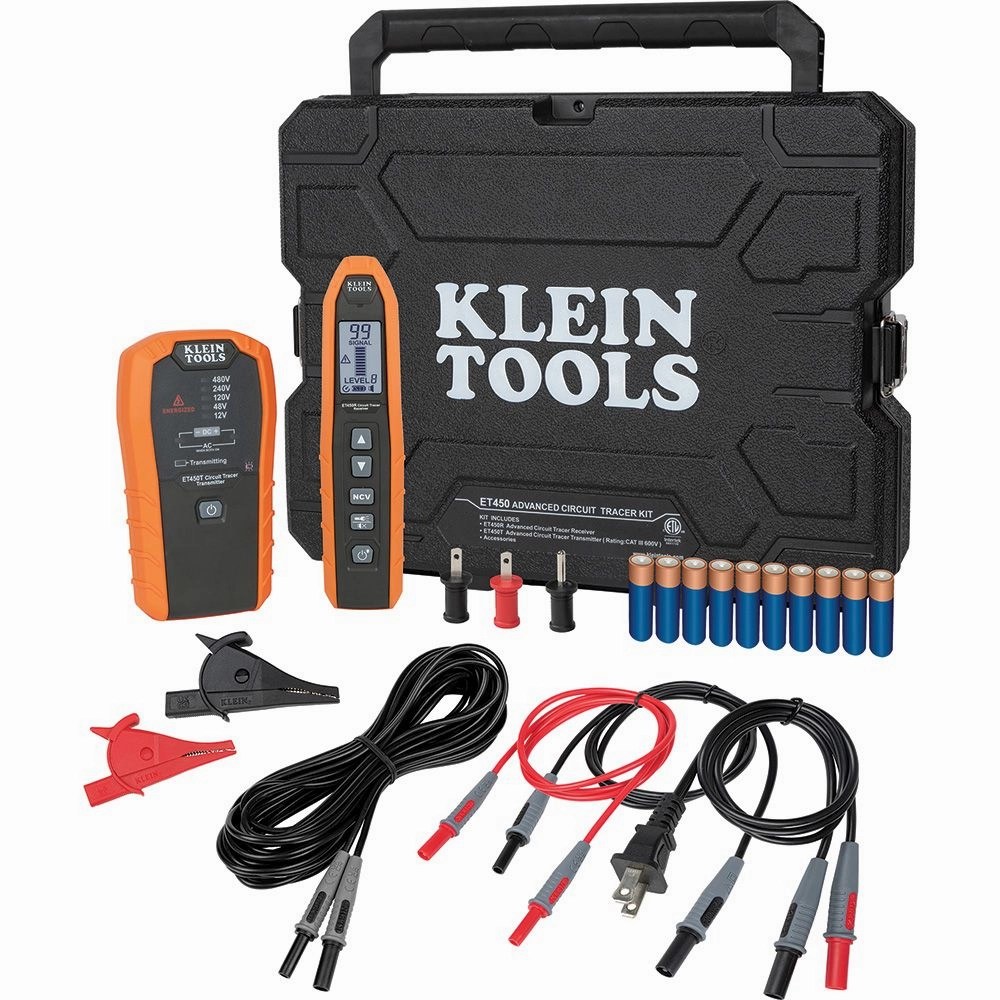

Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case
Easily adjust receiver sensitivity level to detect the transmitted signal through drywall, cement block, and underground
Versatile applications include tracing wires, conduit or pipes, or a single wire in a bundle
Audible beep and visual indicators on receiver denotes signal strength
Receiver features a flashlight for illumination in low-light areas and NCV function to test if wires are energized
Transmitter has AC/DC external voltage indicators 12V, 48V, 120V, 240V, and 480V
Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case
Voltage
External Indicators for 12V, 48V, 120V, 240V, and 480V
Frequency
Transmitter: AC 45Hz to 65Hz; Receiver: 33kHz

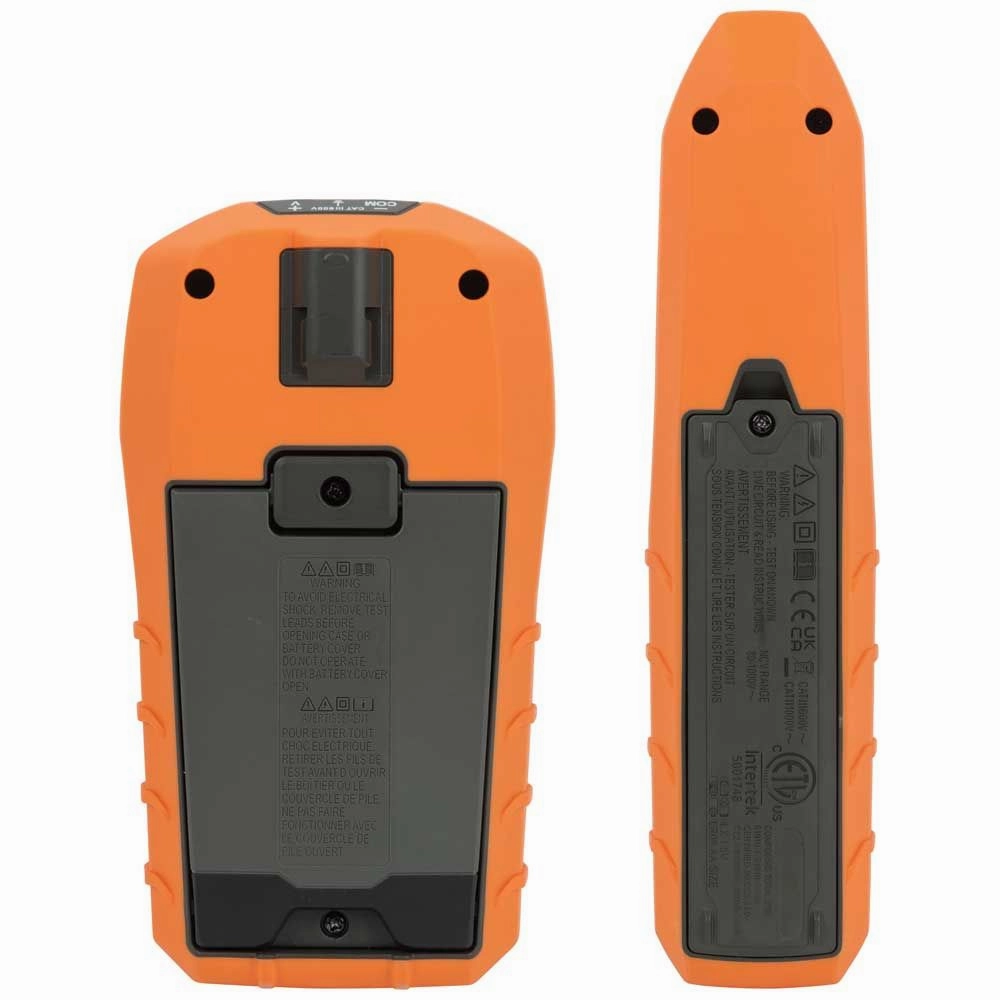

Batteries
Transmitter: 6 1.5V AA Alkaline; Receiver: 4 1.5V AA Alkaline
Battery Life
Up to 24 hr
Display Type
Reciever: LCD with Backlight
