Product Details
＋
General Information
Brand
Klein Tools
Part Number
MM320KIT
Product Type
Digital Multimeter Electrical Kit
Application
Measures up to 600V AC/DC Voltage, 10A DC Current and 2M Resistance. Tests Batteries, Diodes, and Continuity
What's Included

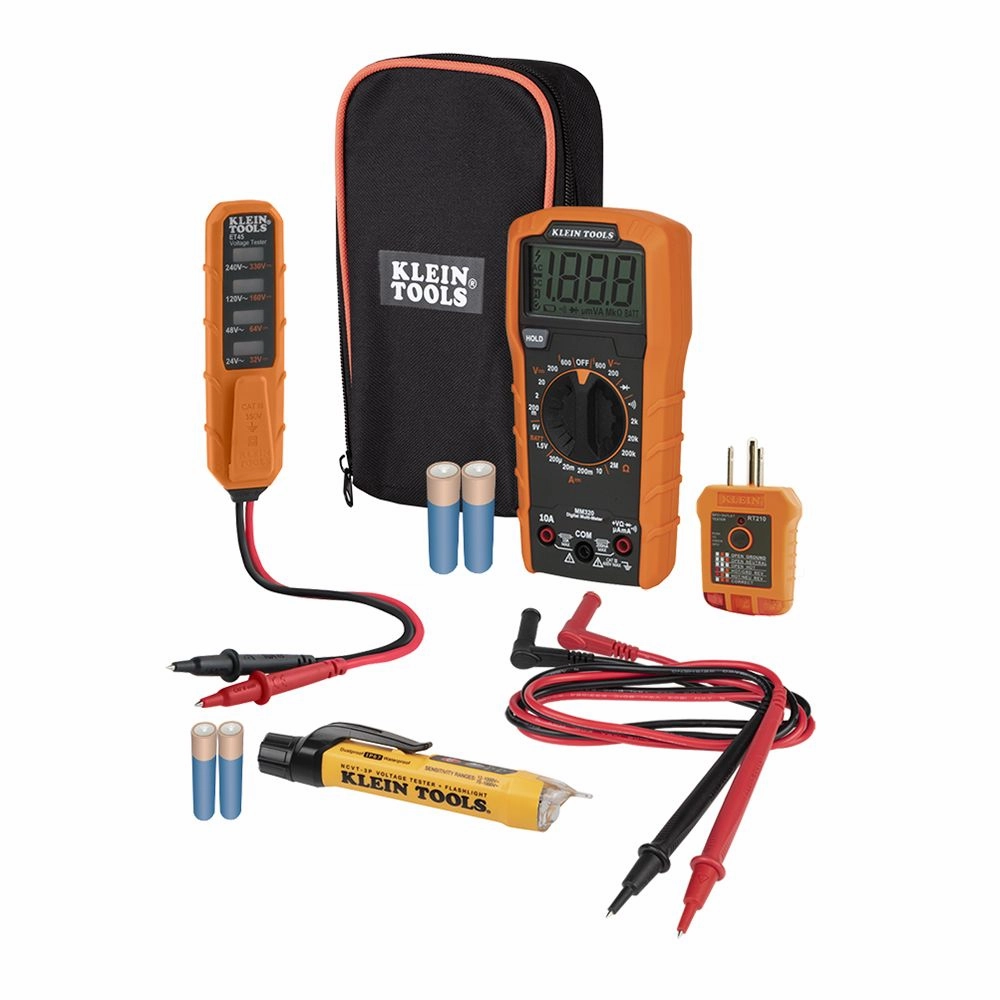

MM320 Manual Ranging Digital Multimeter, NCVT-3P Dual Range Non-contact Voltage Tester with Flashlight, ET45 AC/DC Voltage Tester, RT210 GFCI Receptacle Tester, Carrying Case, Instructions, and All Needed Batteries
Packaging
Retail
UPC
092644693403
California Residents
Proposition 65 Warning
Physical Characteristics
Material
ABS/Electronics
Length
6.39'' (162.4 cm)
Width
3.12'' (79.4 cm)
Height
1.80'' (45.7 cm)
Weight
0.23 kg
0.51 lb
Details
Measurement Standard
CAT III 600V; CE
Functions
Hold
Features

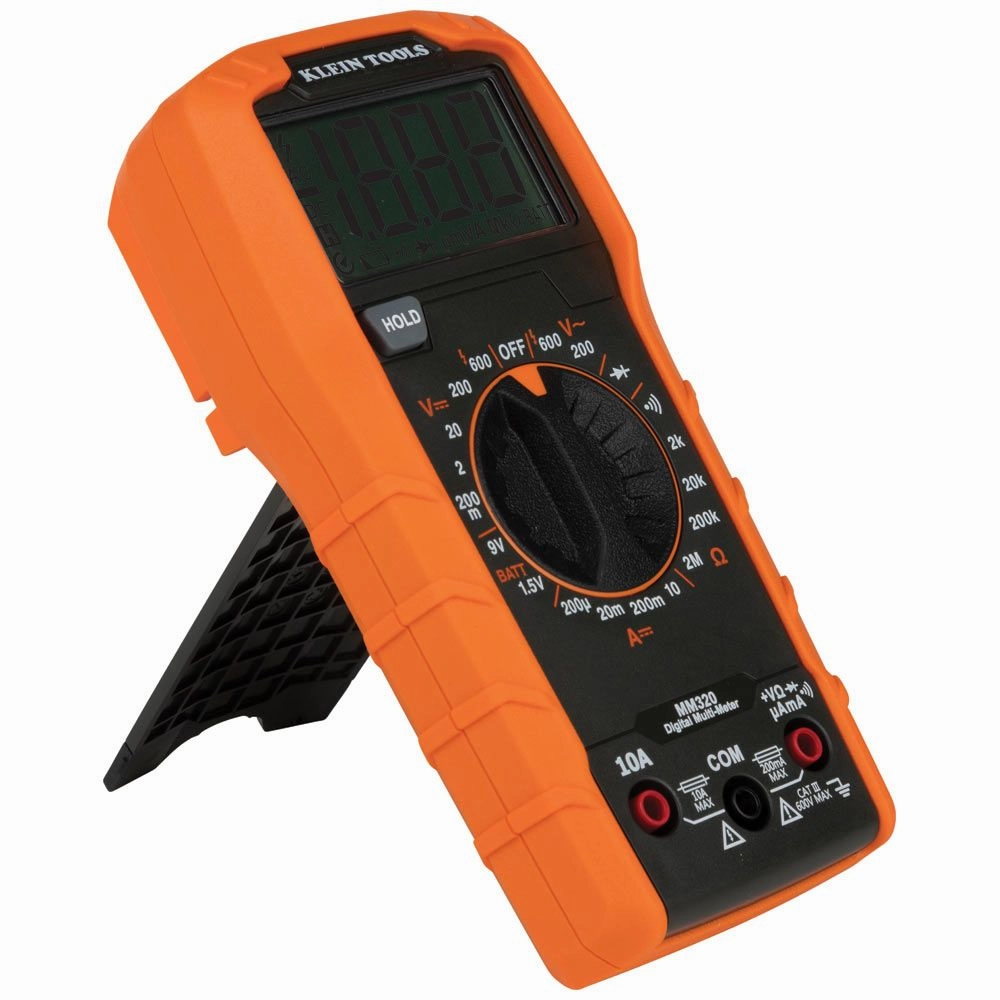

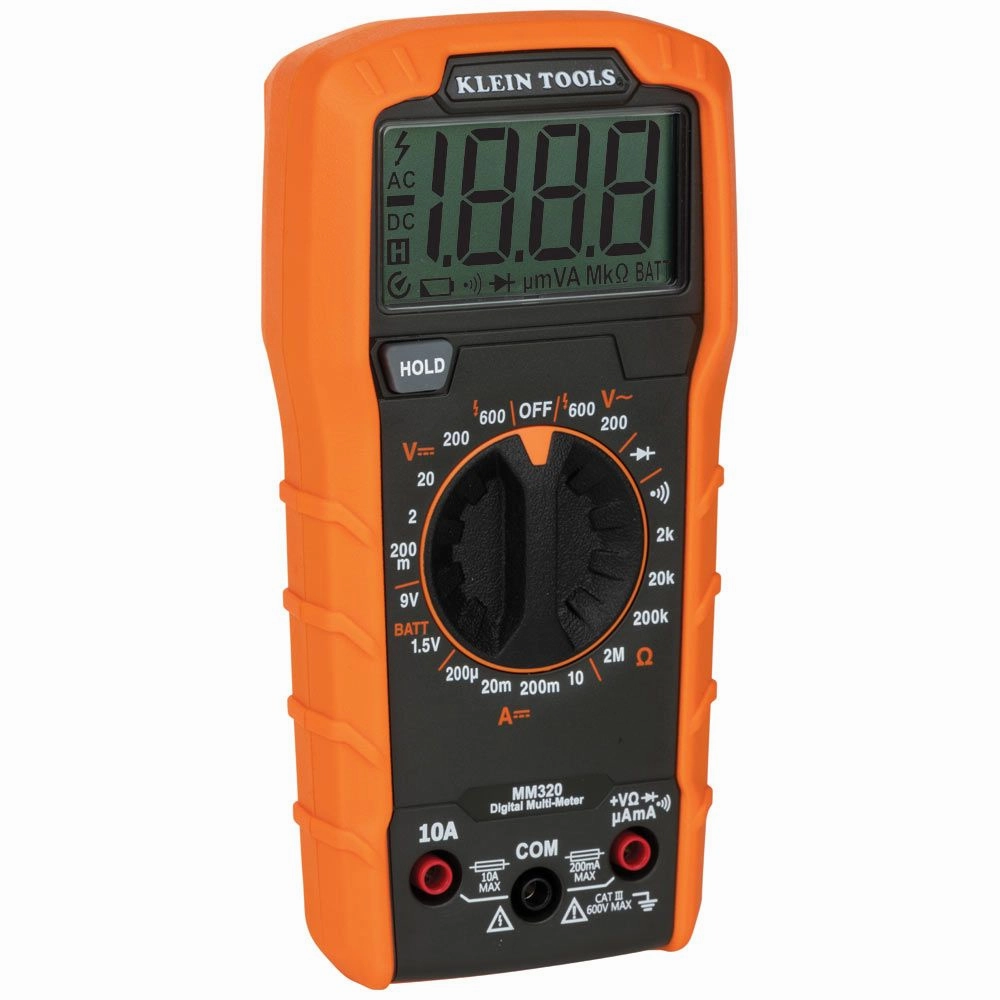

Digital Multimeter measures up to 600V AC/DC voltage, 10A DC current and 2 ohm resistance
Meter also test batteries, diodes, and continuity

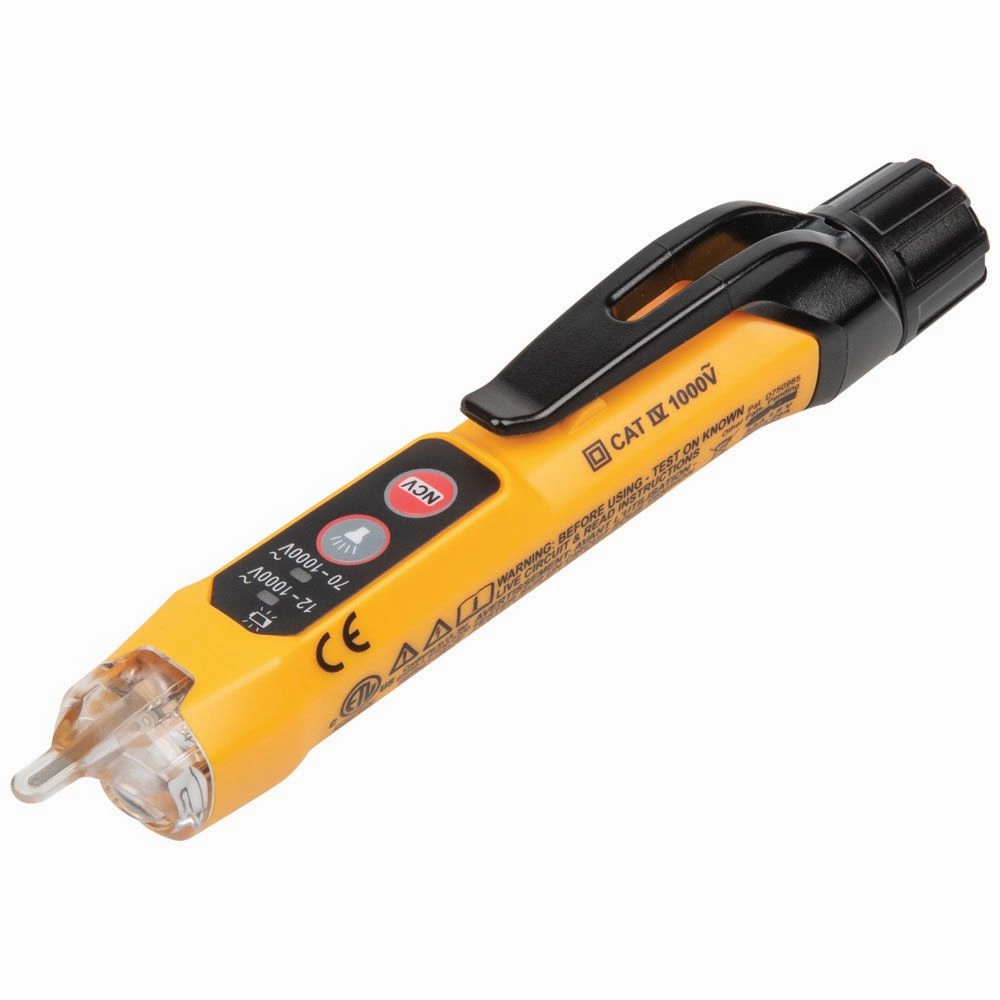

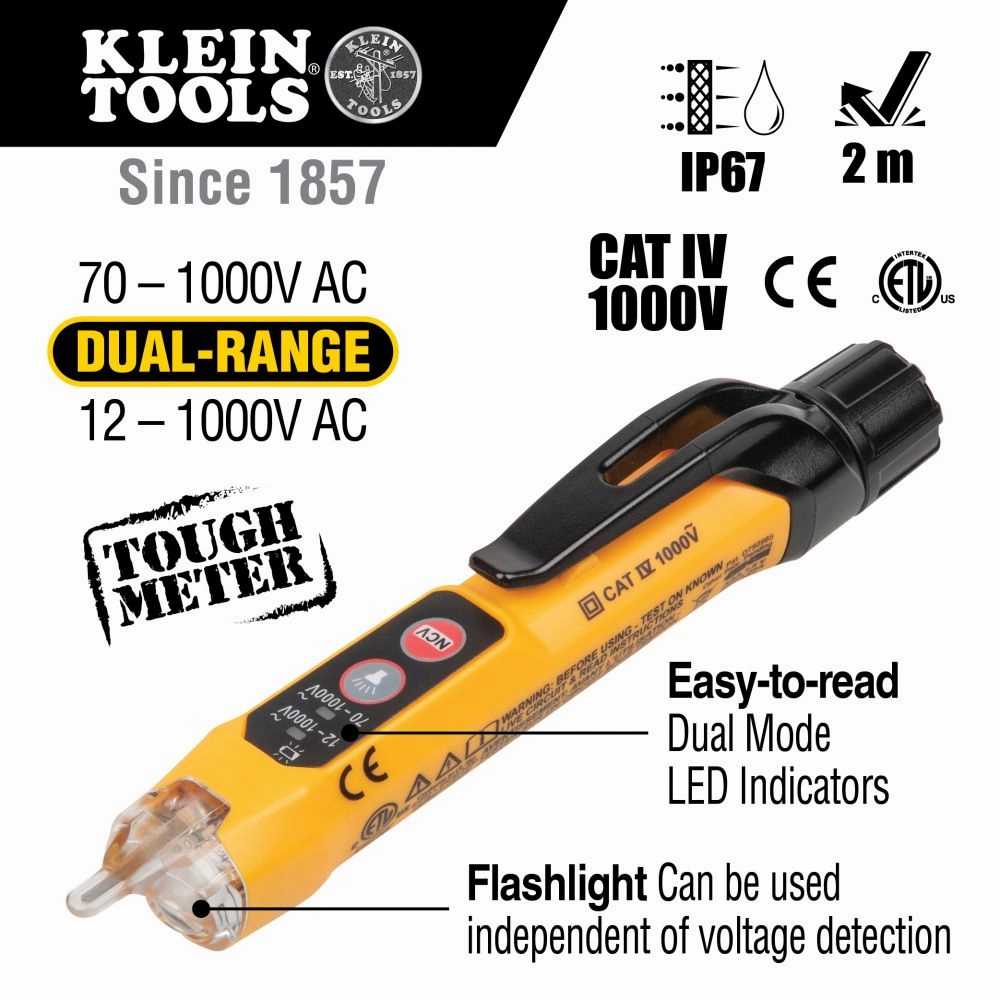

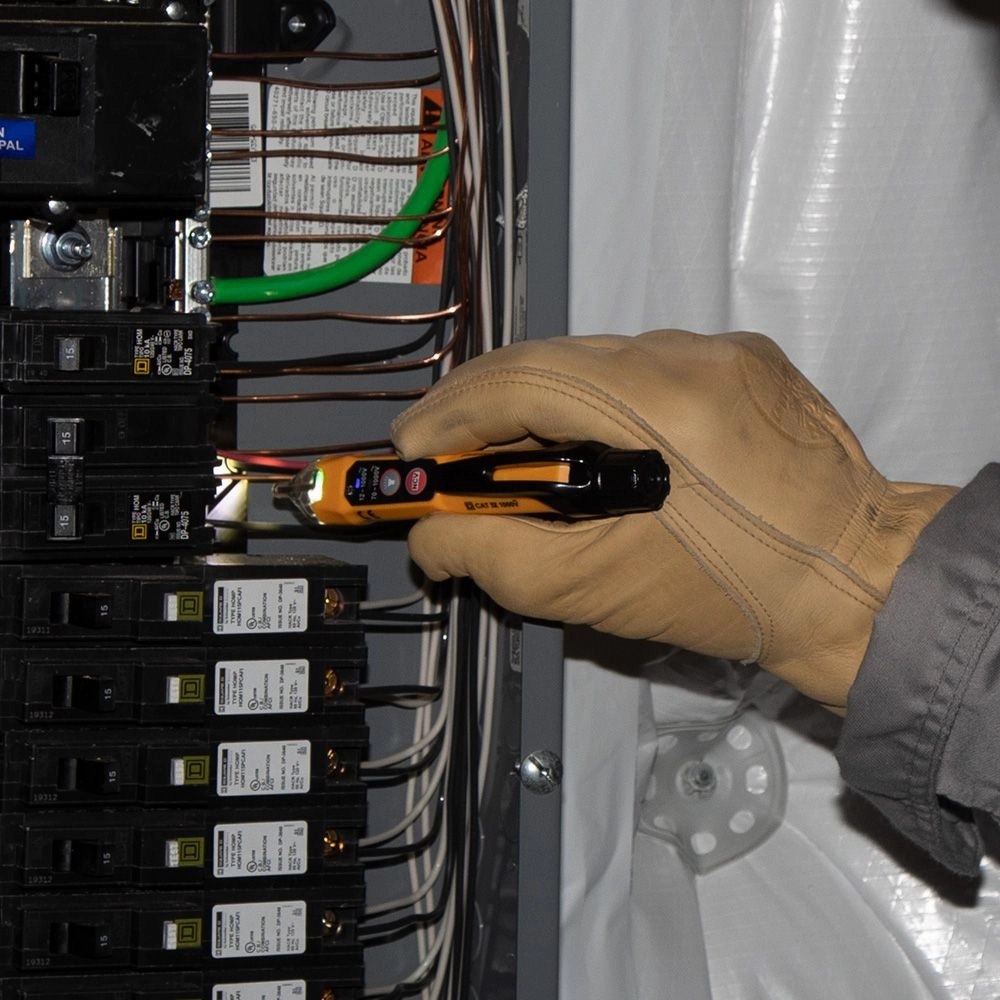

Voltage Tester NCVT-3P has dual-range capabilities to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
Bright flashlight illuminates work area and may be used independent of NCVT-3P voltage detection function

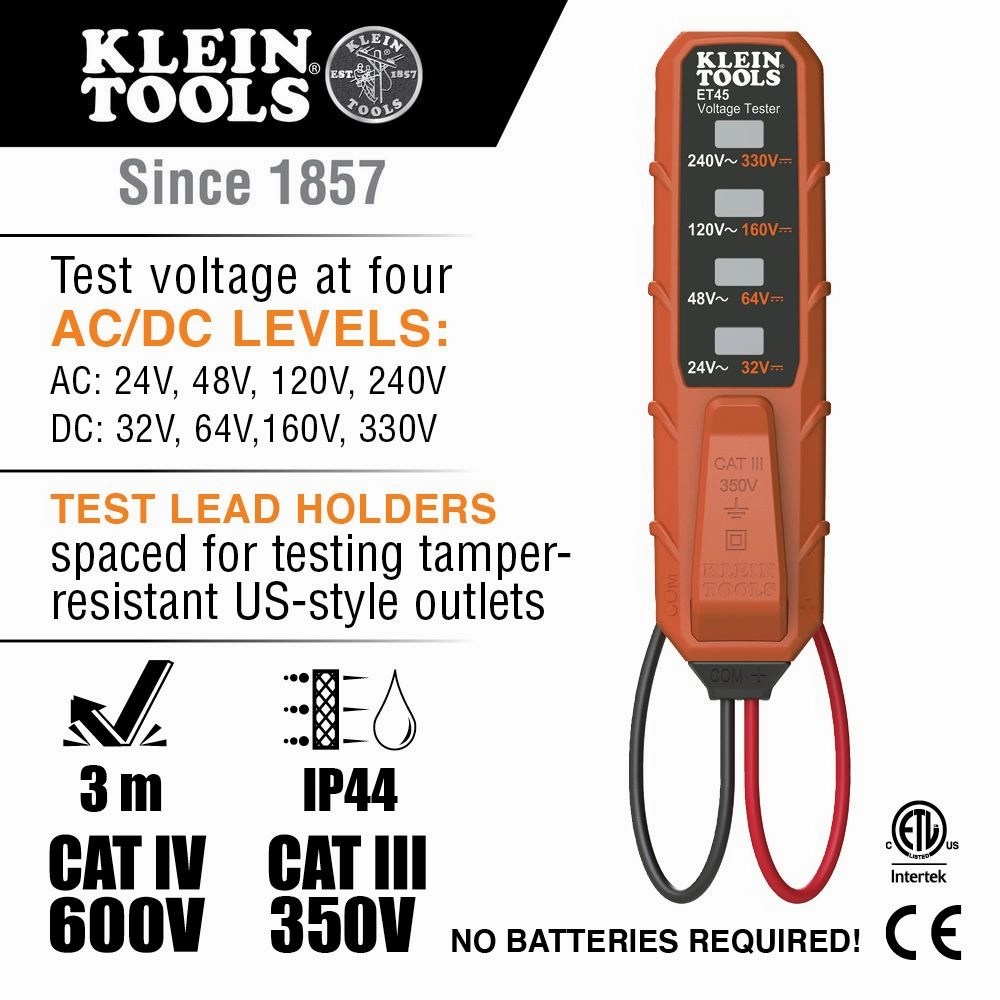

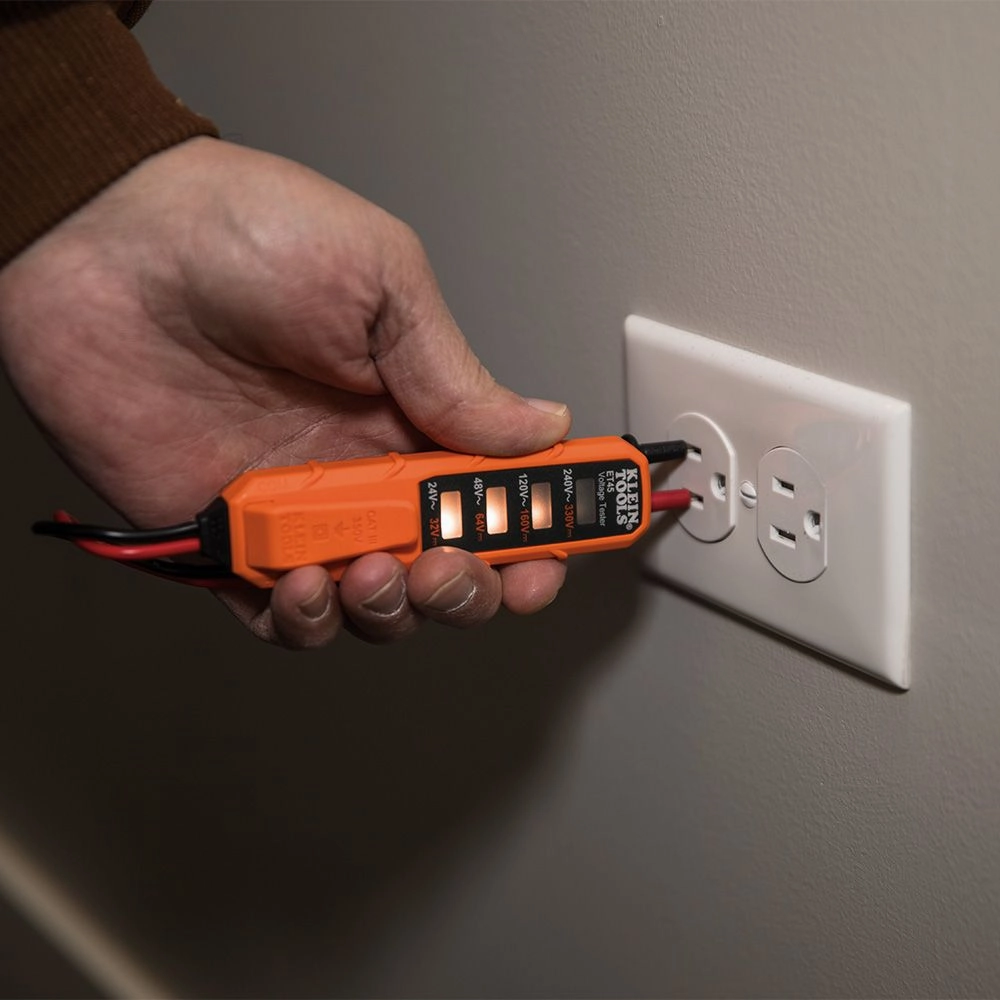

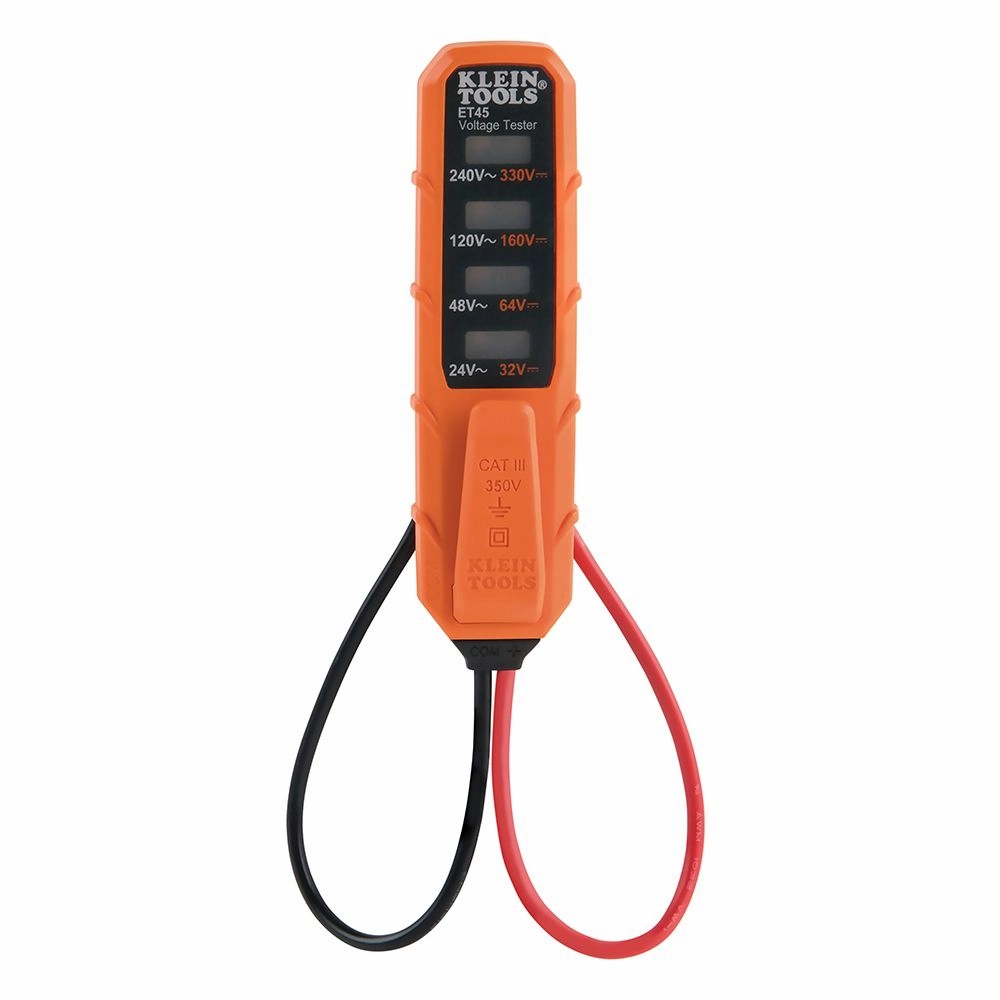

ET45 tests AC voltages from 28V to 240V AC at four useful levels aligned with commonly used residential voltages, and DC voltages from 32V to 330V at four common levels
Built-in test lead holder on back of ET45 holds the leads in one of two positions: one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads

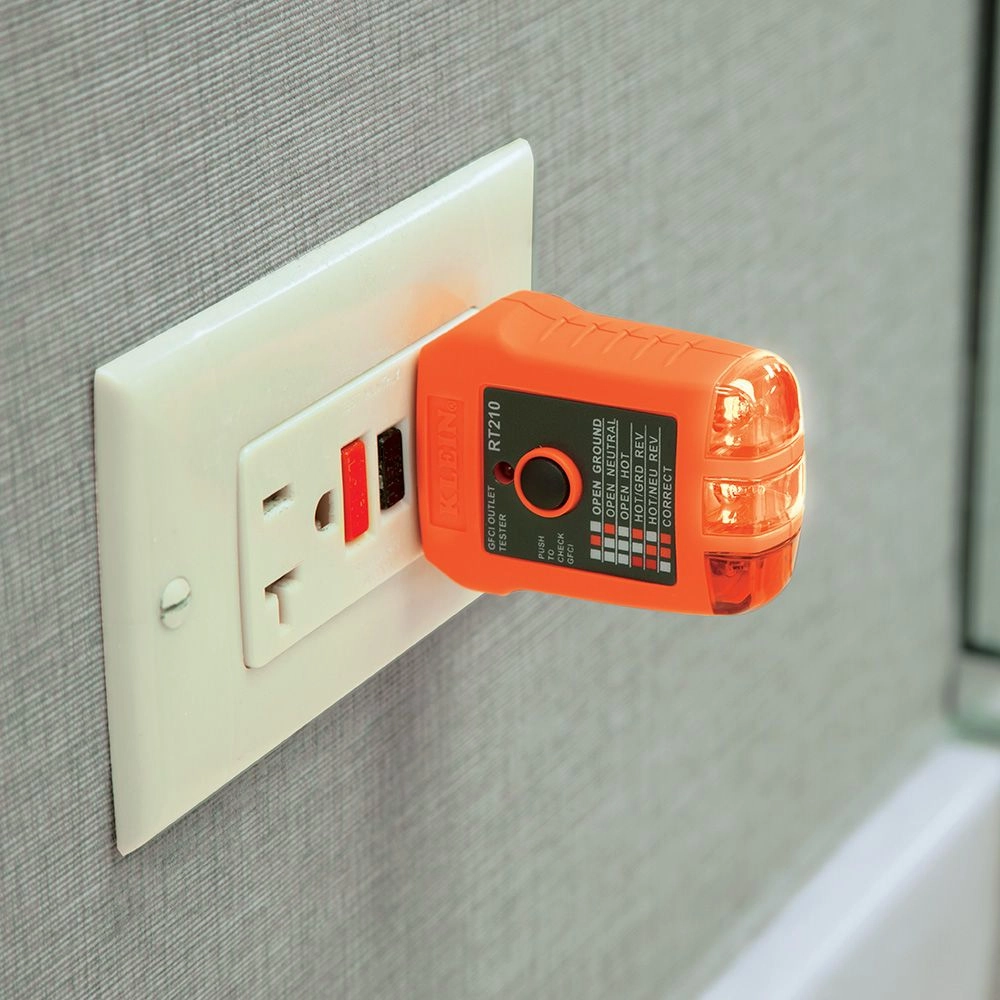

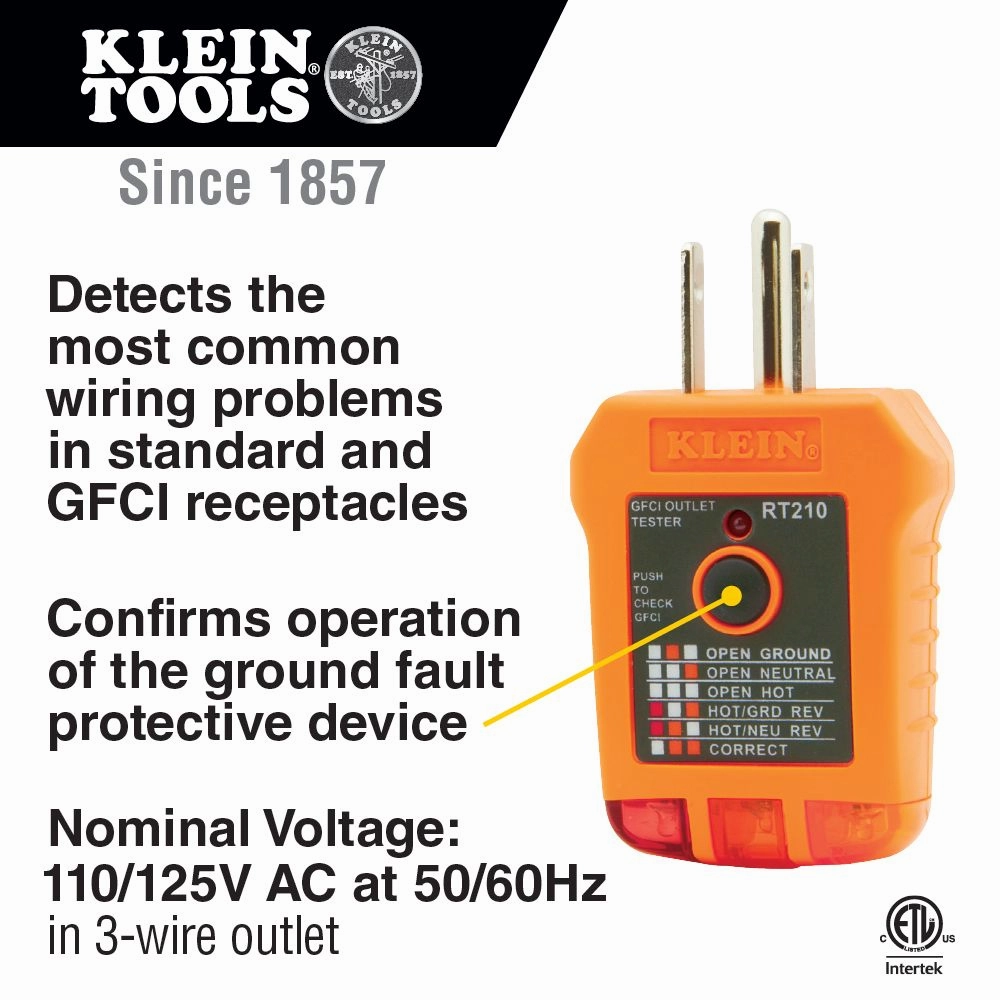

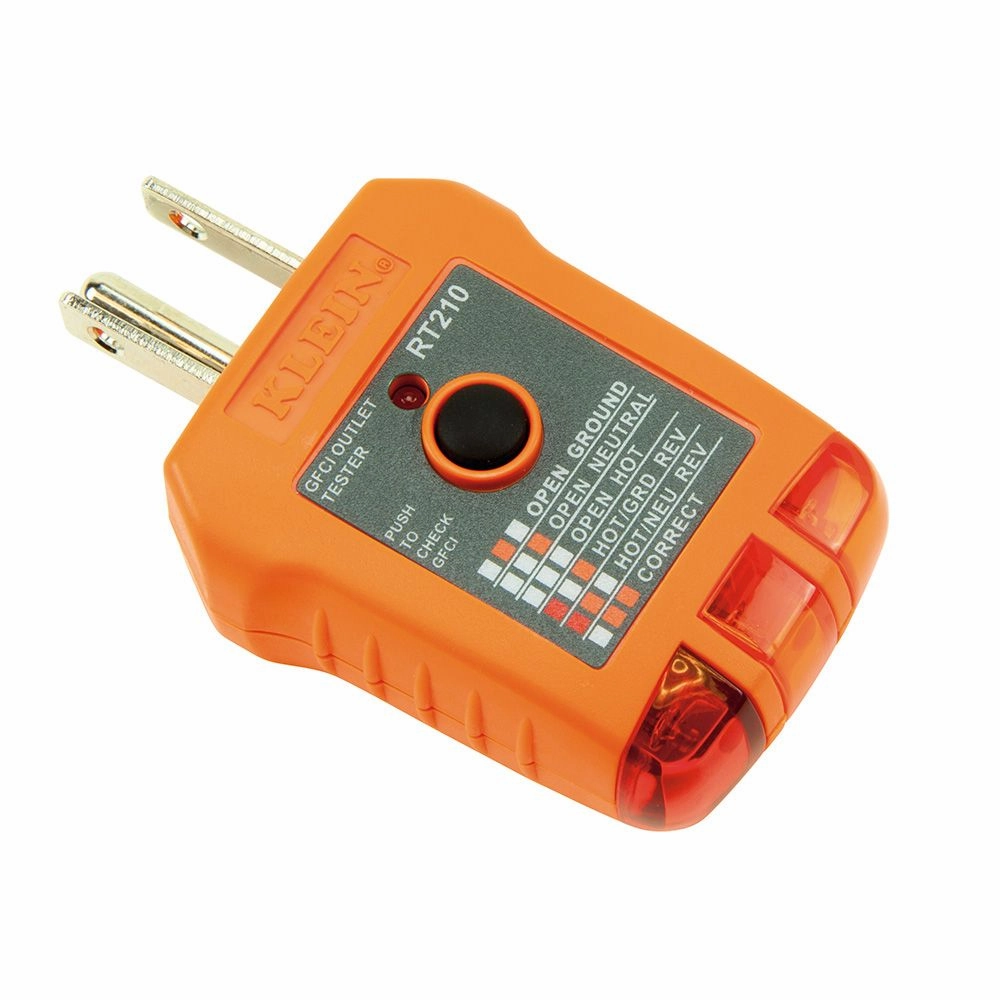

RT210 detects the most common wiring problems in standard and GFCI receptacles including open ground, reverse polarity, open hot, open neutral and hot/ground reversed
Receptacle tester works on GFCI outlets and confirms operation of the ground fault protective device
Meter also test batteries, diodes, and continuity
Voltage Tester NCVT-3P has dual-range capabilities to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
Bright flashlight illuminates work area and may be used independent of NCVT-3P voltage detection function
ET45 tests AC voltages from 28V to 240V AC at four useful levels aligned with commonly used residential voltages, and DC voltages from 32V to 330V at four common levels
Built-in test lead holder on back of ET45 holds the leads in one of two positions: one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads
RT210 detects the most common wiring problems in standard and GFCI receptacles including open ground, reverse polarity, open hot, open neutral and hot/ground reversed
Receptacle tester works on GFCI outlets and confirms operation of the ground fault protective device
Current
10A
Voltage
600V AC/DC
Resistance (Ohms)
2M
Batteries
2 x AAA
Display Type
MM320: 2000 Count LCD
