Product Details
＋
General Information
Brand
Klein Tools
Part Number
VDV500-223
Product Type
Digital Wire Tracing
Application
Wire Tracing

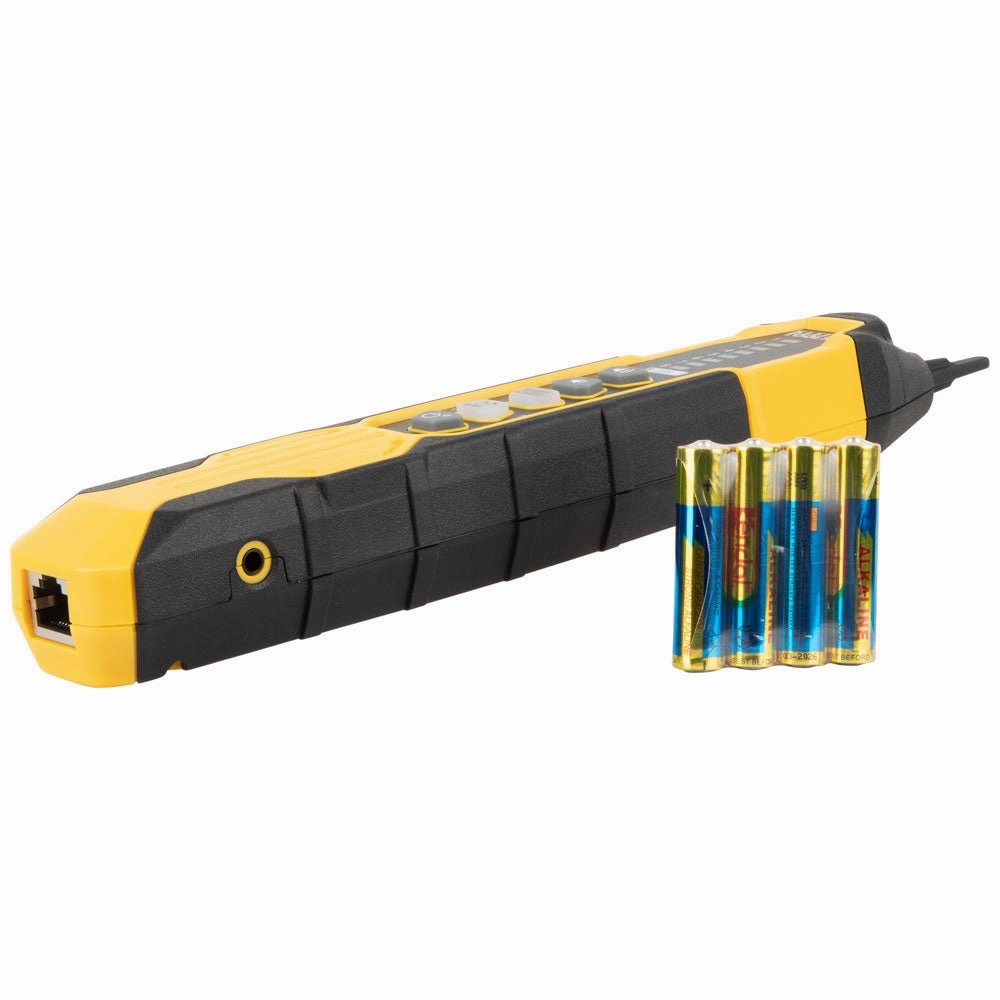

What's Included
Tracing Probe
4 x AAA Batteries
4 x AAA Batteries
Packaging
Retail
UPC
092644583889
California Residents
Physical Characteristics
Length
1.9'' (4.8 cm)
Width
1.3'' (3.3)
Height
9.9'' (25.1 cm)
Weight
0.32
Color
Black and Yellow
Material
ABS
Details
Features
Digital Probe traces non-energized wiring when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)

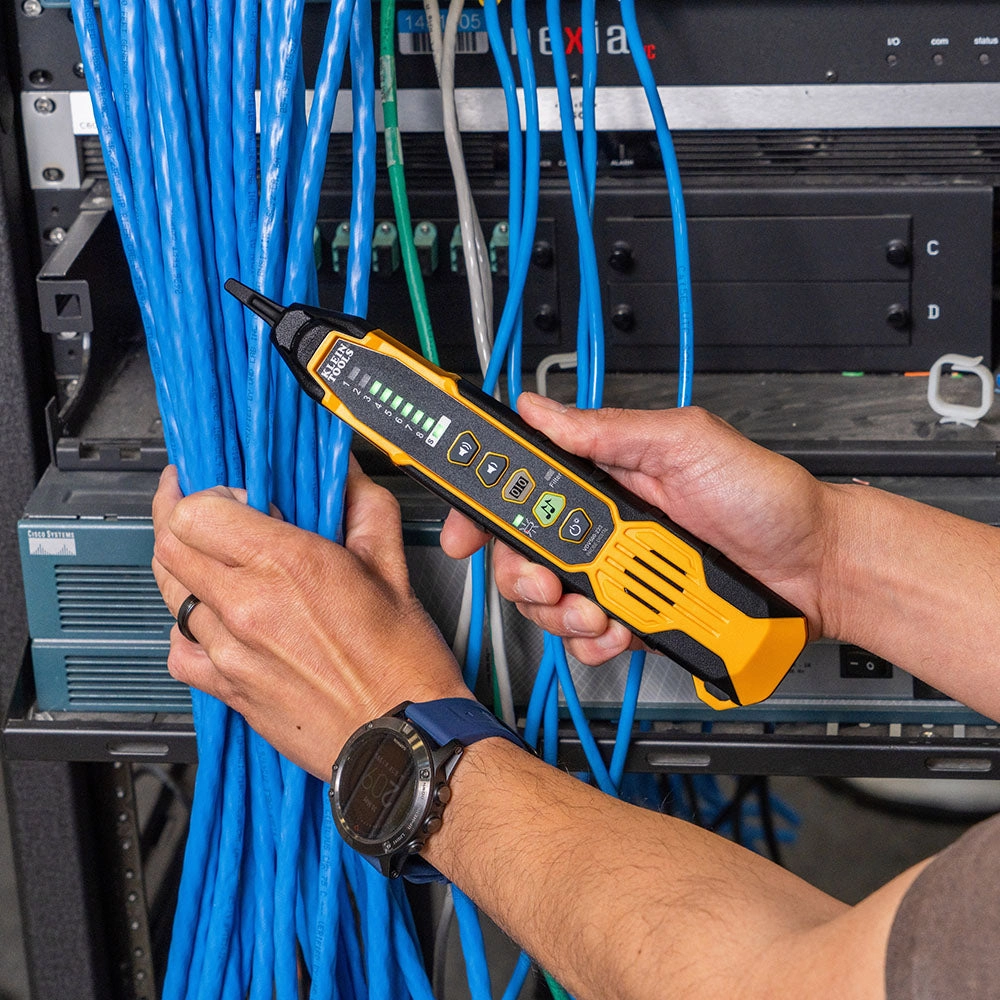

Trace and locate cables on an active network when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)

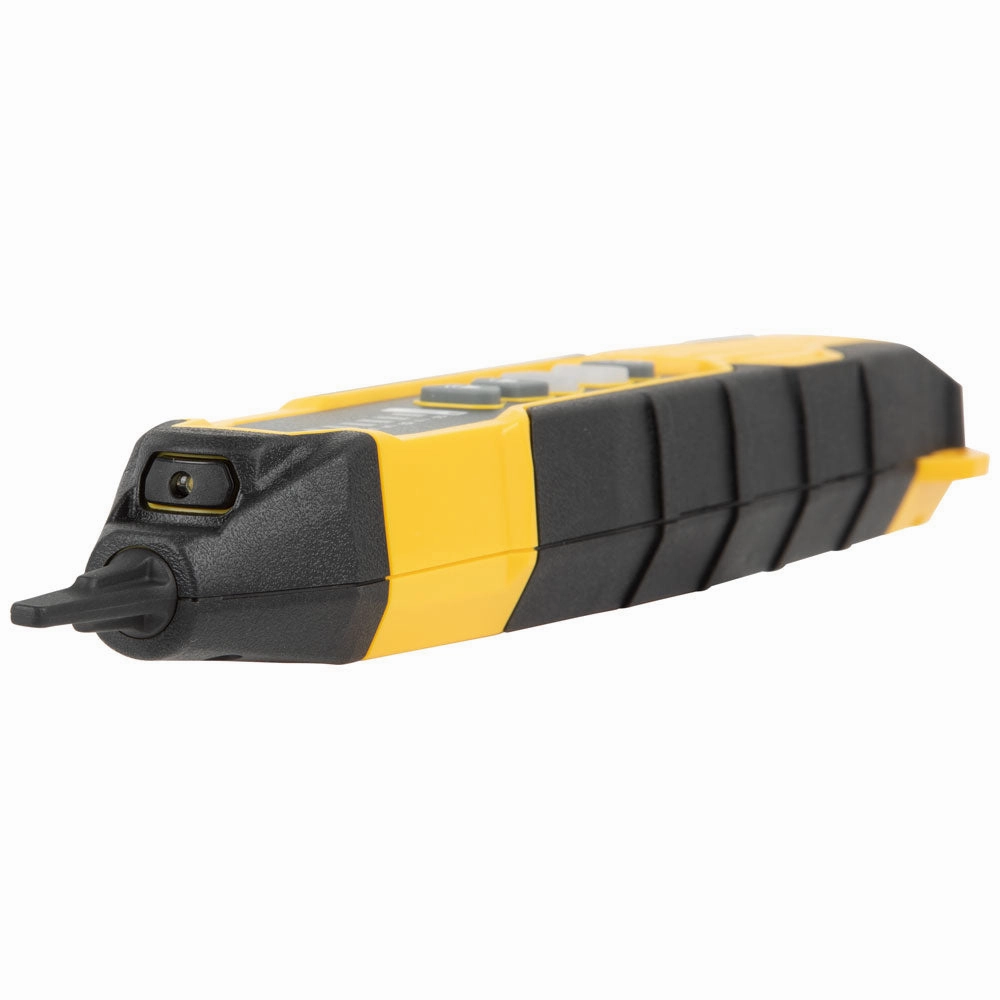

Work light for use in dark spaces
3.5 mm headphone jack for use in noisy environments (headphones not included)

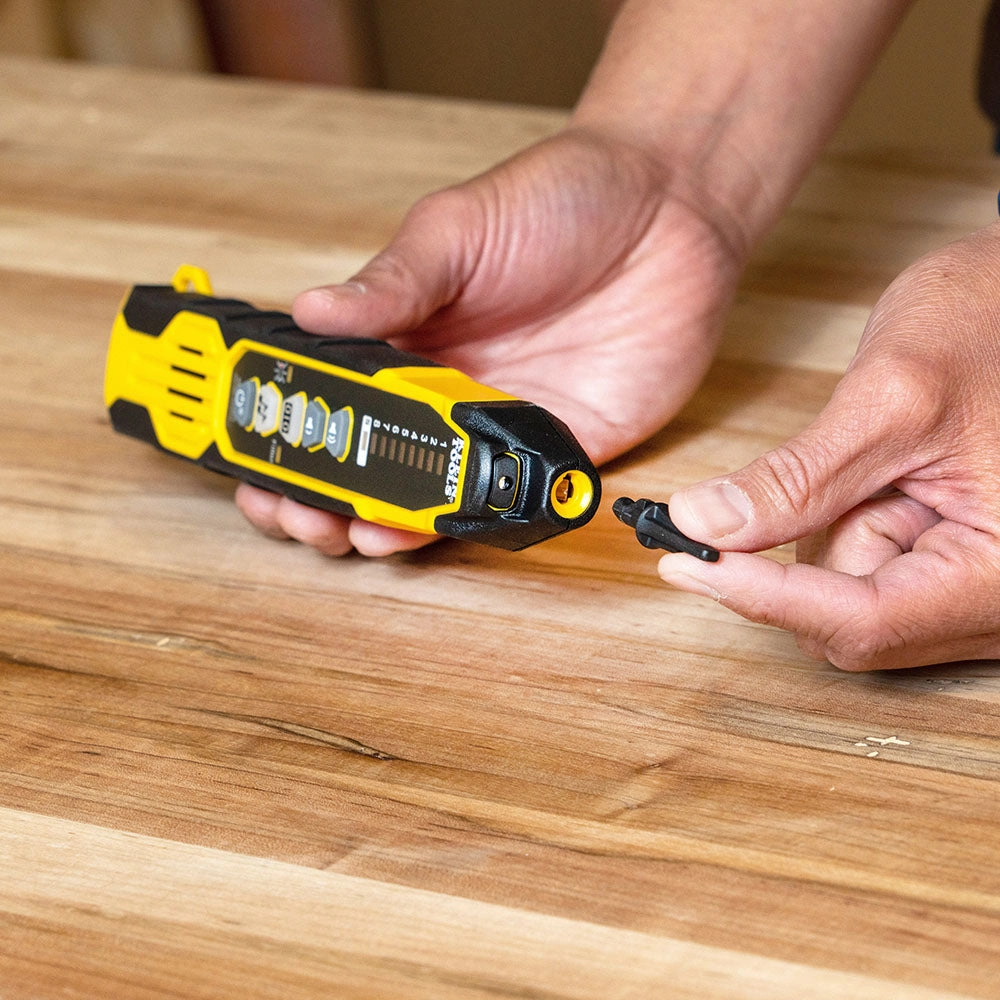

Tool-less, twist-and-lock replacement tip (Cat. No. VDV999-070) available
60Hz filter for accurate tracing, works with Klein's Scout Pro and Lan Scout Jr. testers
Wire mapping capabilities to check Pin-to-Pin connections with shield detection when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)
Trace and locate cables on an active network when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)
Work light for use in dark spaces
3.5 mm headphone jack for use in noisy environments (headphones not included)
Tool-less, twist-and-lock replacement tip (Cat. No. VDV999-070) available
60Hz filter for accurate tracing, works with Klein's Scout Pro and Lan Scout Jr. testers
Wire mapping capabilities to check Pin-to-Pin connections with shield detection when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)
Batteries
4 x AAA
