Product Details
＋
General Information
Brand
Klein Tools
Part Number
VDV826-704
Product Type
Modular Data Plugs
Application
Data
Number of Pieces
50
Packaging
Retail
UPC
092644583780
California Residents
Proposition 65 Warning
Physical Characteristics
Length
0.875'' (2.2 cm)
Width
0.094'' (0.2 cm)
Height
0.453'' (1.2 cm)
Weight
0.14 kg
0.30 lb
Color
Clear
Material
PVC Plastic; Gold Plated Contacts
Details
Features

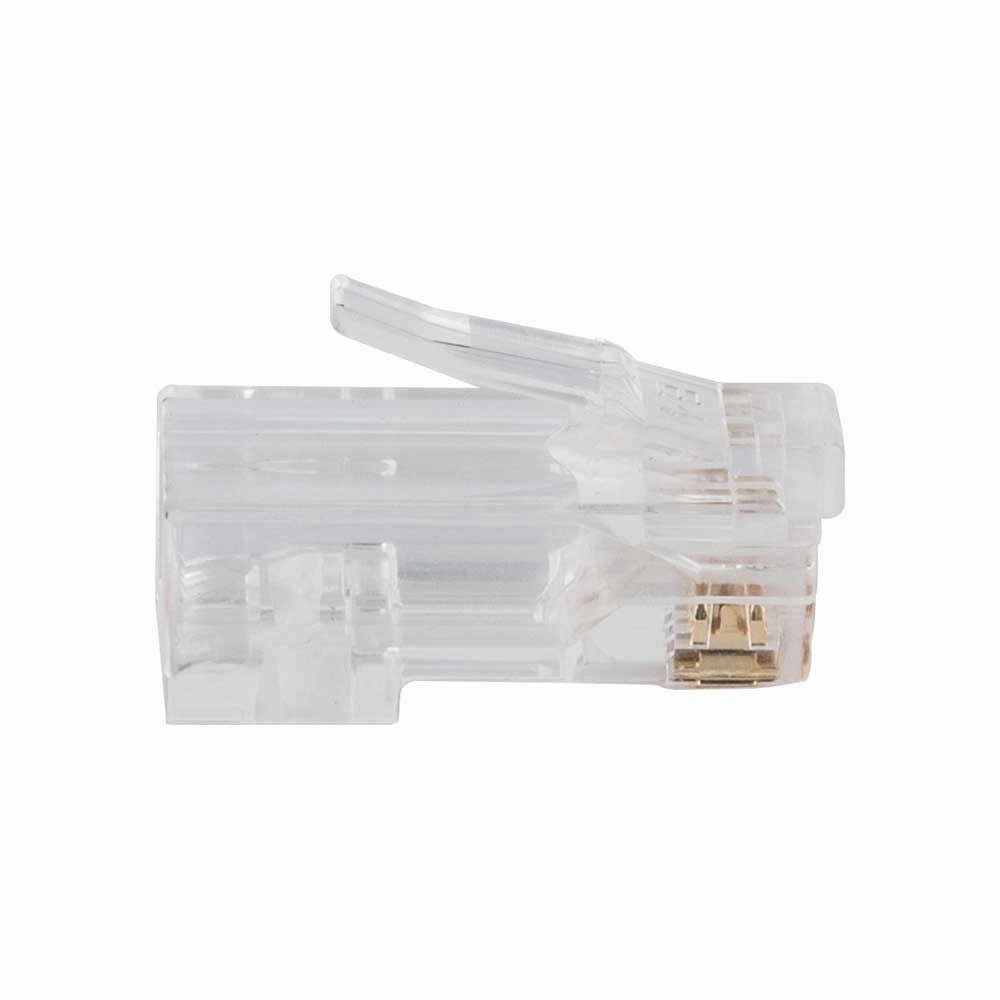

Klein exclusive Pass-Thru Connectors provide fast, reliable connector installations for data applications
For CAT6A cable as well as larger diameter/thicker jacket CAT6 cable

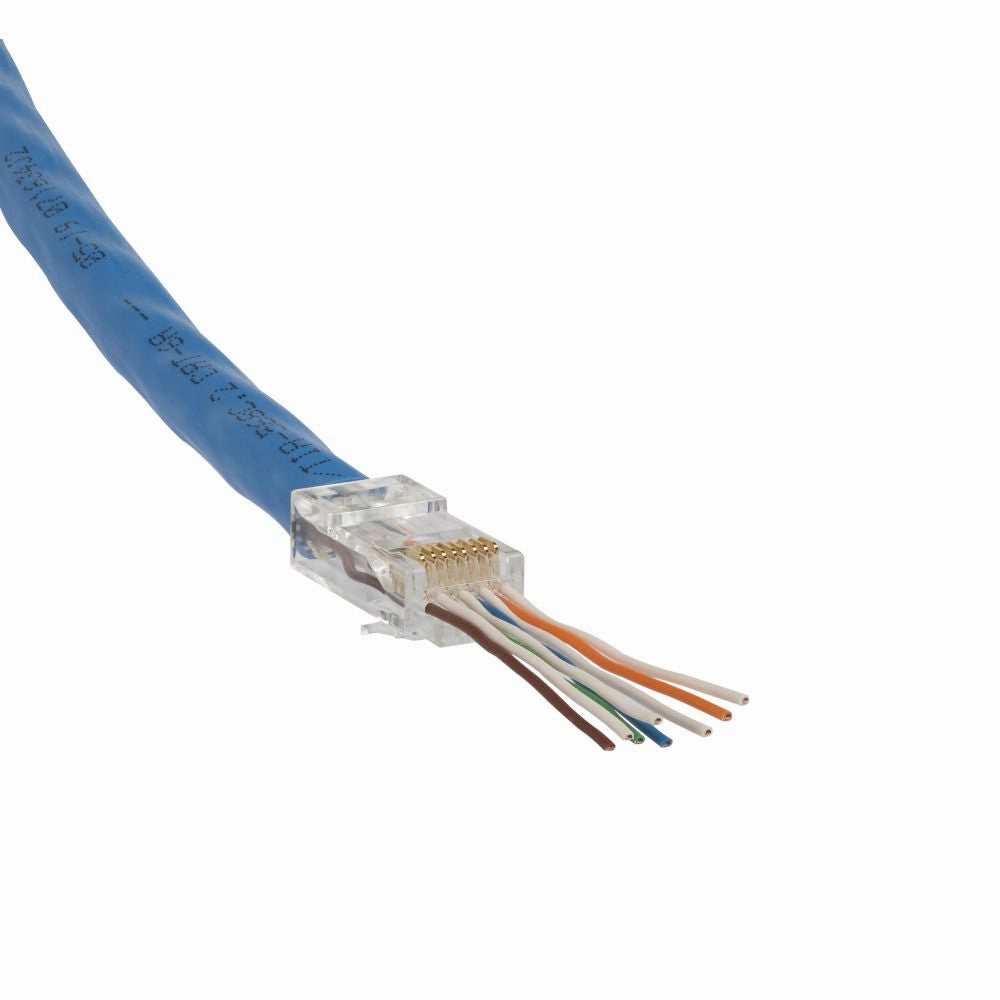

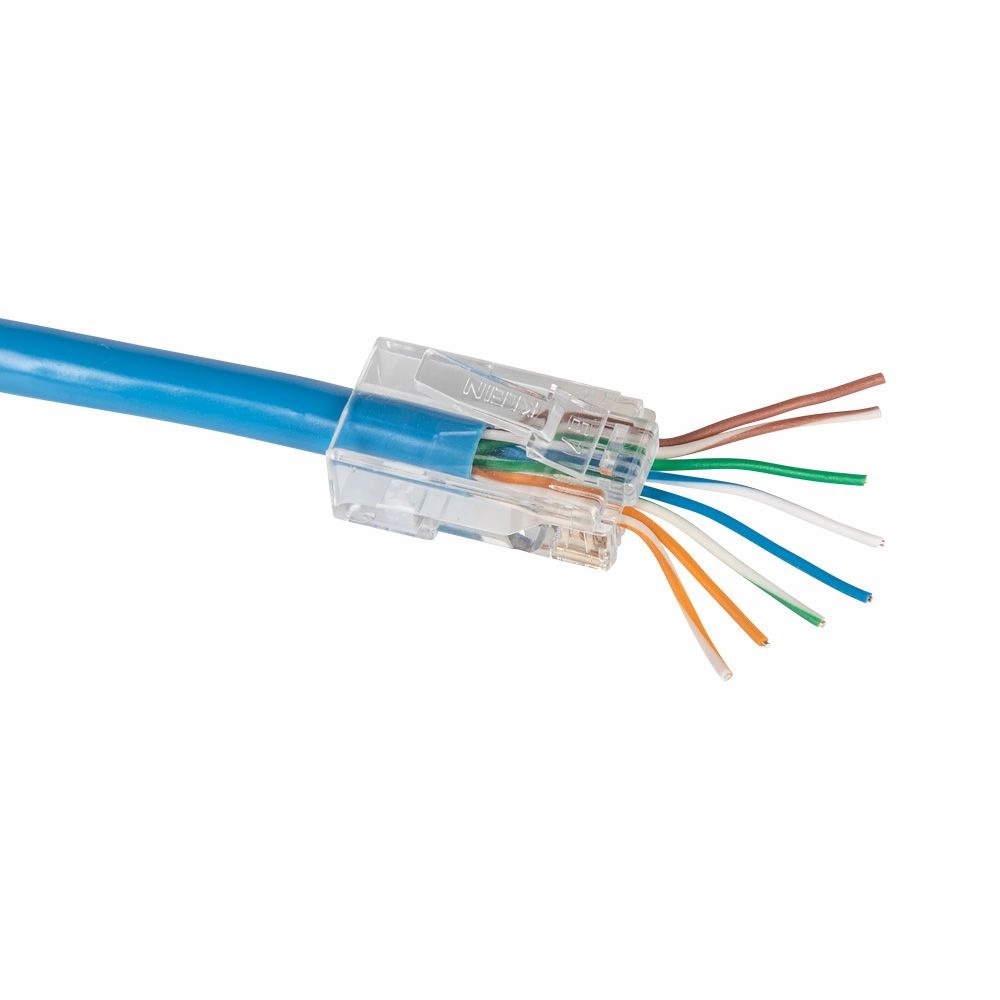

CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
Fully compliant with Power Over Ethernet (PoE and PoE ) standards

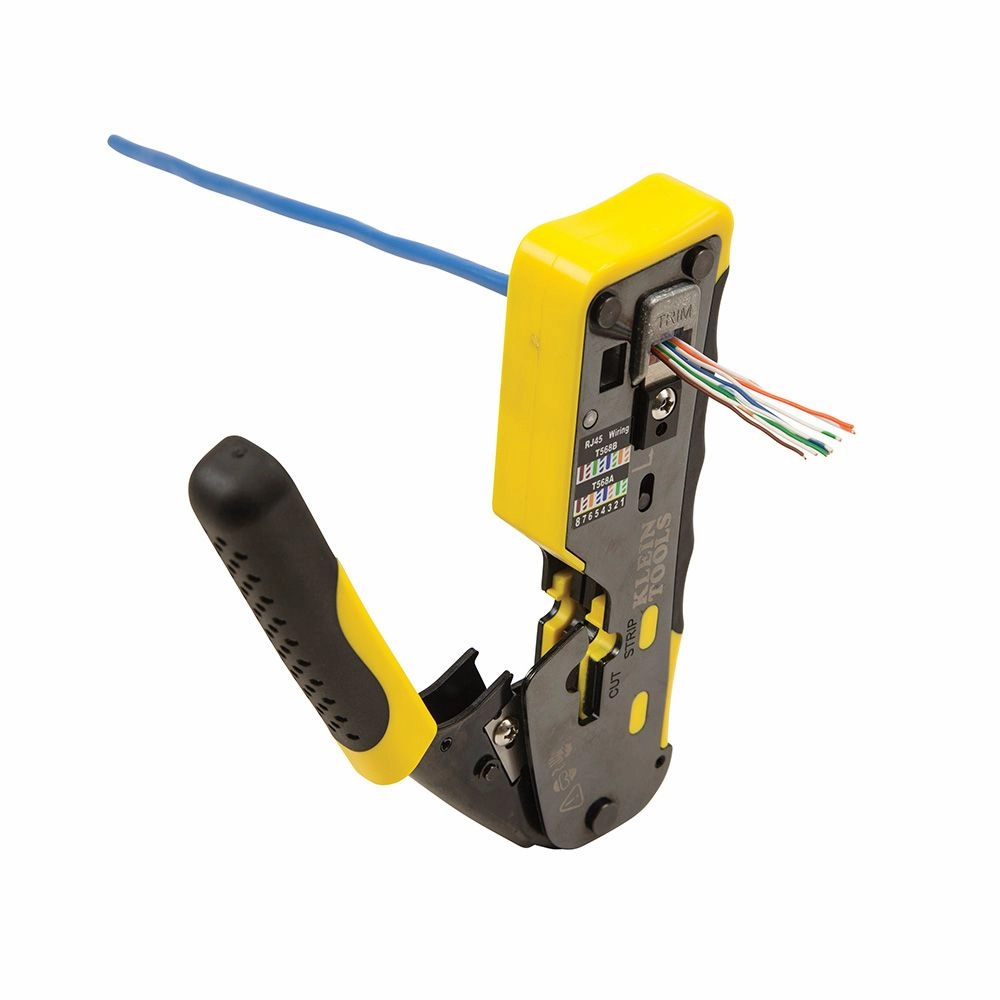

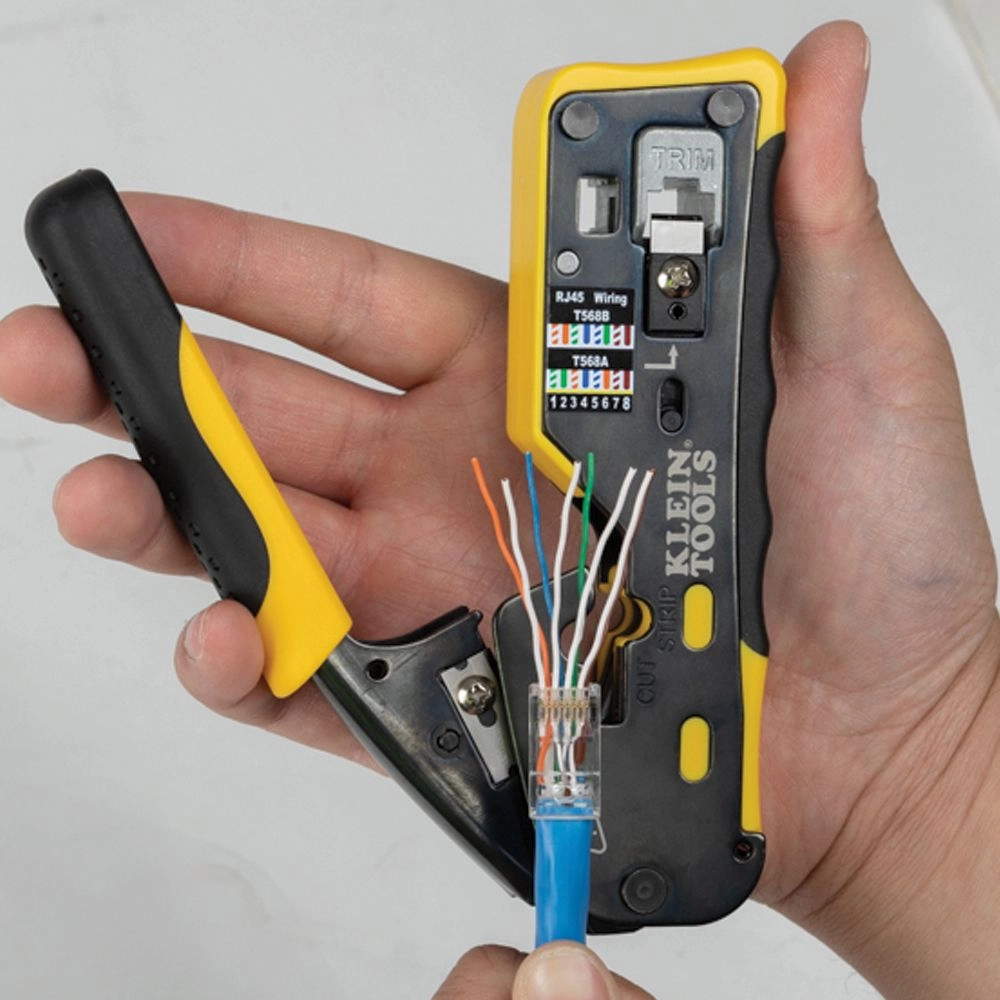

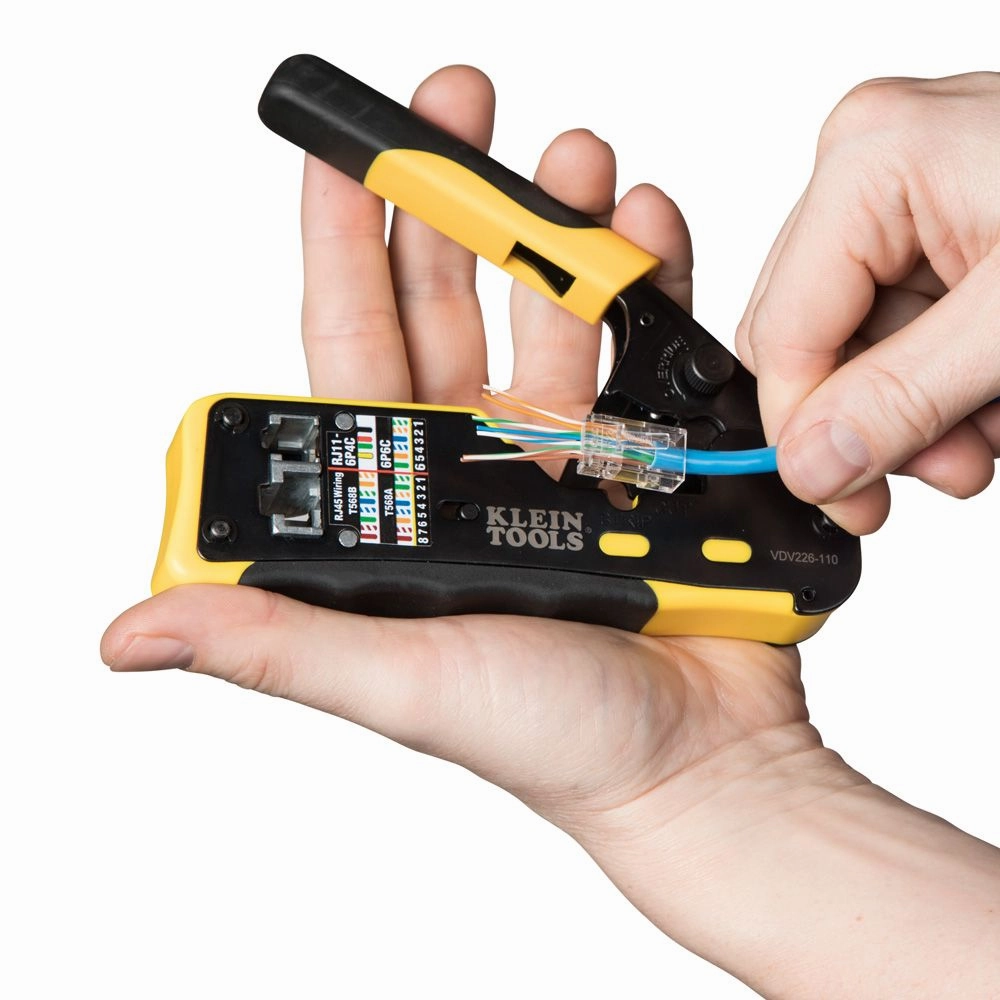

Requires pass-through type crimping tool (Cat. No. VDV226-110 recommended)

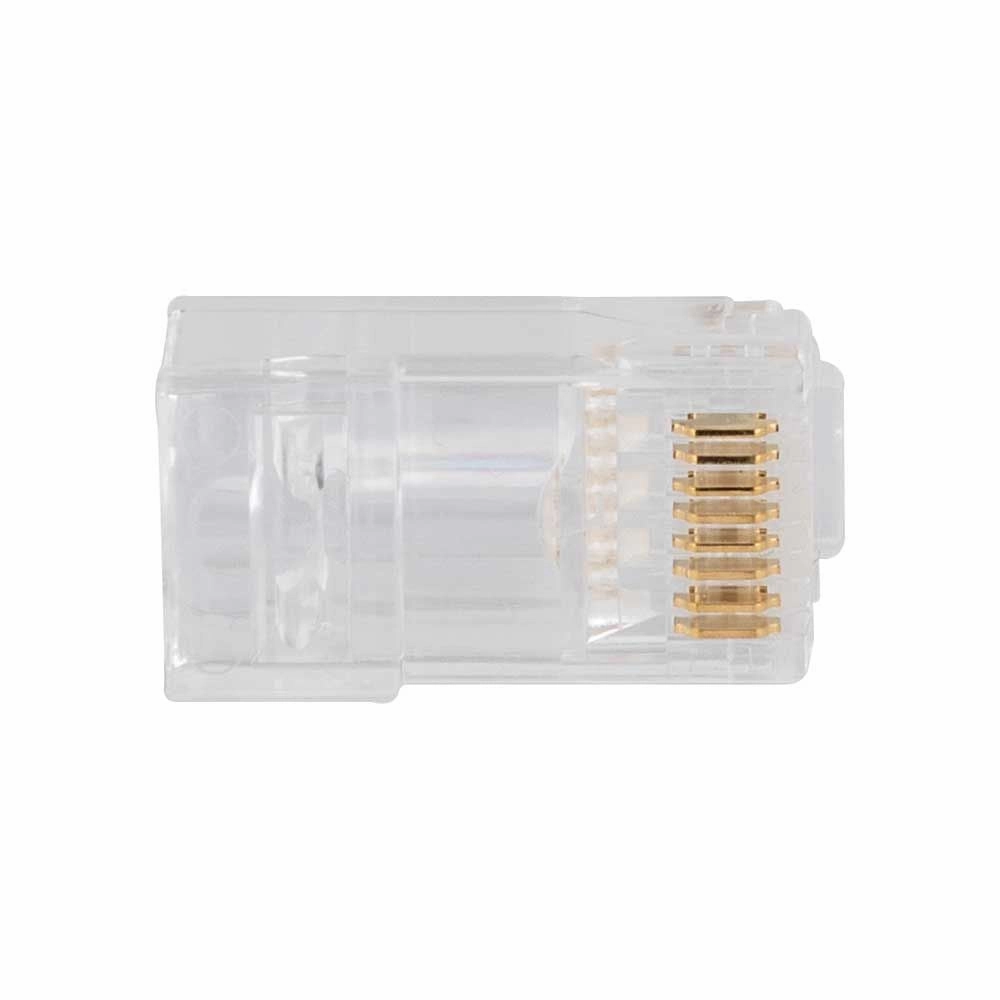

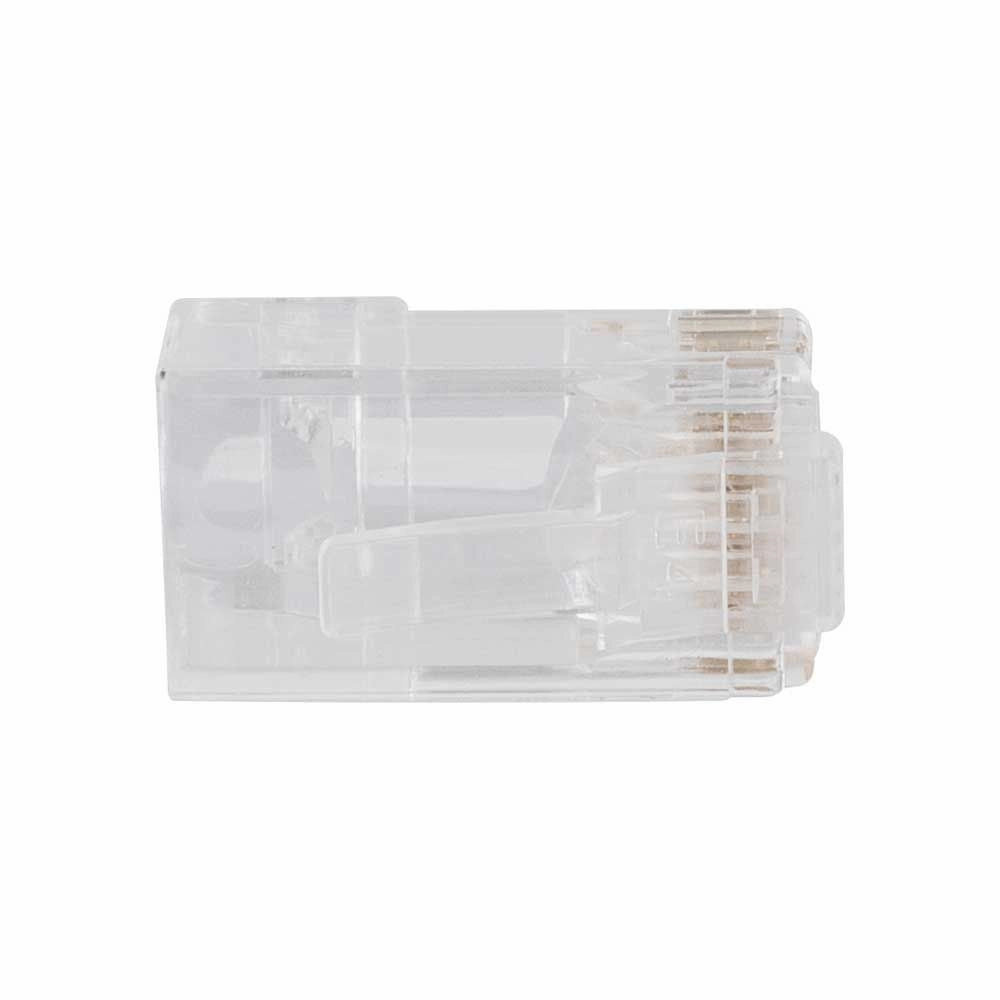

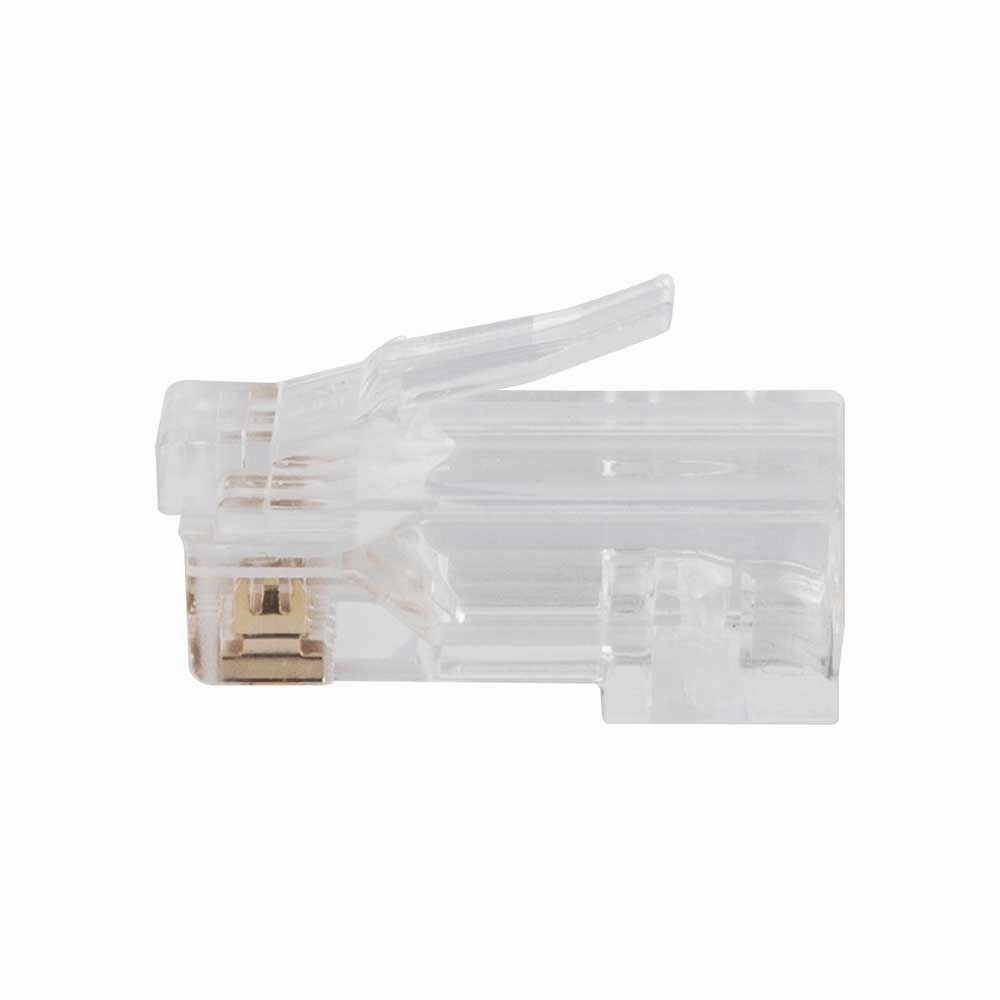

8 position, 8 contact pass-through type data plugs for solid or stranded wire
Category 6A performance per TIA/EIA-568-B.2
50-Pack

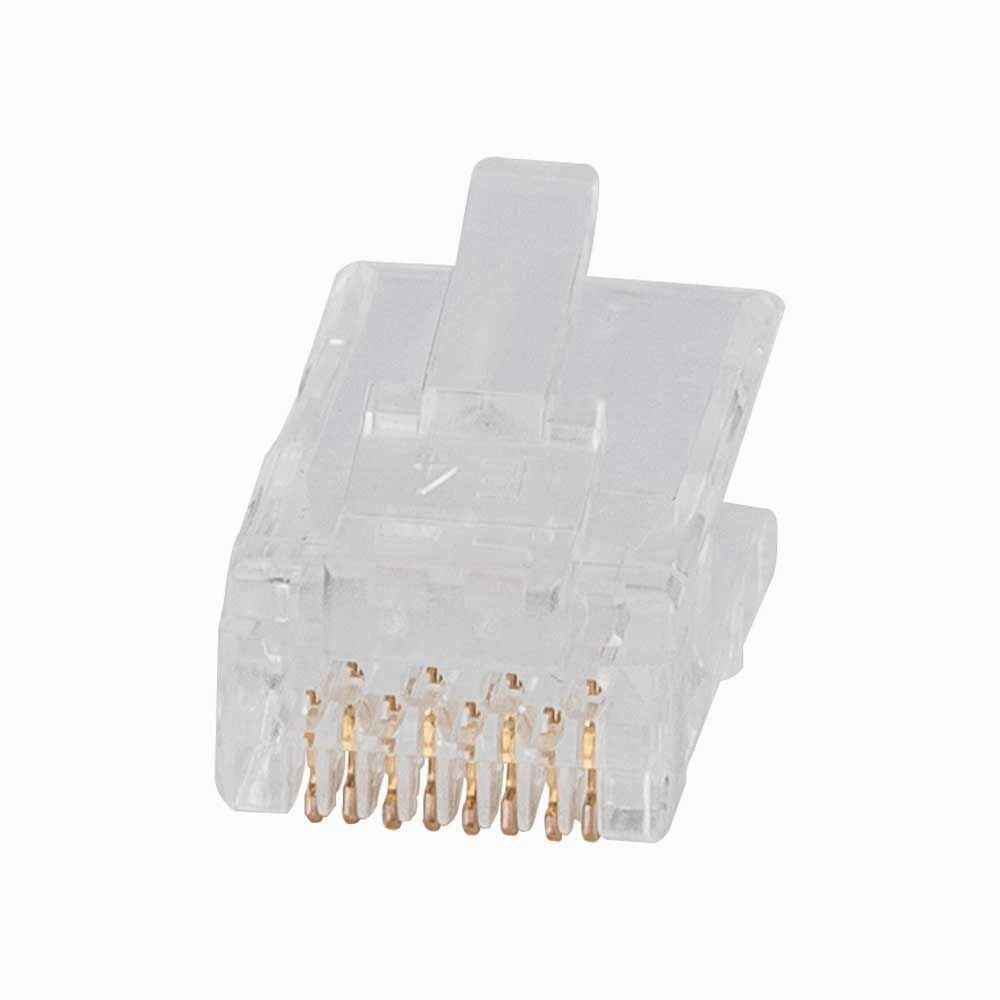

50 -inch gold plating on all contact surfaces
Max diameter for CAT6A Pass-Thru Connectors is 0.043-Inch (1.01 mm)
For CAT6A cable as well as larger diameter/thicker jacket CAT6 cable
CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
Fully compliant with Power Over Ethernet (PoE and PoE ) standards
Requires pass-through type crimping tool (Cat. No. VDV226-110 recommended)
8 position, 8 contact pass-through type data plugs for solid or stranded wire
Category 6A performance per TIA/EIA-568-B.2
50-Pack
50 -inch gold plating on all contact surfaces
Max diameter for CAT6A Pass-Thru Connectors is 0.043-Inch (1.01 mm)
