Product Details
＋
General Information
Brand
Platinum Tools
Country of Origin
Taiwan
UPC
849160011439
California Residents
Part Number
106251C
Product Type
Shielded Field Plug
Physical Characteristics
Weight
0.05 kg
0.11 lb
Material
Cast-meta
Details
AWG
26 - 23AWG
Features

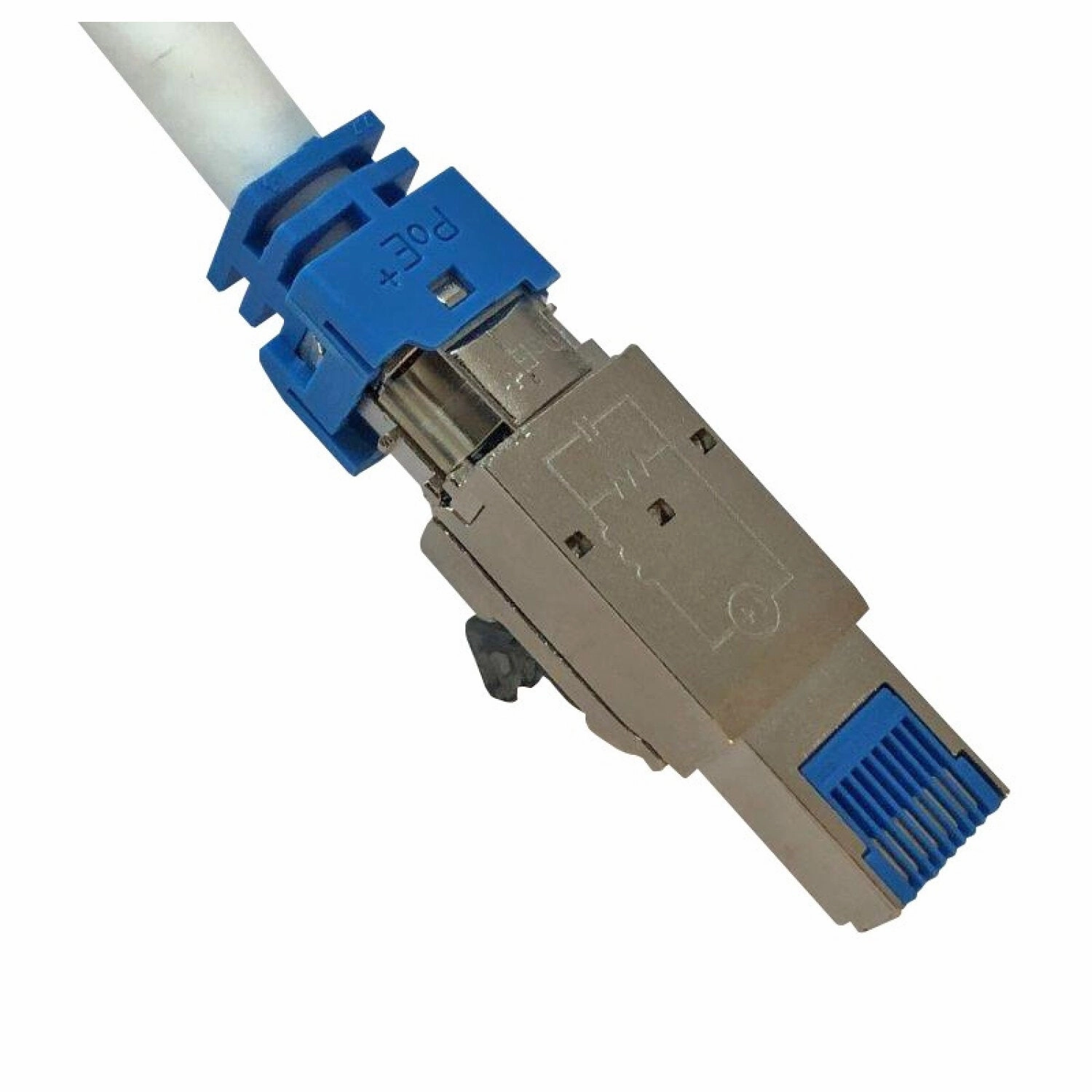

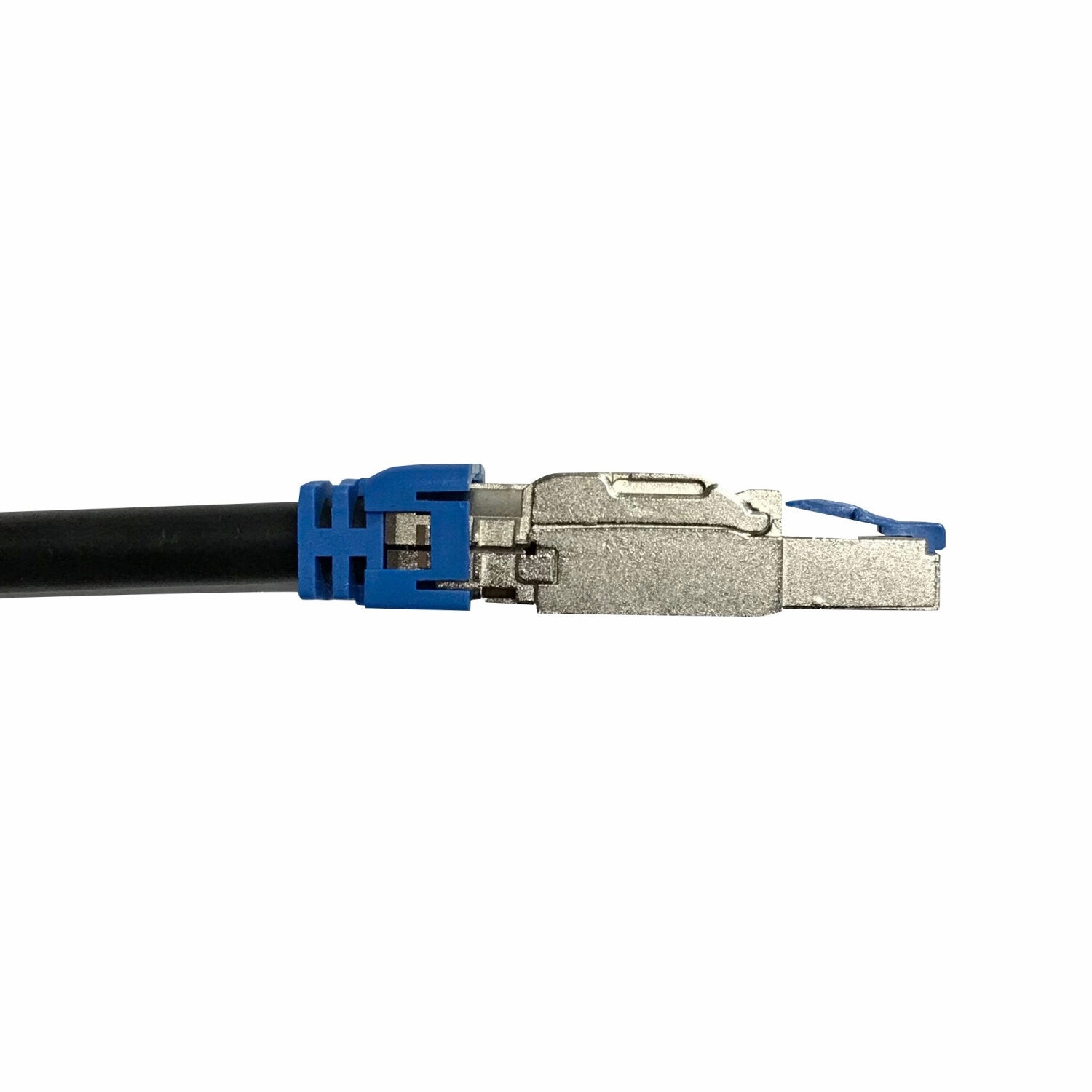

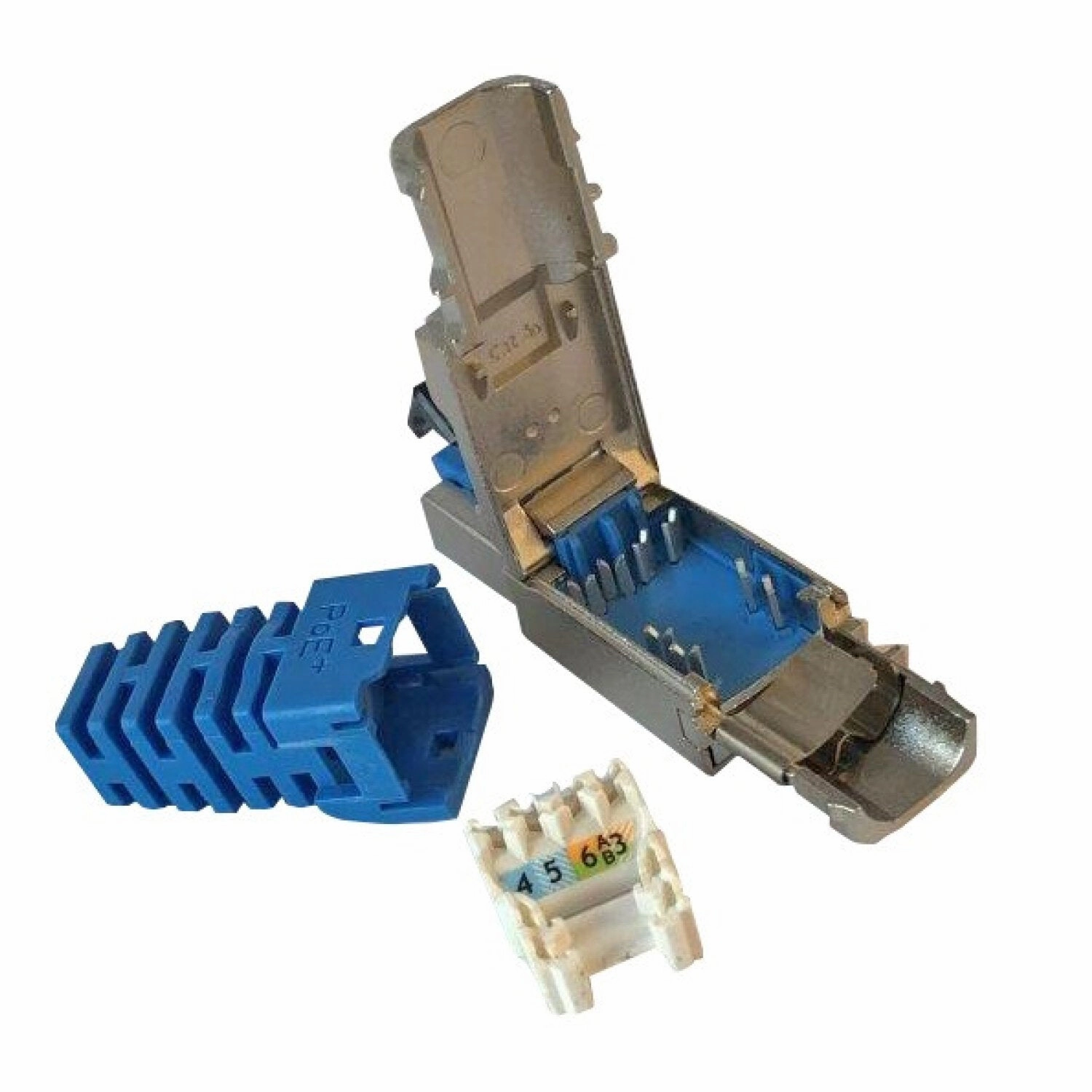

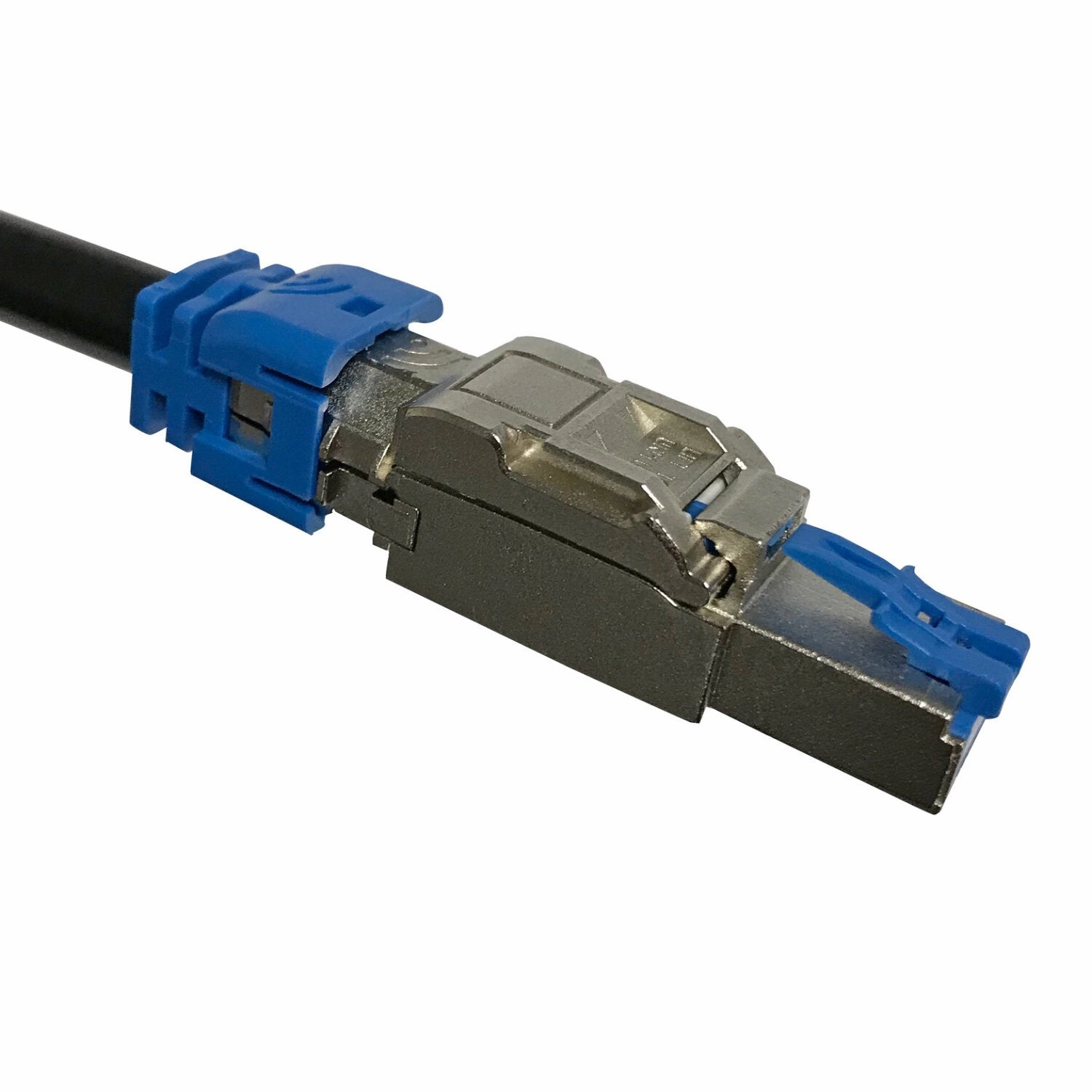

RJ45 CAT6A/7 field-installable connector
Field-installable design requires minimal tools (no crimp tool required)
Shielded with internal ground
Compatible with CAT6
Compatible with solid and stranded cable
Compatible with 26 - 23AWG conductors
Frequency rated up to 1GHz and 10G certified
PoE rated
0.236 - 0.315 (6.0mm - 8.0mm) cable jacket outer diameter range
0.032 - 0.057 (0.8mm - 1.47mm) cable insulation diameter range
Gold plated contacts provide reliable performance and long life
UL and RoHS compliant
Retail-ready clamshell packaging
Field-installable design requires minimal tools (no crimp tool required)
Shielded with internal ground
Compatible with CAT6
Compatible with solid and stranded cable
Compatible with 26 - 23AWG conductors
Frequency rated up to 1GHz and 10G certified
PoE rated
0.236 - 0.315 (6.0mm - 8.0mm) cable jacket outer diameter range
0.032 - 0.057 (0.8mm - 1.47mm) cable insulation diameter range
Gold plated contacts provide reliable performance and long life
UL and RoHS compliant
Retail-ready clamshell packaging
