Product Details
＋
Physical Characteristics
Color
Black
Weight
0.14 kg
0.30 lb
Details
Batteries
4 x AAA alkaline batteries
Display Type
Transflective 128 by 64 pixel graphical liquid crystal display (LCD) with LED backlight
Features
Multilingual (English, French, Spanish)
Rugged water and rainproof housing
Angled Bed-of-Nails, Piercing Clip and No-Fault RJ12 Cord Set with dust-cap
Large backlit LCD
Glow in the dark keypad
On-hook voltage and off-hook current readings
Caller ID/Call Waiting Caller ID and error detection
Last number called or received list
Amplified line monitoring
Soft key menu system
Data Defender keeps digital lines safe
Detects and identifies DSL and T1 lines
DTMF Digit Capturing
Displays Ring Frequency & Ring Voltage
Rugged water and rainproof housing
Angled Bed-of-Nails, Piercing Clip and No-Fault RJ12 Cord Set with dust-cap
Large backlit LCD
Glow in the dark keypad
On-hook voltage and off-hook current readings
Caller ID/Call Waiting Caller ID and error detection
Last number called or received list
Amplified line monitoring
Soft key menu system
Data Defender keeps digital lines safe
Detects and identifies DSL and T1 lines
DTMF Digit Capturing
Displays Ring Frequency & Ring Voltage
Current
10 to 110 mA 5%;
Voltage
0 to 200 VDC 5%
Resistance (Ohms)
600 Ohms
Frequency
: 1.5%
Battery Life
7 hours min. 150 hours ma
General Information
Brand
Platinum Tools
Number of Pieces
4
What's Included

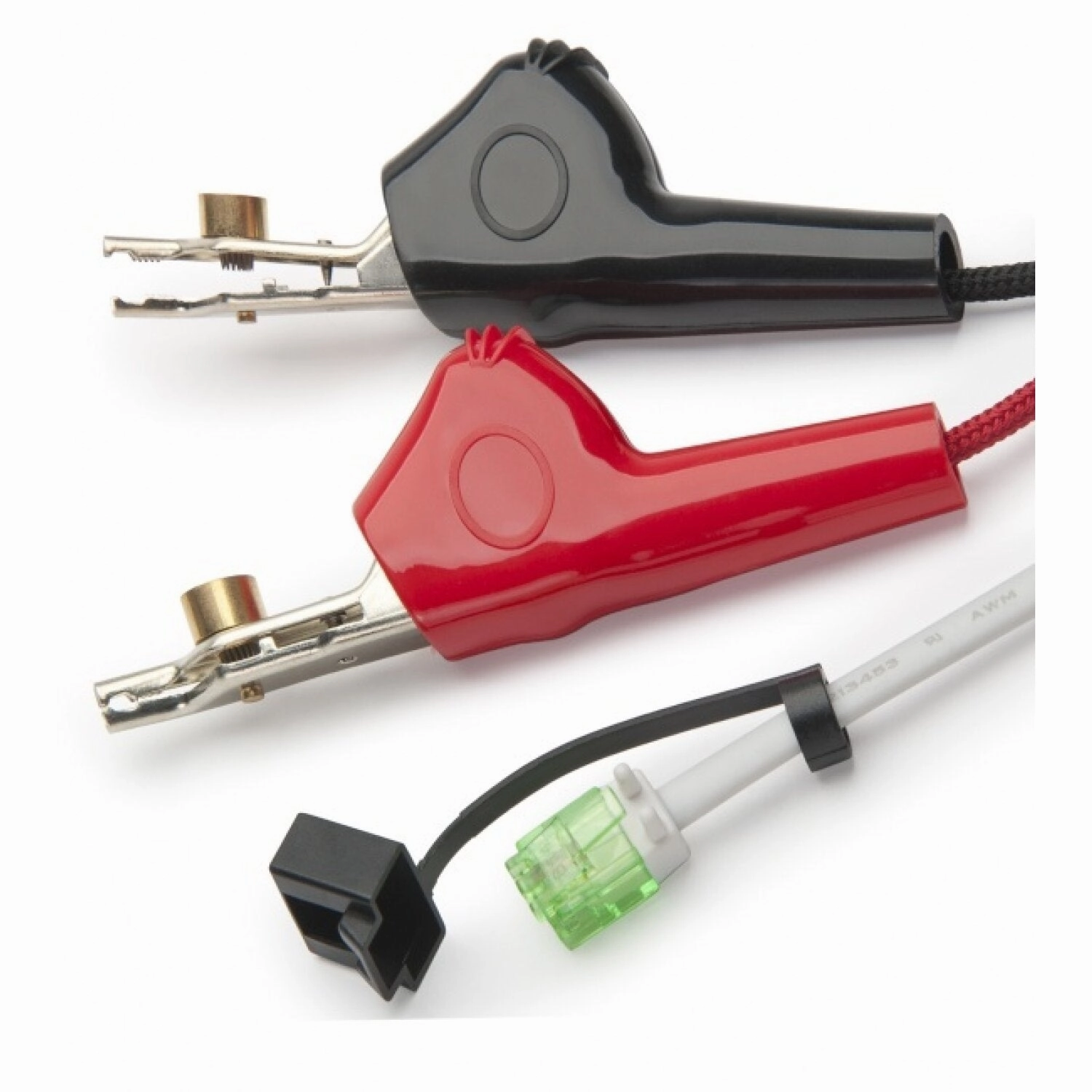

Butt Set Replacement Cord
Country of Origin
China
California Residents
Part Number
6070K1
Product Type

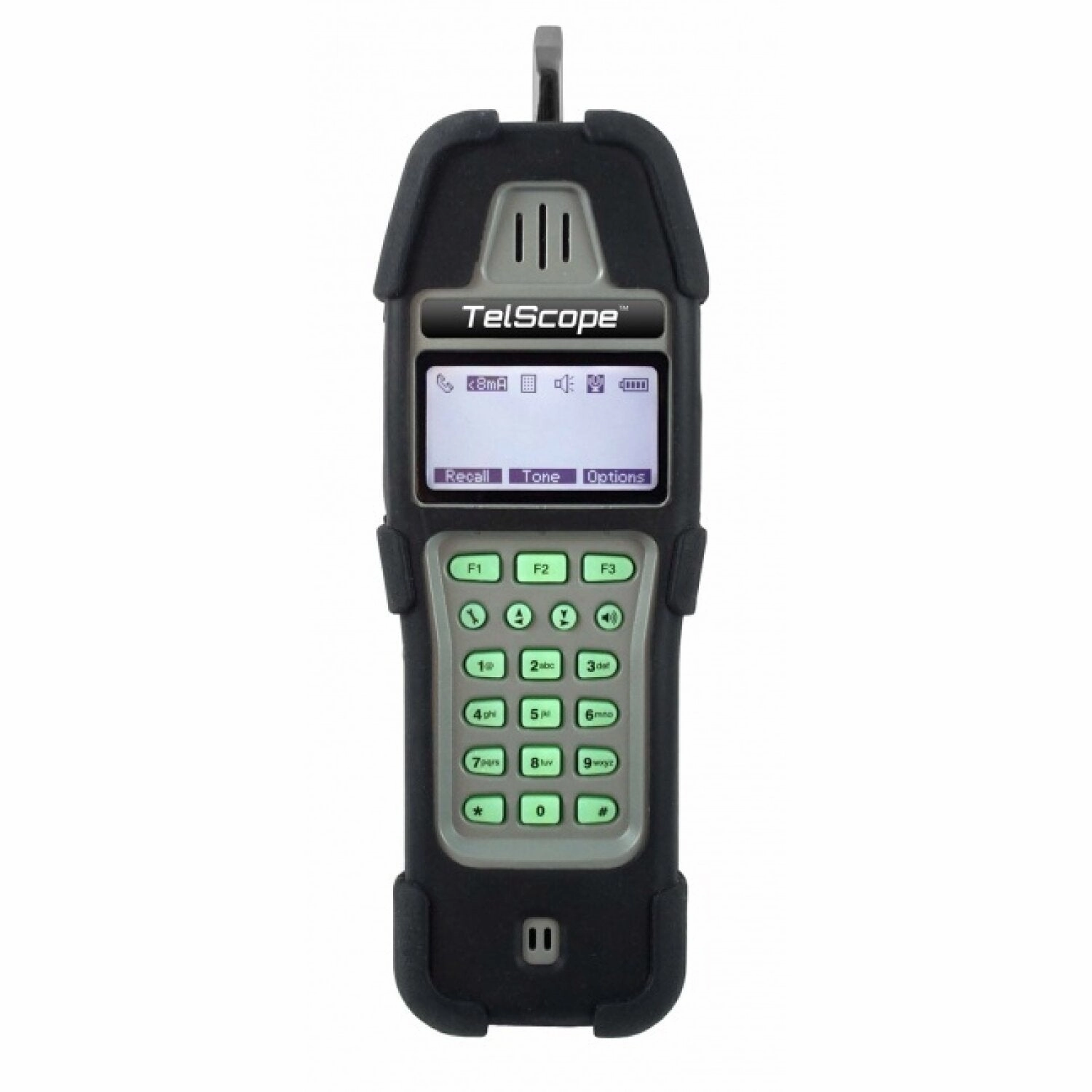

TelScope Telecom Line Analyzer
UPC
849160007135
