Product Details
＋
Physical Characteristics
Material
Nylon
Weight
1.59 kg
3.50 lb
Details
Batteries
9V alkaline battery
Cable Type
Shielded or Unshielded; CAT7, CAT6A, CAT5e, CAT5, CAT4, CAT3, Coax
Display Type
Large 2.75 Backlit Monochrome LCD
Features
Ideal for the installation, troubleshooting and maintenance of twisted pair and coax cables
Detects shorts, opens, miswires, reversals and split-pairs
Tests to T568A/B wiremap configuration
Single-ended testing for shorts and split pairs
Measures length in feet and meters
Identifies cable location on active ports using flashing port link light
Easy-to-read, backlit LCD screen with large icons, glow-in-thedark keypad and built-in LED flashlight for use in dark areas
Identify up to 20 network or coax cable runs at a time
Built-in tone generator with four selectable cadences
Finds and fixes the position of exposed or hidden cables
Continuous loop test mode for troubleshooting
Voltage detection warning icon
Master remote stored in main unit
Measures cable length, distance to opens and breaks specific wires, pairs or all wires simultaneously
Auto-off and timed backlight in any mode for low power consumption and long battery life
Tester, remotes, accessories and plastic hardcase
RoHS compliant
Detects shorts, opens, miswires, reversals and split-pairs
Tests to T568A/B wiremap configuration
Single-ended testing for shorts and split pairs
Measures length in feet and meters
Identifies cable location on active ports using flashing port link light
Easy-to-read, backlit LCD screen with large icons, glow-in-thedark keypad and built-in LED flashlight for use in dark areas
Identify up to 20 network or coax cable runs at a time
Built-in tone generator with four selectable cadences
Finds and fixes the position of exposed or hidden cables
Continuous loop test mode for troubleshooting
Voltage detection warning icon
Master remote stored in main unit
Measures cable length, distance to opens and breaks specific wires, pairs or all wires simultaneously
Auto-off and timed backlight in any mode for low power consumption and long battery life
Tester, remotes, accessories and plastic hardcase
RoHS compliant
Voltage
RJ12/RJ45/F: 50V DC or AC
Battery Life
425 hours
General Information
Brand
Platinum Tools

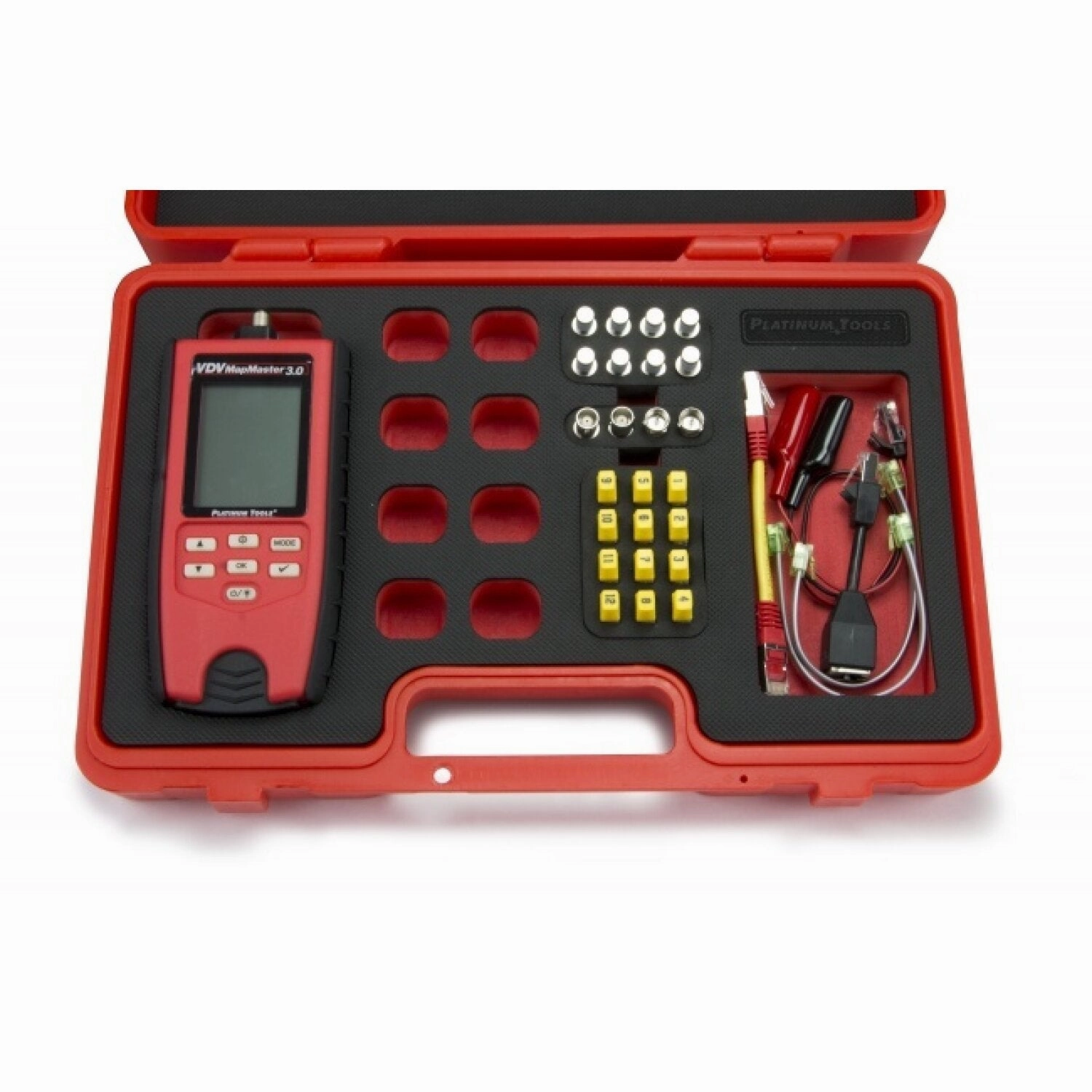

What's Included
Main Unit, Remotes, Accessories and Hard Case
Country of Origin
Taiwan
California Residents
Part Number
T130K4
Product Type
Tester PRO Kit
UPC
849160010982
