4 x AAA alkaline

Transflective 128 by 64 pixel graphical liquid crystal display (LCD) with LED backlight

Large backlit display for low light environments and glow-in-the-dark keypad
Advanced data detection and identification -- 100% data safe
Rugged weatherproof case conforms to the IP54 Standard and drop tested to 20ft

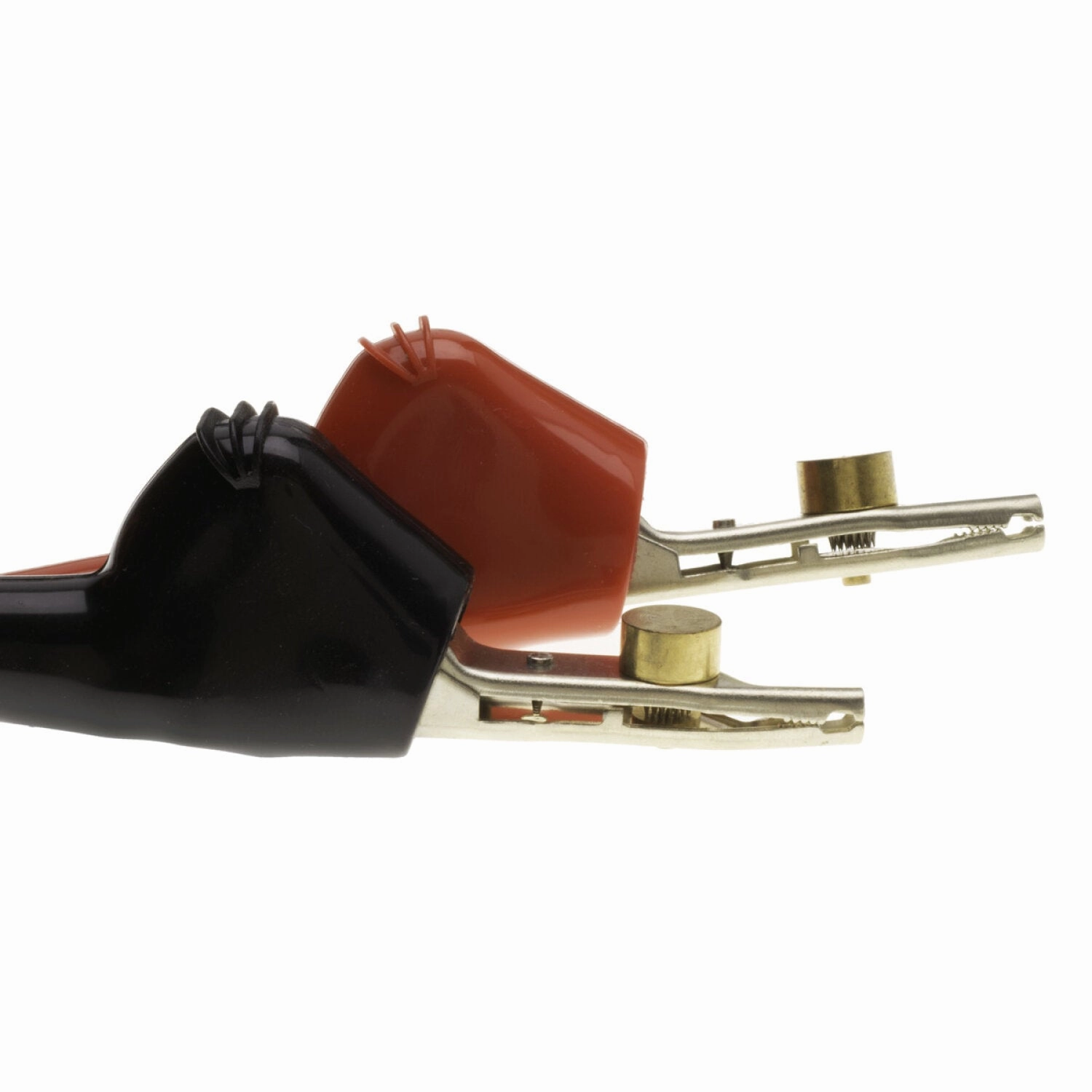

60-in cord set with Alligator Clips, Angled Bed-of-Nails, Piercing Point and No-Fault RJ12 8P8C connector
Speaker with fine volume adjustment and noise canceling microphone
Microphone mute with toggle on/off locking feature
Soft key menu system

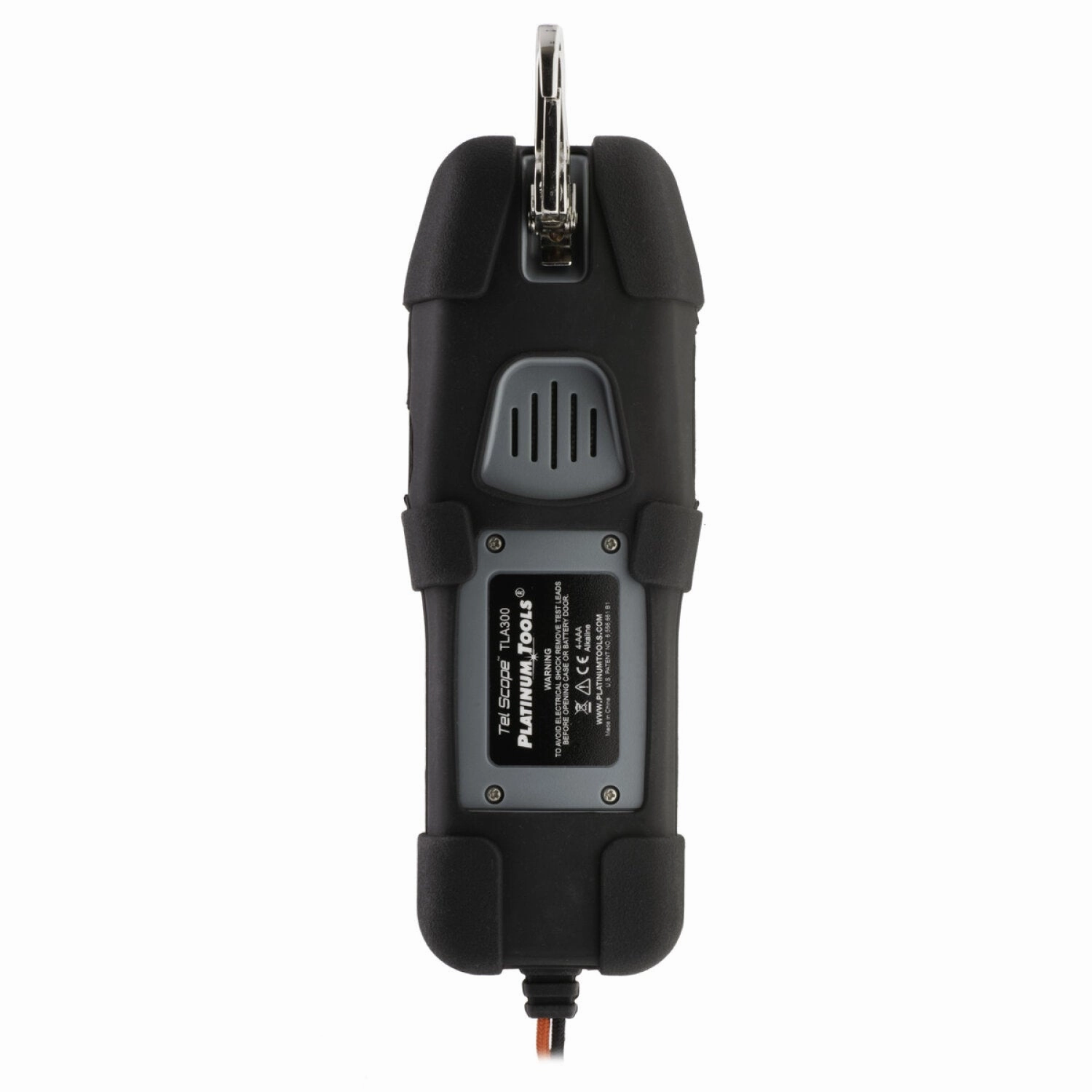

Metal spring-loaded belt clip
Cushion boot for extra protection
Off-hook current and polarity, and On-hook voltage and polarity
On-hook and call waiting Caller ID info
Amplified Line Monitor for volume levels comparable to
8 number Stored memory with Alpha/Numeric tags
Fuel Gauge Battery condition and Configurable Auto Off in all modes
Continuous Polarity Indication
Caller ID/Call Waiting and Caller ID error detection, Detects and identifies DSL and T1 lines
Tone and Pulse dialing, Last number dialed, redialed or received

10 to 110 mA 5%;

0 to 200 VDC 5%;

1.5%

7 to 150 Hour

Platinum Tools

United States

TLA300-1

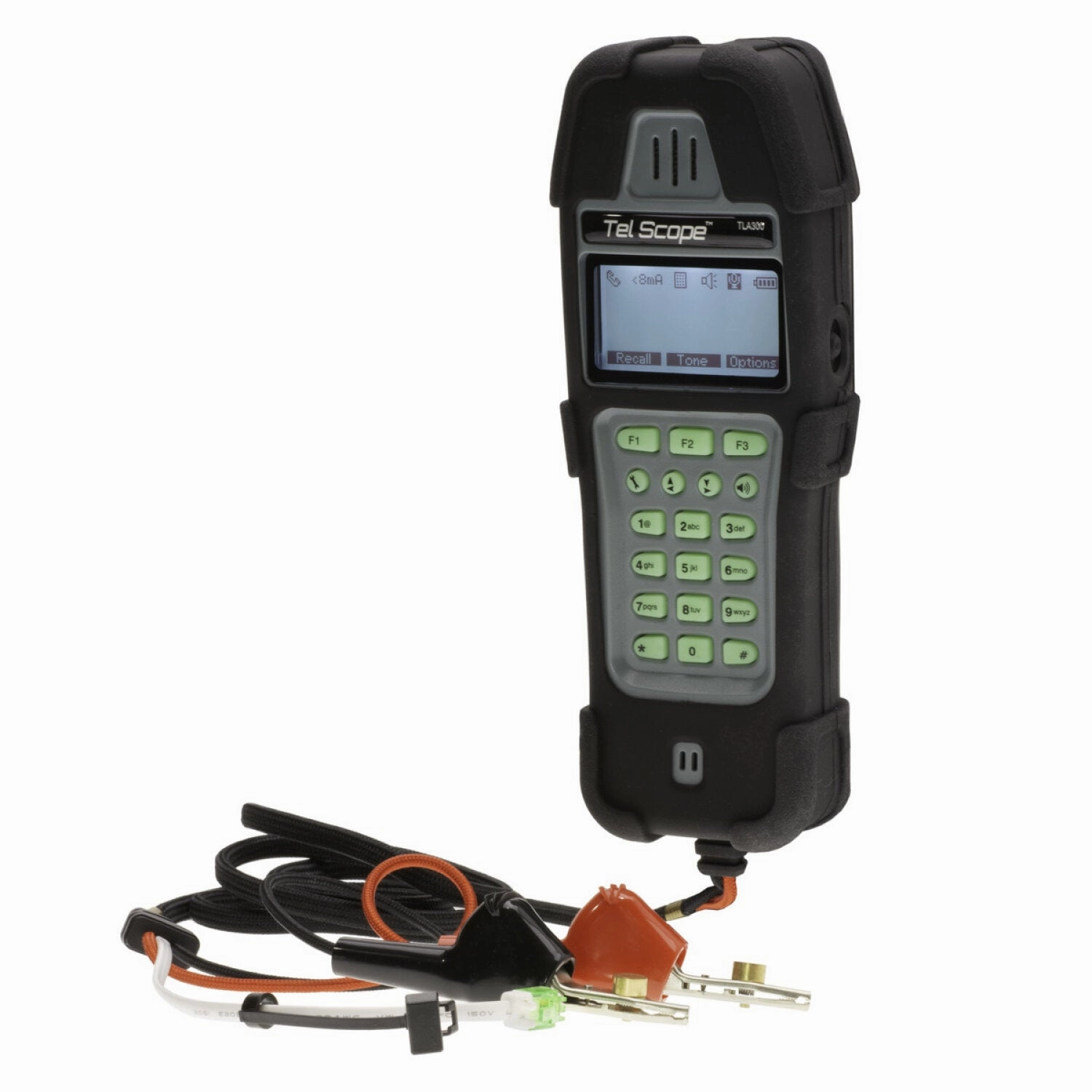

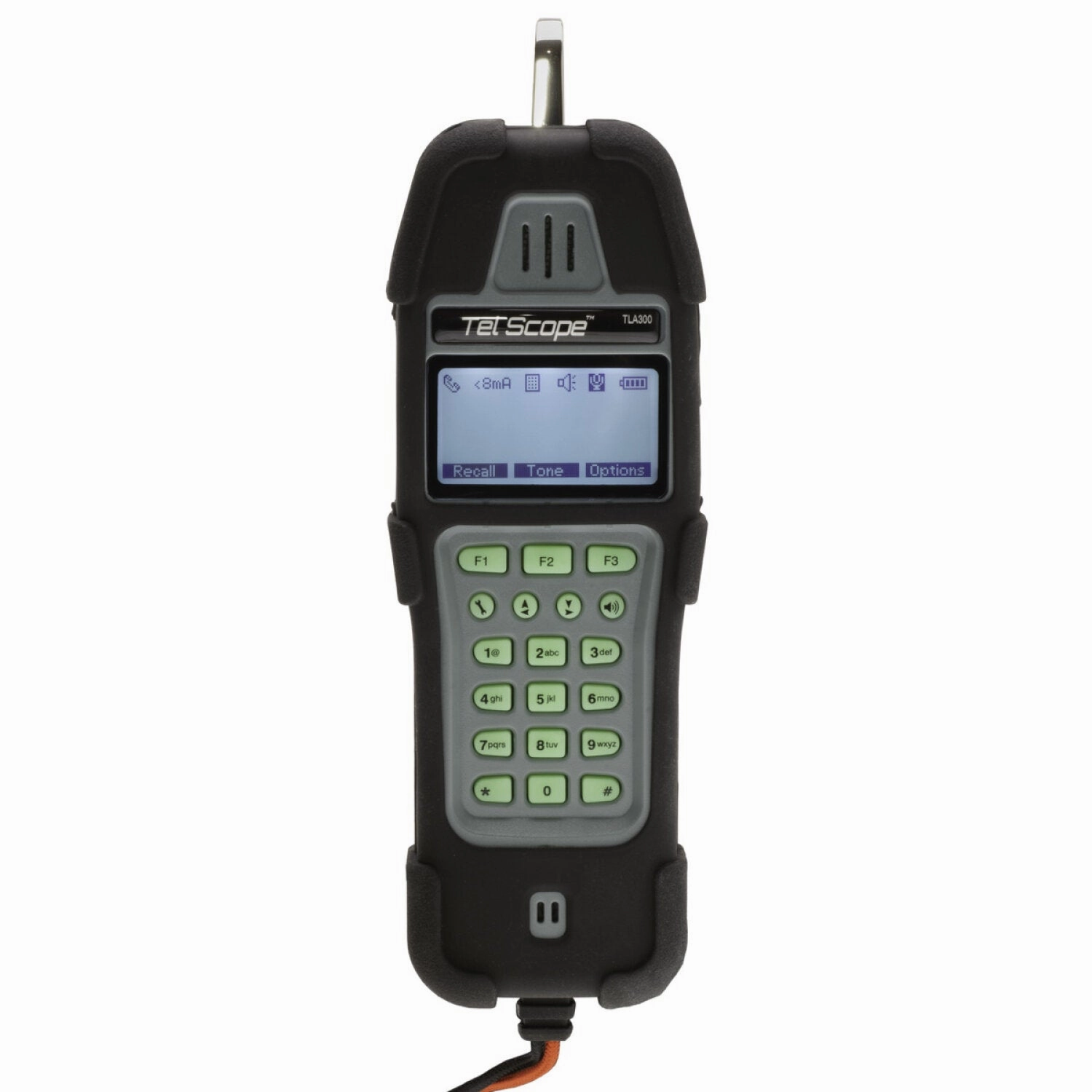

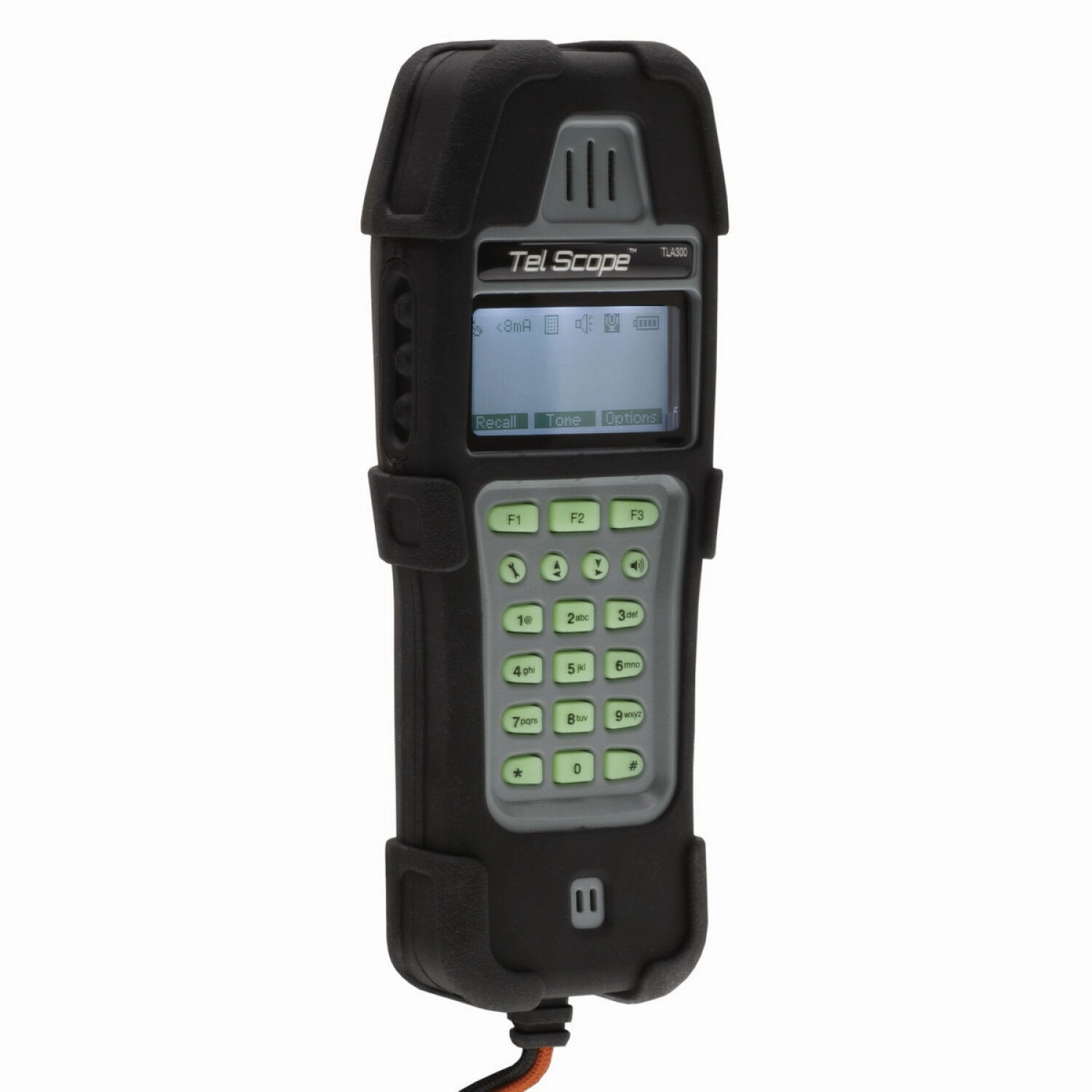

TelScope Telecom Line Analyzer

849160012030
