Product Details
＋
Physical Characteristics
Weight
7.71 kg
17.00 lb
Details
Batteries
Li-Ion, 7.8V 5500mA
Temperature Range
Operating: -10 to 60C Storage: -20 to 50C When Charging: 10 to 40C
Features
Network testing, cable testing and Ethernet speed certification up to 10G
Tests twisted pair, wifi and fiber optic systems
Cable qualification to IEEE standards
TDR and fiber cable length measurement, including distance to opens and shorts
PoE testing up to 90W (PoE ), including load, current and voltage
Ethernet speed certification and cable qualification to 1/2.5/5/10G
TIA568A/B wiremap testing, mapping, traceroute and custom cable labeling
Tone generator and network ping to a specific IP or URL address
Link light to identify location on a switch
Verifies DHCP connectivity and DNS, and discovers CDP and LLDP protocols

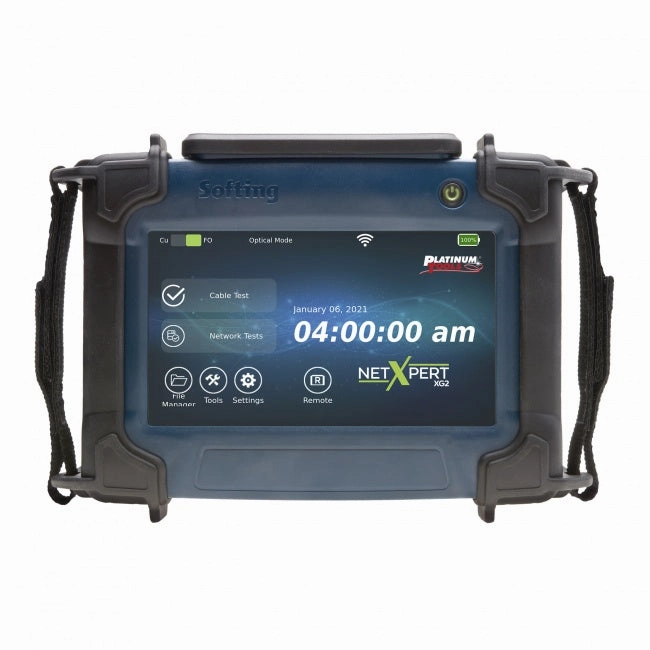

Full color 7" touchscreen in durable armored housing
Convenient form factor with safety hand straps and built-in kickstand
Powered by rechargeable lithium/ion battery pack with optional high-energy upgrade (p/n TXGBATX) or test on AC whille charging

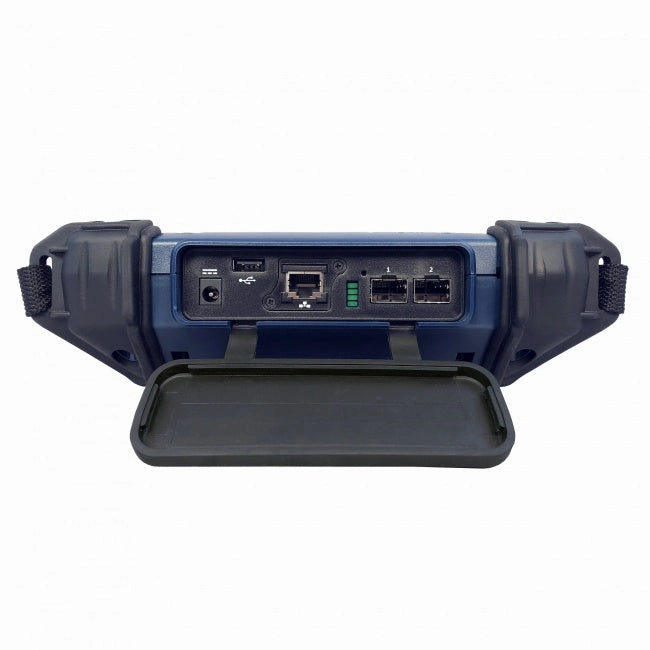

Field-replaceable RJ45 port, dual SFP ports and USB port
Easy software updates over wifi or cable for future feature expansion
Generate, document, log and export test reports in PDF, CSV and XML formats
RoHS compliant
Tests twisted pair, wifi and fiber optic systems
Cable qualification to IEEE standards
TDR and fiber cable length measurement, including distance to opens and shorts
PoE testing up to 90W (PoE ), including load, current and voltage
Ethernet speed certification and cable qualification to 1/2.5/5/10G
TIA568A/B wiremap testing, mapping, traceroute and custom cable labeling
Tone generator and network ping to a specific IP or URL address
Link light to identify location on a switch
Verifies DHCP connectivity and DNS, and discovers CDP and LLDP protocols
Full color 7" touchscreen in durable armored housing
Convenient form factor with safety hand straps and built-in kickstand
Powered by rechargeable lithium/ion battery pack with optional high-energy upgrade (p/n TXGBATX) or test on AC whille charging
Field-replaceable RJ45 port, dual SFP ports and USB port
Easy software updates over wifi or cable for future feature expansion
Generate, document, log and export test reports in PDF, CSV and XML formats
RoHS compliant
Battery Life
4 hour
General Information
Brand
Platinum Tools
Country of Origin
Germany
California Residents
Part Number
TXG200-FO
Product Type
NetXpert XG2 Fiber Optic Kit
UPC
849160013549
Return Policy
NCNR - Non-Cancellable / Non-Returnable
