Product Details
＋
General Information
Brand
Stahlwille
Part Number
50184005
Product Type

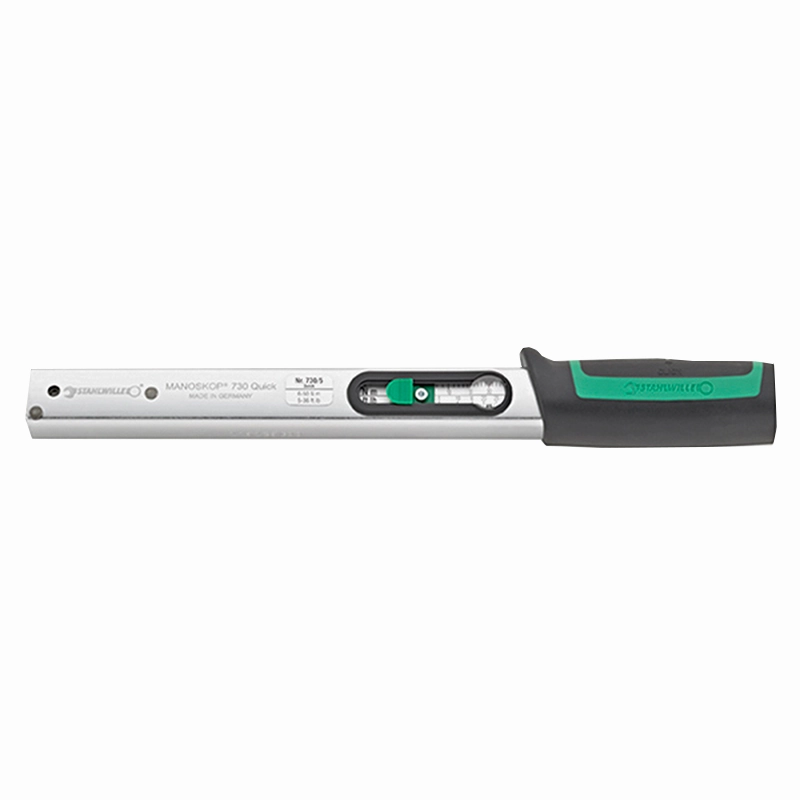

Quick Basic Wrench
Packaging
Retail
Country of Origin
Germany
UPC
4018754268856
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Green / Black
Material
C35 Tool Steel
Length
315 mm
Width
28 mm
Height
23 mm
Weight
1.72
Details
Wrench Type
Quick Change
Size
Size: 5
9 x 12 mm
9 x 12 mm
Grip Type
Convex Handle
Features
click-type
mount for interchangeable insert tools
QuickRelease safety lock
rapid setting by easy to operate locking lever inside the handle, ergonomically designed, non-slip adjusters with a thumb recess and magnifying glass integrated into the window
optimised convex handle for strain-free working
dual stop signal
twin scales Nm/ft-lb and Nm/in-lb
the measuring element is only under load while force is being applied, no need for manual reset to zero
can be applied for either clockwise or counterclockwise tightening by turning the inserts over
any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it.
calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly.
with certificate
display deviation value /- 4%
mount for interchangeable insert tools
QuickRelease safety lock
rapid setting by easy to operate locking lever inside the handle, ergonomically designed, non-slip adjusters with a thumb recess and magnifying glass integrated into the window
optimised convex handle for strain-free working
dual stop signal
twin scales Nm/ft-lb and Nm/in-lb
the measuring element is only under load while force is being applied, no need for manual reset to zero
can be applied for either clockwise or counterclockwise tightening by turning the inserts over
any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it.
calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly.
with certificate
display deviation value /- 4%
Torque Range ft lbs
5 - 36 ft lbs
Torque Range Nm
6 - 50 Nm
Torque Accuracy
/- 4%
Torque Display Scale
Twin Scales
