Product Details
＋
General Information
Brand
TREND Networks
Part Number
R156005
Product Type

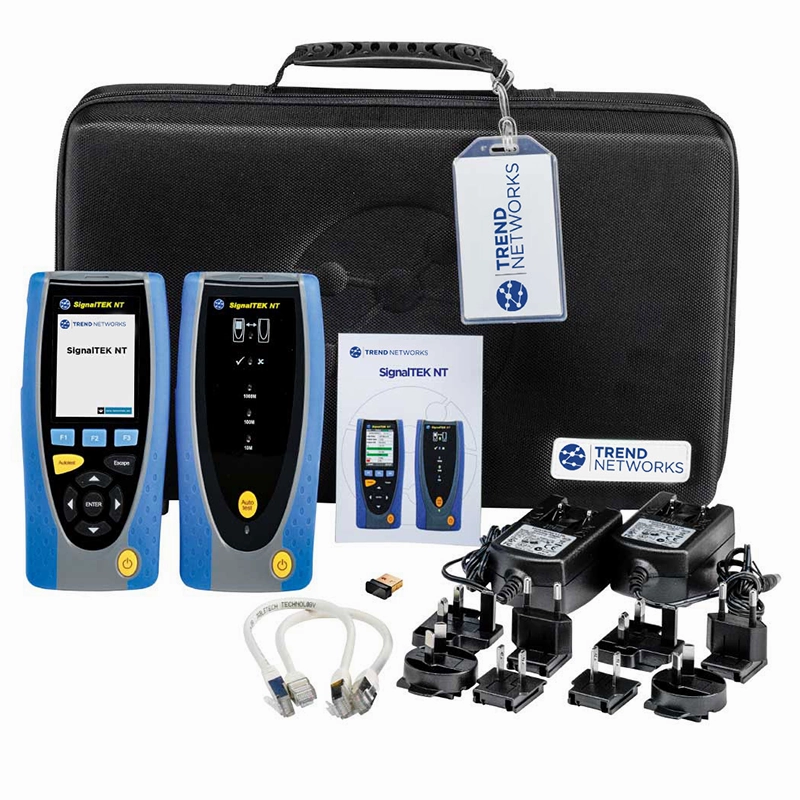

Network Transmission Tester Kit
What's Included
Network Tester / Carrying Case / Power Supply & Charger / RJ45 Patch Cable Kit
Packaging
Retail
UPC
783250800933
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Weight
2.77 kg
6.10 lb
Color
Blue / Black / Gray
Material
ABS
Details
Features
Installation Testing / Cabling:
Network traffic performance test on copper and fiber to IEEE802.3ab standard
Wiremap test for open, shorts, miswires and split pairs to TIA-568 standard
Gigabit link verification for copper and fiber cabling
Active Network:
Network load testing through switches simulating CCTV/IPTV/VoIP/Web traffic
PoE/PoE verification that displays available voltage at device location
Check Ethernet connectivity at device location to 10/100/1000 Mb/s
Verify network configuration (device IP/gateway address/subnet mask)
Switch port identification via LLDP/CDP protocols
Troubleshooting / Diagnostics Cabling:
Distance to fault using TDR technology (copper only)
Ability to identify and trace cables with a compatible amplifier probe
Optical power indication (with compatible SFP modules)
Active Network:
Network load testing through switches simulating CCTV/IPTV/VoIP/Web traffic
Stress test network before installing bandwidth hungry devices
Port blink to visually trace cable from work area outlet to network switch
Displays port ID of LLDP/CDP enabled switches to eliminate manual cable tracing
Identify network connection problems as hardware, network or configuration faults
Ping local network devices and Internet URLs
Count number of hops between network points with traceroute tests
PoE load testing to confirm available power meets PoE device requirements
Applications:
SignalTEK NT is used to quickly prove that Ethernet will work correctly after installation in cable installations such as SOHO or residential cabling where cable certification is cost prohibitive or where the end customer does not require the cable manufacturers warranty programs.
Workstation or Laptop has an extremely slow network access. SignalTEK NT can be used to run a simplified transmission test to check network performance
A 100Mb/s LAN environment gets upgraded to 1 Gb/s. SignalTEK NT can be used to check if the existing (old) cabling can support up to 1Gb/s Ethernet
An existing LAN installation gets upgraded to VoIP. SignalTEK NT can be used to check if both the cabling as well as the active components can support VoIP traffic
After MACs (Moves/Adds/Changes) of active devices, SignalTEK NT can be used to ensure minimum bandwidth requirements are met.
In industrial Ethernet applications, SignalTEK NT can be used to verify cabling performance to 100Mb/s or Gigabit requirements
SignalTEK NT can be used to test throughput of an industrial Ethernet LAN
Network traffic performance test on copper and fiber to IEEE802.3ab standard
Wiremap test for open, shorts, miswires and split pairs to TIA-568 standard
Gigabit link verification for copper and fiber cabling
Active Network:
Network load testing through switches simulating CCTV/IPTV/VoIP/Web traffic
PoE/PoE verification that displays available voltage at device location
Check Ethernet connectivity at device location to 10/100/1000 Mb/s
Verify network configuration (device IP/gateway address/subnet mask)
Switch port identification via LLDP/CDP protocols
Troubleshooting / Diagnostics Cabling:
Distance to fault using TDR technology (copper only)
Ability to identify and trace cables with a compatible amplifier probe
Optical power indication (with compatible SFP modules)
Active Network:
Network load testing through switches simulating CCTV/IPTV/VoIP/Web traffic
Stress test network before installing bandwidth hungry devices
Port blink to visually trace cable from work area outlet to network switch
Displays port ID of LLDP/CDP enabled switches to eliminate manual cable tracing
Identify network connection problems as hardware, network or configuration faults
Ping local network devices and Internet URLs
Count number of hops between network points with traceroute tests
PoE load testing to confirm available power meets PoE device requirements
Applications:
SignalTEK NT is used to quickly prove that Ethernet will work correctly after installation in cable installations such as SOHO or residential cabling where cable certification is cost prohibitive or where the end customer does not require the cable manufacturers warranty programs.
Workstation or Laptop has an extremely slow network access. SignalTEK NT can be used to run a simplified transmission test to check network performance
A 100Mb/s LAN environment gets upgraded to 1 Gb/s. SignalTEK NT can be used to check if the existing (old) cabling can support up to 1Gb/s Ethernet
An existing LAN installation gets upgraded to VoIP. SignalTEK NT can be used to check if both the cabling as well as the active components can support VoIP traffic
After MACs (Moves/Adds/Changes) of active devices, SignalTEK NT can be used to ensure minimum bandwidth requirements are met.
In industrial Ethernet applications, SignalTEK NT can be used to verify cabling performance to 100Mb/s or Gigabit requirements
SignalTEK NT can be used to test throughput of an industrial Ethernet LAN
