Product Details
＋
General Information
Brand
TREND Networks
Part Number
R158006
Product Type
Cable Tester

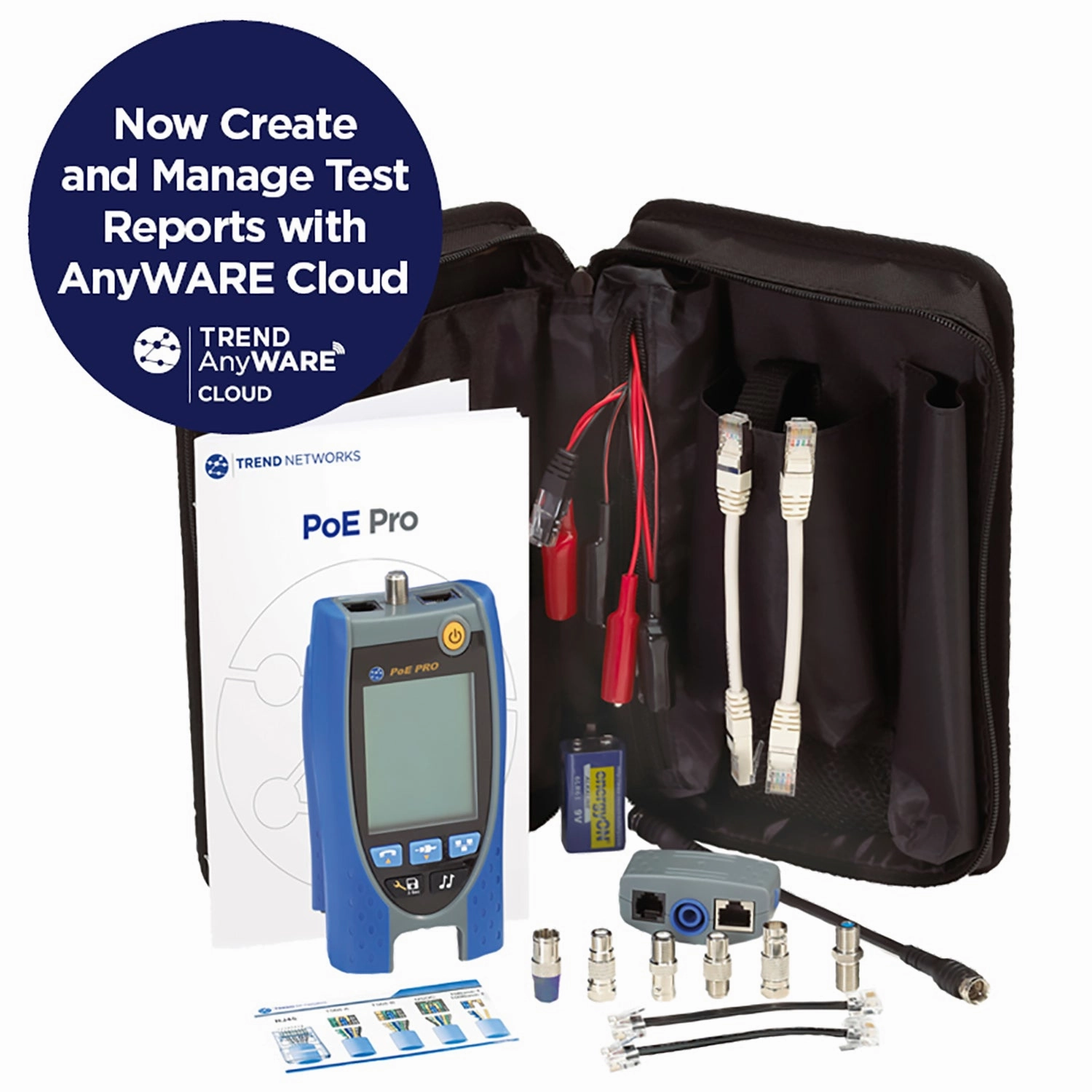

What's Included
1 x tester
1 x dual port remote unit
1 x coax remote unit
1 x alkaline battery
1 x multi-language user guide
2 x RJ45 to alligator clip cable 390mm
2 x screened RJ45 to RJ45 cable 150mm
2 x RJ12 to RJ12 cable 100mm
1 x F-type plug to F-type plug cable 230mm
1 x F-81 barrel splice
1 x BNC female to F-type male adaptor
1 x BNC female to F-type female adaptor
1 x RCA female to F-type male adaptor
1 x RCA female to F-type female adaptor
1 x wallet wiring card
1 x carry case
1 x dual port remote unit
1 x coax remote unit
1 x alkaline battery
1 x multi-language user guide
2 x RJ45 to alligator clip cable 390mm
2 x screened RJ45 to RJ45 cable 150mm
2 x RJ12 to RJ12 cable 100mm
1 x F-type plug to F-type plug cable 230mm
1 x F-81 barrel splice
1 x BNC female to F-type male adaptor
1 x BNC female to F-type female adaptor
1 x RCA female to F-type male adaptor
1 x RCA female to F-type female adaptor
1 x wallet wiring card
1 x carry case
Packaging
Retail
UPC
5056310402039
California Residents
Physical Characteristics
Length
6 in.
Width
3 in.
Height
1.4 in.
Weight
0.27 kg
0.60 lb
Color
Blue
Material
Polymer
Details
Features
Cable Verification
Supports RJ45, RJ11/12 and Coax connections
Wiremap for miswires, split pairs, shorts and opens
Shielded cable testing
Cable length
Distance to Open / Short (TDR)
Cable Tracing
Analog and digital tone generator
Compatible with common cable tracing probes
Active Network Testing
Port Blink
Media Service Detection Ethernet, analogue / digital teIephone service and ISDN
Ethernet Speed Detection
Other Features
Instantaneous results results are shown as soon as you plug in the cable
Larger 2.9 display
Backlight
Over-voltage protection
PoE Testing:
AnyWARE Cloud connectivity and reporting via the AnyWARE app
Ethernet Speed Detection
1G/2.5G/5G/10G
Automatic Pass/Fail testing of available power to standard requirements
Supports 802.3bt High Power PoE (up to 90 watts)
Compatible with most non-standard PoE injectors
Identifies PSE Type (af/at/bt)
Identifies PSE Class 0 to 8
Determines maximum power available (watts) at the device location
Displays voltage
Displays how many pairs have PoE
